Equipment Inventory TEWS Technologies TPMC866

TEWS Technologies TPMC866

$0.00

Quantity:
Add To Cart

TEWS Technologies TPMC866

$0.00

Quantity:
Add To Cart

Product Specifications

  • Mechanical Interface: PCI Mezzanine Card (PMC) Interface Single Size

  • Electrical Interface: PCI Rev. 2.2 compliant, 33 MHz / 32 bit PCI 3,3V and 5V signaling voltage

  • PCI Target Chip: PCI9030 (PLX Technology)

  • Serial Controller: 2x ST16C654 (Quad UART (Exar)

  • Number of Serial Channels: 8

  • Physical Interface: TPMC866-10R: RS232, TPMC866-11R: RS422

  • I/O Signals: TPMC866-10R: TxD, RxD, RTS, CTS, GND
    Additionally for Channel 1 and 2: DTR, DSR, DCD, RI
    TPMC866-11R: TxD+, TxD-, RxD+, RxD-, GND

  • On Board Termination: TPMC866-11R: 120 ohms between RxD+ and RxD- for each

    channel

  • ESD Protection:
    +/-15kV Human Body Model

    +/- 8kV IEC 1000-4-2, Contact Discharge (RS232)

    +/-15kV IEC 1000-4-2, Air-Gap Discharge (RS232)

  • FIFO: 64 byte transmit FIFO, 64 byte receive FIFO per channel

  • Baud Rates: Each channel programmable for up to 460.8 kbaud

  • I/O Connector: HD50 SCSI-2 type female connector (front I/O)

    PMC P14 I/O (64 pin Mezzanine Connector)

  • Power Requirements:
    TPMC866-10R: 15mA typical @ +5V DC

    100mA typical @+3,3V DC

    TPMC866-11R: 85mA typical @ +5V DC

    100mA typical @+3,3V DC

  • Temperature Range:
    TPMC866-10R/-11R: Operating: 0°C to +70 °C

    Storage: -25°C to +125°C

    TPMC866-xxR-ET: Operating: -40°C to +85°C

    Storage: -40°C to +125°C

Manufactured by TEWS Technologies. Refurbished in good condition.

The TPMC866-11R is an 8 Channel Serial Interface. It is a standard single-width 32 bit PMC module and provides eight channels of high performance serial interface with I/O and P14 back I/O. It provides an 8 channel RS422 interface using differential line transceivers. The transmit data (TxD +/-), Receive Data (RxD +/-) and GND signals are provided for each serial channel. The receiver signal termination for each channel (120ohm between RxD+ and RxD-) is provided on board the TPMC866. Each channel of the TPMC866-10R/11R has a 64 byte transmit FIFO and a 64 byte receive FIFO to significantly reduce the overhead required to provide data to and get data from the transmitters and receivers. The baud rate is individually programmable for up to 460.8Kbaud per channel. All channels use the PCI interrupt INTA. For fast interrupt source detection the TPMC866-xx provides an Interrupt Status Register covering all interrupt sources. I/O line transceivers are protected against electrostatic discharge (ESD). All TPMC866 modules are available in extended temperature range as TPMC866-xx-ET versions.

SKU#1C

Qty 5

Alternative P/N #: TPMC866, TPMC866-11R, TPMC 866, TPMC 866 11R


Product Manual

Tews Technologies TMPC866-11R Manual


Product Images

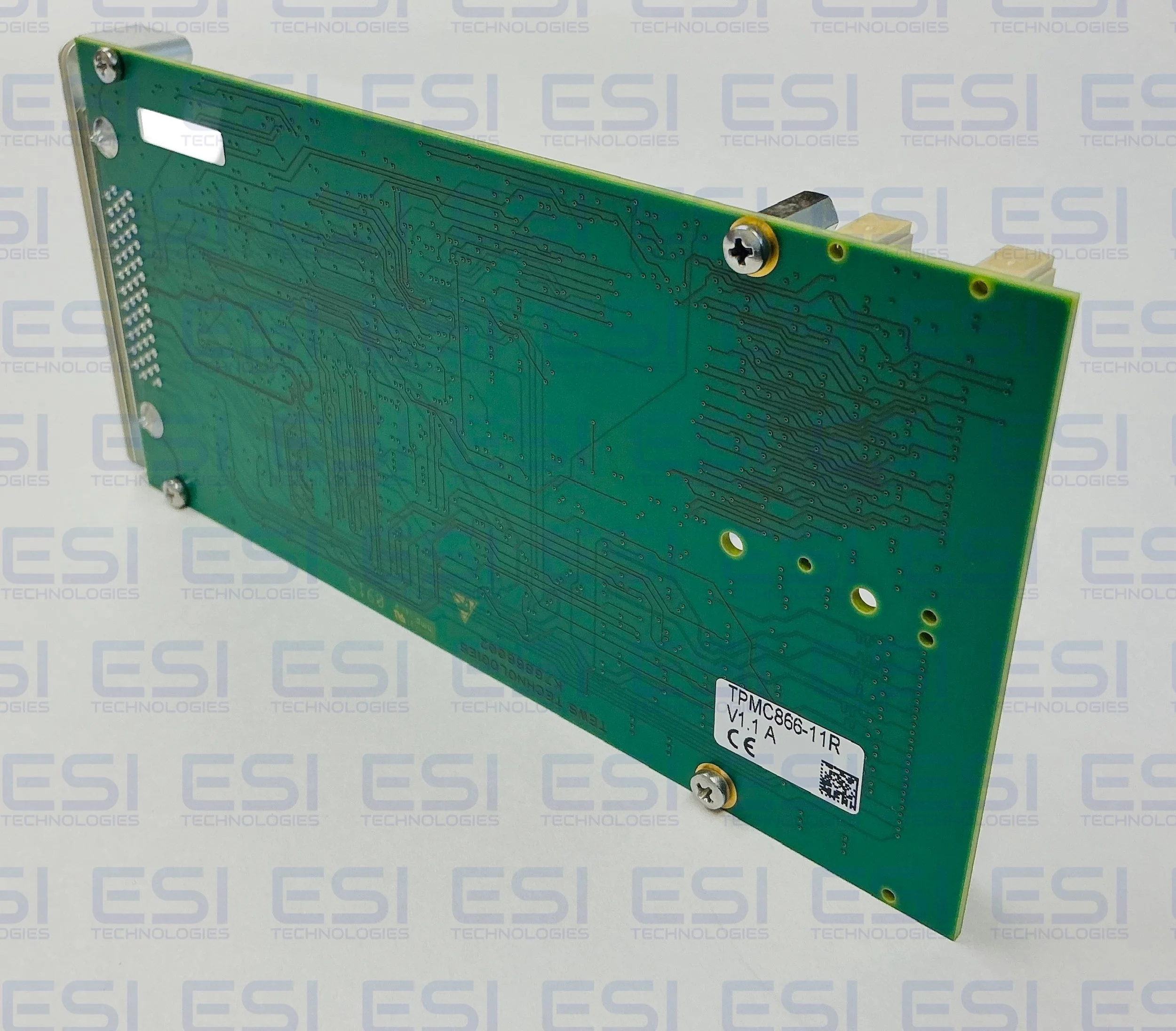

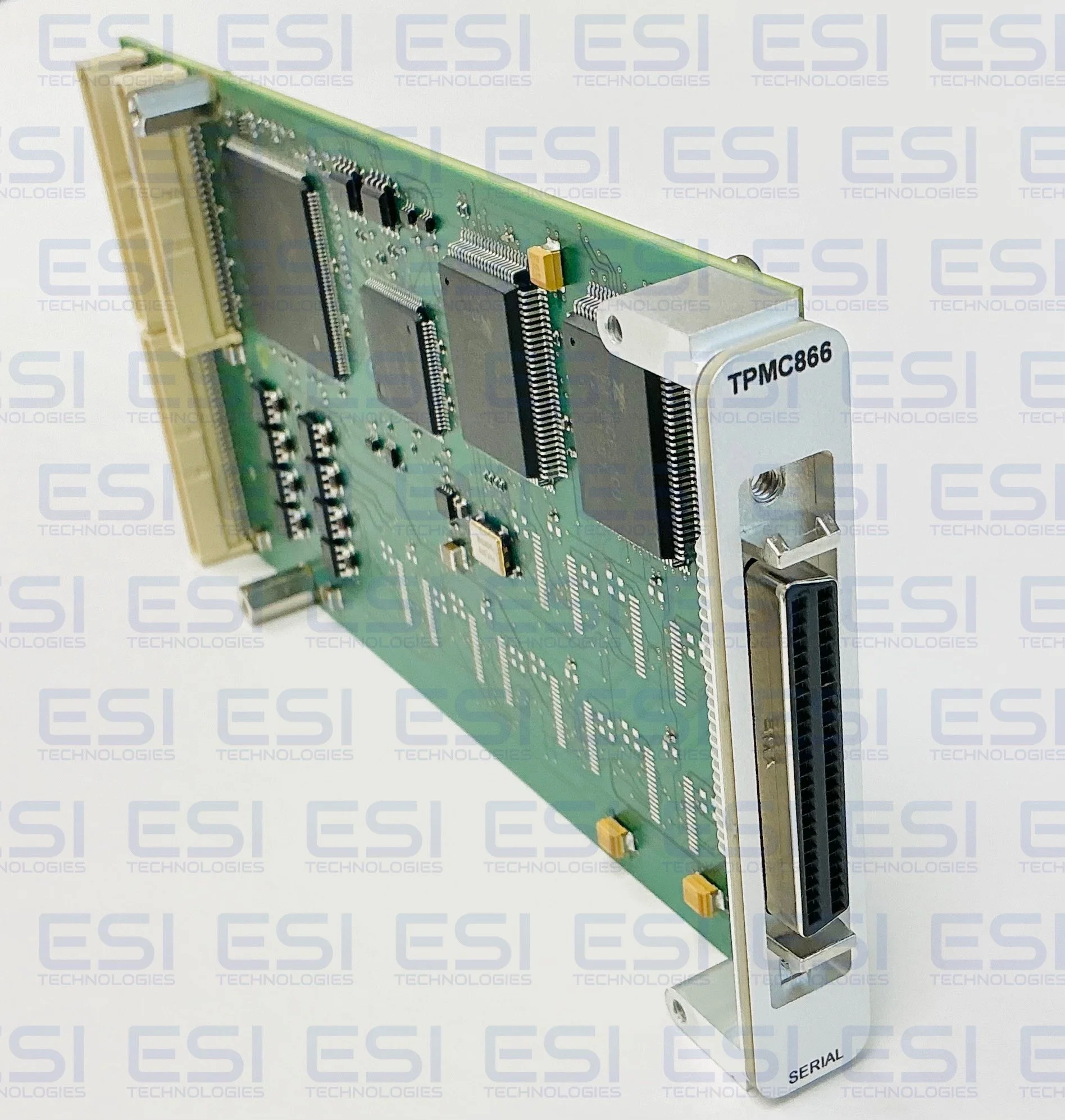

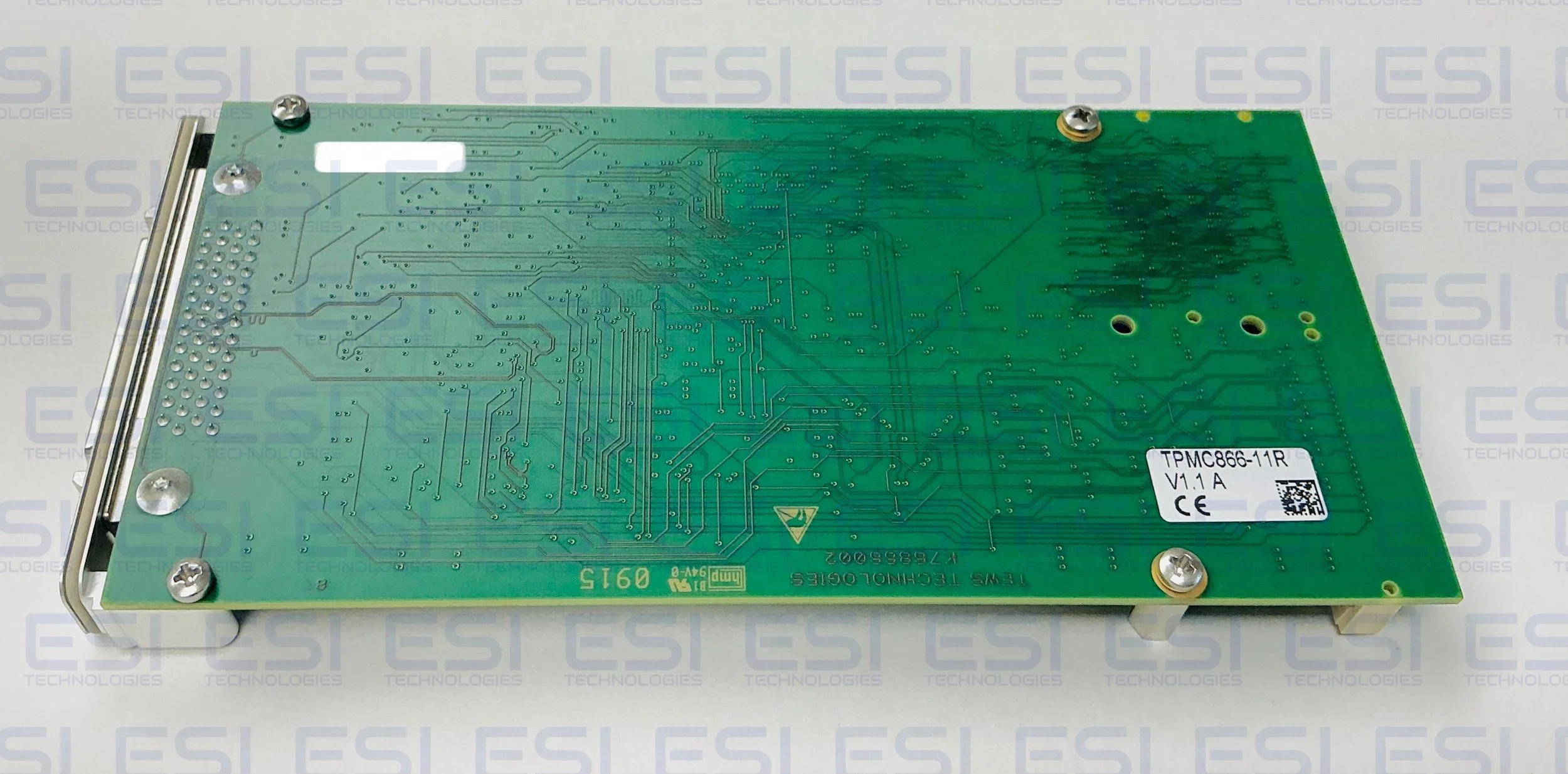

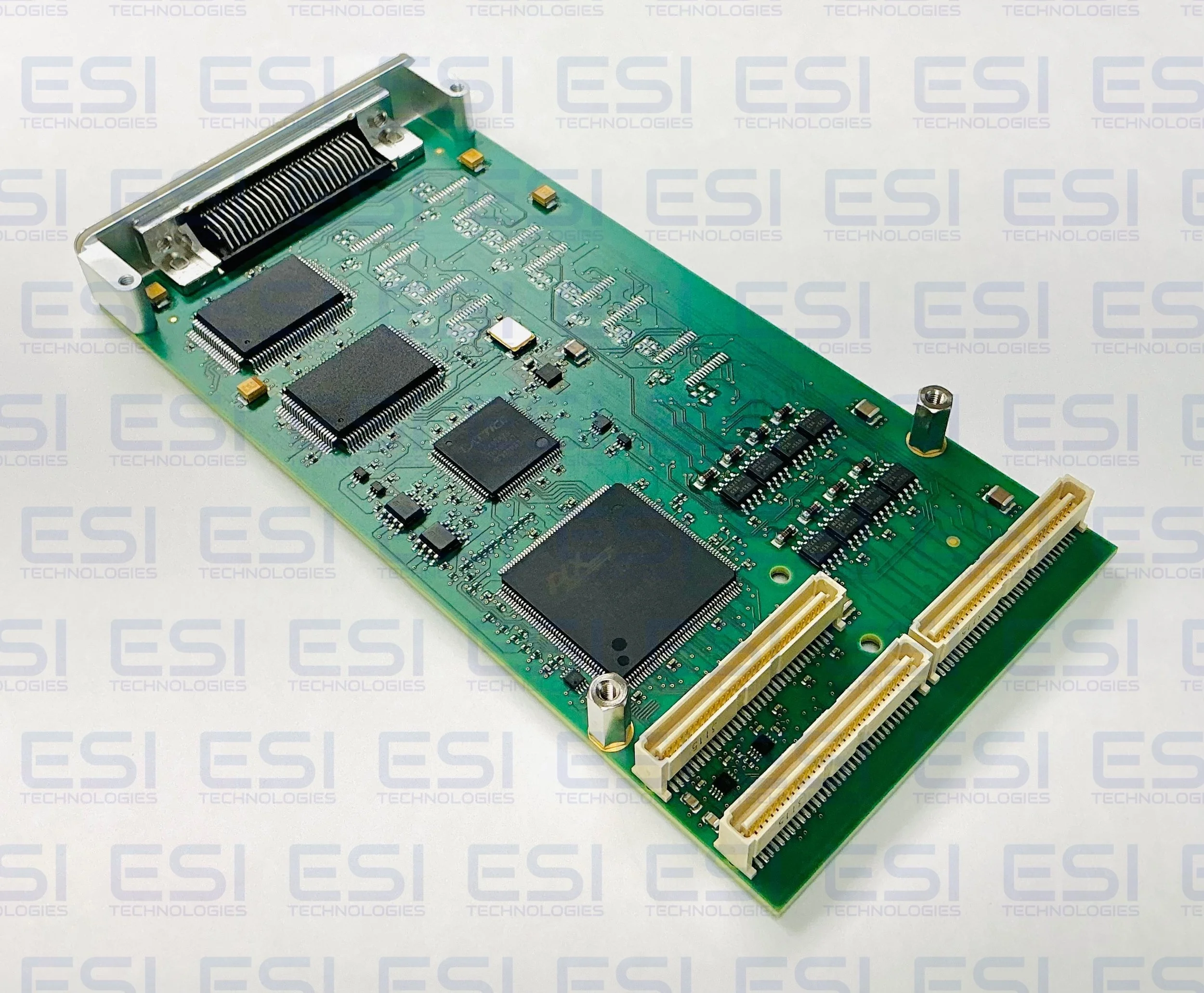

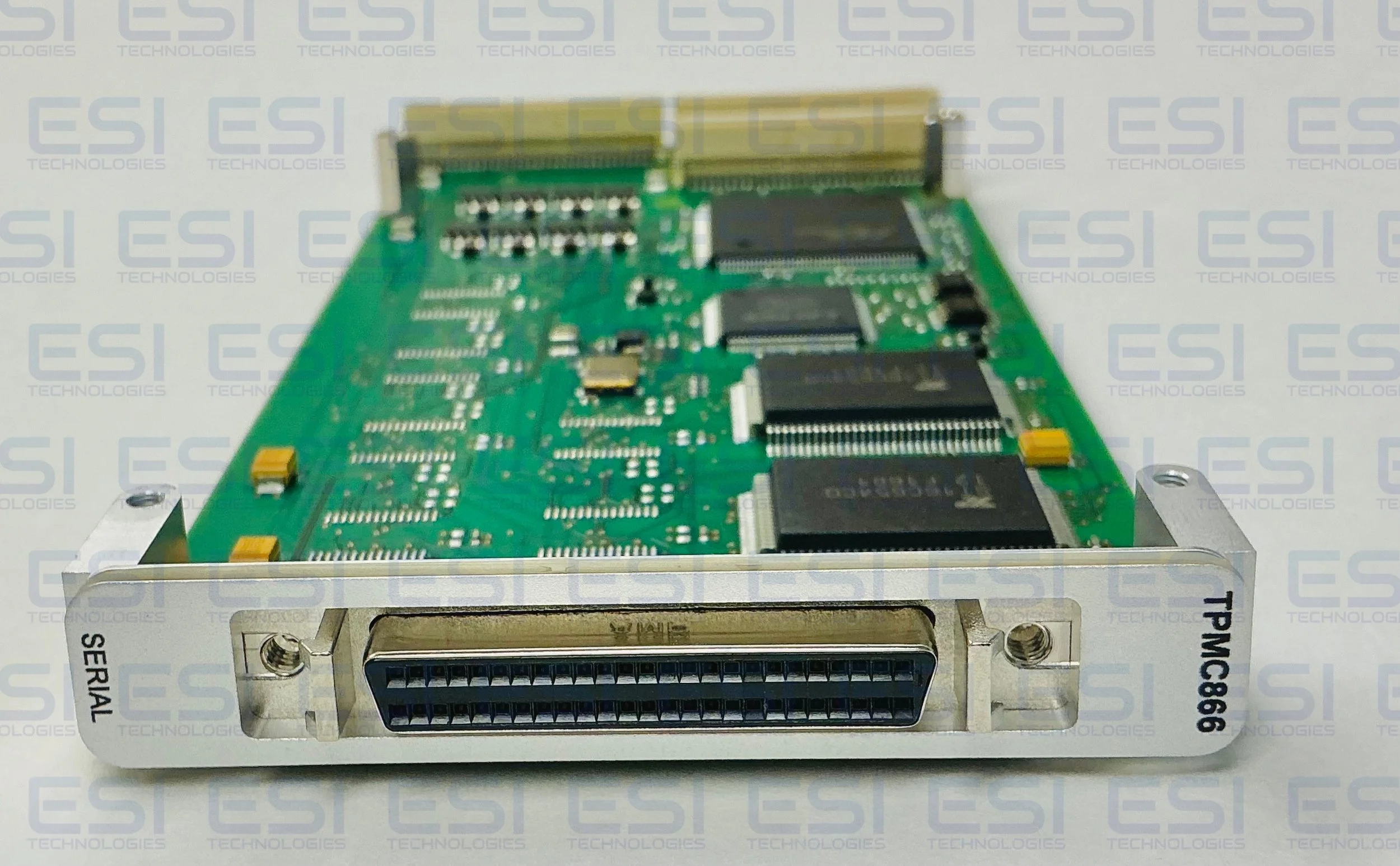

TPMC866-11R  embedded.jpg
TPMC866-11R   Embedded.jpg
