Product Specifications
High-performance PowerPC Real-time
Engine (6750-SSIO: with Extended I/O)
PowerPC 750, 300/400 MHz, 1 MByte
L2 cache; 233 MHz, 512 KByte L2 cache
16 to 256 MByte DRAM
(SDRAM or EDO/ECC)
4 or 8 MByte User Flash, 512 KByte
Boot Flash
10BaseT/100BaseTx Ethernet port (6750-SSIO: 10BaseT/100BaseTx Ethernet
or AUI Ethernet, Fast Wide SCSI-2 port)
Two serial ports (6750-SSIO: six serial ports)
Two PMC slots (6750-SSIO: one PMC slot)
Programmable watchdog
Single slot design, VME64
Manufactured by Forced Computers. Refurbished in good condition.
The PowerCore-6750™ and 6750-SSIO™, two new boards in Force’s PowerCore™ product family, combine enhanced processor performance with the VME architecture. VMEbus modularity allows you to choose from dozens of hardware and software configurations, so you’ll adapt system designs to specific applications quickly and easily. You can also capitalize on the outstanding performance and throughput of the VME architecture, the world’s most widely used 32/64-bit bus architecture for embedded applications. You’ll focus on product enhancements instead of basic computing.
SKU#1B
Qty 1
Alternative P/N #: PMC-SSIO, 6750-SSIO, PMCSSIO
Product Manual

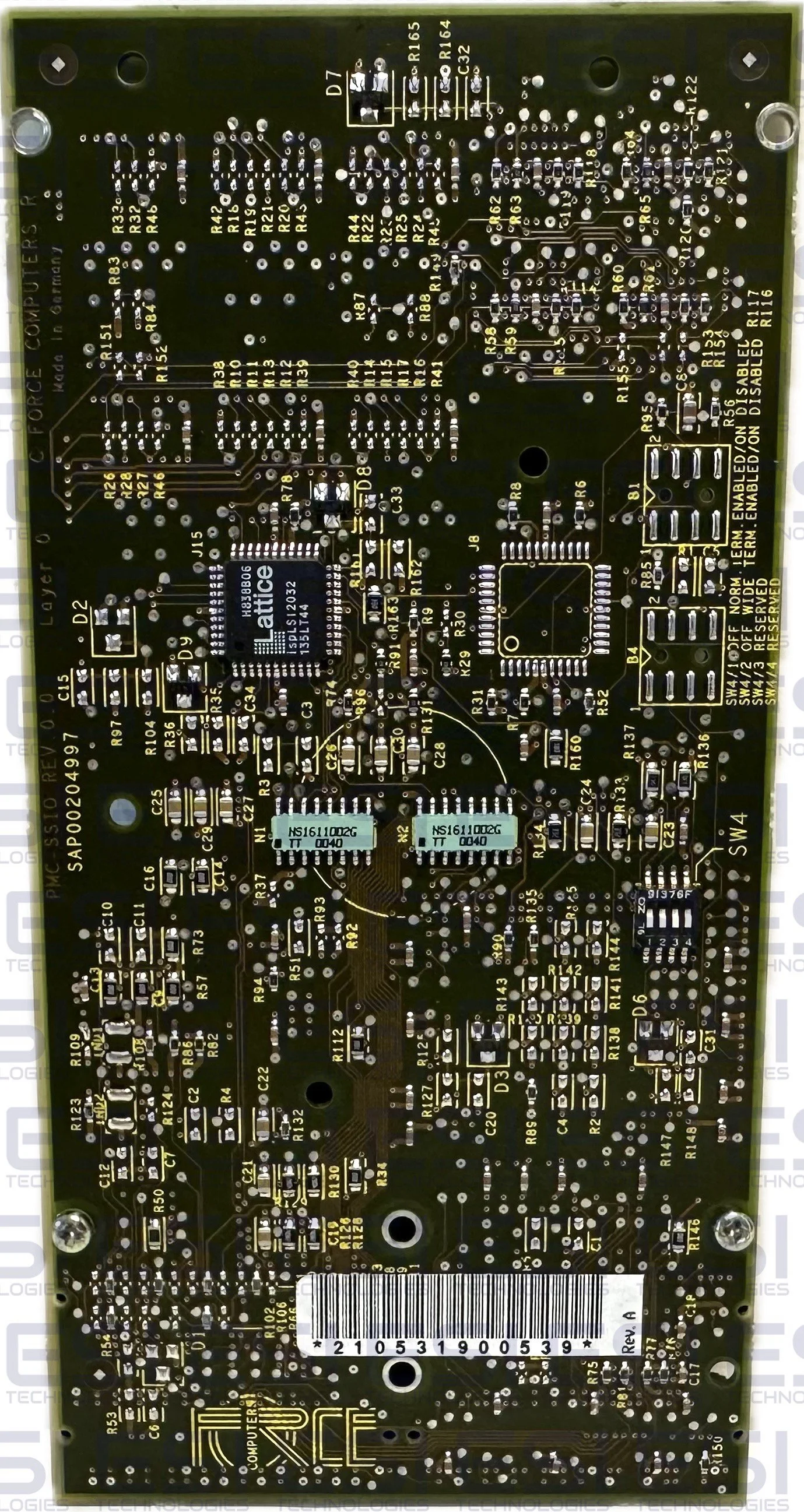

Product Images
