Product Specifications
25 or 33 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
Full 32-bit master/slave VMEbus interface
High performance DMA supports VMEbus D64 and local bus memory burst cycles
4, 8, 16, 32 or 64MB on-board DRAM, four-way interleaved, with programmable parity checking or Error
Checking and Correction (ECC) option
On-board SCSI interface with 32-bit local bus burst DMA
On-board Ethernet interface with 32-bit local bus DMA
Four 44-pin sockets for up to 4MB on-board ROM/EPROM
Four EIA-232-D serial ports implemented with quad serial I/O processor
8-bit, bidirectional, Centronics® compatible parallel port
Four 32-bit timers and one watchdog timer
8KB of NVRAM with real-time clock/calendar
Remote Reset/Abort/Status control functions
Completely programmable for maximum integration flexibility
Low power consumption—less than 20 watts typical
27.7 MIPS @ 25 MHZ
36.8 MIPS @ 33 MHZ

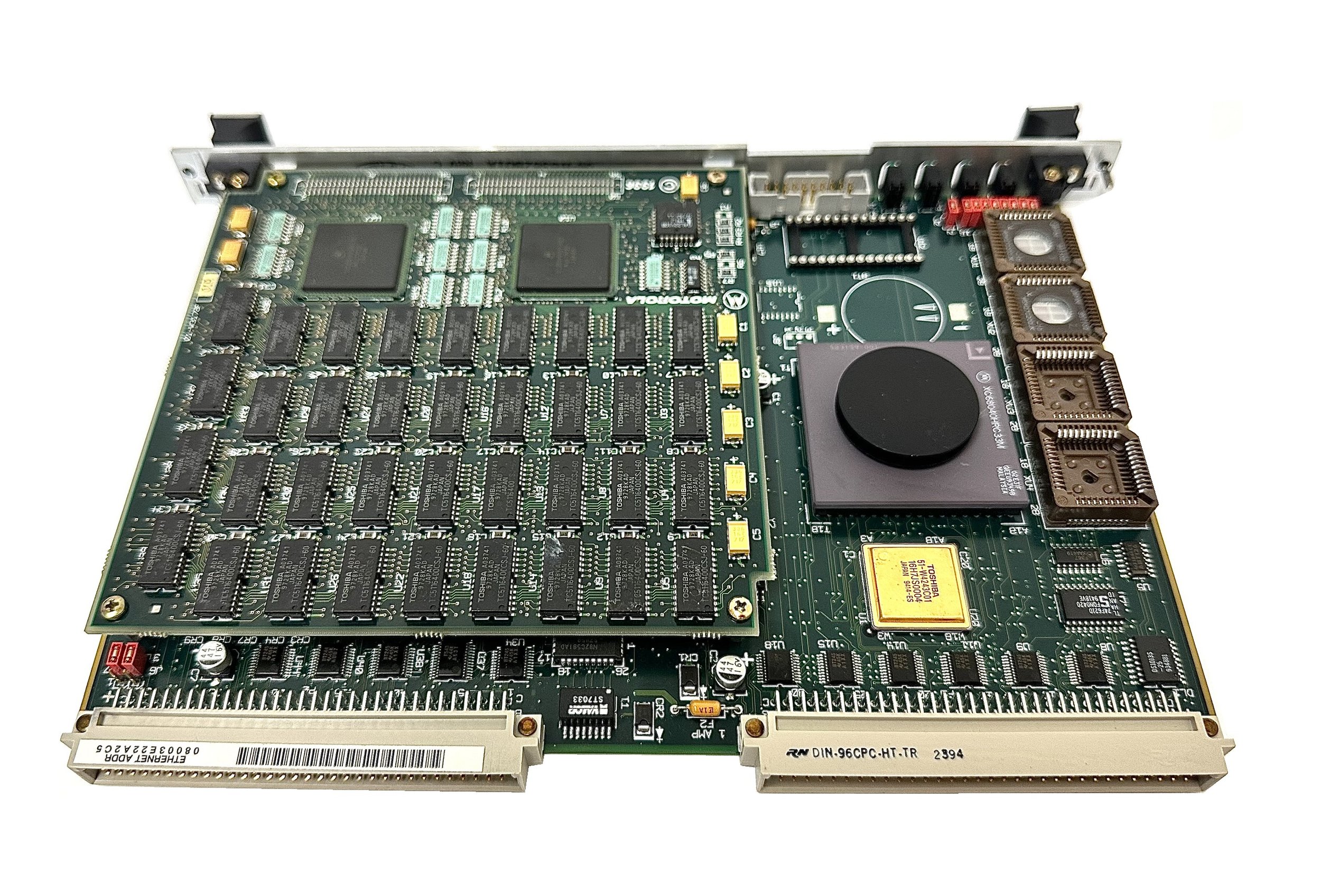

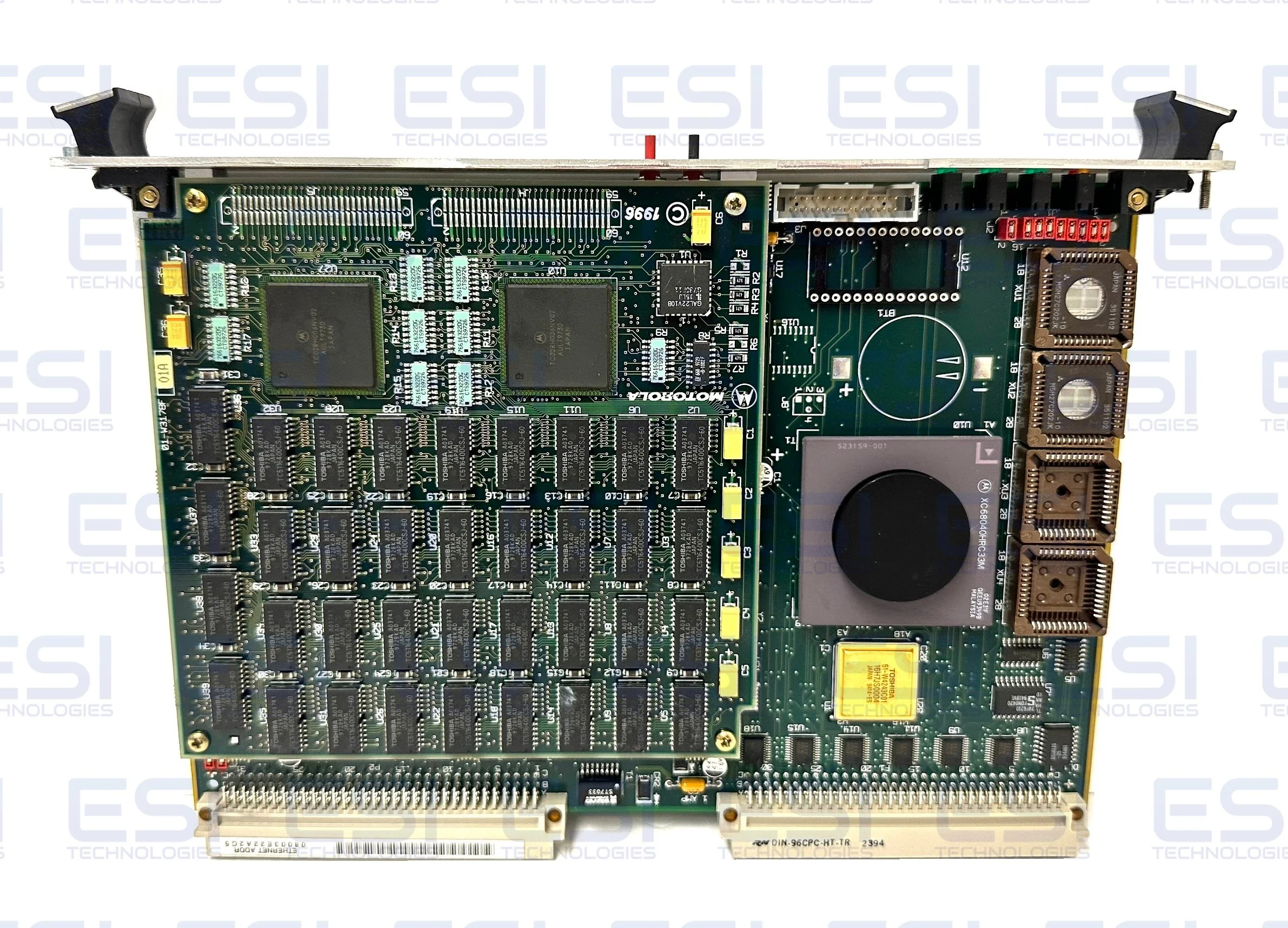

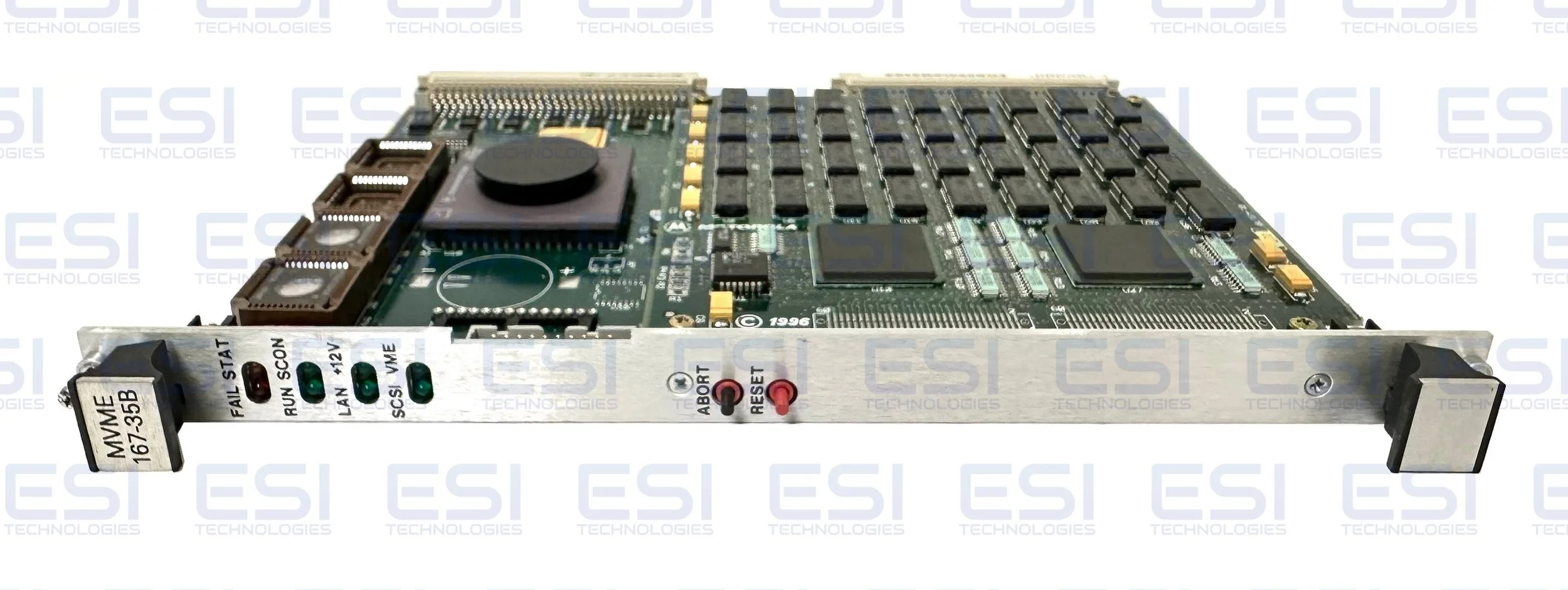

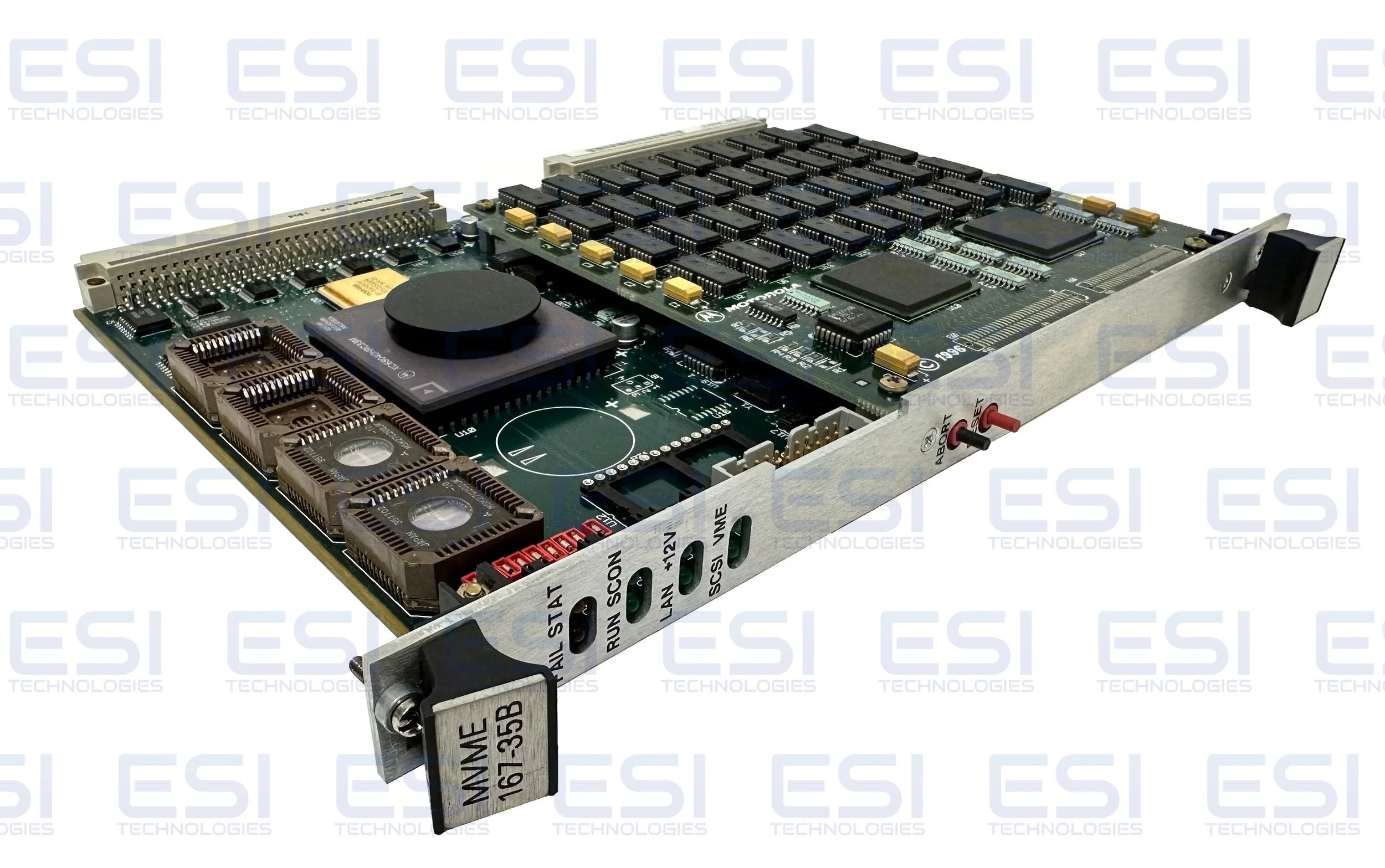

Manufactured by Motorola. Refurbished in good condition.
The Motorola’s MVME167 single board computer represents the pinnacle of functionality, flexibility, and performance in a CISC-based system. Based on the most powerful CISC microprocessor available, Motorola’s MC68040, the MVME167 combines a microprocessor with the memory management and floating-point units to achieve 26 MIPS at 25 MHz and 40 MIPS at 33MHz. This outstanding processing speed and floating-point performance makes the MVME167 an ideal solution for scientific and industrial applications. The MVME167’s compatibility with existing M6800 family software offers CISC-based software environments the ability to realize near-RISC performance levels while maintaining object code-compatibility with existing software platforms.
SKUE2
Qty 5
Alternative P/N #: MVME167-35B, MVME 167 35B, MVME167 35B
