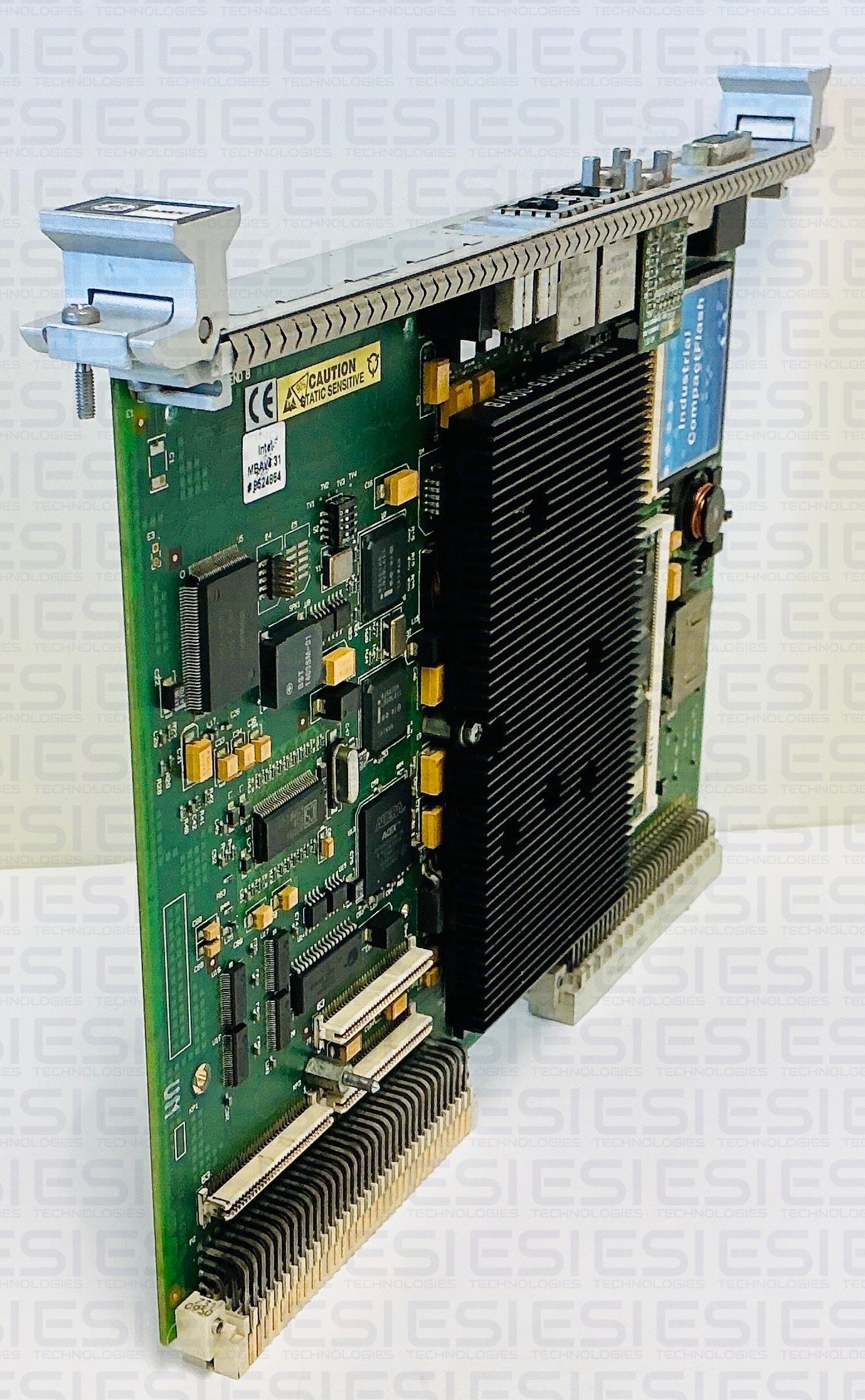

VMIVME-7700, VME-7700

$0.00

GE Fanuc/VMIC/Abaco VME SBC

Quantity:
Add To Cart

Product Specifications

  • Intel ®’s Ultra Low Voltage Celeron® 400 MHz/650 MHz processor

  • Special features for embedded applications include:
    Up to 1 GB bootable Flash on secondary IDE (optional)
    Two 16-bit and two 32-bit programmable timers
    32 KB of nonvolatile SRAM
    Software-selectable Watchdog timer with reset
    Remote Ethernet booting
    One PMC expansion site (IEEE-1386.1 PCI mezzanine card standard, 5 V)
    VME64 modes supported: A32/A24/D32/D16/D08(EO)/MBLT64/BLT32
    VMEbus interrupt handler, interrupter, and system controller
    Includes real-time endian conversion hardware for little-endian and
    big-endian data interfacing (patent no. 6,032,212)
    Enhanced bus error handling
    Passive heat sink
    Real-time clock and miniature speaker included

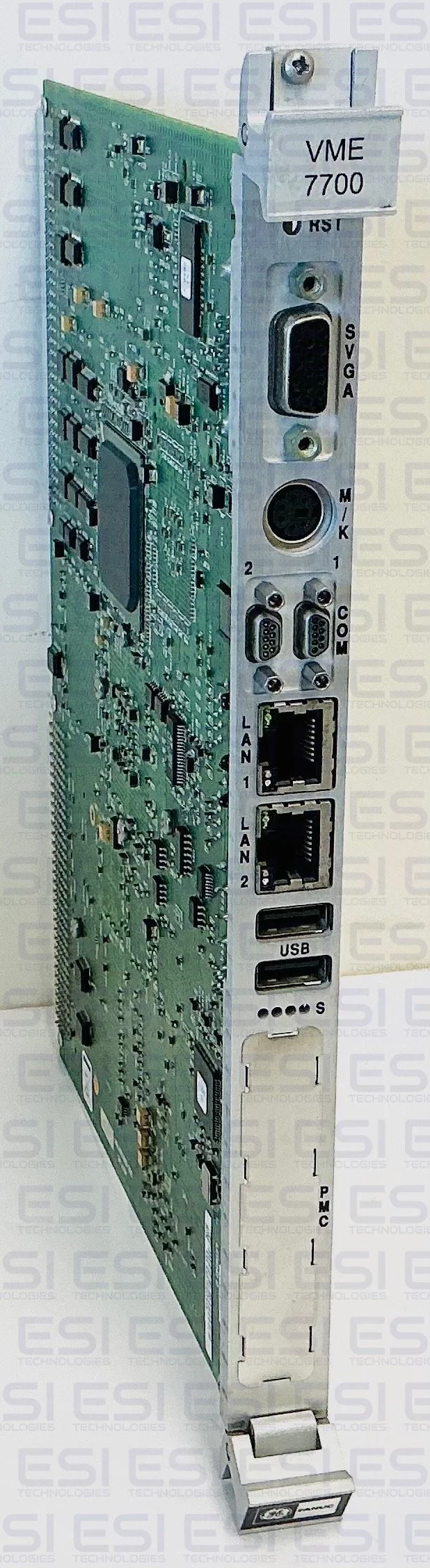

    Dual front panel universal serial bus (USB) connections

  • Standard features include:
    Up to 512 MB PC100 SDRAM
    100 MHz system bus via Intel 815E chipset
    Dual Ethernet controllers supporting 10BaseT and 100BaseTX interfaces
    Ultra DMA/100 hard drive and floppy drive controllers (uses VMEbus P2 for connection to IDE/floppy)
    Two high performance 16550-compatible serial ports
    PS/2-style keyboard and mouse ports on front panel
    VMEbus backplane interface
    User programmable Watchdog timer
    Passive processor heat sink

Manufactured by GE Fanuc. Refurbished in good condition.

The VMIVME-700 is based on the Intel Ultra Low Voltage Celeron processor. The enhanced Celeron processor has 256 KB of on-die L2 cache. The μFCBGA package processors offer thermal characteristics that are well suited for embedded systems operating over a wide range of temperatures. The VMIVME-700 accepts one 144-pin SODIMM PC100 module for a maximum memory configuration of 512 MB. The System BIOS and video BIOS are provided in reprogrammable memory. The video graphic controller, high resolution graphics and multimedia-quality video are supported on the VMIVME-700 by an internal 815E AGP graphics controller. A fully functional, integrated 2D/3D graphics accelerator provides pixel processing and rendering, with display resolutions of up to 1600 x 1200 supported. The video output is provided through the front panel.

SKUEOOS

Qty 0

Alternative P/N: VMIVME-7700, VMIVME-7700 RC, VMIVME 7700 RC, VMIVME7700, VMIVME7700 RC, 332-9301007700-100
