PENTEK  7106 Embedded.jpg
Equipment Inventory PENTEK 7106

PENTEK 7106

$0.00

Quantity:
Add To Cart

PENTEK 7106

$0.00

Quantity:
Add To Cart

Product Specifications

  • PCI Interface: PCI bus is the electrical interface between the PMC module and the VME board circuitry, often supporting a CPU running a popular operating system such as VxWorks or UNIX.

  • Raceway Interface: RACEway is a high-speed synchronous backplane bus capable of delivering 32-bit words between VME boards at a peak rate of 160 MBytes/sec.

  • Flash EEPROM Jumpers: The four jumper positions on jumper block JB2 determine the operating parameters for the Flash EEPROM on the Model 7106, which is a type 24F128.

Manufactured by PENTEK. Refurbished in good condition.

The Model 7106 is a PMC (PCI Mezzanine Card) module incorporating a complete RACEway interface to the PCI bus. It is designed to be installed on a VMEbus board equipped with a PMC module site whose PMC P4 connector is routed to the VMEbus P2 connector, per the PMC module specification.

SKU#1D

Qty 1

Alternative P/N #: 4251003B, 320-71060


Product Manual

MVME2400 Datasheet MVME2400 Manual


Product Images

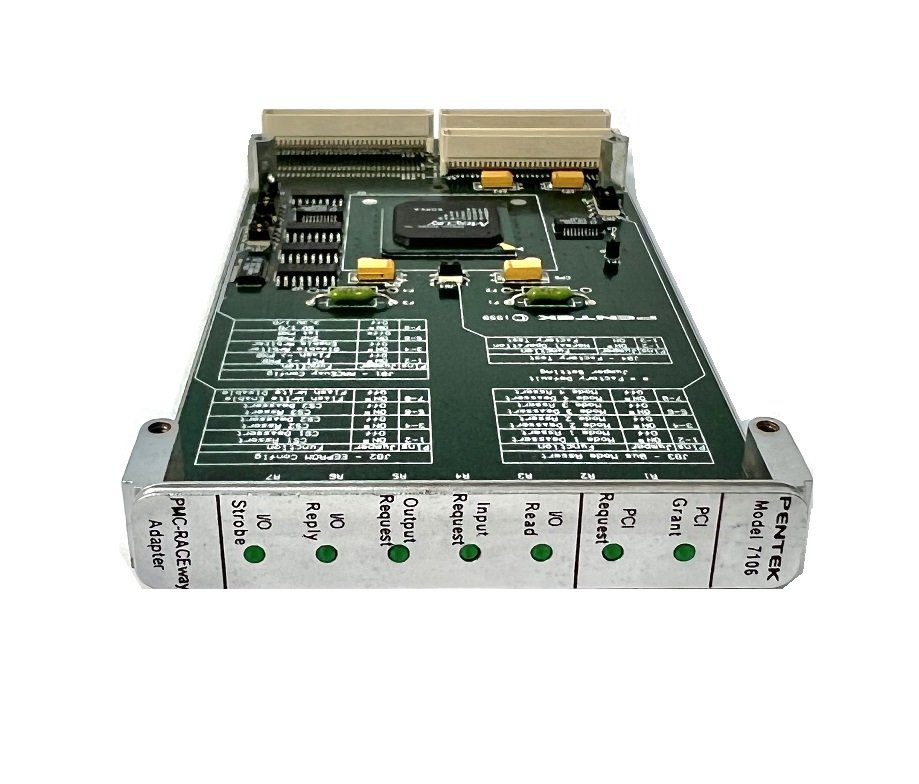

PENTEK 7106 Embedded.jpg
PENTEK 7106_Embedded.jpg
