SBS Technologies IP-Octal-485

$0.00
Quantity:
Add To Cart

Product Specifications

  • Eight EIA-485 ports on a single-wide IndustryPack

  • Three-level FIFOs on all receivers

  • Support for DX+, DX-, and GND on each channel

  • Programmable baud rates in 18 steps up to 38.4 kbps

  • Four 16-bit timers

  • Single-wide Type I IndustryPack

  • Complies with ANSI/VITA-4

  • * Number of Async Serial Ports

  • Signals supported: DX+, DX-, GND

  • UART- SIGNETICS SCC2698B

  • Baud Rates= Programmable in 18 steps to 34.8 kbps

  • Receiver FIFO : 3 characters

  • Transmitter FIFO: None

  • Timers: four, independent, 16 bit

  • Interrupts: 32 sources, maskable, vectored

  • Dimensions: 1.8 inches x 3.9 inches

  • Power Requirements : 5+ VDC, 285 mA type

Manufactured by SBS Technologies. Refurbished in good condition.

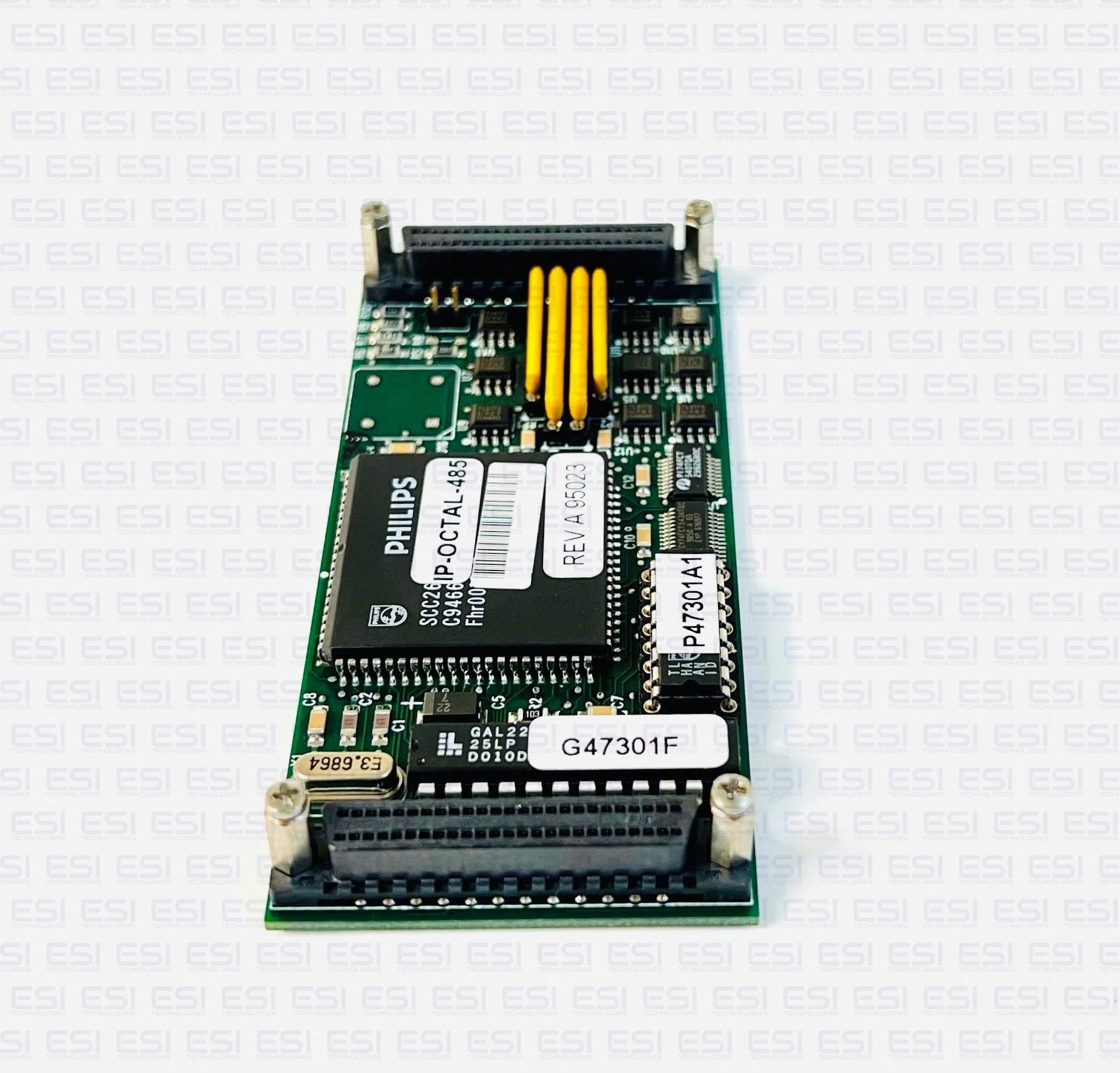

The IP-Octal-485 IndustryPack module implements eight EIA-485 asynchronous serial ports, each with DX+, DX- balanced pair signals and a ground. Serial ports are implements with the Signetics SCC2698B octal UART. Each channel has a three-character FIFO on its receiver to allow longer interrupt servicing latencies. Eighteen programmable baud rates up to 38.4 kbps, and programmable bit length, parity, and stop bits are supported. Four independent 16-bit timers are provided. The IndustryPack Strobe* pin may be used as a clock input or output depending on the setting of user shunts.

SKU#1D

Qty 1

Alternative P/N #: IP-Octal-485, IP Octal 485, IP - Octal - 485, 911411121 Rev A95023
