Product Specifications

• Form Factor: 3.5” SBC with ULV Intel® Celeron® 400MHz CPU with VGA/ TTL, Dual LAN, USB 2.0 and Audio
• Processor: Onboard Intel Ultra Low Voltage (ULV) Celeron 400 MHz CPU (fanless design)
• Display: LCD / CRT VGA support, with 24-bit TTL interface LCD display support and CRT resolutions up to 1600x120
• Ethernet: Dual Intel 82551 LAN ports (10/100 Mbps)
• USB: USB 2.0 ports for high-speed peripheral data exchange
• Storage & Interfaces:
  • ATA / 100 IDE channel
  • FDD connector (supports 1.44 / 2.88 MB and 3-mode floppy drives)
  • Compact Flash socket for flexible operating system switching
• Audio: AC'97-compliant audio codec
• Expansion & I/O:
  • PC/104 expansion connector
  • PS/2 keyboard/mouse port
  • Digital I/O (D I/O)
• Watchdog Timer (WDT): Software programmable, supporting 1 to 255 seconds system reset
• Operating Temperature: 0°C to 60°C

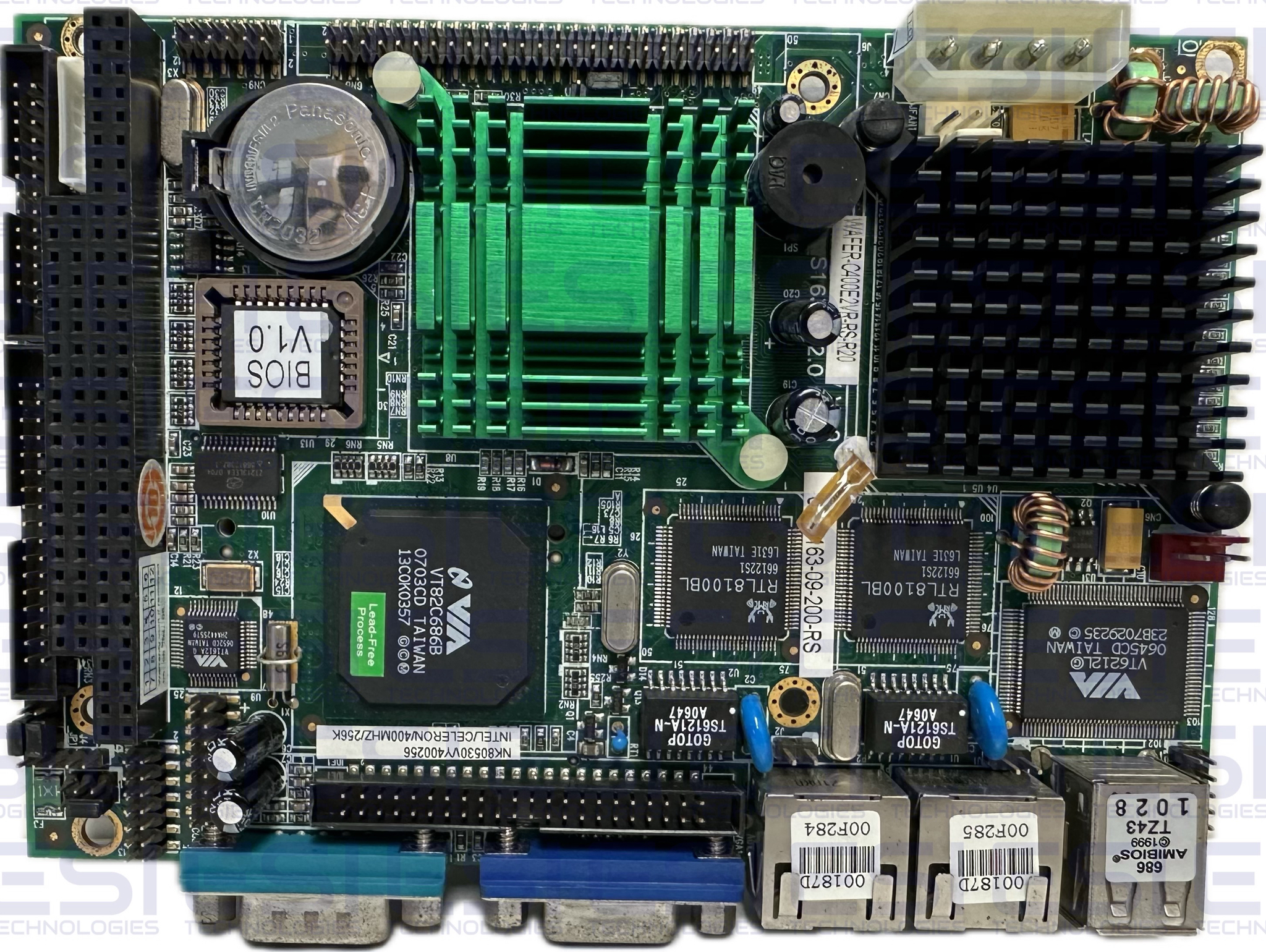

The IEI Integration Corp's WAFER-C400E2VN is a 3.5 inch single-board-computer designed for industrial control and embedded low-power applications.

The 3.5” disk size WAFER-C400 series embedded board was designed for the high performance, all-in-one function with limited chassis space appliances. On board with Intel® Ultra Low Voltage Celeron™ 400MHz CPU can meet the fan-less demand and provides with ULV650 or Pentium®III-M 800MHz as an optional customization projects. It is capable to support the 24-bit TTL interface LCD display and maximum CRT resolution support up to 1600x1200. In addition, the Compact Flash is benefit for doing flexible operating system switching on certain application. Via USB 2.0 interface, it is helpful for doing high-speed data exchange between peripherals. Moreover, it is reserved one PC/104 interface for the functions extension. For the on board dual 10/100Mbps LAN control, it is capable to provide with the load-balanced network and network security enhancement.

Alternative Part No.WAFER-C400E2VN, WAFER-C400E2VR, EBC-1000/ACE-890A, BK-5823
