Product Specifications

• Hardware Type: 128-bit High-Voltage Digital Input Board with Built-in-Test
• Form Factor: Double Eurocard (6U) VMEbus module complying with Revision C.1 (ANSI/IEEE Std 1014)
• Input Configuration: Each group of 8 inputs is jumper-selectable for voltage sourcing or current sinking signals
• Input Voltage & Thresholds: Supports input voltages up to 66 V with user-selectable thresholds (typically ranging from 0.61 V to 34 V)
• Open Circuit State: Configurable so an open circuit provides a logic zero or a jumper-selectable logic one
• Built-in-Test (BIT): On-board BIT logic and registers allow for fault detection and isolation without disconnecting external signals
• Connectors & Indicators: High-reliability DIN-type I/O connectors and a front-panel fail LED

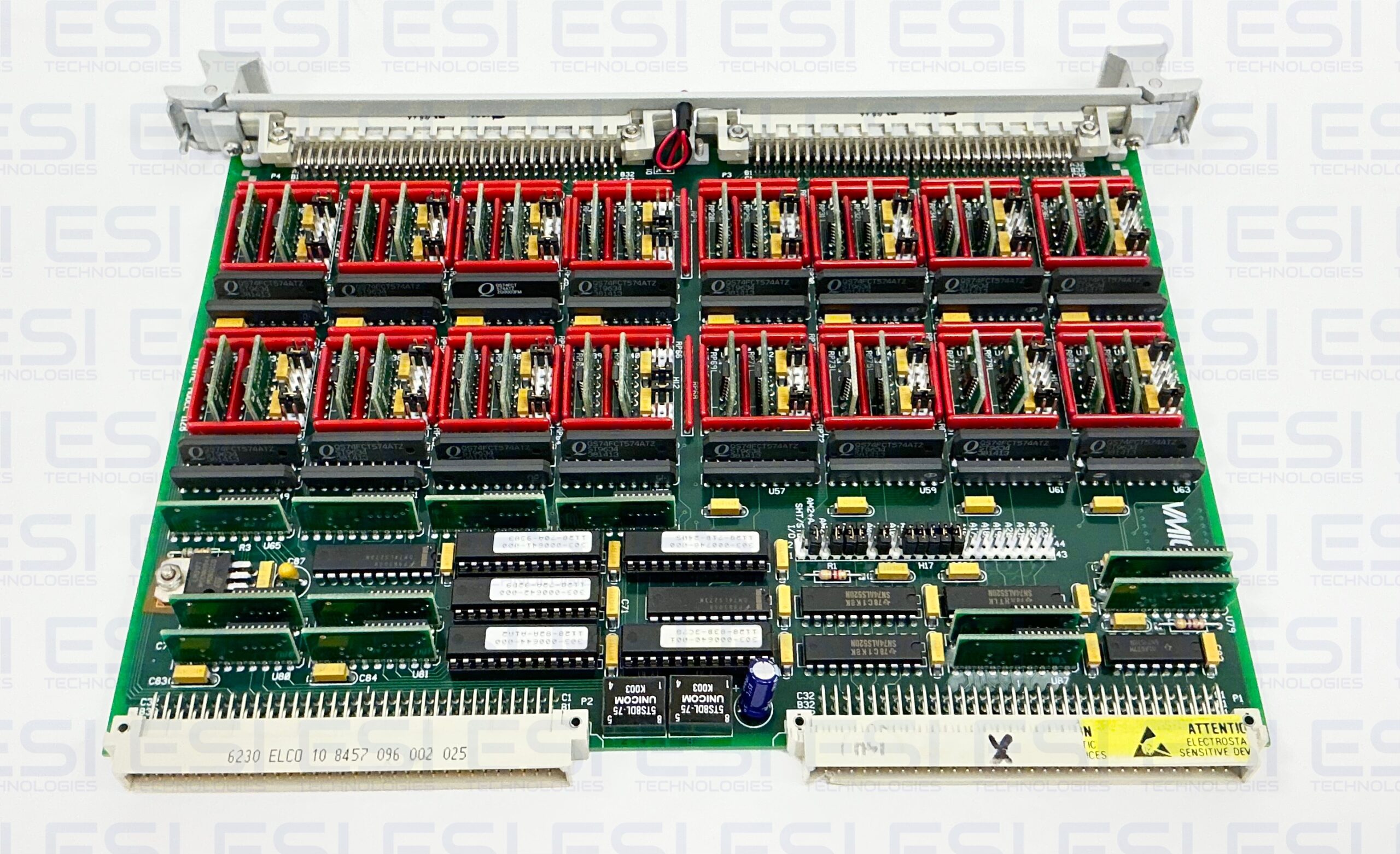

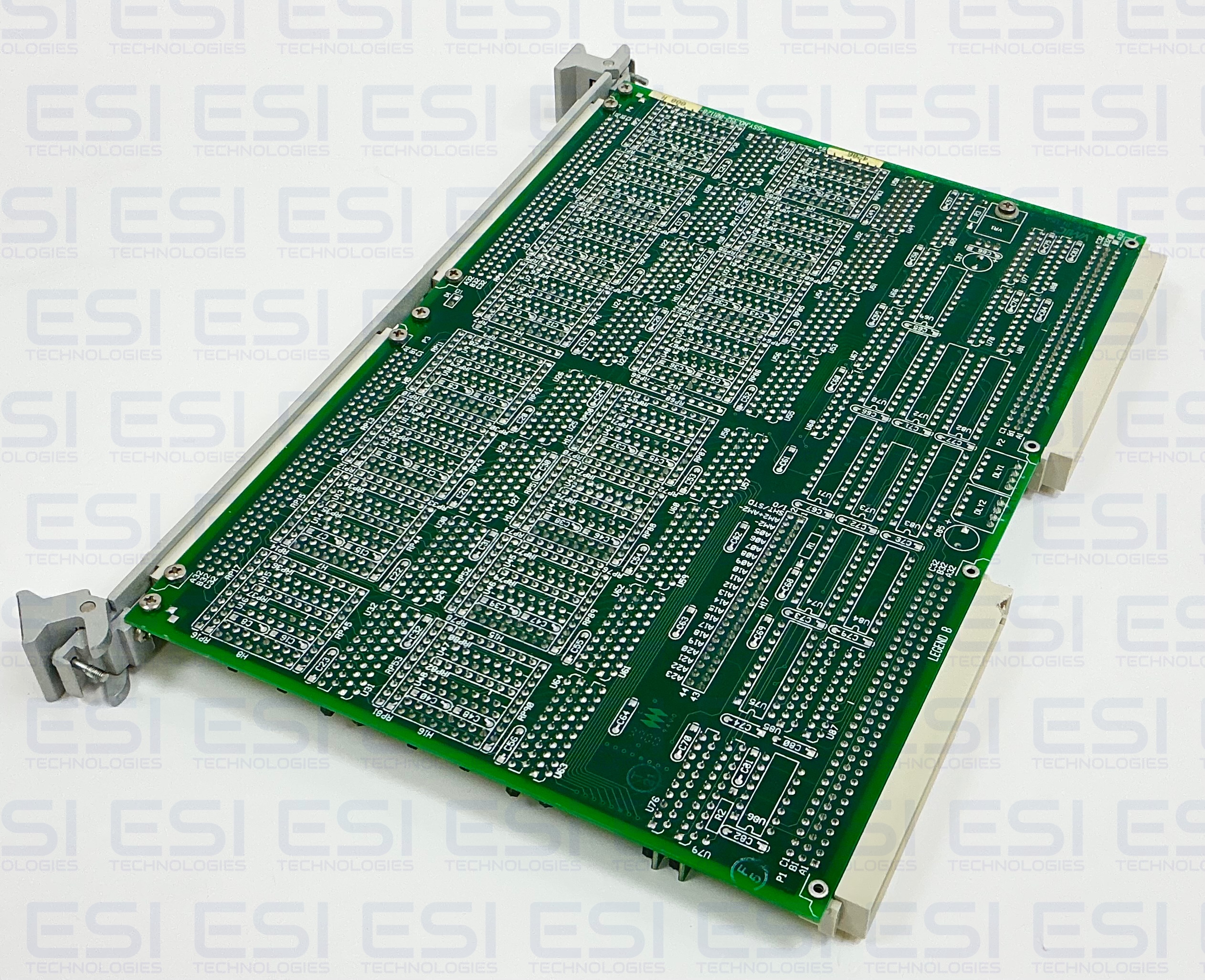

The VMIVME-1128 is manufactured by VMIC, its a 128-bit high-voltage digital input board designed for VMEbus industrial automation and control systems.

Alternative Part No. VMIVME-1128 VME-1128 V1128
