Product Specifications

• Form Factor: PICMG 1.0 (PCI/ISA) single-board computer
• Chipset: Intel 430HX (Triton II)
• Processor Support: Socket 7 (PGA321) supporting Intel Pentium / Pentium MMX processors (such as the 200MHz or 233MHz MMX models)
• Memory: 4 x 72-pin EDO RAM slots (supporting up to 256MB)
• Internal / Peripheral Interfaces:
  • 1x or 2x IDE interfaces
  • 1x Internal SCSI
  • 1x PS/2 keyboard & 1x PS/2 mouse
  • 1x Parallel port, 2x Serial ports
  • 2x USB 1.x ports

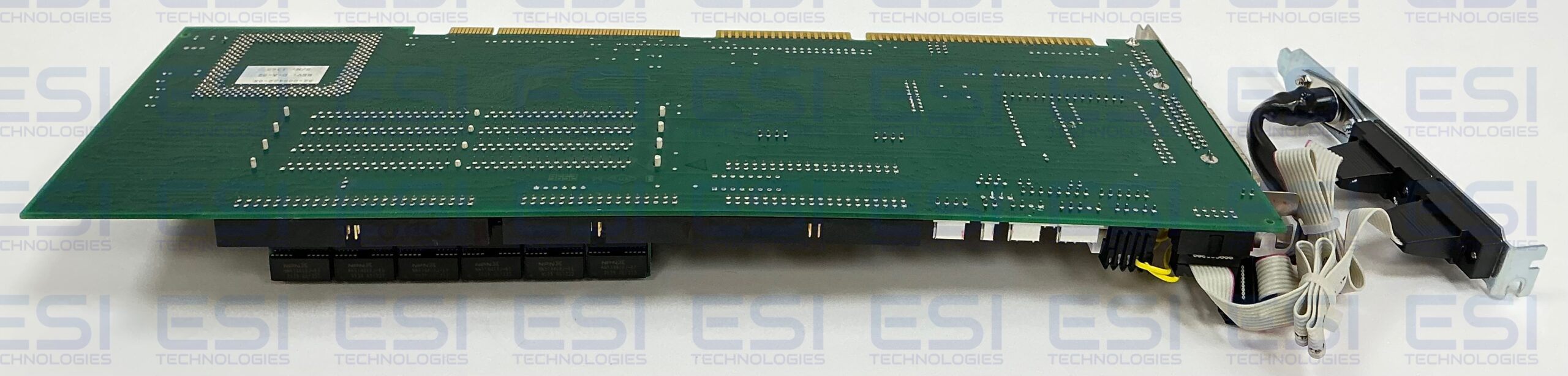

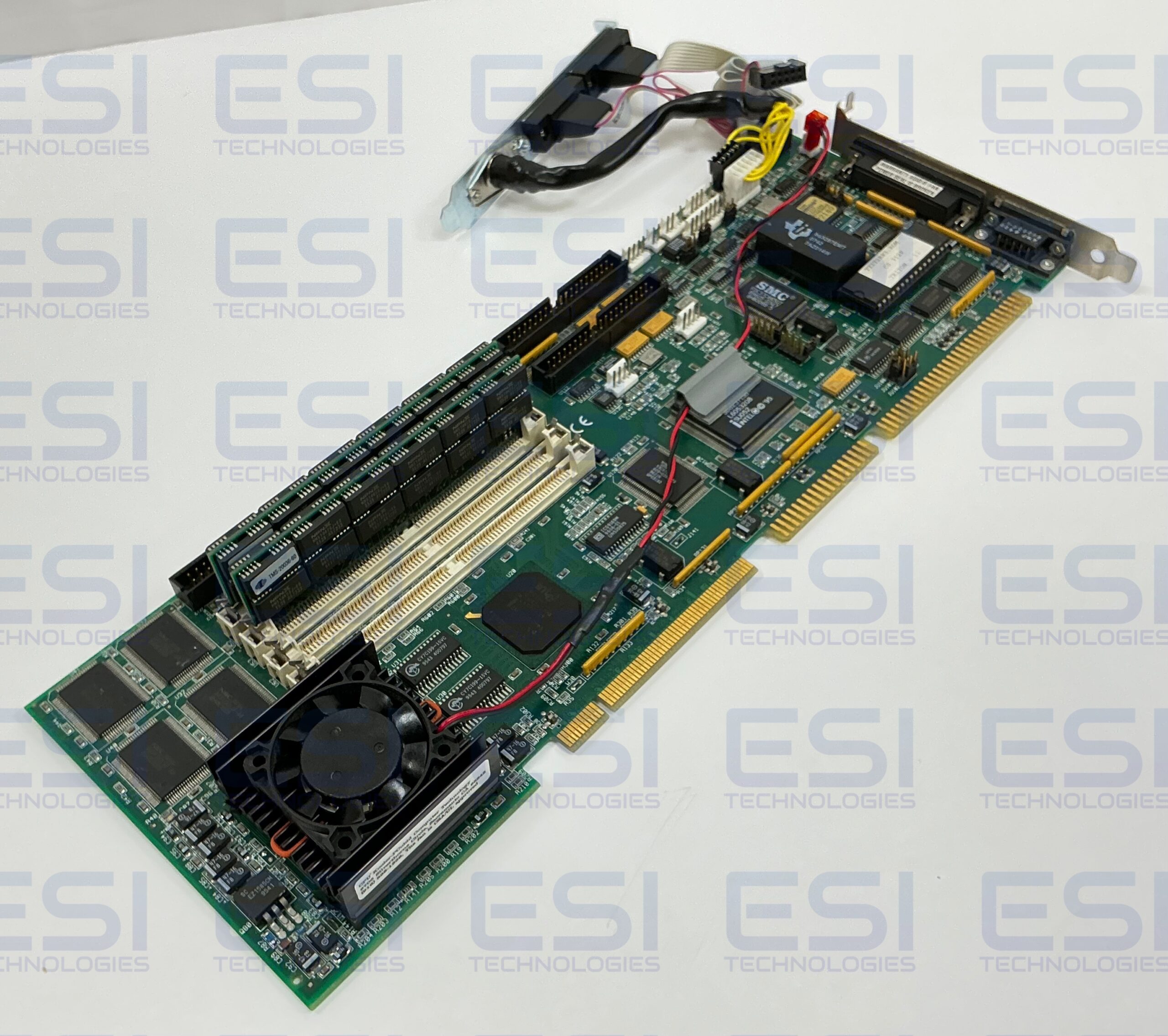

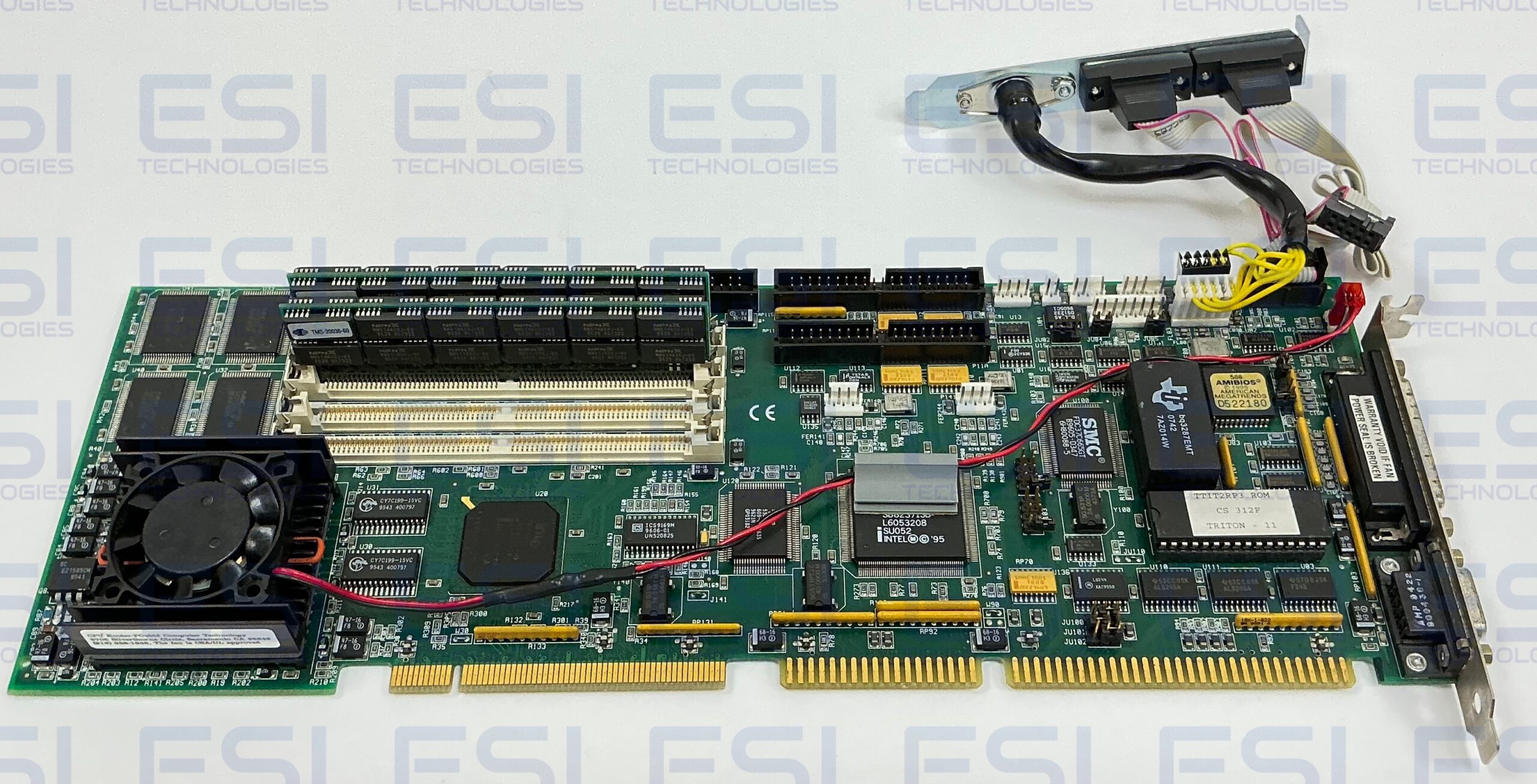

The Trenton Technology TR-T2PCI (Part Number. 92-005422-0X) is an industrial single-board computer (SBC) and CPU board.

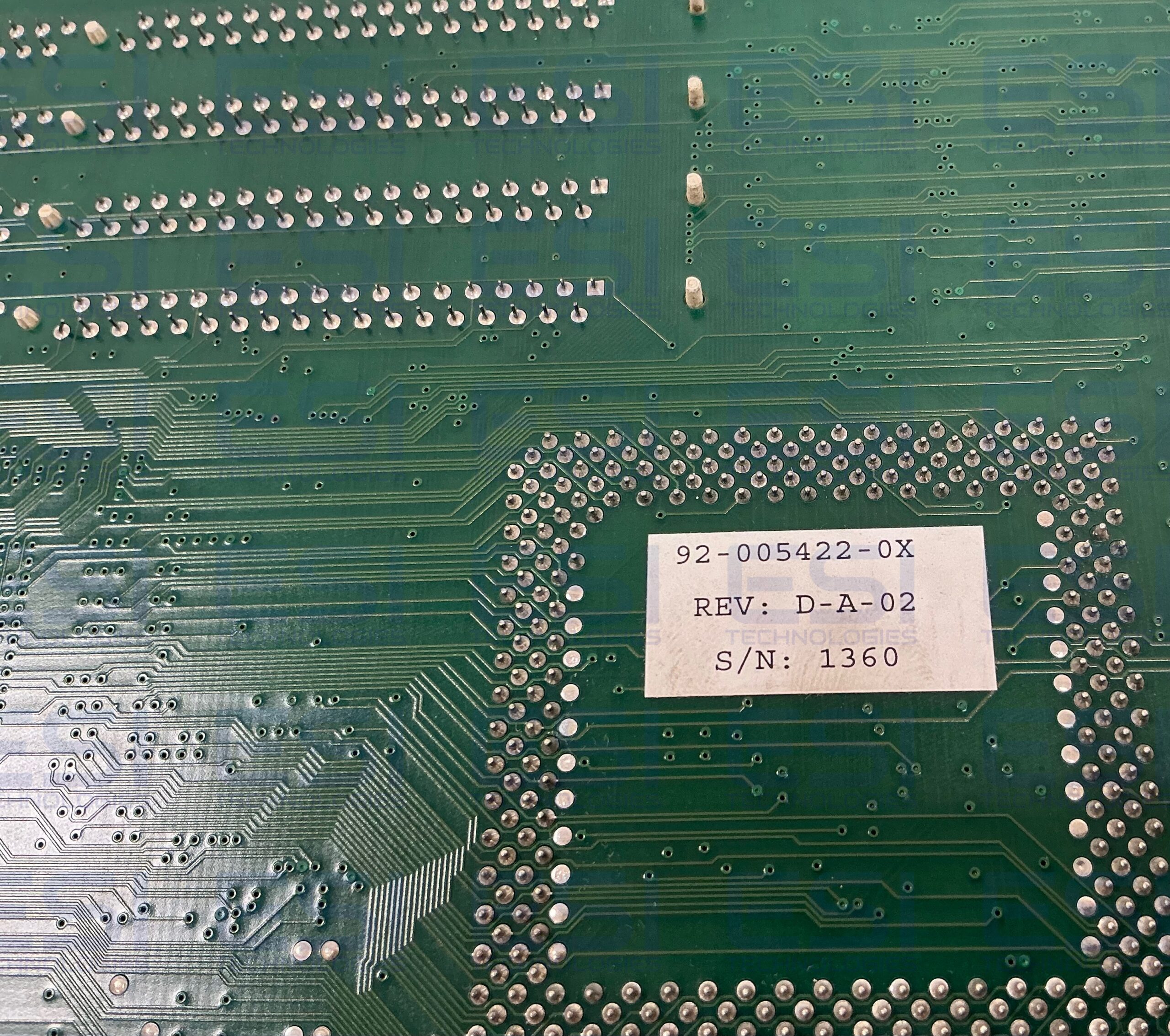

Alternative Part No. 92-005422-0X
