Product Specifications

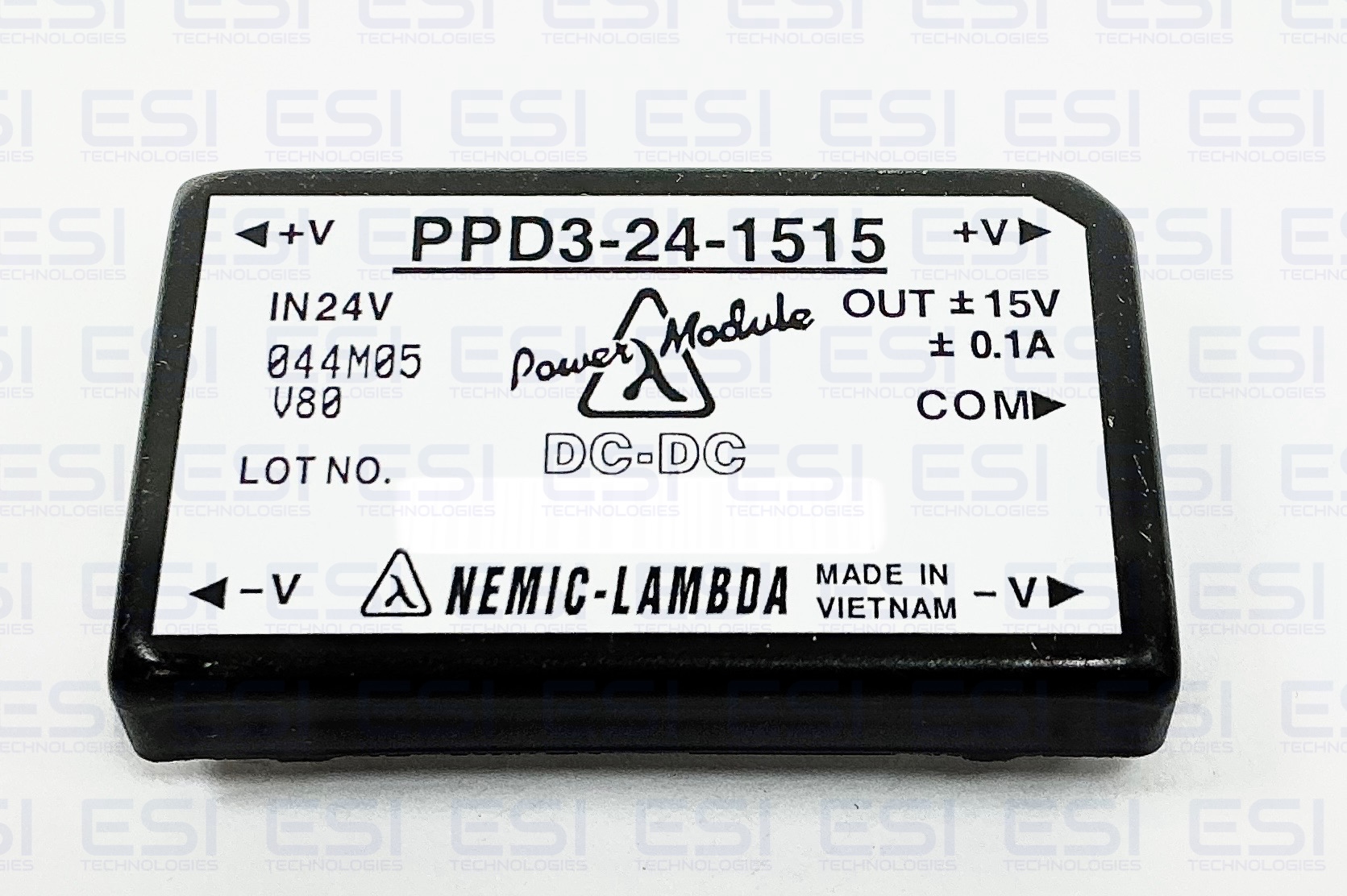

• Type: Isolated single-output DC-DC converter
• Output Power: 3W
• Profile: Ultra-thin 8 mm (0.31 in) height
• Input Voltage Range: DC 18V to 32V (or 18V to 36V depending on the specific variant)
• Wide input voltage range
  DC5V input: DC4.5 ~ 7.2V (PP25: 4.7V ~ 7.2V)
  DC12V input: DC9 ~ 18V (PP1R5 ~ PP10: 8V ~ 16.5V)
  DC24V input: DC18 ~ 36V (PP1R5 ~ PP10: 18V ~ 32V)
  DC48V input: DC36 ~ 72V (PP1R5 ~ PP10: 32V ~ 63V)
• Operating Temperature: –20°C to +71°C
• Isolation: Input-to-output isolation
• Dimensions: 47 mm × 27.9 mm × 7.87 mm (1.85 in × 1.098 in × 0.3)

Alternative Part No. P-Series, PP3-5-5, PP3-5-12, PP3-5-15, PP3-12-5, PP3-12-12, PP3-12-15, PP3-24-5, PP3-24-12, PP3-24-15, PP3-48-5, PP3-48-12 PP3-48-15
