Product Specifications

• Processor speeds up to 333MHz
• Up to 128MB SDRAM Memory
• 512kB of Level 2 Cache
• 10/100BaseT (Twisted pair) Ethernet
• Floppy Controller Interface
• Primary IDE Hard Disk Interface
• Front Panel Mouse and Keyboard Port
• Rear Panel COM1, COM2, LPT1
• Rear Panel USB Interface
• Support for Flash Disk-On-Chip

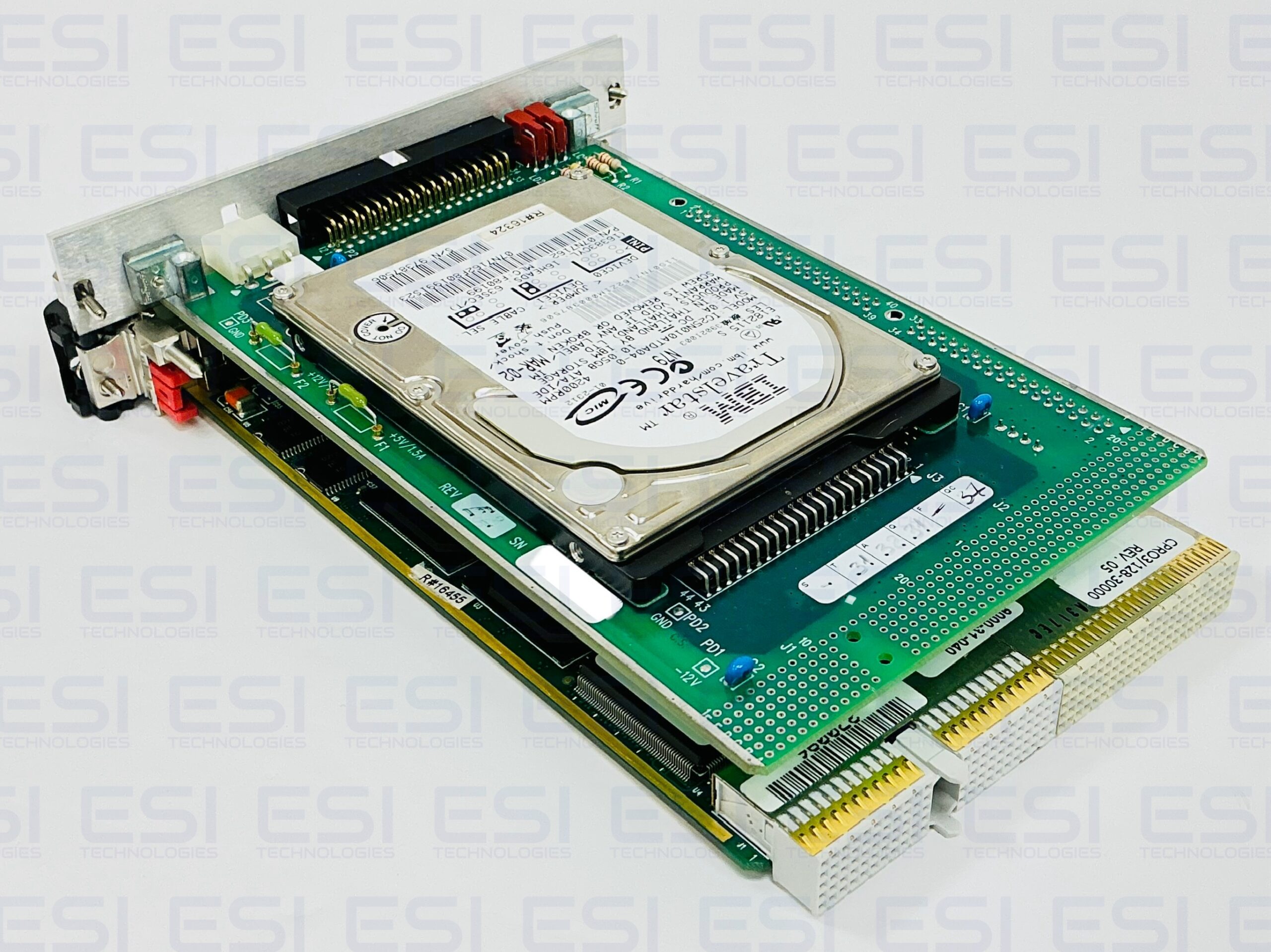

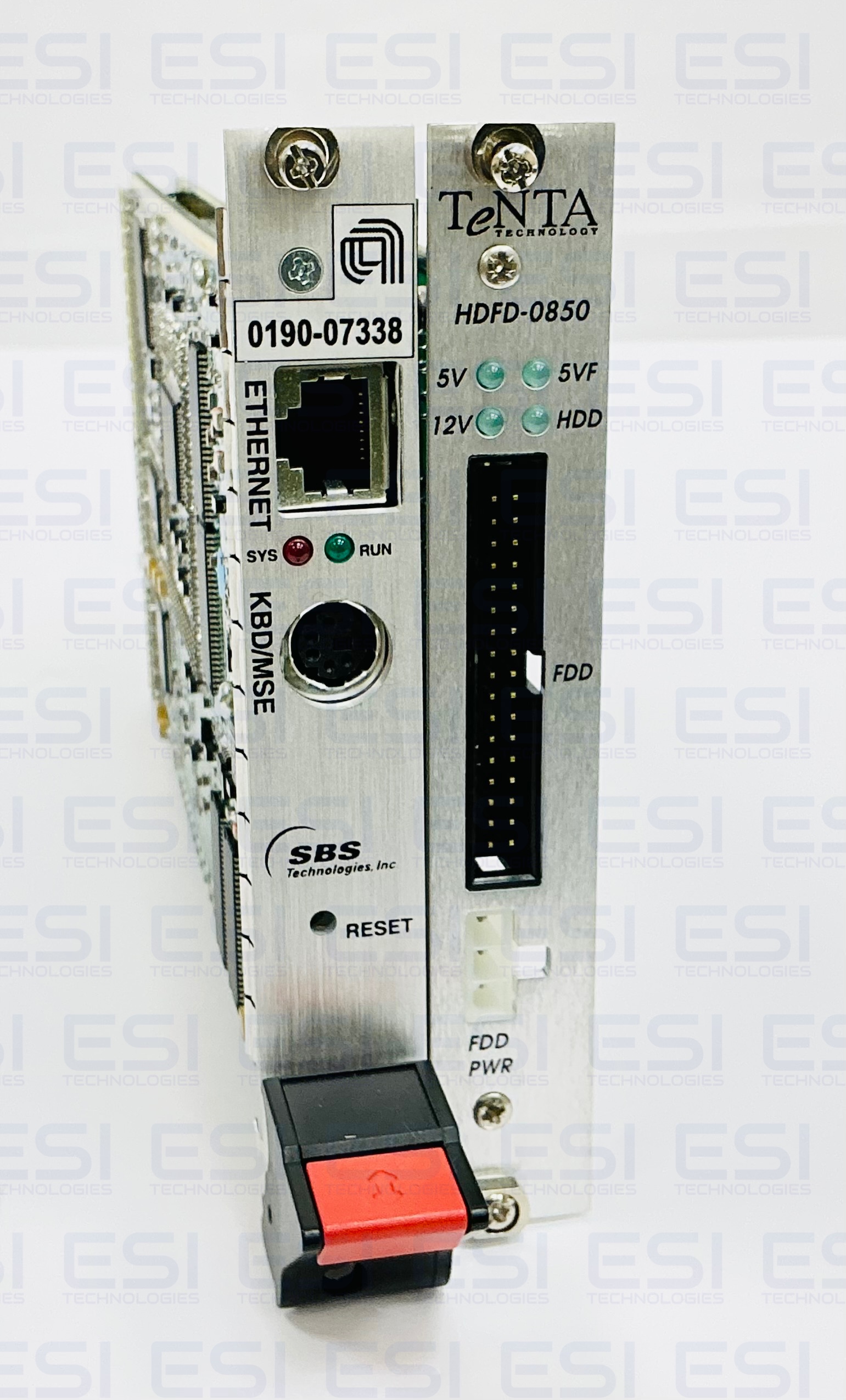

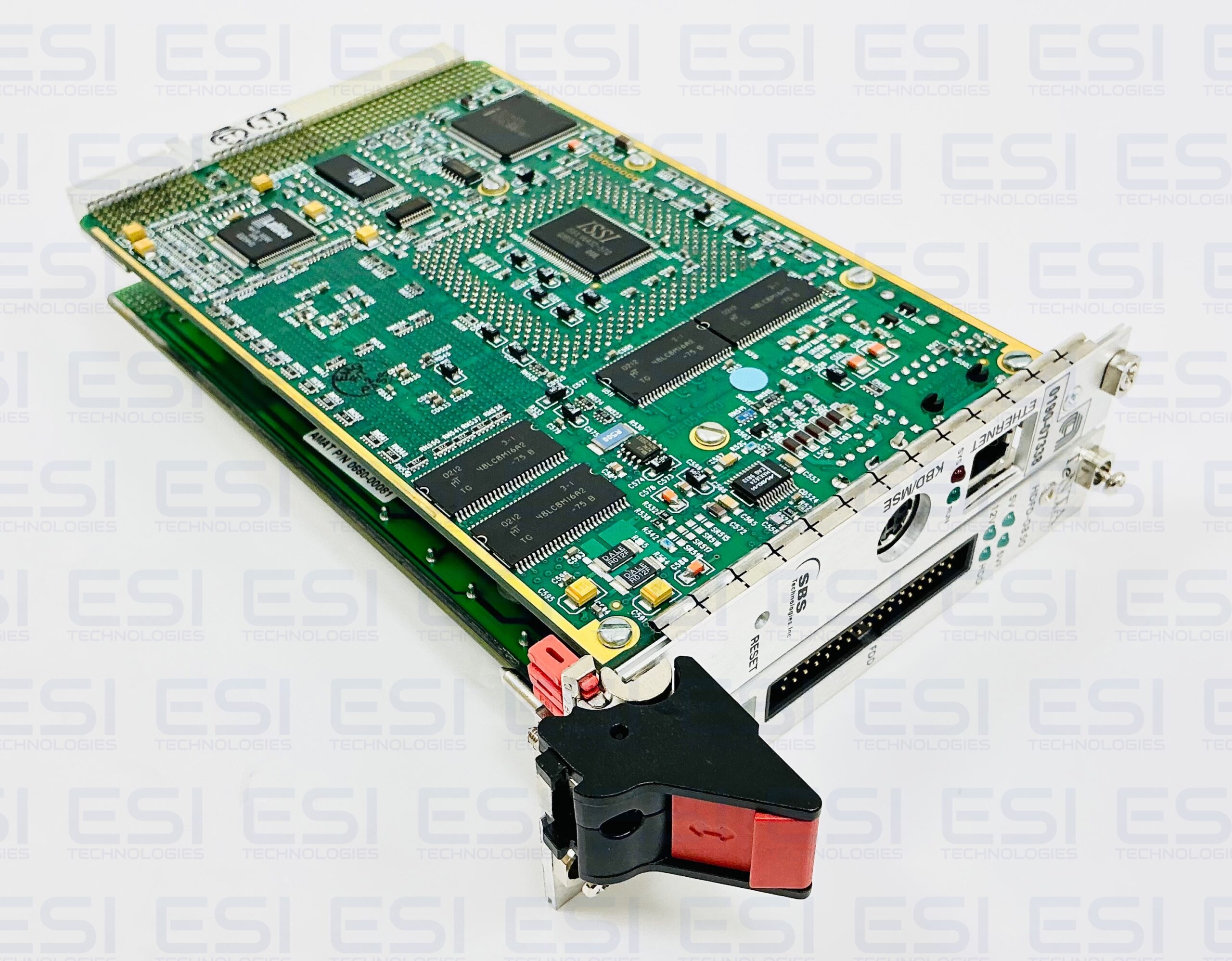

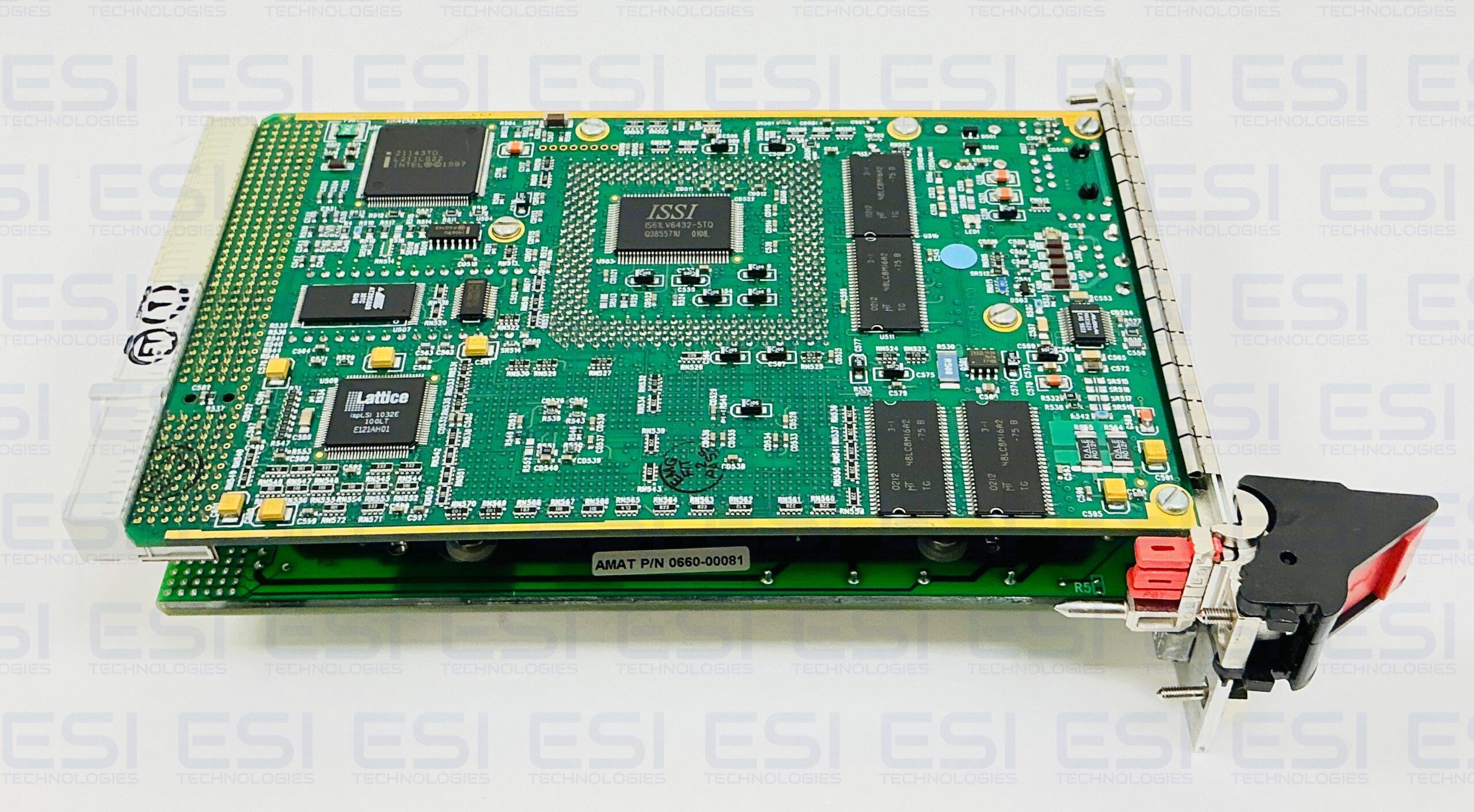

The SBS Technologies' cPRO3 3U System Controller CompactPCI single board computer is an extension of the Proteus family of embedded computers from SBS Technologies. The cPRO3 is targeted for embedded applications and incorporates a Socket 7 processor; offering a variety of high level processor speeds. The cPRO3 is based on the CompactPCI (cPCI) specification of the PCI Inductrial Computers Manufacturing Group (PICMG). The cPRO3 is compatible with software written for the IBM PC/AT®. Accordingly, it can run the wide variety of off-the-shelf software available for 80x86-based computers. Contact SBS technologies for information on driver-level support for common operating systems such as Wind River Systems VxWorks. The cPRO3 has been designed to provide all the functionality of a complete PC/AT motherboard, such as keyboard and mouse ports, parallel port, serial ports (COM1/COM2 at TTL level via J2), USB port (J2), floppy and IDE. Additional features such as Ethernet are also provided. The cPRO3 incorporates an ALi Aladdin IV chipset that is completely compatible with industry standard PC hardware and software. is a low-power, x86-based 3U Compact PCI  Single Board Computer designed for industrial, embedded, and mission-critical control applications.

Alternative Part No. 0190-07338, CPRO3/128, 0190-16450
