Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: NEW
Location: SKUE19-2
In Stock: 1
Product Specifications
Single-slot 6U VMEbus format
PLX6150 PCI-to-PCI interface bridge
Support for two single-wide or one double-wide PCI Mezzanine Card (PMC) per PMCspan
Stacking capability Front-panel and/or P2 I/O
Compliant with PCI local bus specification (revision 2.1)
Injector/ejector handles per VME64 extensions
Compatible with the SMART EC PowerPlus VME series
Address/Data: A32/D32, PMC PN1, PN2, PN4 connectors
PCI Bus Clock: 33 MHz
Signaling: 5V
Power: +3.3V, +5V, ±12V, 7.5 watts max. per PMC
Module Types: Two single-wide or one doublewide, front- panel or P2 I/O
P2 PMC I/O: 64 I/O signals from first PMC routed to VMEbus P2 connector
Compliance: ANSI/VITA 1-1994 VME64 (IEEE STD 1014), ANSI/ VITA 1.1-1997 VME64 Extensions, VITA 1.5-199x 2eSST
Controller: Tundra Tsi148 PCI-X to VMEbus bridge with support for VME64 and 2eSST protocols
DTB Master: A16, A24, A32, A64; D08-D64, SCT, BLT, MBLT, 2eVME, 2eSST
DTB Slave: A16, A24, A32, A64; D08-D64, SCT, BLT, MBLT, 2eVME, 2eSST, UAT
Arbiter: RR/PRI
Interrupt Handler/Generator: IRQ 1-7/Any one of seven IRQs
ystem Controller: Yes, switchable or auto detect
Location Monitor: Two, LMA32
Power: +5V @ 0.44 ampere (max.) +12V @ 0 ampere (max.) –12V @ 0 ampere (max.)
Height: 233.4 mm (9.2 in.)
Depth: 160.0 mm (6.3 in.)
Front Panel Height: 261.8 mm (10.3 in.)
Width: 19.8 mm (0.8 in.)

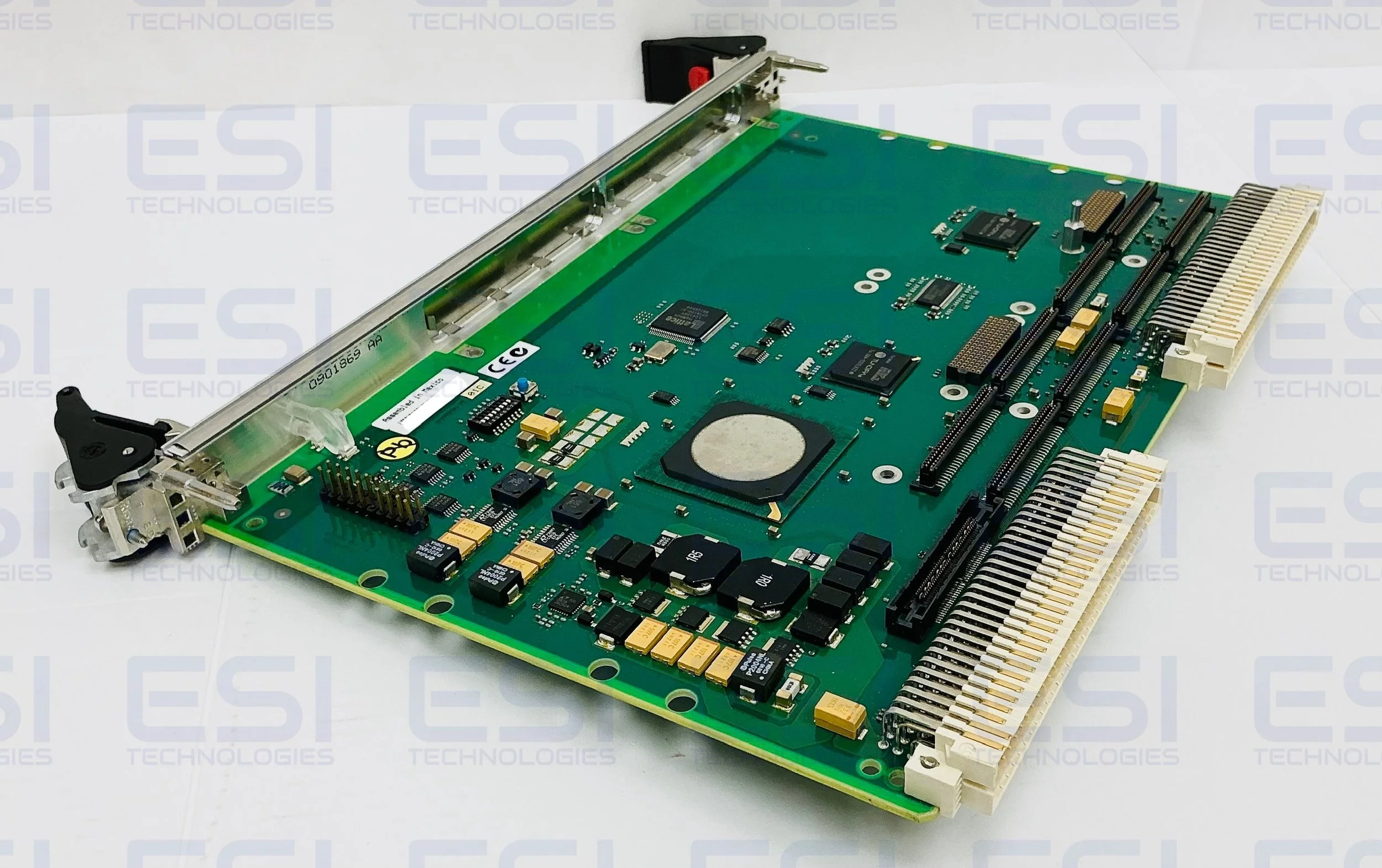

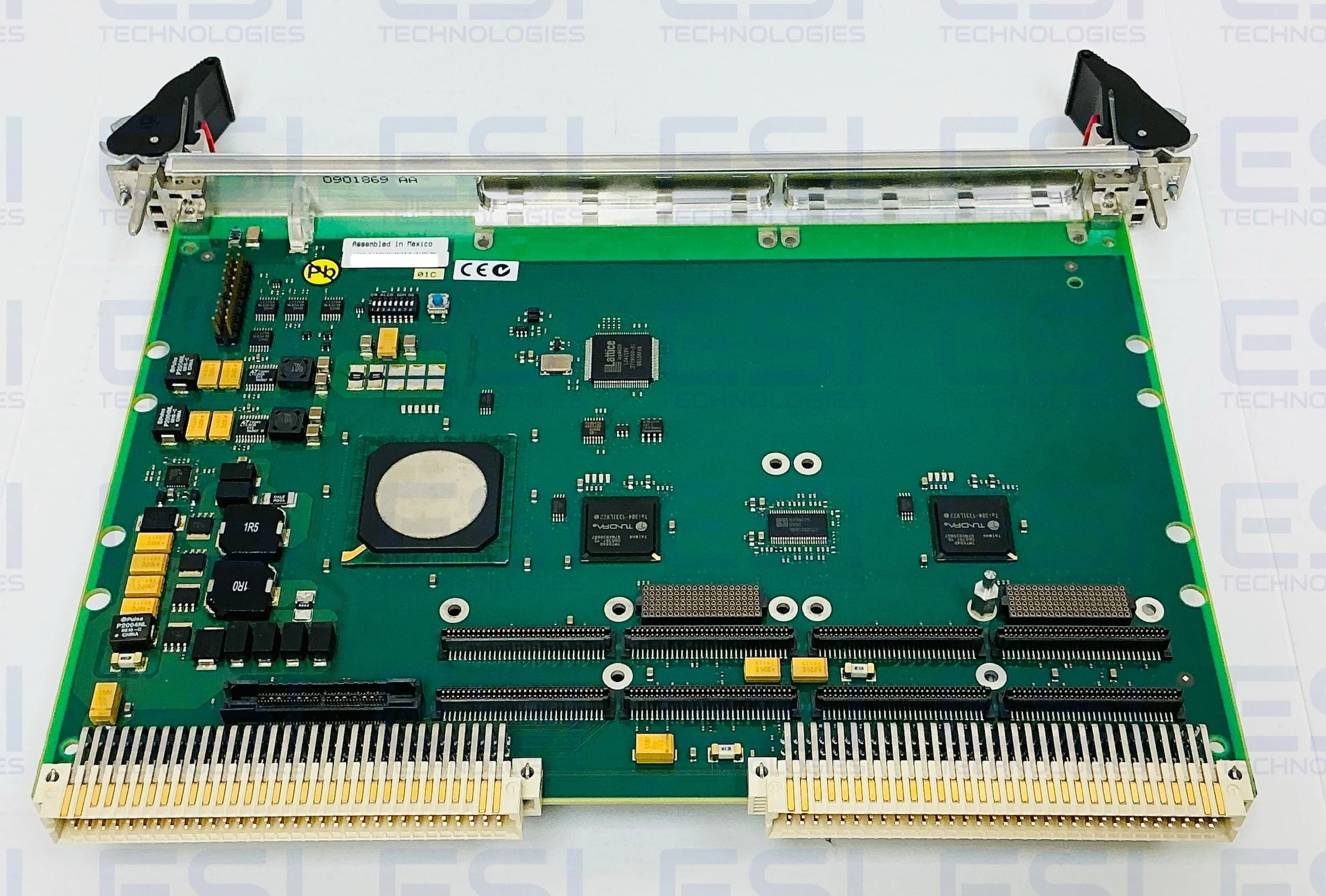

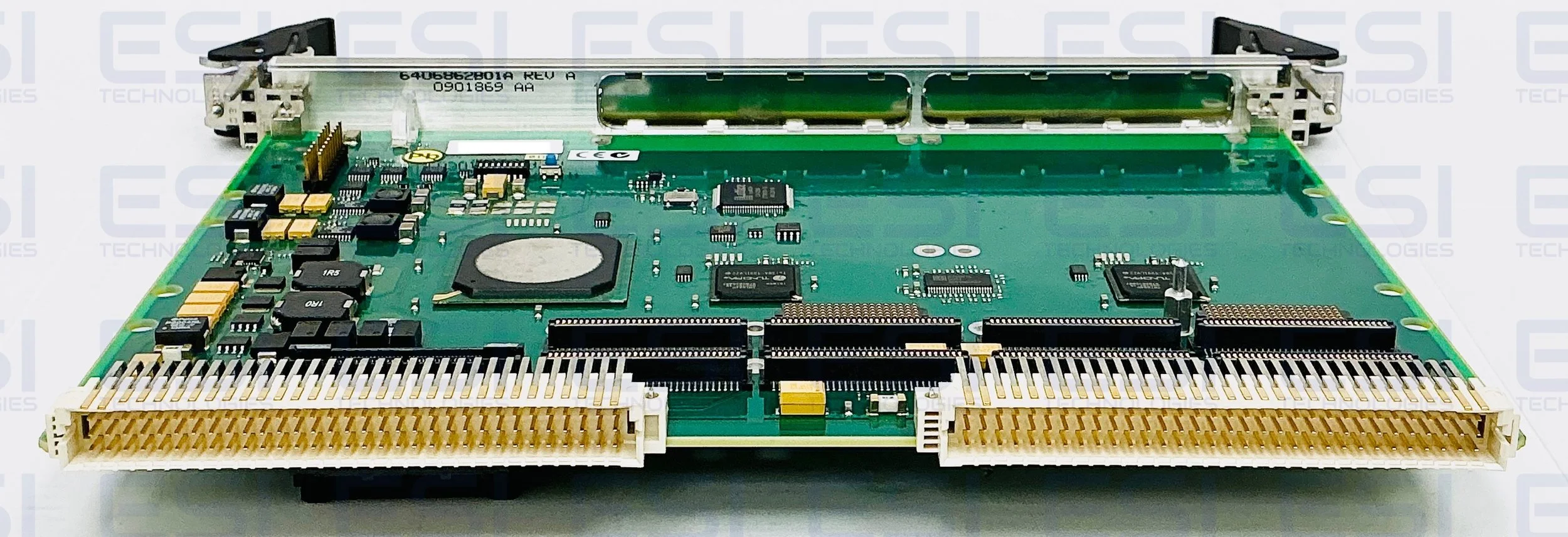

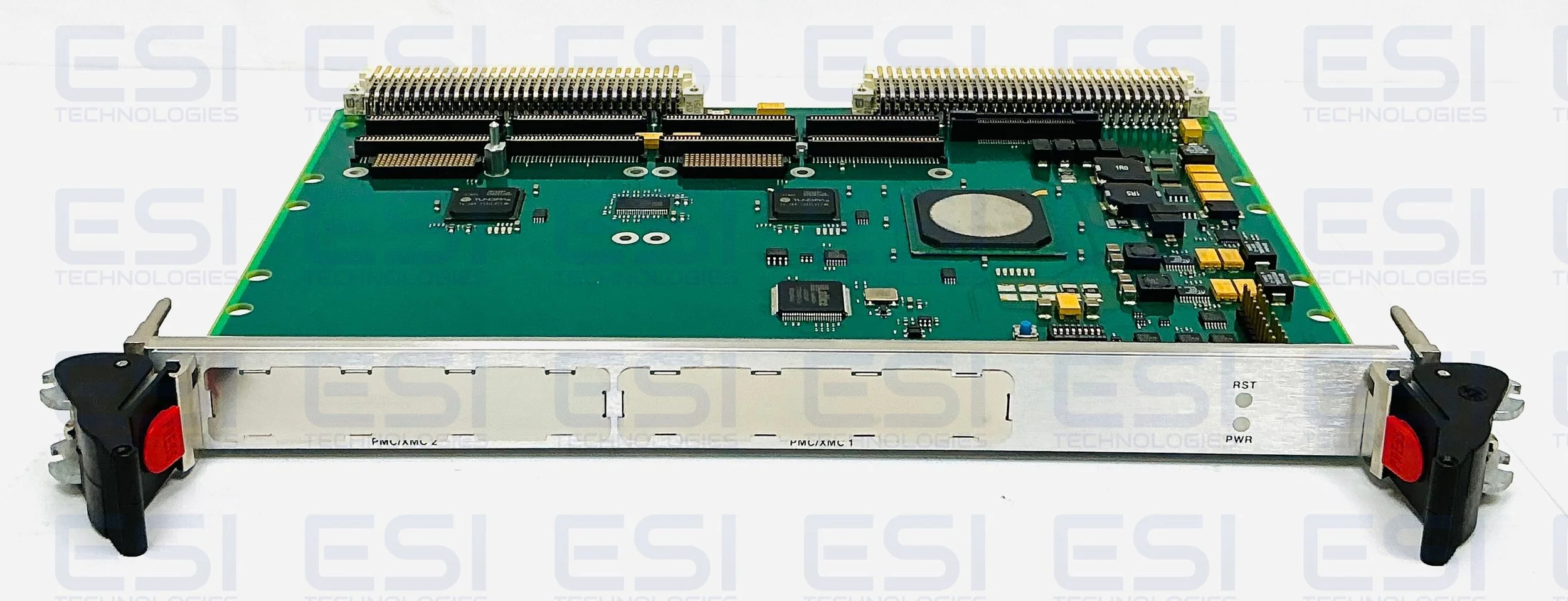

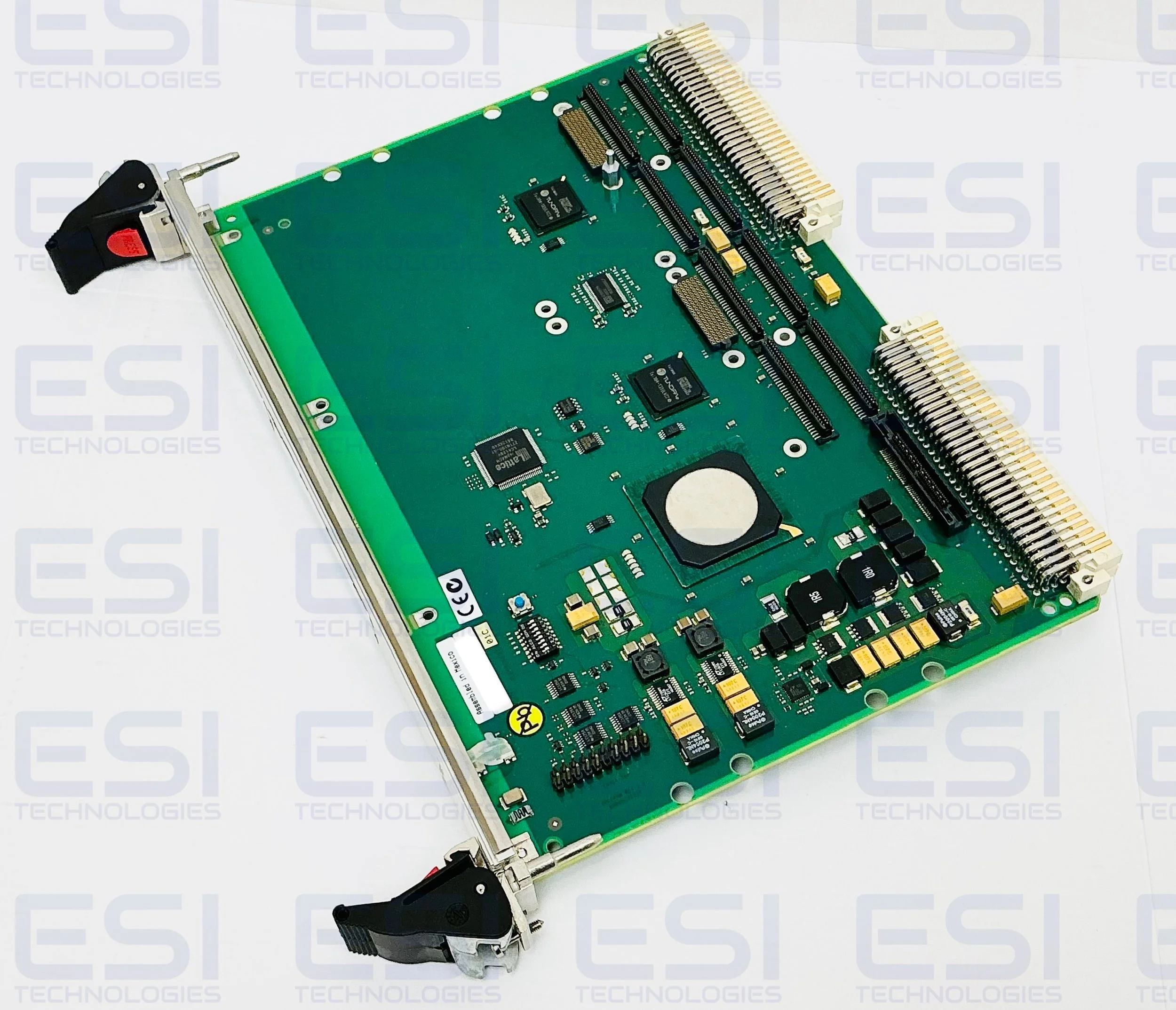

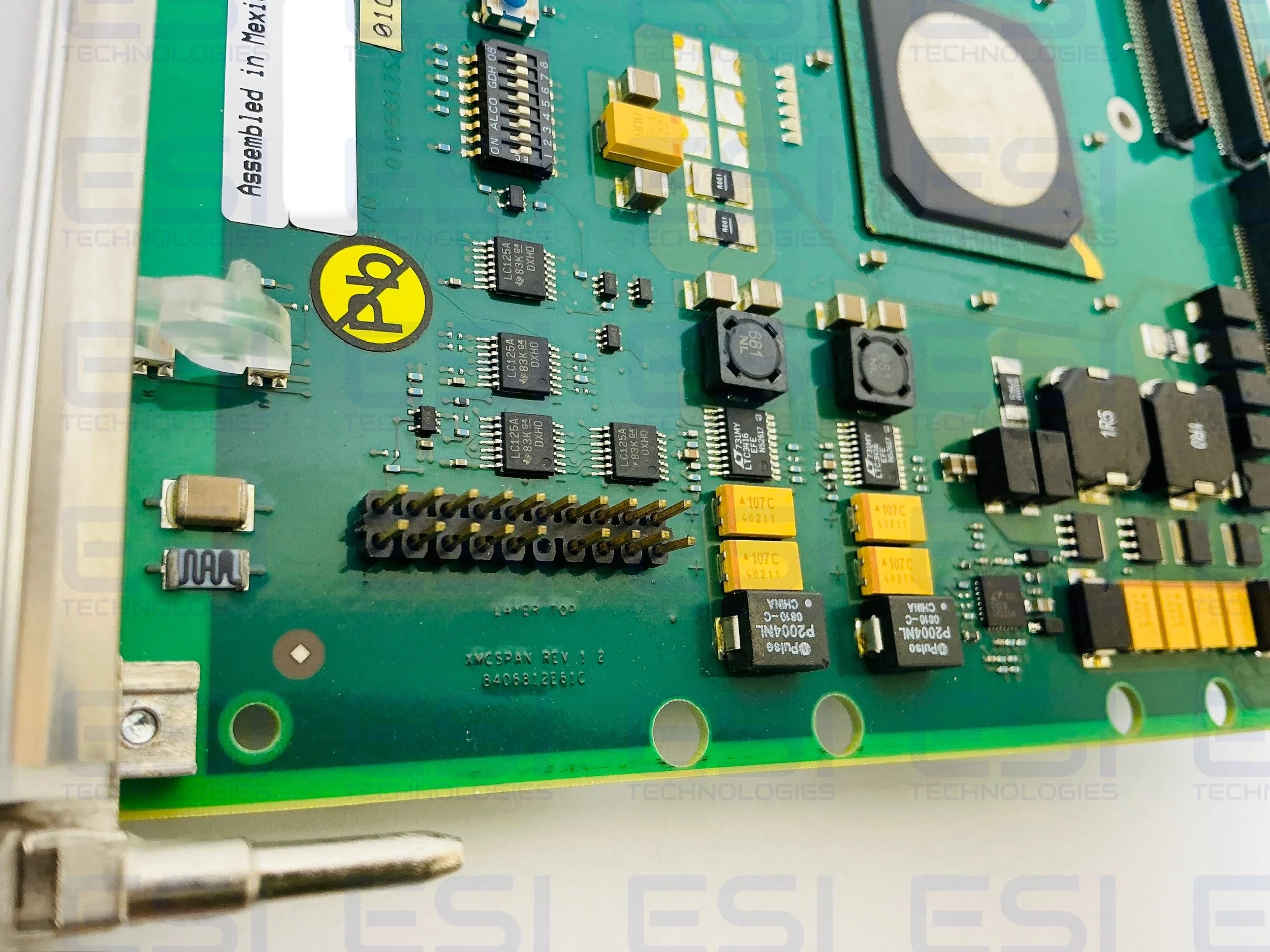

The PMCspan, XMCSPAN-001 board provides VMEbus processor modules with greater expansion capabilities. PMCspan PMC Expansion Mezzanine The SMART Embedded Computing PMCspan board allows users to customize their exact I/O requirements with the SMART EC VME-based CPU modules designed around the PowerPlus architecture. When a PMCspan board is coupled with an SMART EC processor module, the system provides up to six PCI Mezzanine Cards (PMCs), more expansion capability than any other VME-bus processor module. Each PMCspan board supports either two single-wide or one double-wide PMC. By stacking PMCspan boards onto a processor module, total of four additional singlewide PMCs can be added to SMART EC’s computer engines – either today or as future application growth demands. The PMCspan is a standard 6U single-slot VMEbus module that links to its host board via a PCI expansion connector. It supports both front panel and P2 I/O access for customer supplied PMCs.
SMART EC offers a full line of PowerPC® microprocessor-based VME products which can be custom configured for specific applications via on-board PMC slots. The PMCspan expands this capability to further increase customizing alternatives. It is compatible with SMART EC’s PowerPlus VME series. For further information on these host CPUs, contact your local sales representative.
In order to support the increased PCI bus loading associated with additional PMCs, PMCspan uses the PLX6150. This PCI-to-PCI interface bridge supports a 2-bit primary bus interface and a 32-bit secondary bus interface. PMCspan mates directly with the host CPU via the separate PCI expansion connector. When the maximum of two PMCspan modules are stacked together, the top board does not require a second PCI-to-PCI interface bridge. Software views this secondary module as an extension to the primary PMCspan.
Alternative Part No. PMCSPAN16E-002, PMCSPAN26E-002, PMCSPAN26E-010,0106812E01, mVME7100
