Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
In Stock: 20
Product Specifications
1 VGA port
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s Intel® C622
Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

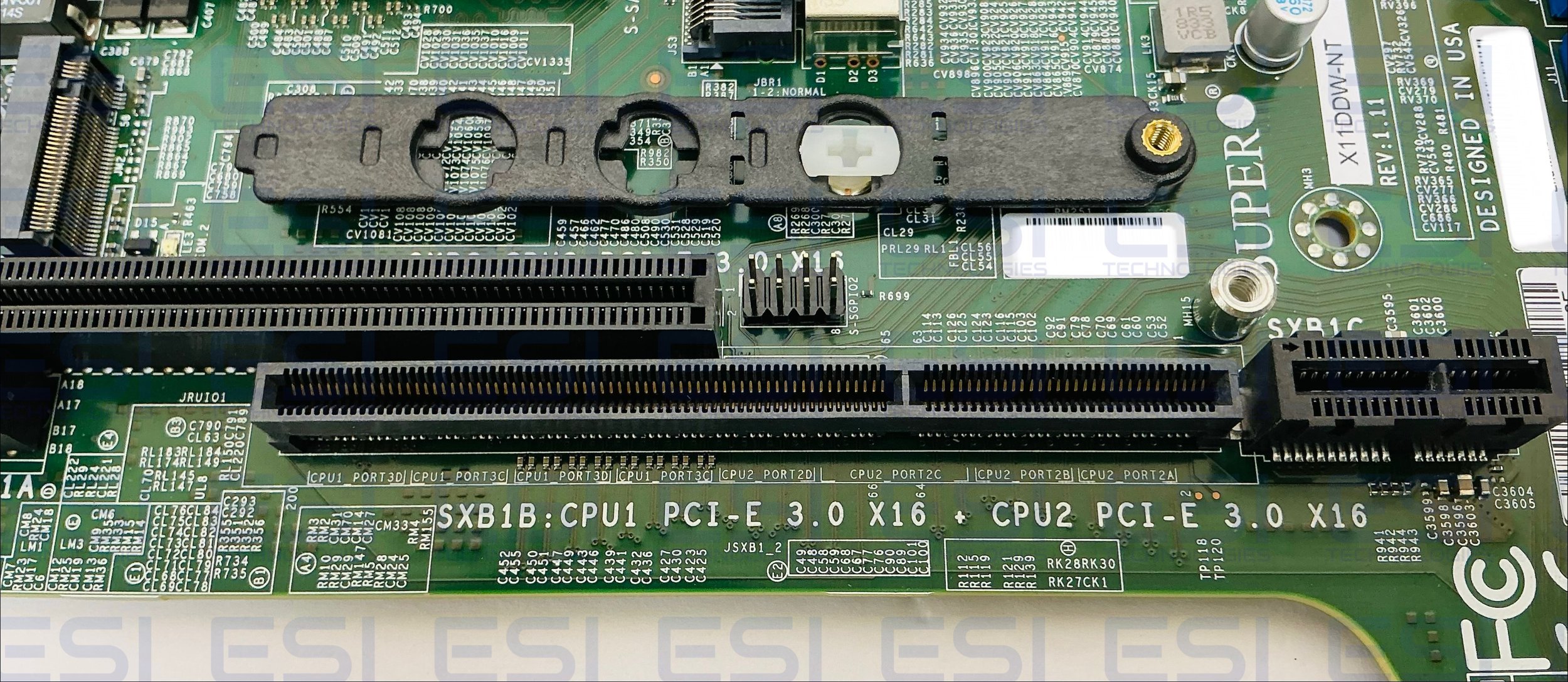

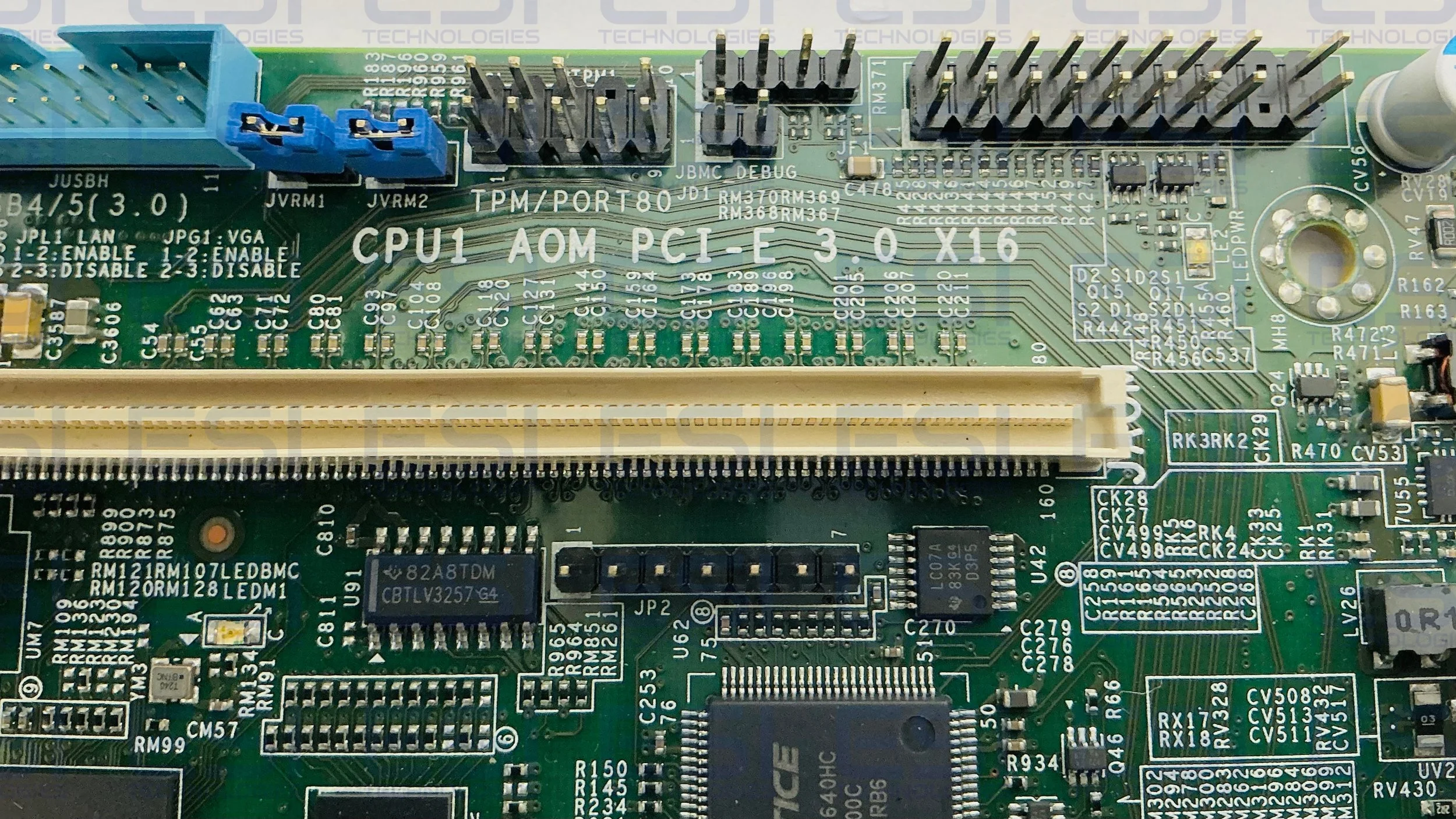

1 PCIe 3.0 x32 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot, 1 PCIe 3.0 x16 for Add-On-Module (AOM)
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
U.2 Interface: PCIe 3.0 x4
4 PCIe 3.0 NVMe x4 Internal Port(s)
Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10Gbase-T from C622

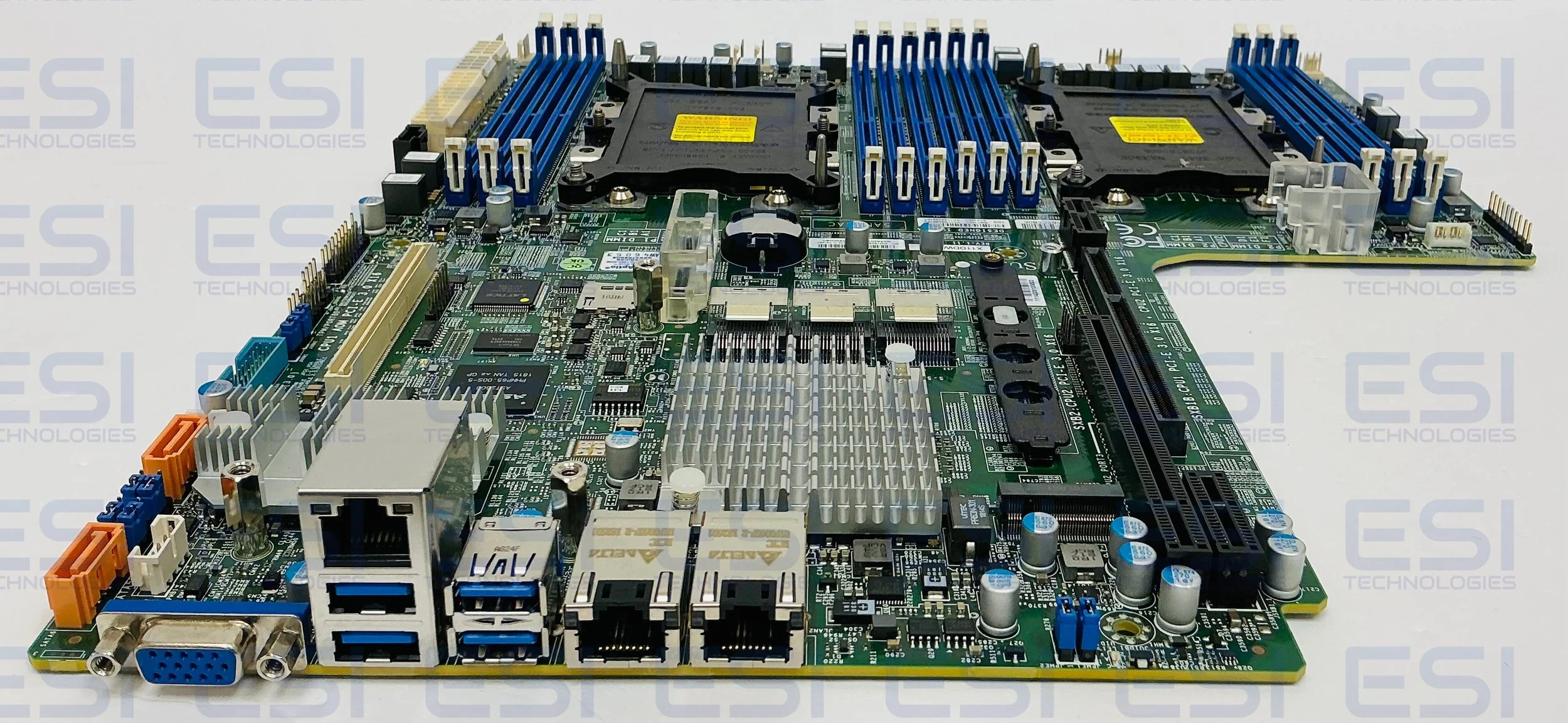

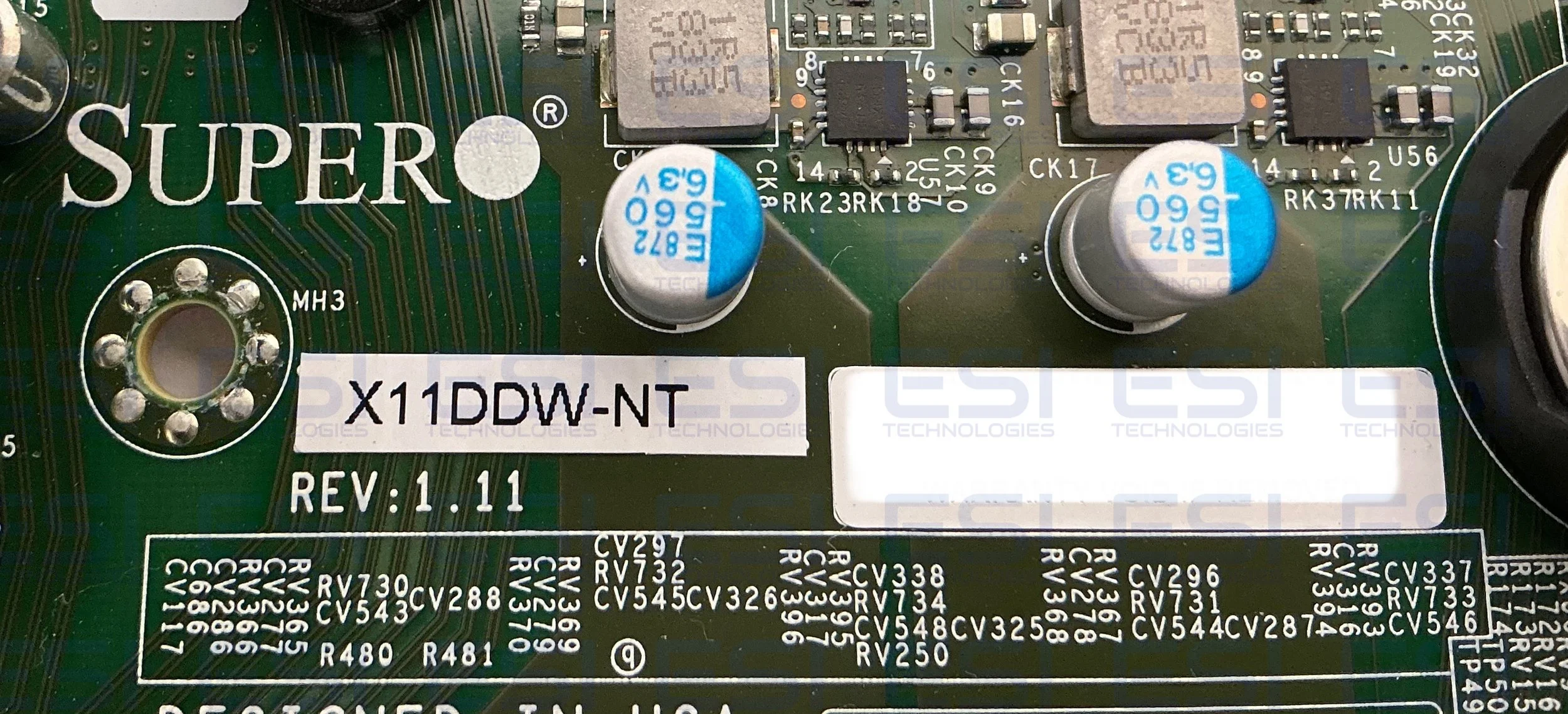

The Super Micro Computer X11DDW-NT is a dual-socket server motherboard powered by the Intel C622 chipset, designed for 2nd Gen Intel Xeon Scalable Processors (LGA-3647) with up to 205W TDP. It features dual 10Gbase-T LAN ports, 12 DIMM memory slots, and extensive storage and PCIe expansion options for enterprise environments.
Alternative Part No. X11DDW-NT , MBD-X11DDW-NT-O, X11DDW NT , MBD X11DDW NT O
