Product Specifications
Windows NT®
— 8 Mbyte bootable flash on secondary IDE
— Three programmable 16-bit timers
— 32 Kbyte of battery-backed SRAM
— Software-selectable watchdog timer with reset
— VMIVME-7434 expansion connector
— VME64 modes supported: A32/A24/D64/D32/D16/D08
(EO)/MBLT64/BLT32
— Includes byte-swapping hardware for little-endian and big-endian data
• Intel® TX chipset
• VMEbus interrupt handler, interrupter, and system controller
• External (L2) cache – 512 Kbyte synchronous burst SRAM
• Up to 128 Mbyte SDRAM using 168-pin DIMM
• 64-bit PCI SVGA controller with 2 Mbyte SGRAM
• On-board Fast Ethernet controller supporting 10BaseT and 100BaseTX interfaces
• On-board enhanced Ultra-IDE hard drive and floppy drive controllers
• Two high-performance 16550-compatible serial ports (requires VMIACC-0045 or individual connector adapters)
• Enhanced parallel port with ECP/EPP modes supported (requires VMIACC-0045 or individual connector adapters)
• PS/2 keyboard and mouse ports on front panel
• Real-time clock and miniature speaker
• VMISFT-9420 IOWorks Access™ and other IOWorks® family software available
• VMISFT-7418 VxWorks Board Support Package available
• Supports P2-only connection to HDD/floppy drive
• Year 2000 compliant
• Simulation• Instrumentation
• Industrial control
• Process control and monitoring
• Factory automation
• Intelligent networked PLC controllers
• Automated test
• Data acquisition

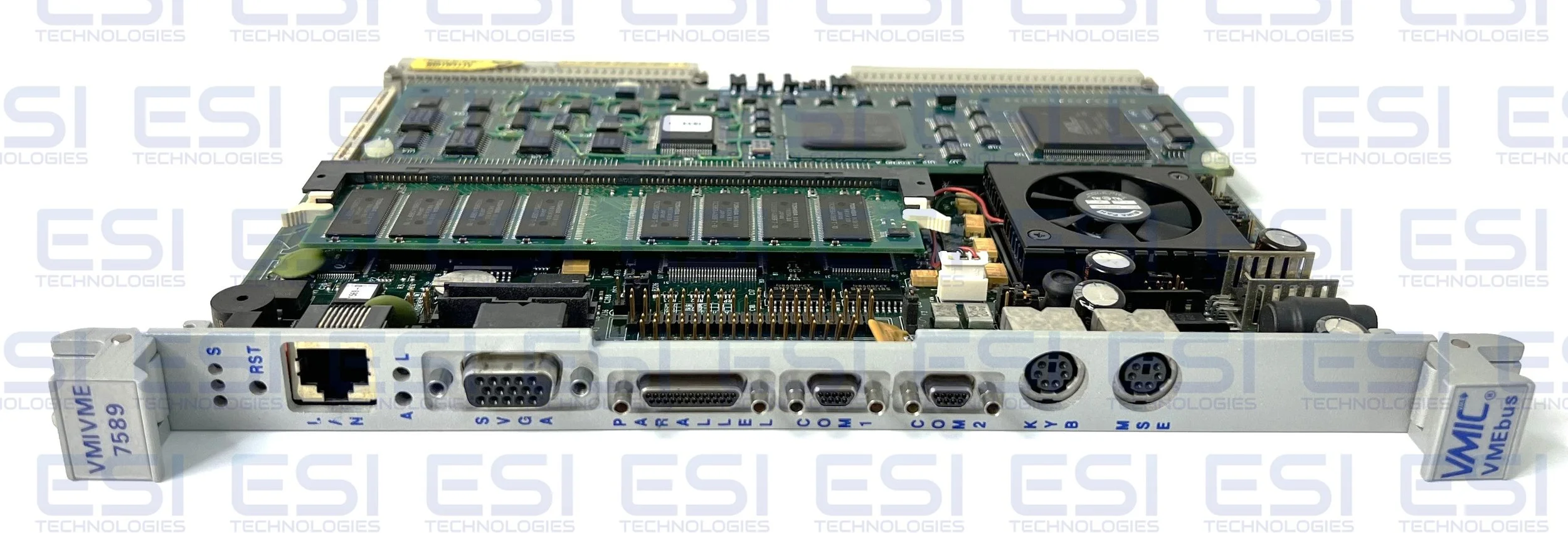

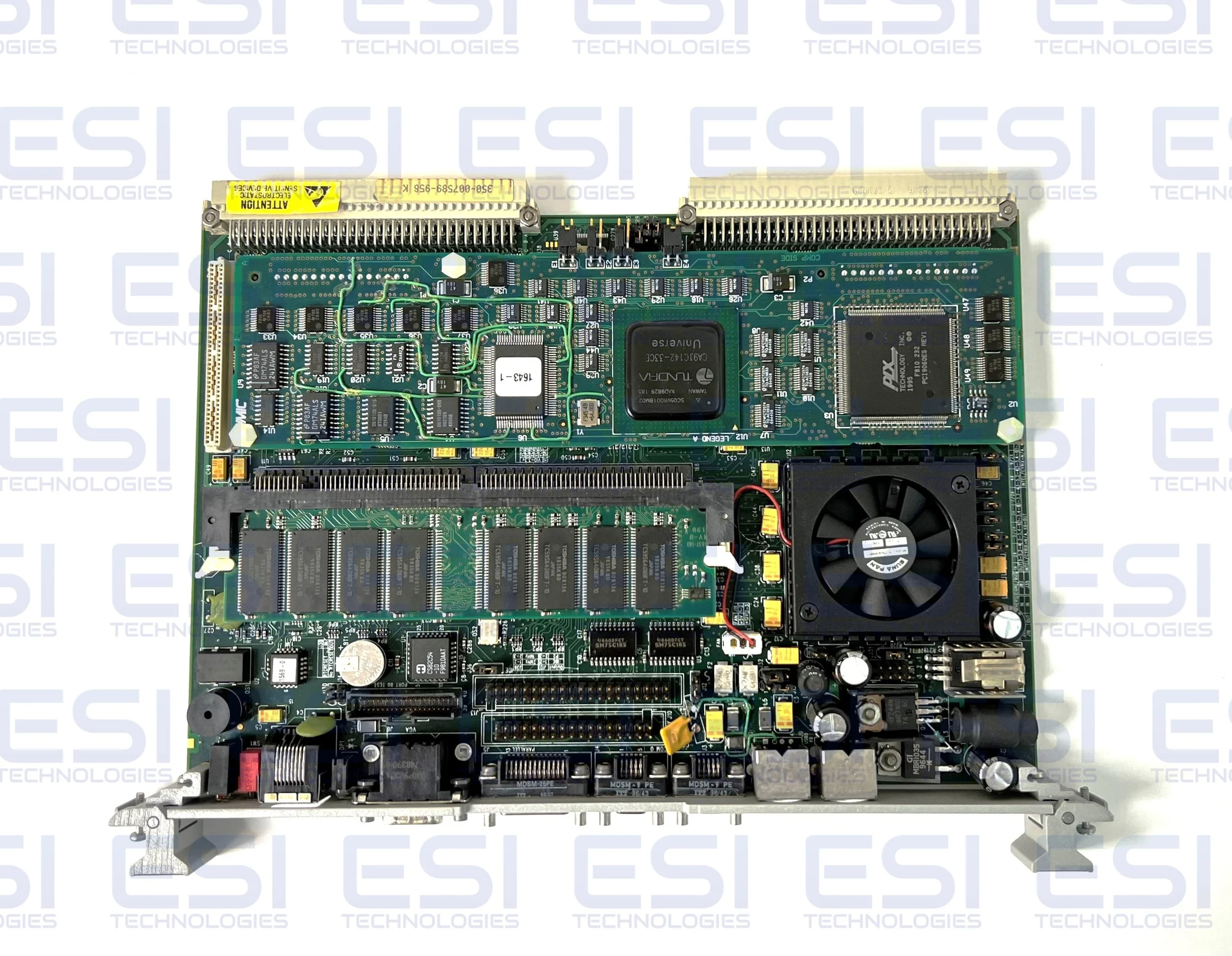

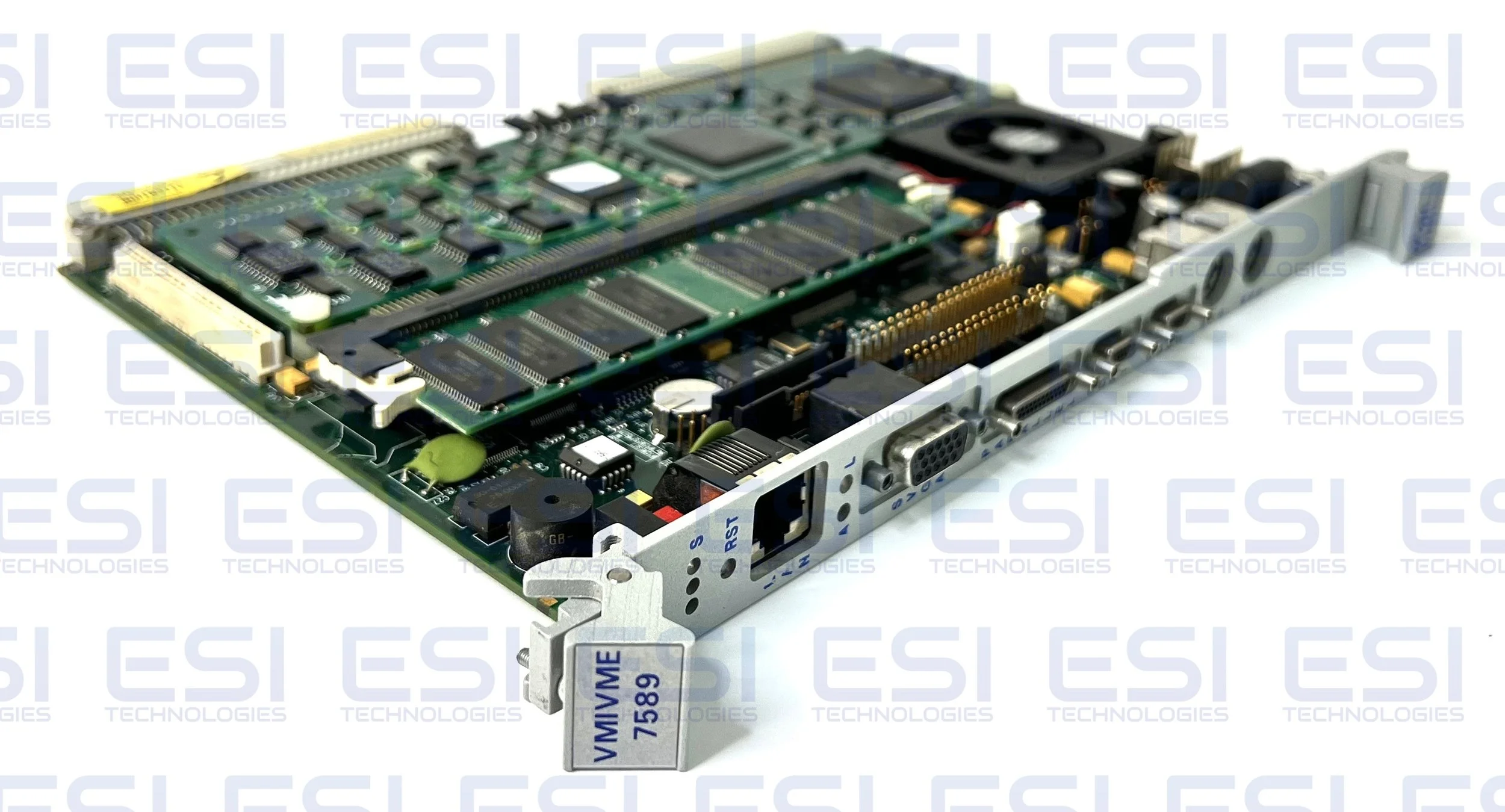

Manufactured by vMIC. Used in Good condition!
MICROPROCESSOR — The VMIVME-7589 brings Intel Pentium MMX™ processor power to VMEbus, offering processor speeds from 166 to 233 MHz. The Pentium processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture includes two pipelined integer units and a pipelined floating-point unit, allowing two instructions to be executed per clock cycle. A dynamic branch prediction unit and separate instruction and data caches also increase the Pentium processor’s performance. EXTERNAL (L2) CACHE MEMORY — The VMIVME-7589 complements the Pentium processor with 512 Kbyte of external cache memory. Near-zero wait state operation of the Pentium processor is ensured by the use of synchronous burst static RAM with the Intel chipset.DRAM MEMORY — The VMIVME-7589 accepts one 168-pin DIMM SDRAM module for a maximum memory capacity of 128 Mbyte. The on-board DRAM is dual ported to the VMEbus. BIOS — System BIOS and video BIOS are provided in reprogrammable flash memory. SUPER VGA CONTROLLER — High-resolution graphics and multimedia-quality video are supported on the VMIVME-7589 by the Cirrus Logic CL-GD5480 PCI graphics adapter. The CL-GD5480 is complemented by 2 Mbyte synchronous DRAM with a high-bandwidth 64-bit data interface. Screen resolutions up to 1,500 x 1,200 x 256 colors, 1,280 x 1,024 x 256 colors, or 800 x 600 x 16 M colors (noninterlaced) are supported by the CL-GD5480 graphics adapter.ETHERNET CONTROLLER — The VMIVME-7589 supports Ethernet LANs with the DEC 21143 PCI Ethernet controller. 10BaseT and 100BaseTX interfaces are supported via an RJ45 connector. SERIAL PORTS — Two 16550-compatible serial ports are featured on the VMIVME-7589 front panel. Each serial channel has an independent 16-byte FIFO to support baud rates up to 56 kHz. (Requires VMIACC-0045 or individual connector adapters.) ENHANCED PARALLEL PORT — Also accessible on the VMIVME-7589 front panel is a Centronics-compatible, fully bidirectional parallel port meeting all IEEE-1284 standards (Compatibility, Nibble, EPP, and ECP). The parallel port contains a 16-byte FIFO to allow data rates up to 2 Mbyte/s in ECP mode. (Requires VMIACC-0045 or individual connector adapters.) ENHANCED PARALLEL PORT — Also accessible on the VMIVME-7589 front panel is a Centronics-compatible, fully bidirectional parallel port meeting all IEEE-1284 standards (Compatibility, Nibble, EPP, and ECP). The parallel port contains a 16-byte FIFO to allow data rates up to 2 Mbyte/s in ECP mode. (Requires VMIACC-0045 or individual connector adapters.) KEYBOARD AND MOUSE PORTS — The VMIVME-7589 has an ordering option of either standard PS/2 keyboard and mouse or two USB connectors for peripherals.FLASH MEMORY — The VMIVME-7589 provides 8 Mbyte of flash memory accessible through the secondary IDE port. The VMIVME-7589 BIOS includes an option to allow the board to boot from the flash memory.16-bit TIMERS — The VMIVME-7589 provides the user with three 16-bit timers which are 82C54 compatible.
SKUE14
Qty 1
Alternative Part No. VMIVME7589-956 , VMIVME7589, VMIVME7-589, VMIVME 7589, VMIVME 7589-956
