Product Specifications
Intel® Pentium® III PGA370 socket-based single-board computer (SBC) with operating system support for Windows® 98 second edition, Windows NT®/ Windows® 2000, Windows CE, Linux, VxWorks, QNX, Solaris, and LynxOS
• Special features for embedded applications
— Up to 192 Mbyte IDE CompactFlash (optional)
— Three programmable 16-bit timers
— 32 Kbyte of nonvolatile SRAM
— Remote Ethernet booting supported
— Software-selectable watchdog timer with reset
— Supports VMEbus P2 connection to HD/floppy drive
— PMC expansion site with VMEbus P2 I/O
— VME64 modes supported: A32/A24/D32/D16/D08(EO)/MBLT64/BLT32— VMEbus interrupt handler, interrupter, and system controller
— Includes byte-swapping hardware for little-endian and big-endian data interfacing (patent no. 6,032,212)
— Enhanced bus error handling

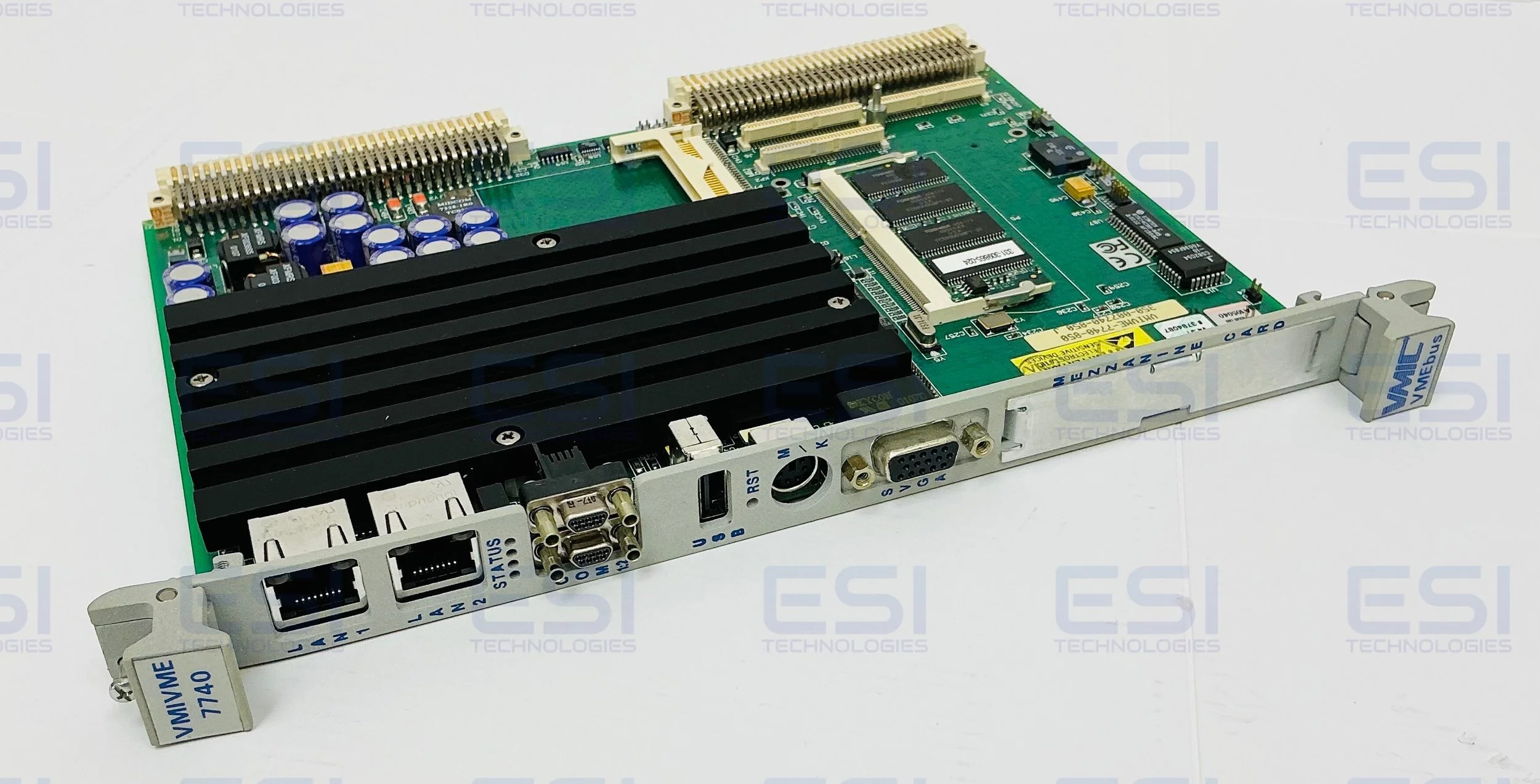

— Passive heat sink design (no moving parts)
• Standard features include
— PGA370 socket processor
— Up to 512 Mbyte SDRAM using one 144-pin SODIMM
— AGP SVGA controller with 4 Mbyte SDRAM
— Two on-board Fast Ethernet controllers supporting 10BaseT and 100BaseTX interfaces
— Front panel universal serial bus (USB) connection
— On-board Ultra-DMA-33 hard drive and floppy drive controllers with VMEbus P2 I/O
— Two high-performance 16550-compatible serial ports
— PS/2-style keyboard and mous VMIC/GE Fanuc/Abacoe port on front panel
— Real-time clock and miniature speaker included
MICROPROCESSOR — The VMIVME-7740 Manufactured by VMIC/GE Fanuc/Abaco, brings the Intel Pentium III processor to VMEbus, offering processor speeds up to 850 MHz. The Pentium III processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture allows three instructions to be executed per clock cycle. A dynamic branch prediction unit, separate instruction and data caches, and MMX™ technology also increase the processor’s performance. The Pentium III processor also provides
256 Kbyte of Advanced Transfer Cache (on-die, full speed level 2 cache) using dual independent bus architecture for high bandwidth and performance. This L2 cache operates at the same clock frequency as the processor, thus improving performance.
DRAM MEMORY — The VMIVME-7740 accepts one 144-pin SDRAM SODIMM for a maximum memory capacity of 512 Mbyte. The on-board DRAM is dual ported to the VMEbus.
BIOS — System and video BIOS are provided in reprogrammable flash memory.
Alternative Part No. VMIVME-7740, VMIVME7740, VMIVME_7740, VMIVME-7740-850, VMIVME 7740
