TIP501-20R , TIP501

Product Specifications

• Interface according to IndustryPack specification

• Identification-PROM supports autoconfiguration

• Single size IndustryPack
  16 single-ended or 8 differential channels of isolated

  16-bit A/D conversion

• ESD protected input multiplexer

• programmable gain amplifier, gain 1, 2, 5, 10
  or gain 1, 2, 4, 8

• 16-bit A/D converter with internal S/H and reference

• full scale input range +/- 10 V or 0-10V ( gain = 1 )

• interrupt capability at end-of-conversion

• factory calibrated, calibration information in

  identification-PROM unique to each IP

• Operating temperature –40°C to +85°C

• Manufactured by TEWS Technologies

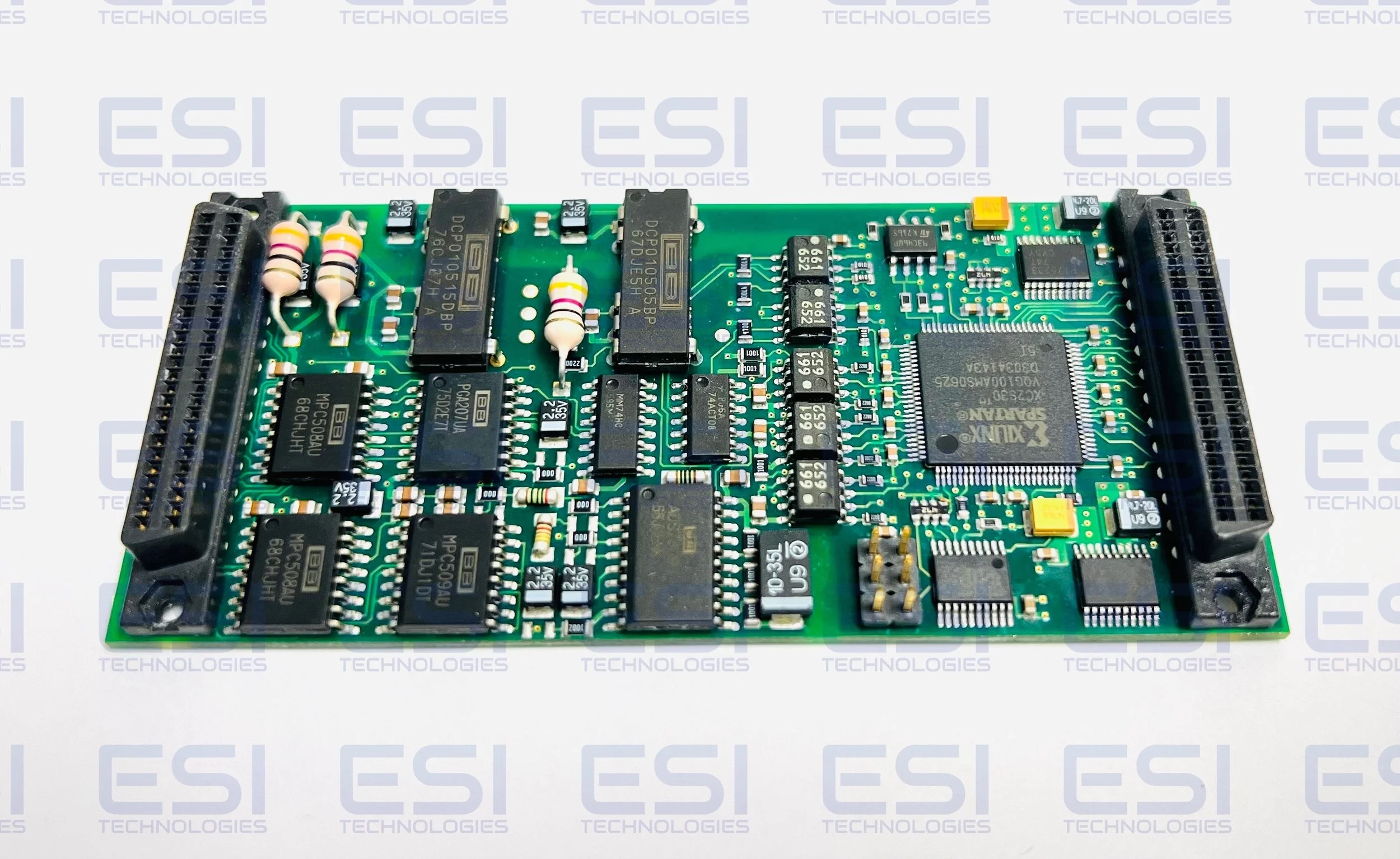

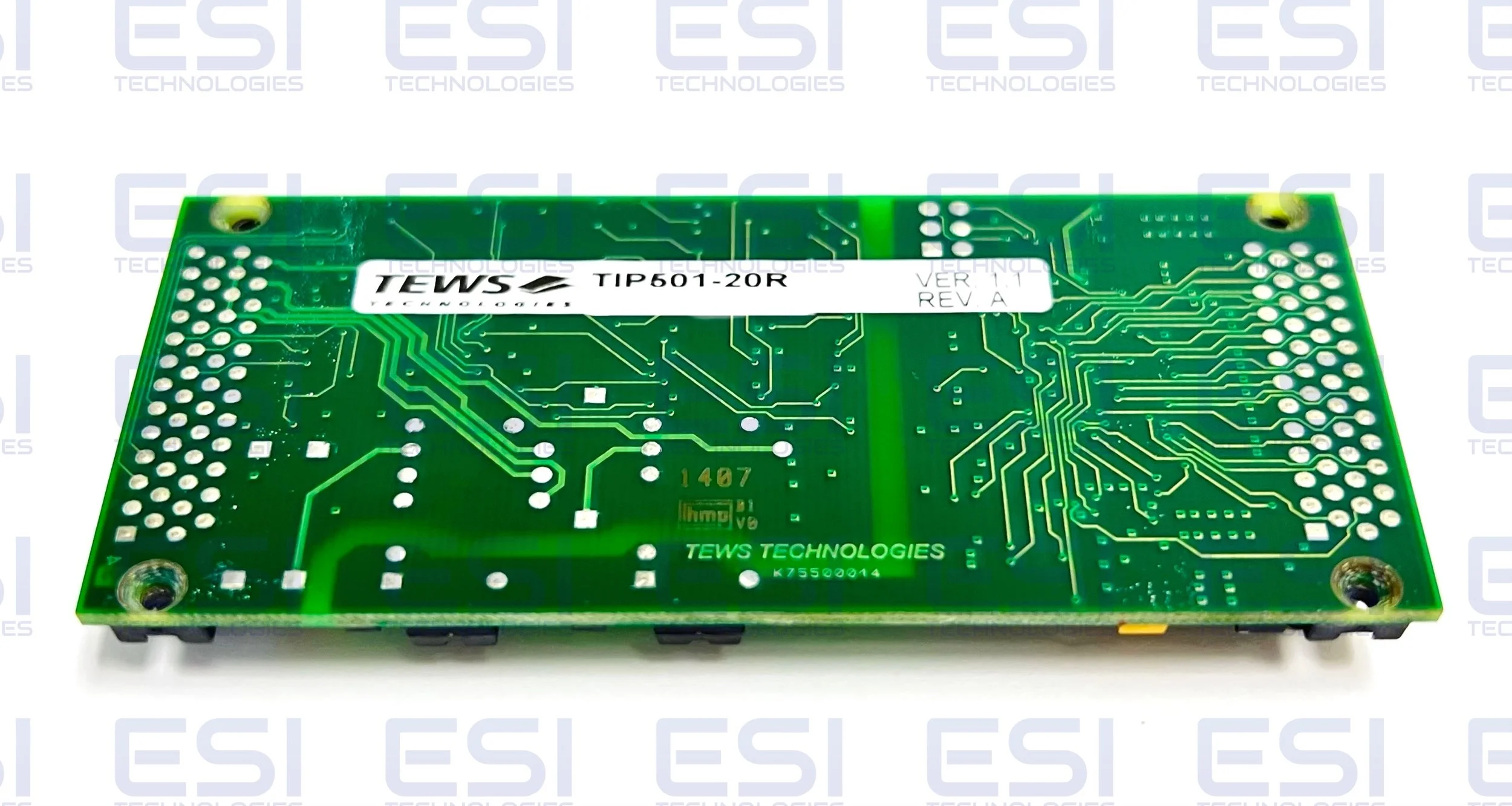

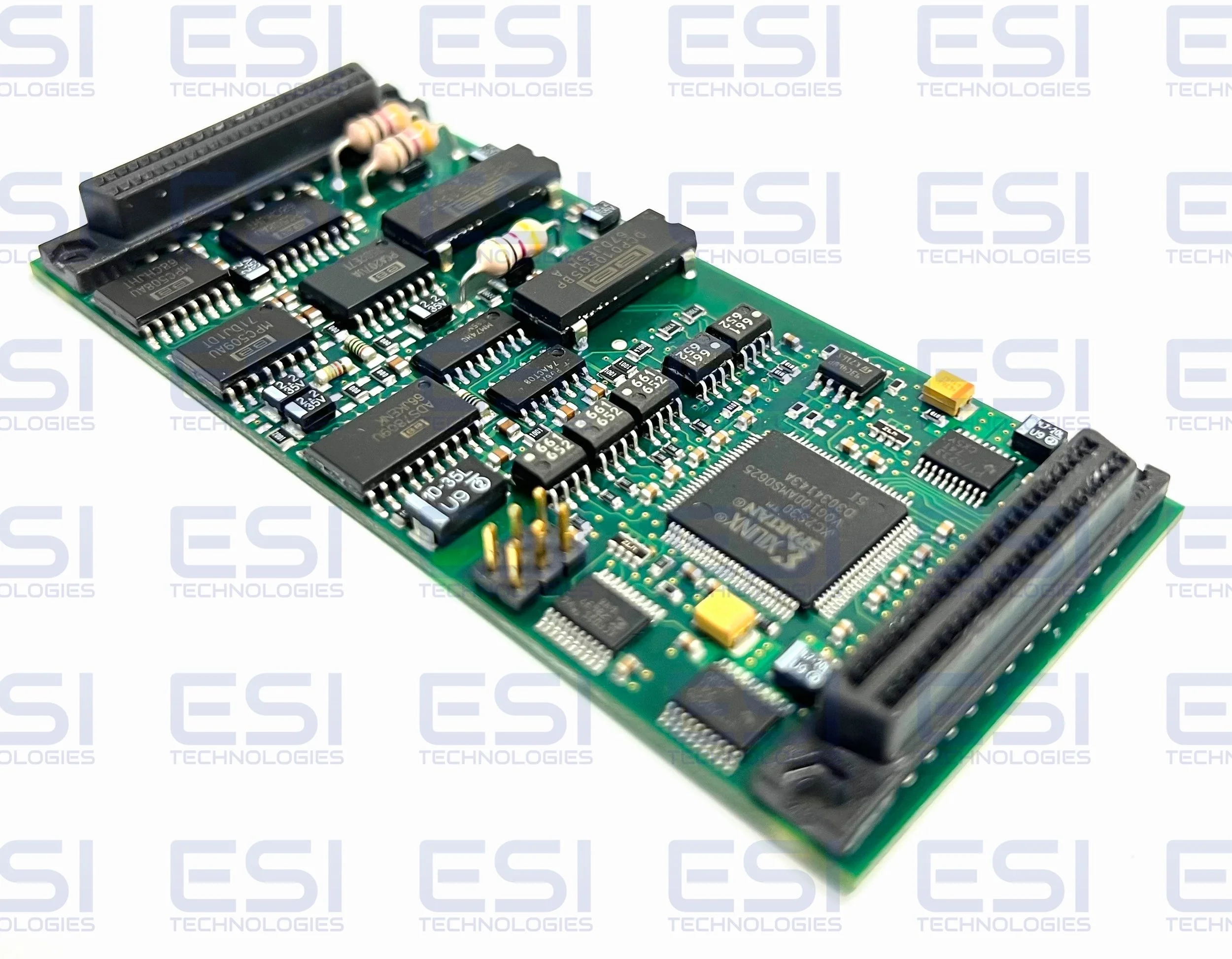

The TIP501 is an IndustryPack® compatible module from TEWS DATENTECHNIK GmbH. The TIP501 provides 16 single-ended or 8 differential channels of isolated 16-bit A/D conversion. The input multiplexer offers analog over voltage protection of up to 70 Vp-p. A programmable gain amplifier allows gains of 1, 2, 5, 10 or 1, 2, 4, 8. Full scale input range is +/- 10 V for TIP501-1x and 0-10V for TIP501-2x. The isolated ADC, programmable gain amplifier and multiplexer are powered by an on board DC/DC converter. An interrupt can be generated at end-of-conversion supporting an 8-bit vector. Each TIP501 is calibrated at the factory. Calibration information is stored in the Identification-PROM unique to each IP. For First-Time-Buyers the engineering kit TIP501-EK is recommended. The engineering kit includes TIP501-DOC, schematics, data sheets, a 50 pin terminal block and a 50 pin flat cable. Driver support ( TIP501-SW-x2 ) for different operating systems is available. TEWS DATENTECHNIK offers a wide range of connection cables and transition modules. Please contact your local sales representative.

SKUE17

NEW

QTY 1

Alternative Part No. TIP501-20R, TIP501 20R, TIP501-20, TIP501, TIP501-10, TIP501-11, TIP501-21, TIP501-dOC, TIP501-EK, TIP501-SW-11, TIP501-SW-22, TIP501-SW-32, TIP501-SW-42
