Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE19-2
In Stock: 2
Product Specifications
x4 PCIe™ card
up to four fully independent inputs
10-bit A/D converters
sampling rate up to 65 MHz
video synchronization and PLL lock detection
64 MB acquisition buffer
serial communication ports mapped as PC COM ports
programmed using Matrox Imaging Library (MIL) sold separately
supports 32/64-bit Microsoft® Windows® XP/Vista®/7 and 32/64-bit Linux®
• 23.4 L x 11.4 H x 1.57 W cm (9.225” x 4.5” x 0.62”) from bottom edge of goldfinger to top edge of board and without bracket and retainer
• power consumption (typical): 1.64A @ 5V or 8.21W, 0.325A @ 12V or 3.90W, or 12.11W total5
• operating temperature: 0°C to 55° C (32° F to 131° F)
• relative humidity: up to 95% (non-condensing)
• FCC class A
• CE class A
• RoHS-compliant
Matrox Imaging Library (MIL) drivers for 32/64-bit Microsoft® Windows® XP/Vista®/7
• MIL drivers for 32/64-bit Linux®

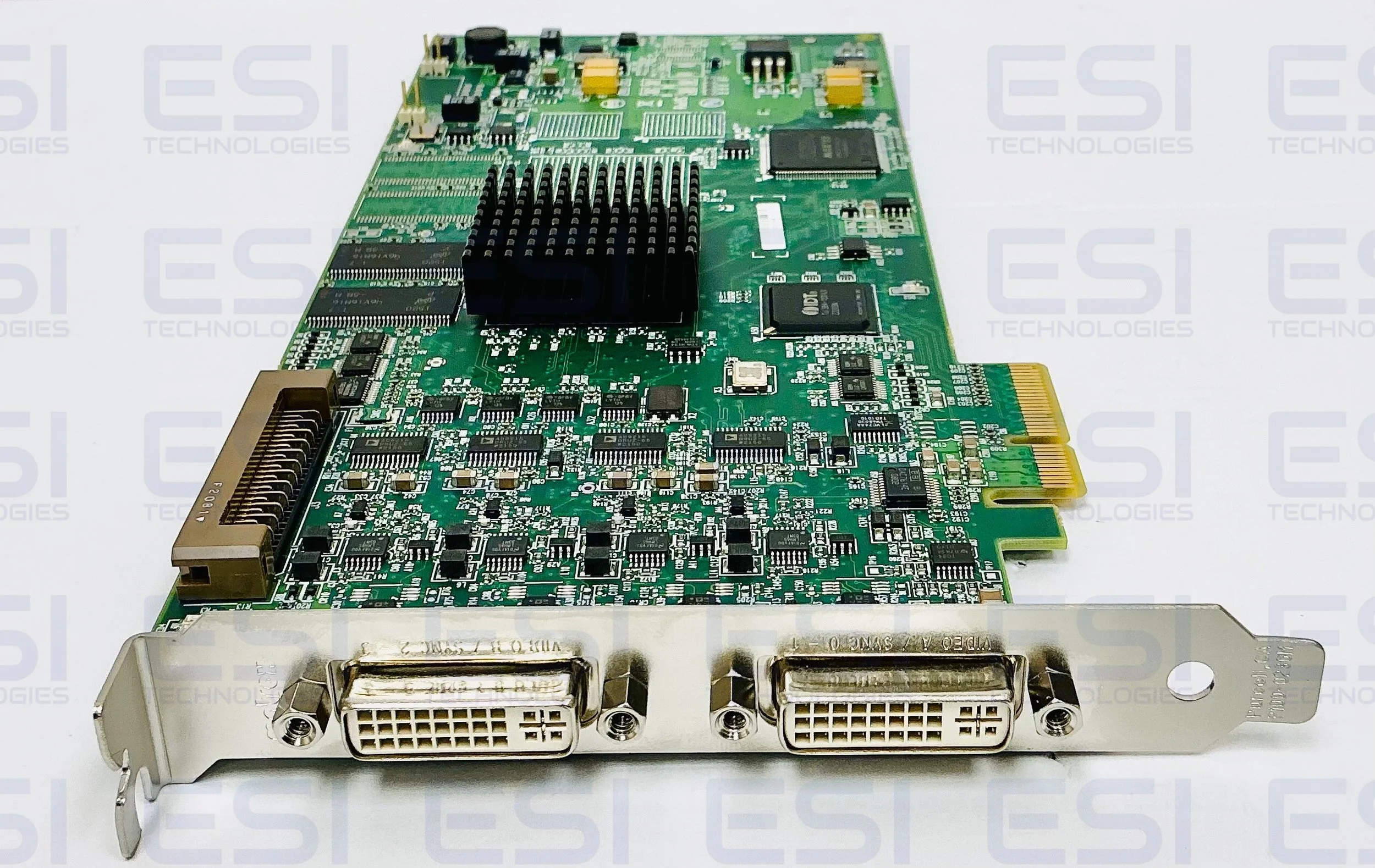

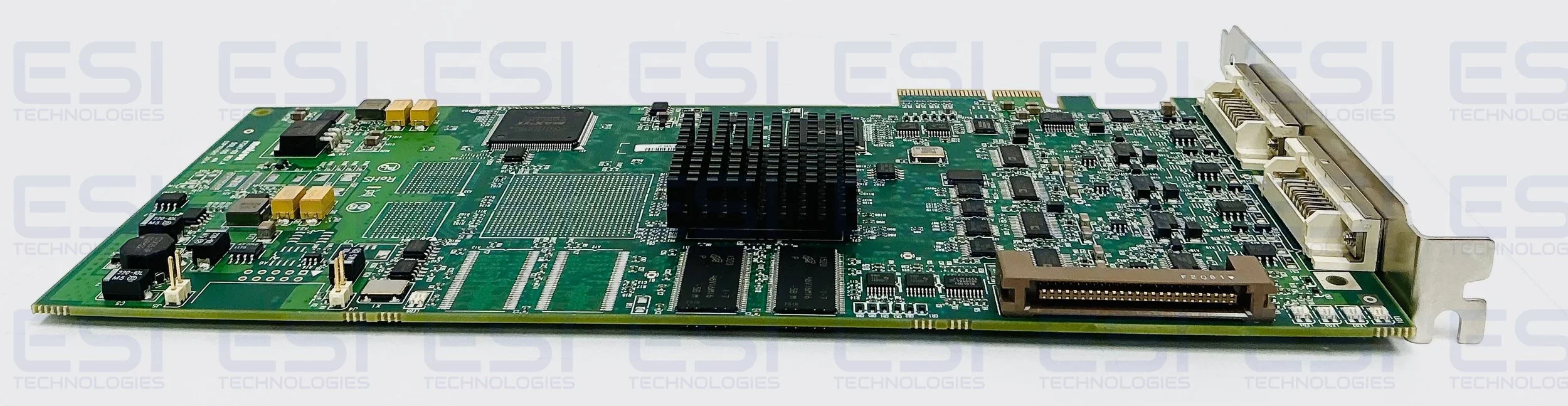

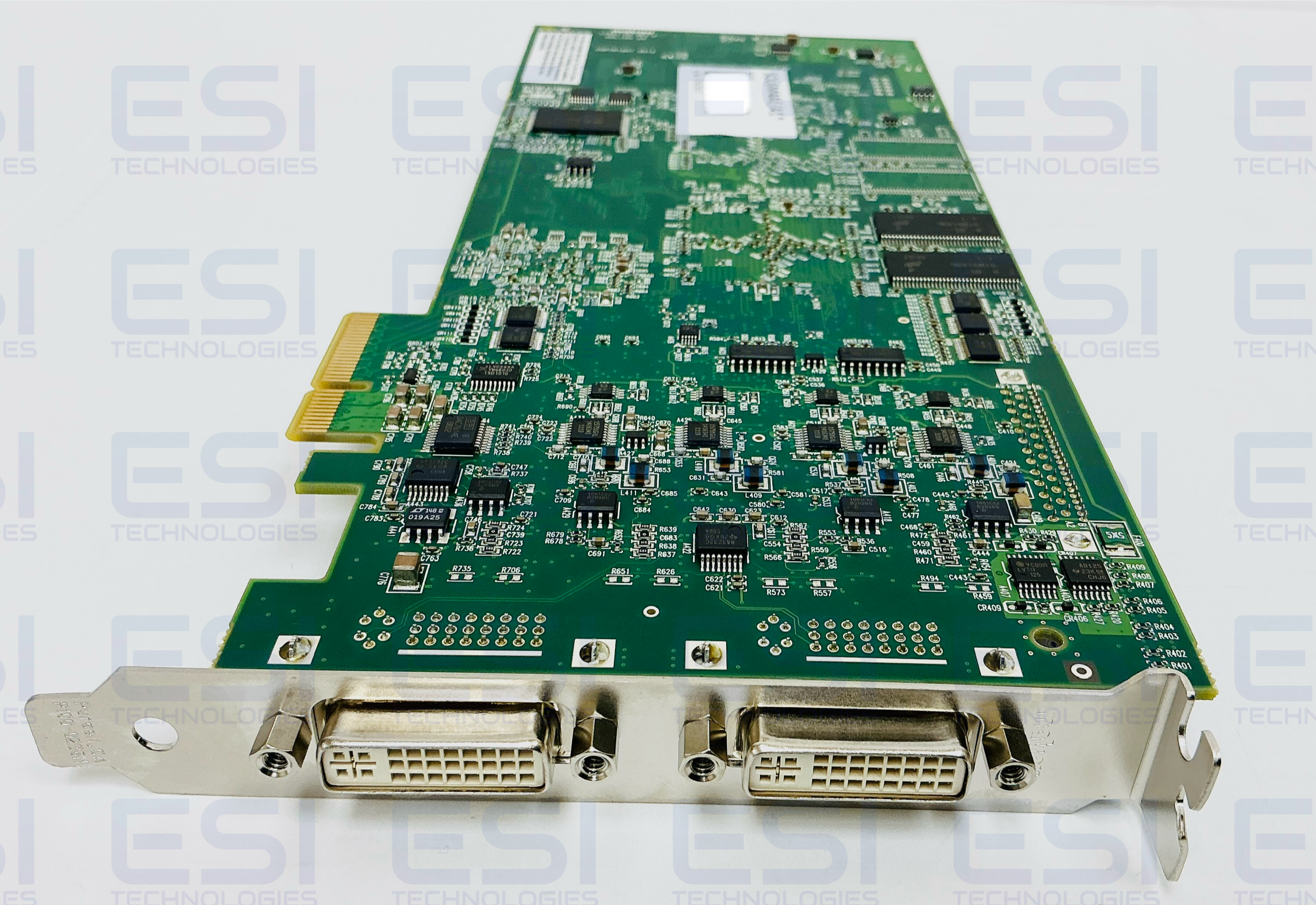

The Matrox Solios eA frame grabber strikes a perfect balance between functionality and cost. Its high fidelity analog acquisition capabilities and high-performance PCI Express® (PCIe™) bus interface make the Matrox Solios eA a good match for mainstream cameras. The Matrox Solios eA is the right choice for cost sensitive applications.
High fidelity analog acquisition: Matrox Solios eA has up to four completely independent inputs for high fidelity video capture. In addition to being able to simultaneously acquire from up to four single-output video sources, the inputs can be combined to
simultaneously acquire from two dual-output video sources or one RGB video source. Each input of the Matrox Solios eA features circuitry to monitor the presence of a video (synchronization) signal and status of the phase-locked loop. The Matrox Solios eA can also transparently convert between
monochrome and packed/planar RGB color spaces enabling the optimum. representation of image data for processing and/or display.
Choice of high-performance bus interfaces : Four lane (x4) PCIe™ is the interfaces used to connect to the host PC on the Matrox Solios eA board. PCIe™ is the follow-on to conventional PCI and PCI-X®. Version 1.x of PCIe™ operates at 2.5 GHz to deliver a peak bandwidth of 1GB/sec over a x4 implementation.
Field-proven application development software: Matrox Solios eA is supported by the Matrox Imaging Library (MIL), a comprehensive collection of software tools for developing industrial imaging applications. MIL features interactive software and programming functions for image capture, processing, analysis, annotation, display and archiving. These tools are designed to enhance productivity, thereby reducing the time and effort required to bring your solution to market. Refer to the MIL datasheet for more information.

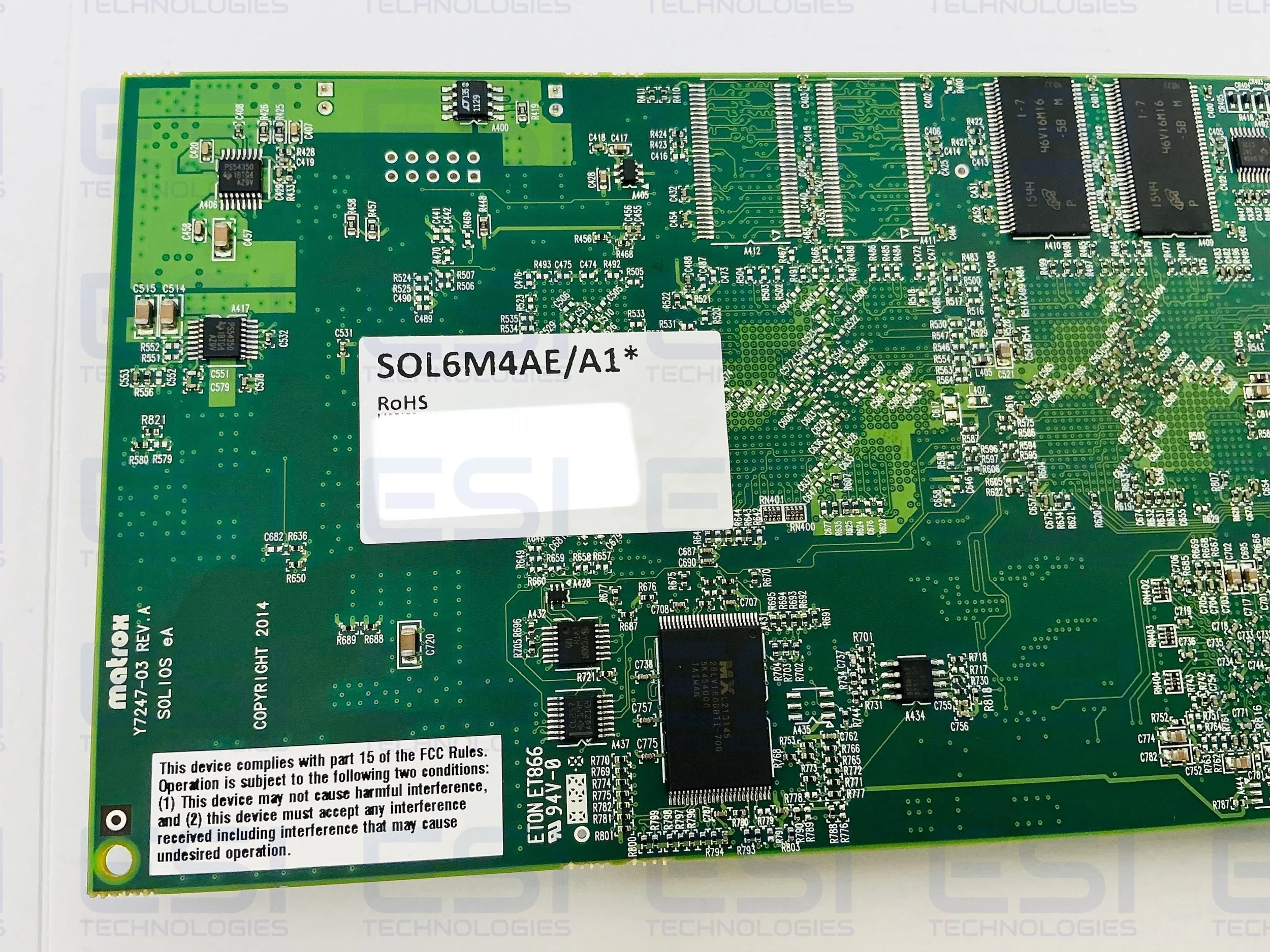

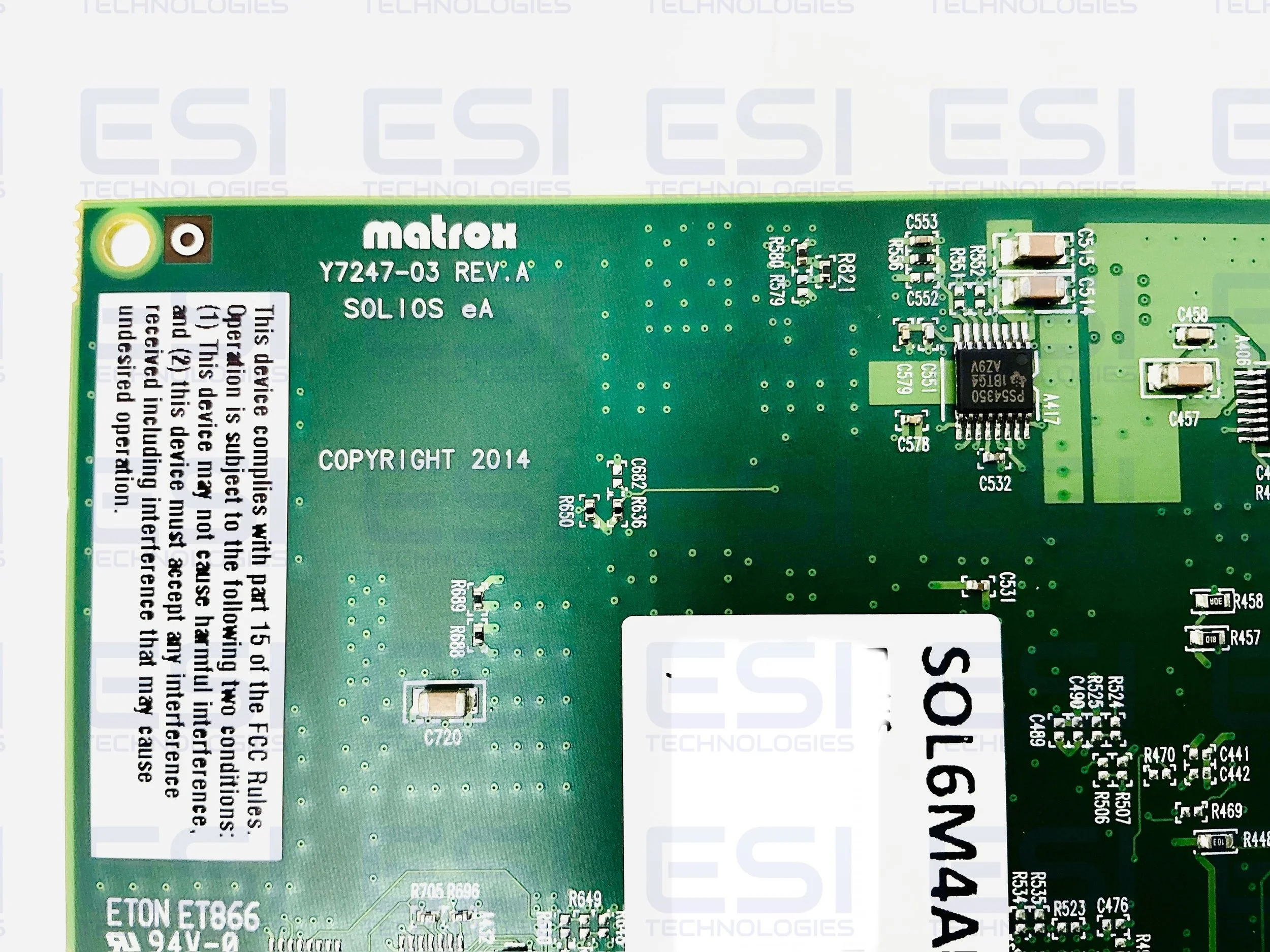

Alternative Part No. SOL6M4AE, SOL6M4AE/A, SOL6M4AE/G,SOL6M4AEM85A, Y7247-03 REV.A, Y7247-0101 REV.A, SOL 6M 4A E*, SOL 6M 1A S*
