Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE38-2
In Stock: 3
Product Specifications
Transmits video from Camera Link Base mode cameras over GigE with low, consistent latency
Built-in Programmable Logic Controller (PLC) for advanced real-time synchronization and triggering
RS-232 and GPIO to control external accessories
Compatibility: GigE Vision and GenICam standards.
Memory Options: Available in 16 MB or 128 MB SDRAM configurations.
Pixel Clock Support: Up to 66 MHz or 80 MHz depending on the exact sub-model.
Cabling: Uses standard RJ45 Cat-5/Cat-6 cabling up to 100 meters between source and PC.

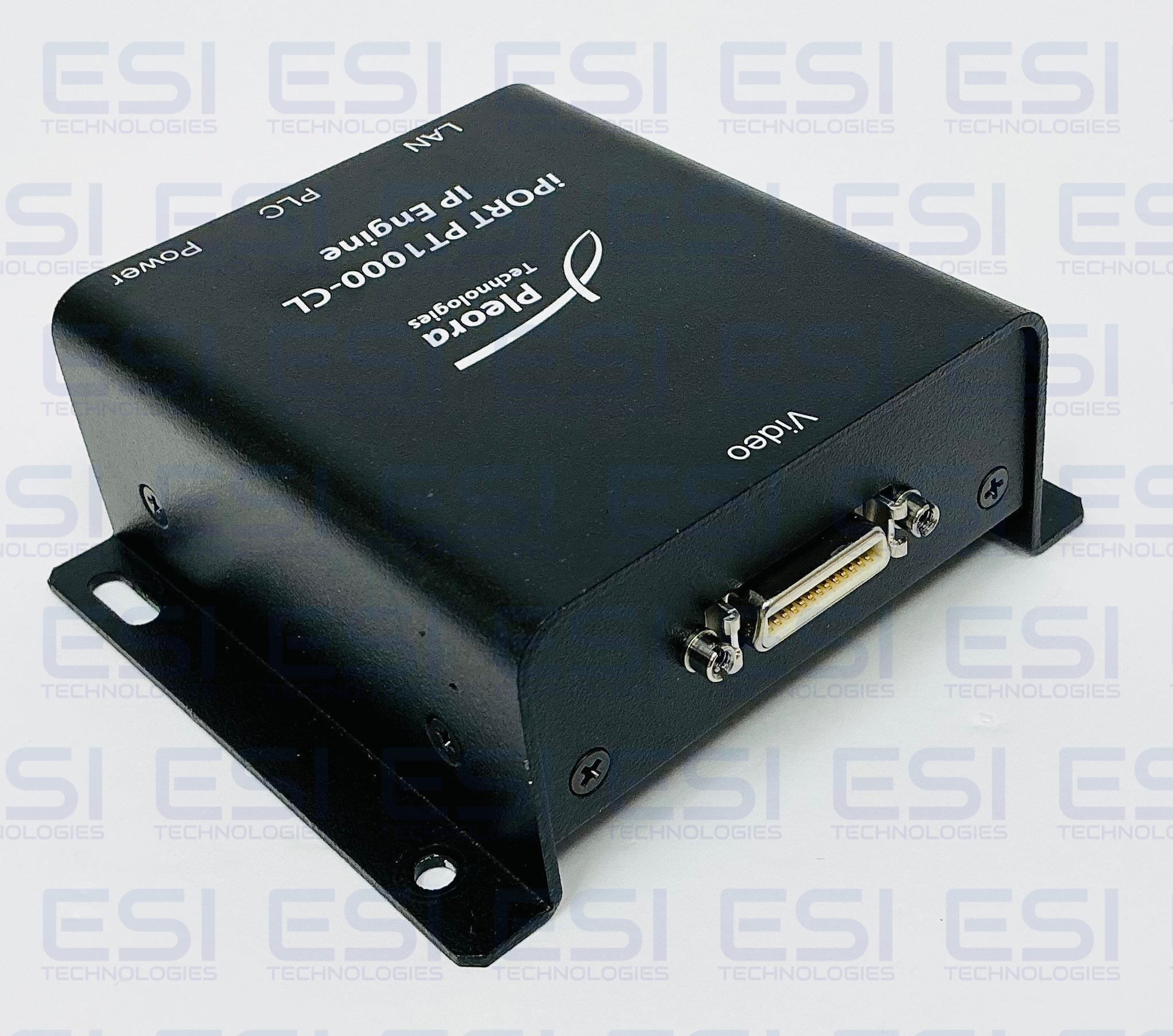

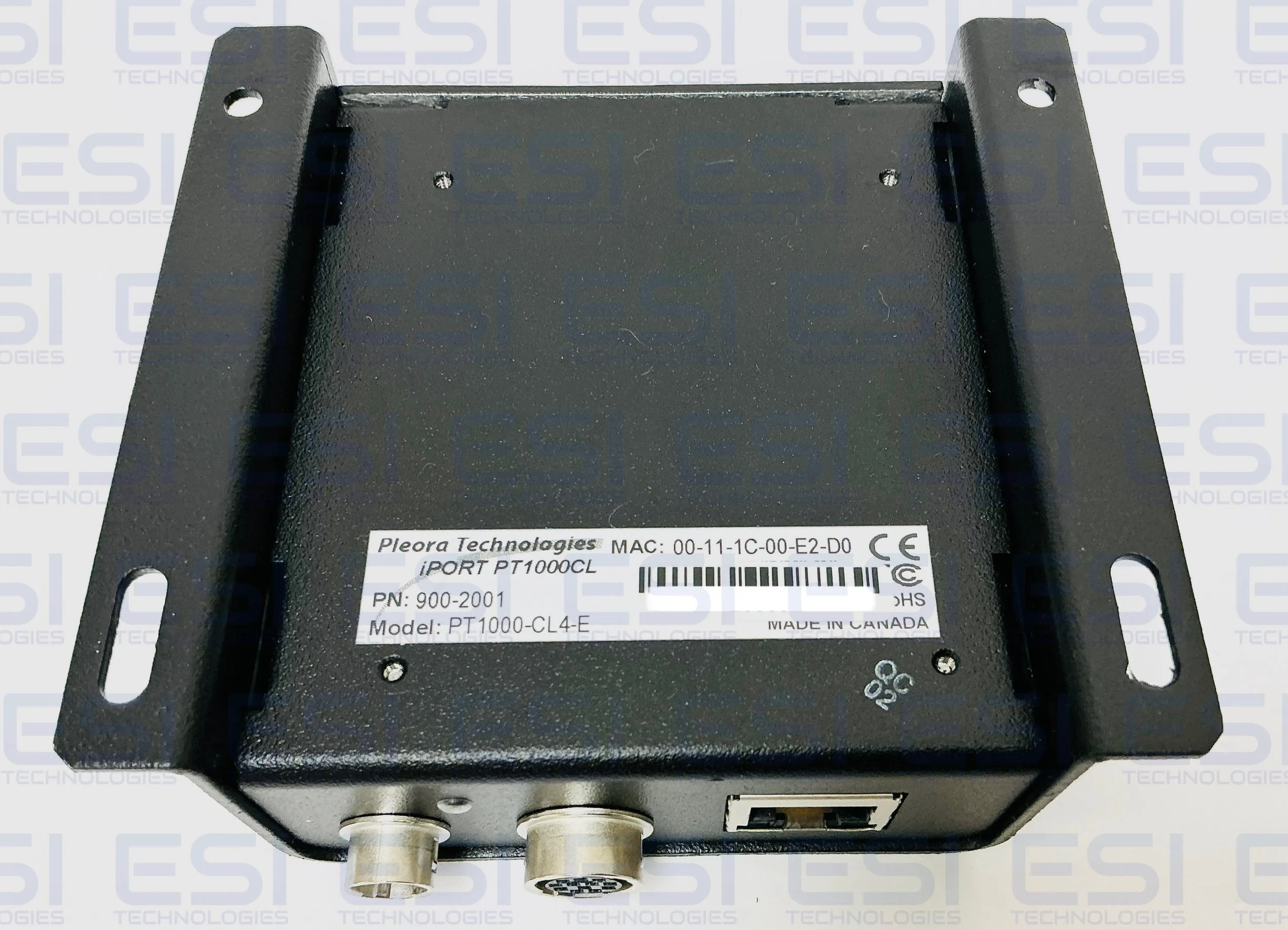

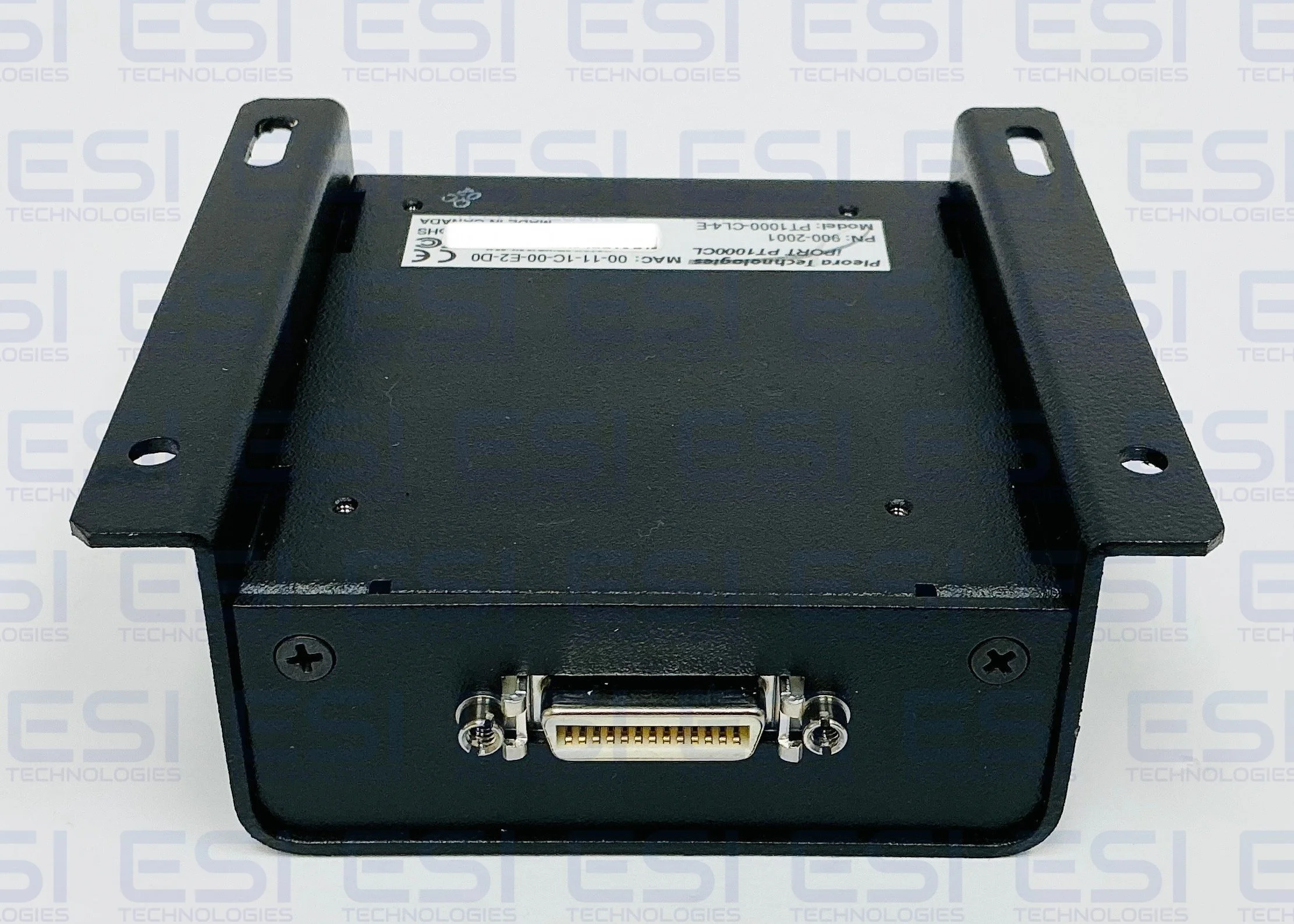

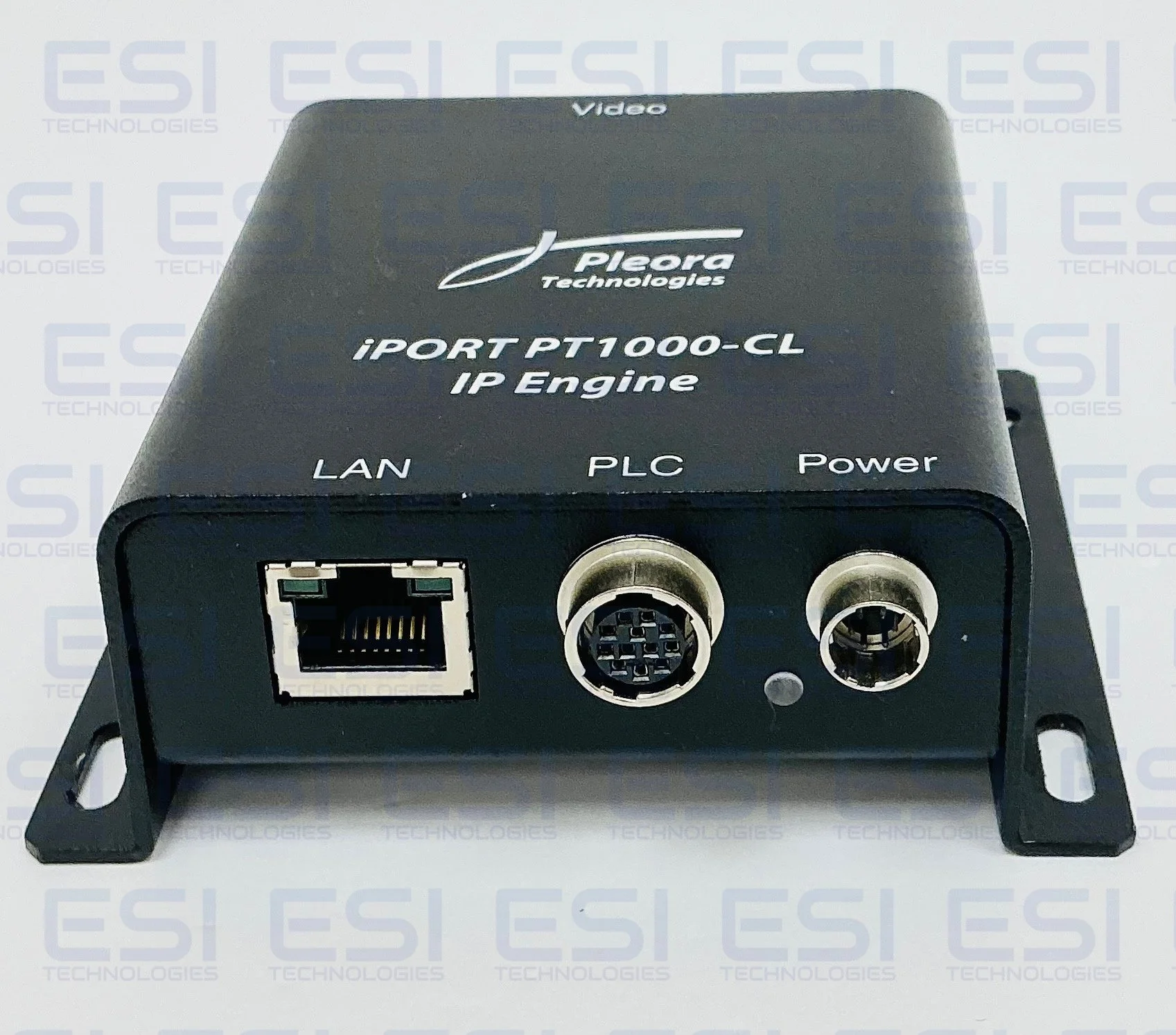

Pleora’s iPORT™ PT1000-CL4 External Frame Grabbers allow system manufacturers and integrators to treat Camera Link® cameras as native GigE Vision® cameras. With these external frame grabbers, Camera Link cameras enjoy the long-distance reach of Gigabit Ethernet (GigE) and can be mixed with native GigE Vision cameras in networked environments.
The PT1000-CL4 External Frame Grabbers comply fully with the GigE Vision® and GenICam™ standards, enabling the products to interoperate seamlessly with other equipment in multi-vendor systems. System manufacturers and integrators can shorten time-to-market, lower design and system costs, and reduce development and deployment risk by reusing expensive or application-specific Camera Link cameras in GigE Vision installations, with minimal software development.
The PT1000-CL4 converts video data from Camera Link cameras to packets and transmits it over a GigE link with low, predictable latency. GigE supports cabling distances of up to 100 meters using standard CAT5e/6 cabling. With off-the-shelf Ethernet switches, distances can be unlimited.
The connection at the PC is a standard GigE plug, eliminating the need for a desktop PC with an available PCI slot. As a result, system designers can reduce system size, cost, and power consumption by using computing platforms with smaller form factors, such as laptops, embedded PCs, and single board computers.
A sophisticated on-board Programmable Logic Controller (PLC) allows users to precisely measure, synchronize, and control the operation of other elements.
The PT1000-CL is bundled with Pleora’s feature-rich application toolkit, eBUS™ SDK, and compatible with Pleora’s vDisplay™ External Frame Grabbers for HDMI output.
Alternative Part No. RPL-PT1000-CL4-E, 900-2105, Pleora iPORT PT1000-CL4 / PT1000-CL, PT1000 CL4 E
