Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE5
In Stock: 1
Product Specifications
PMC module with one or two independent CAN nets
Microcontroller 68331 on board
PCI Bridge PCI9052
Microcontroller 68331CAN controller SJA 1000, CAN 2.0 A/
CAN interface Differential, electrically isolated, 1 Mbit/s,
ISO11898, opt. DeviceNet
Ambient temperature 0…50o C
Supply voltage 5 VDC
Connectors PMC – 2x 64-pole PMC connectors, CAN – 2x
9-pole DSUB (male)

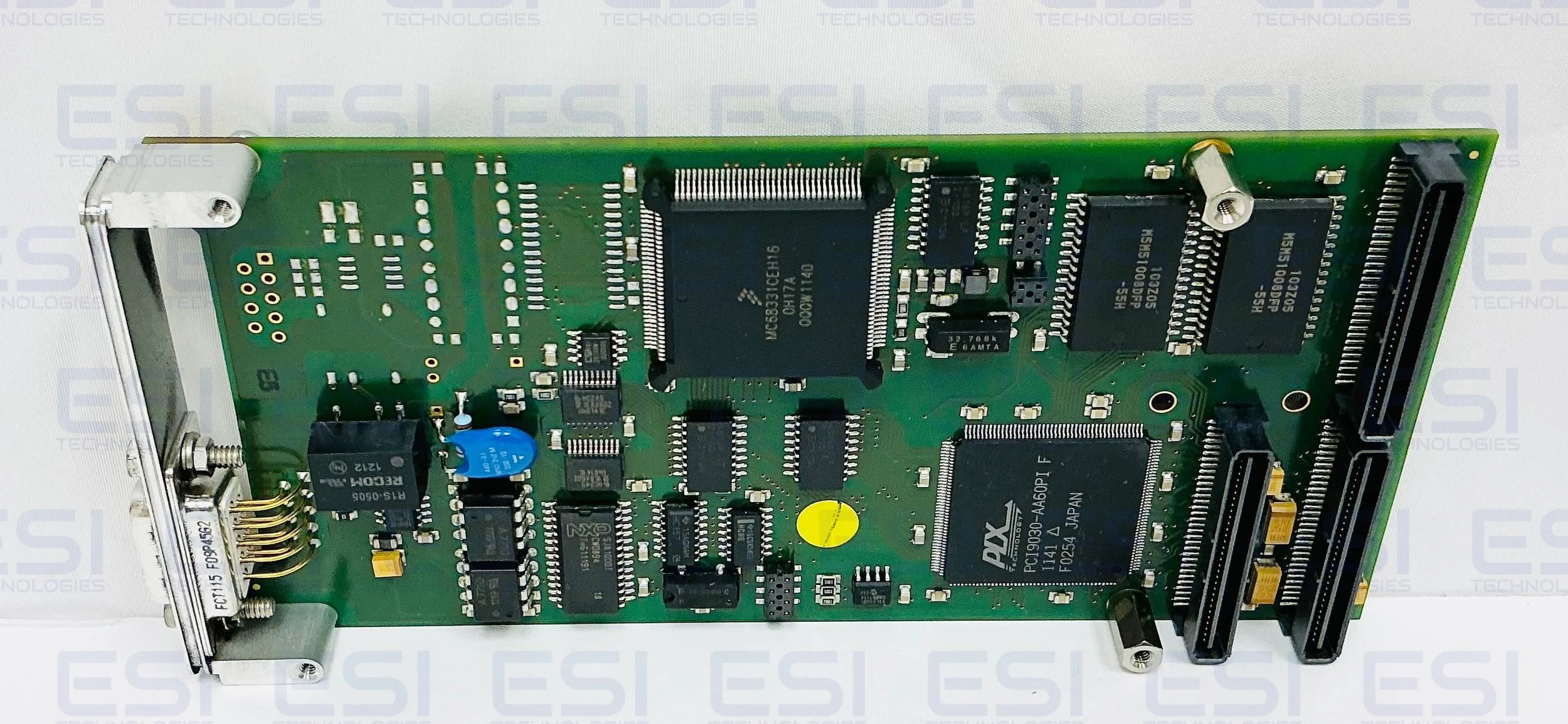

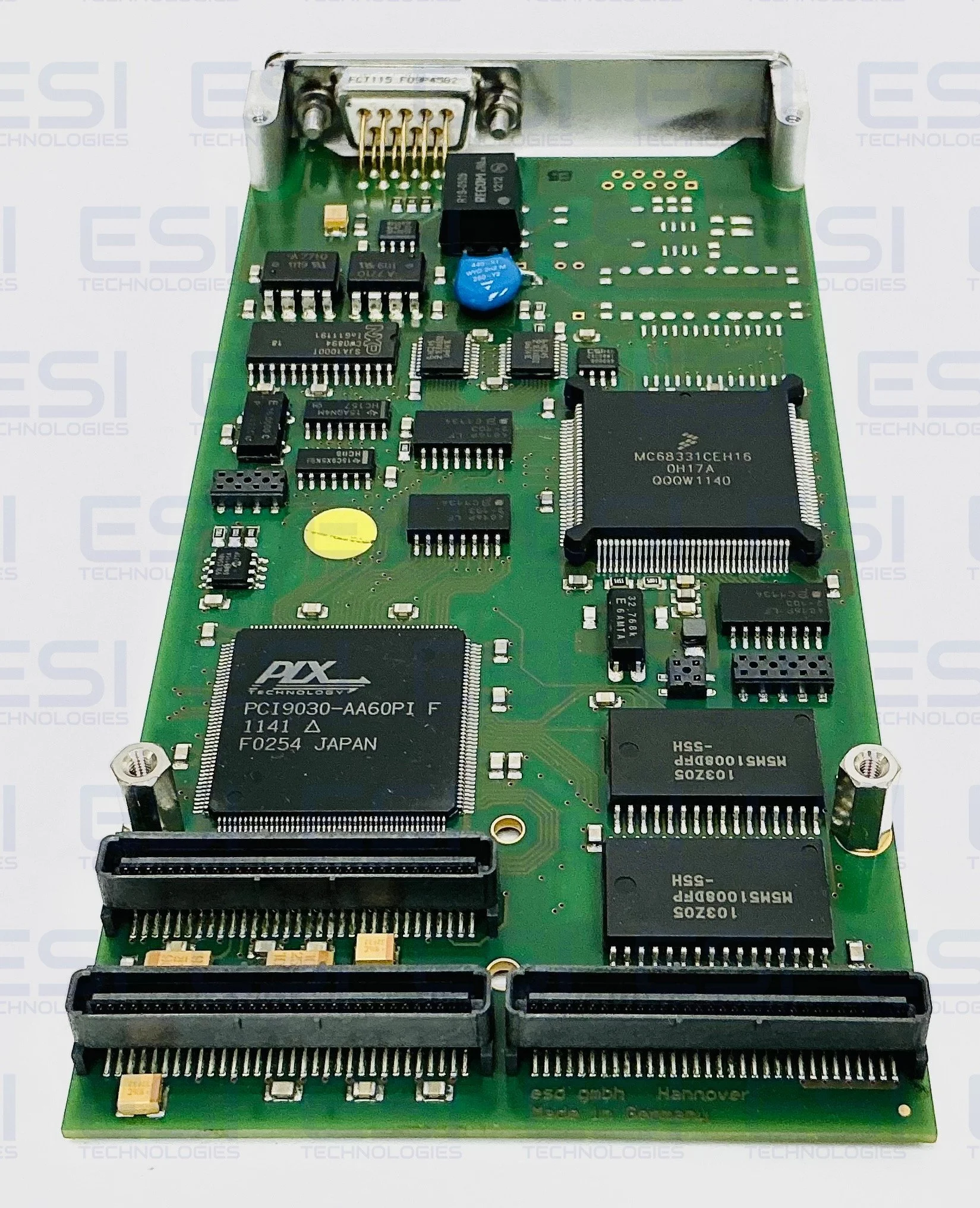

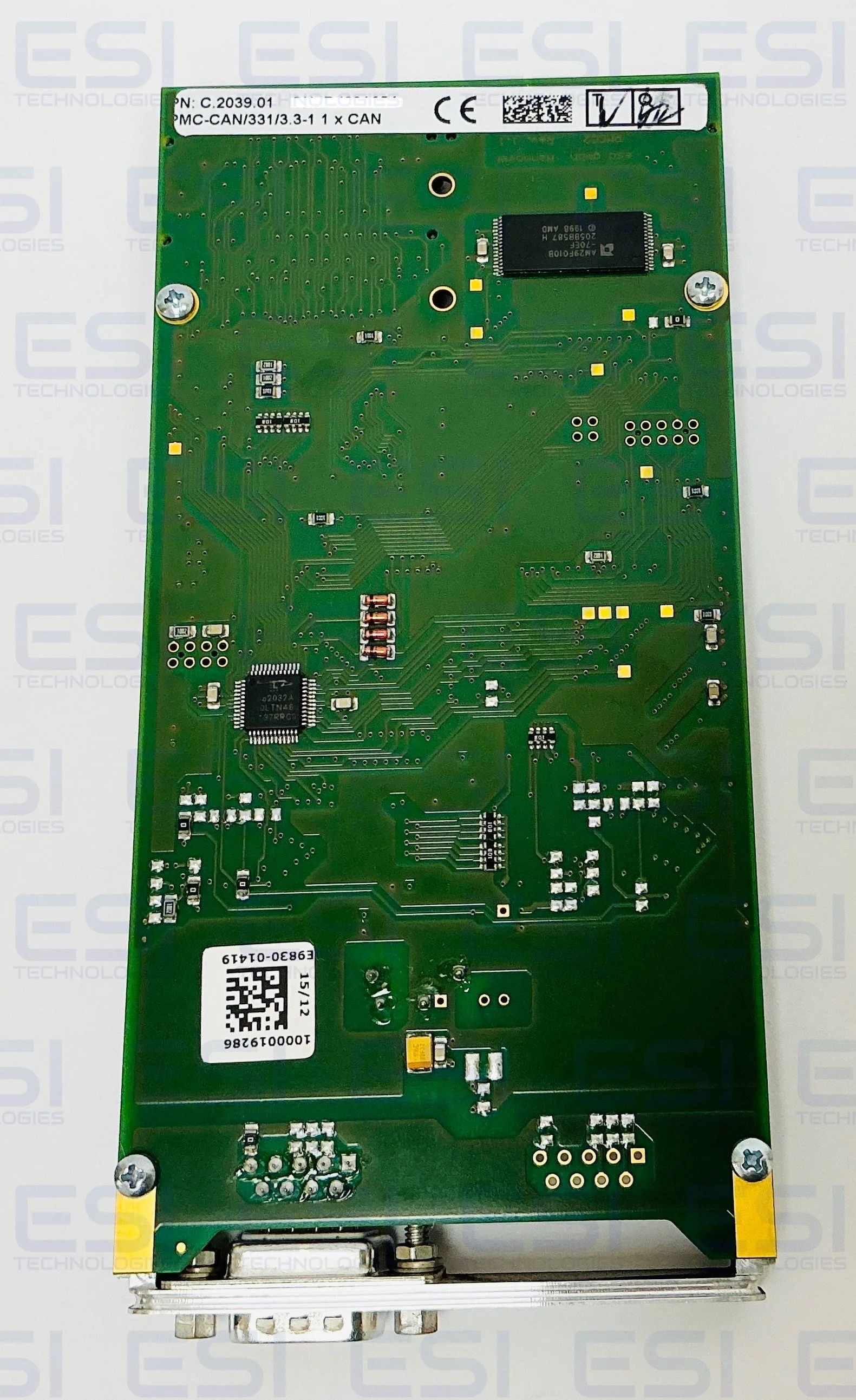

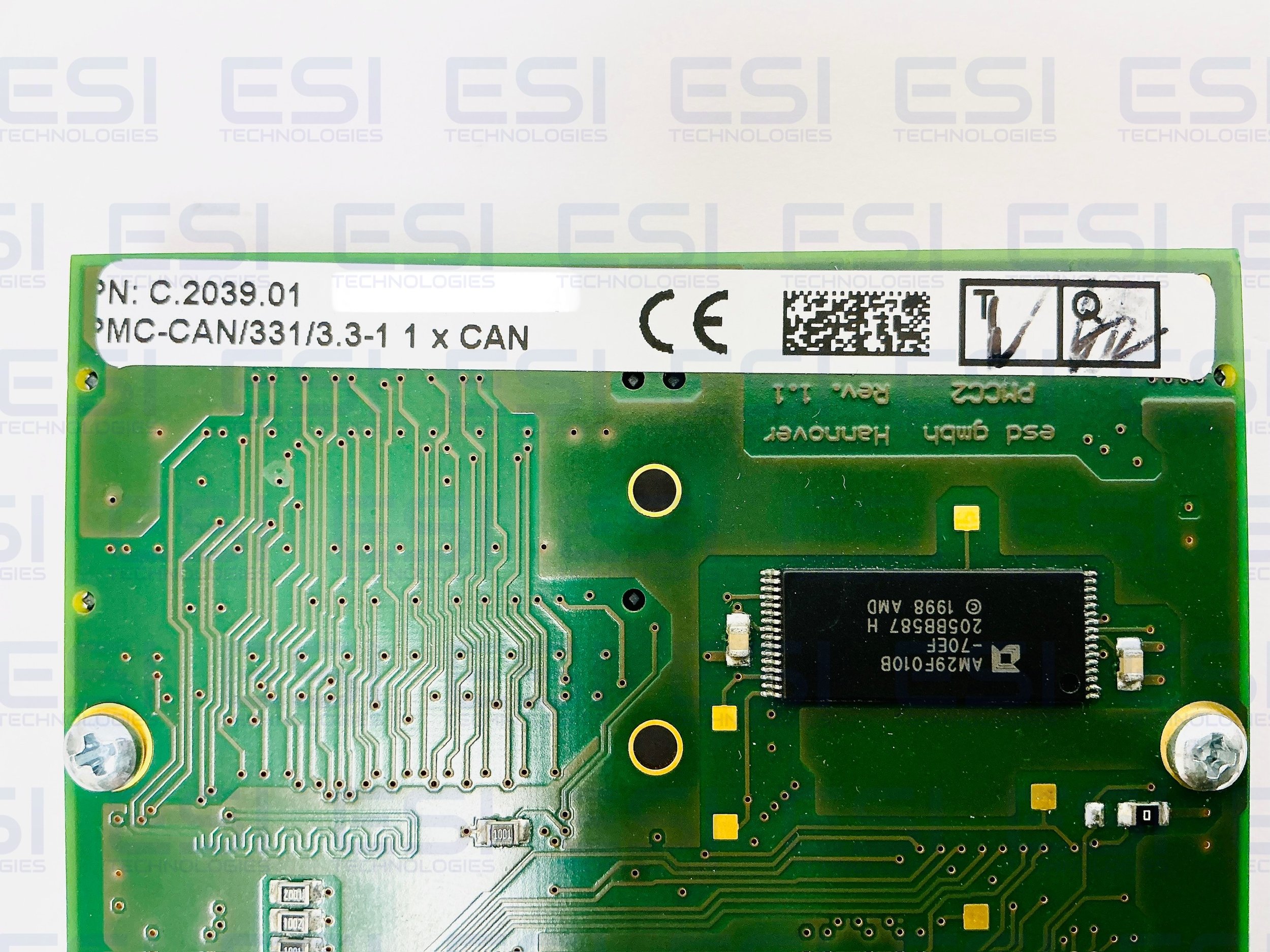

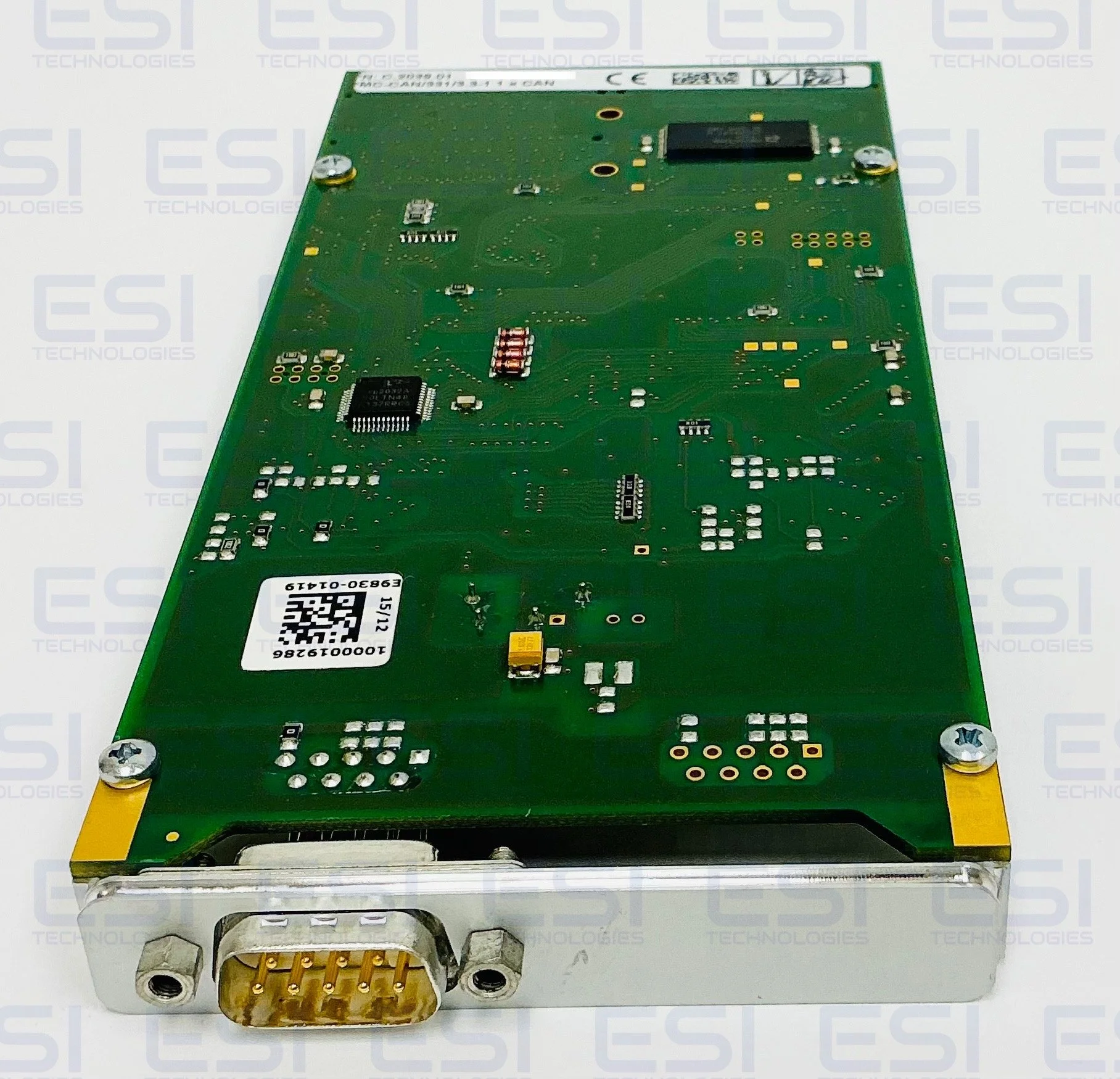

The ESD Electronics PMC-CAN/331 uses a 68331 microcontroller to provide local CAN-data management, and the CAN data is guaranteed up to 1 Mbit/s. The PMC – CAN/331 is fully ISO 11898 compliant with one or two independent CAN interfaces that allow a data transfer rate of 1 Mbit/s and are electrically isolated by optocouplers and DC/DC converters.
Powerful CAN Interfaces on PMC Module
The module PMC-CAN/331 uses a 68331 microcontroller that cares for the local CAN-data management. The CAN data is stored in the local SRAM with guaranteed security and consistency of data to 1 Mbit/s.
CAN Interface
The fully ISO 11898 compliant CAN interfaces allow a data transfer rate of 1 Mbit/s. The CAN interfaces are electrically isolated with optocouplers and DC/DC converters. Software Support The board ships with software examples in source code for DOC and Windows 3.11. There are software drivers available for Windows, Linux, VxWorks, LynxOS, RTOS-UH and other operating systems.
CAN Protocols
ESD has software packages for CAL, CANopen or DeviceNet available for Windows NT, Windows 95/98 or UNIX systems.
Alternative Part No. PMCCAN331, PMC CAN 331, PMC CAN331, PMC-CAN-331, PMC-CAN 331, PMC331, PMC-331, PMC 331
