Product Specifications
Two independent MIL-STD-1553 interfaces
Support for 1553A, 1553B Notice 2, and STANAG 3838
Device population options include:

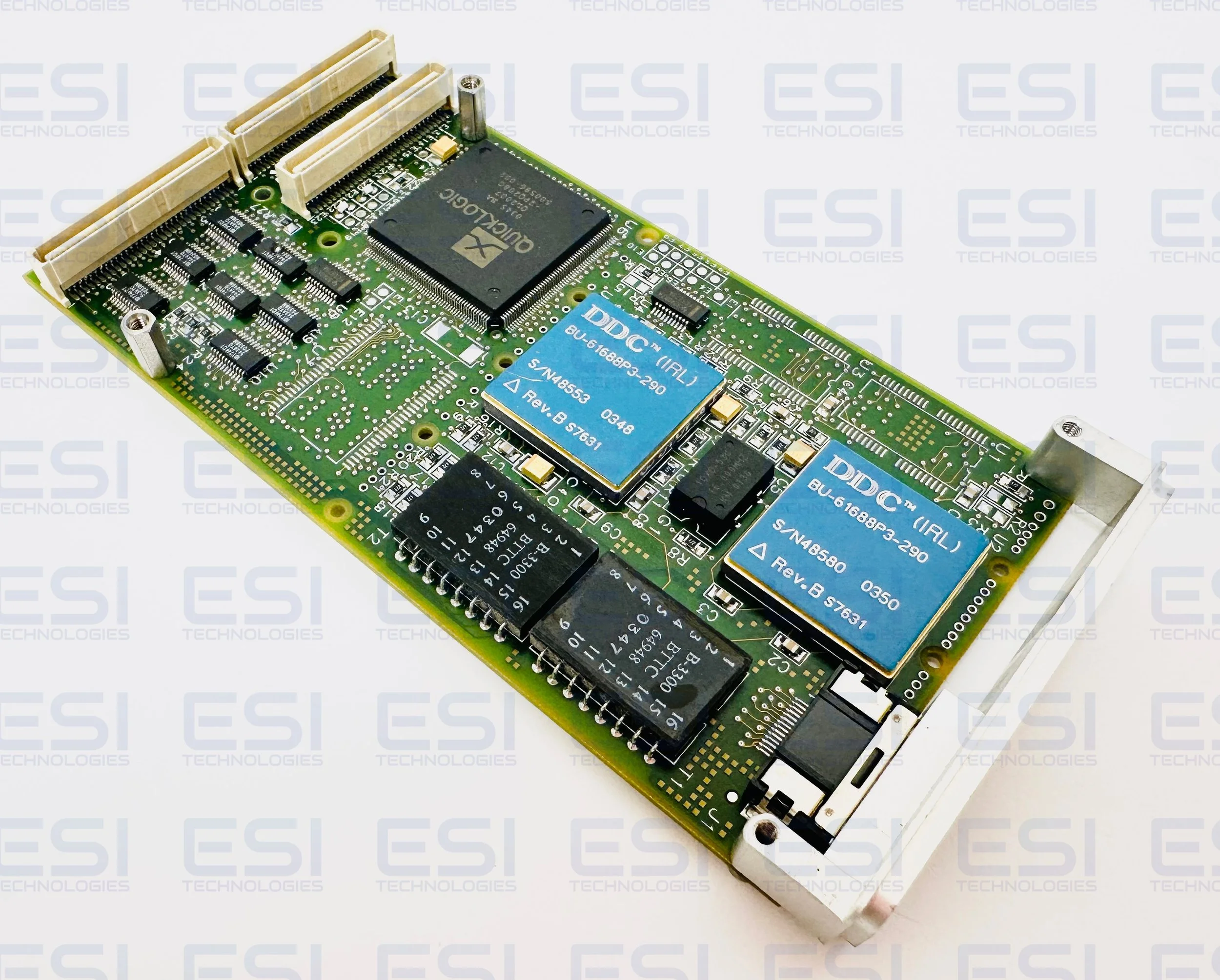

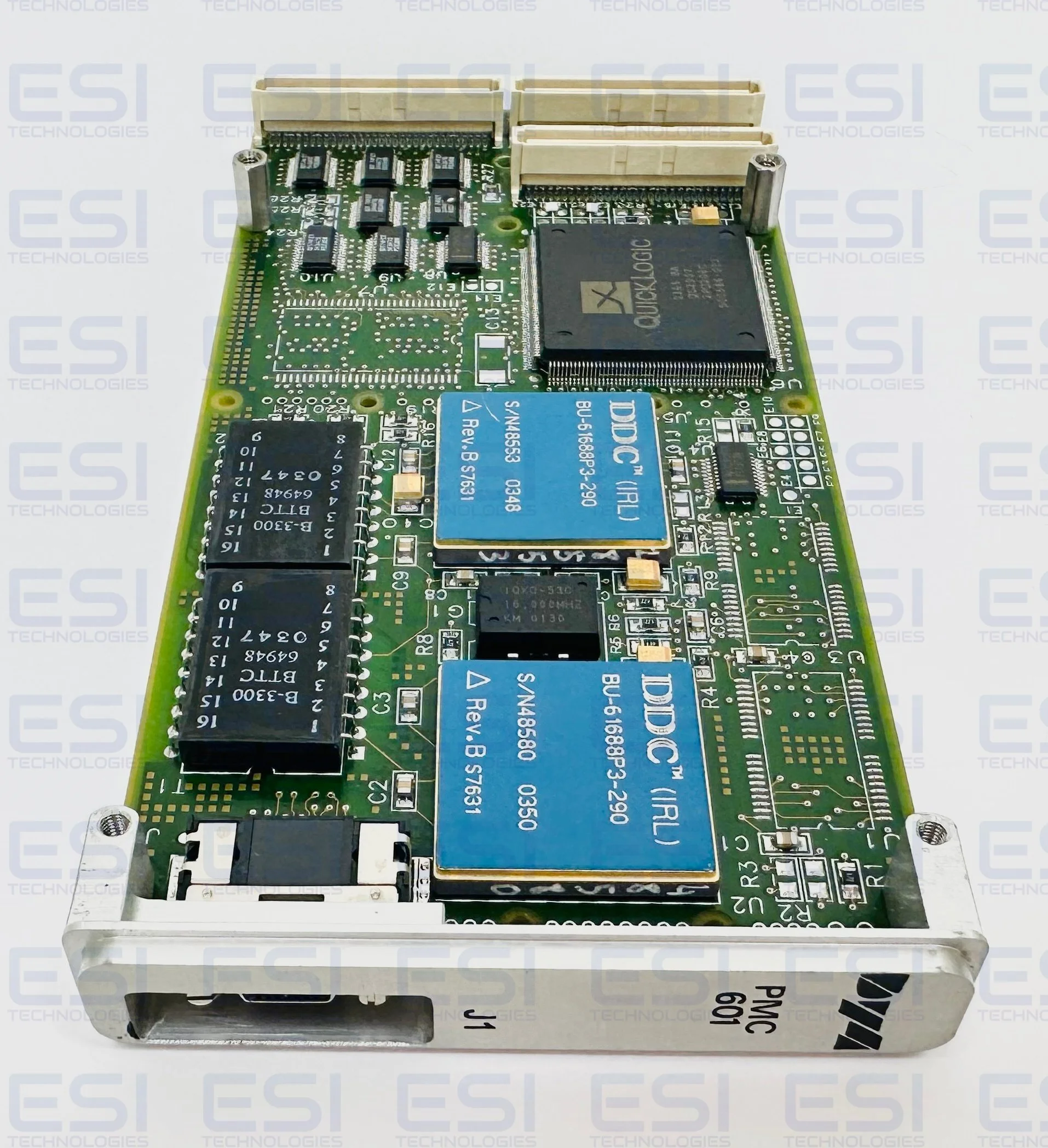

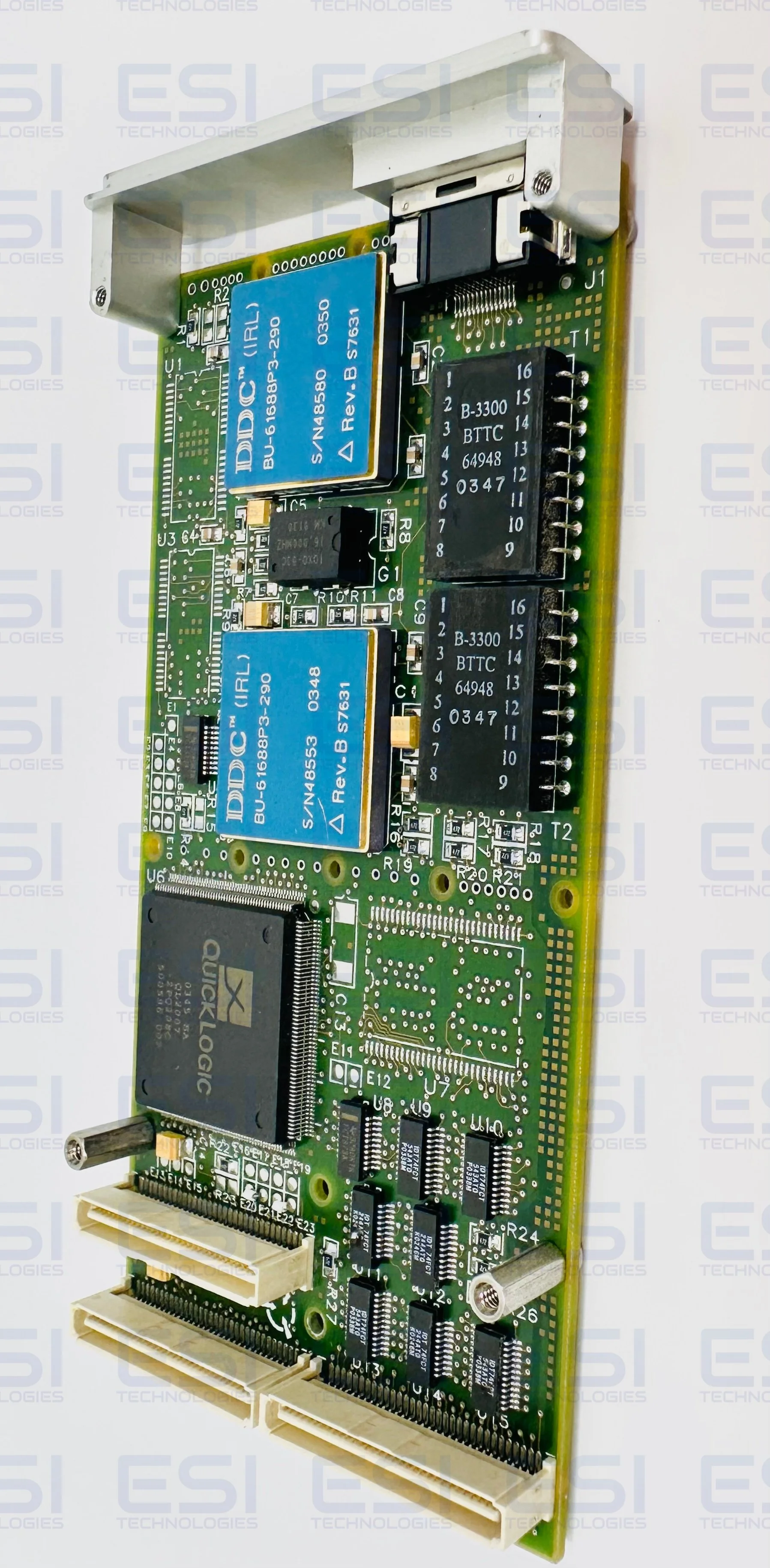

– 61588 mini-ACE with 4K word dual-port RAM
– 61688 mini-ACE Plus with 64K word dual-port RAM
– custom options for MIL-STD-1553A-, MIL-STD-1760-, and McAir-compli-ant waveformsBoth transformer-coupled and direct-coupled signals provided
BC, RT, MT modes independently selectable for each channel16 bits of TTL-compatible discrete digital I/O
Both front panel and backplane I/O
Built-In-Test (BIT) firmware provided when integrated with our processor cards
INTEGRITY, LynxOS, and VxWorks drivers available
PCI 2.1-compliant 32-bit, 33 MHz interface
Needs only 5V from the basecard, no other voltages required
Available in five ruggedization levels, level 0, 100, and 200 air-cooled, and level 100 and 200 conduction-cooled
The SPMC/DPMC-601 PMC module allows customers to readily incorpo-rate MIL-STD-1553 and discrete digital I/O connectivity into military and aerospace embedded comput-ing systems. As a member of our comprehensive range of ruggedized PMC modules, ease of integration with other elements of our product line is assured, as is after-sales technical support, life-cycle man-agement services, and the commit-ment to long-term availability.
MIL-STD-1553A and MIL-STD-1553B Compatibility
Standard versions of the PMC-601 are compliant to all aspects of MIL-STD-1553B, Notice 2. Standard versions are also compliant to the protocol aspects of MIL-STD-1553A that differ from MIL-STD-1553B such as using RT address 31 as an valid RT address instead of the broadcast address, use of subaddress 31 as a valid subaddress instead of a mode code indicator, and different error conditions under which an RT should return a status word. For full compliance to the MIL-STD-1553A waveform requirements, a cus-tom version of the PMC-601 can be provided that uses an alternate version of the DDC mini-ACE.

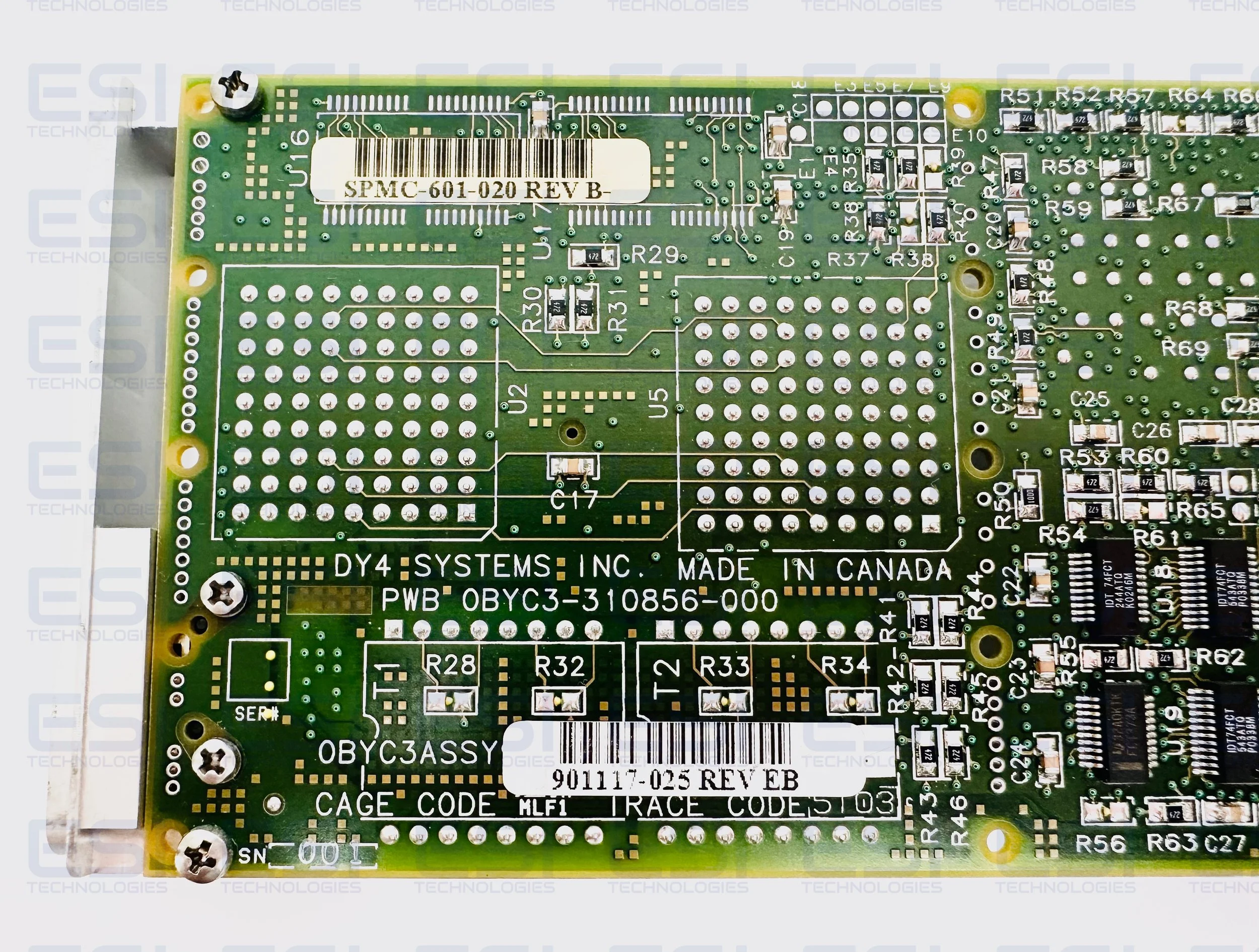

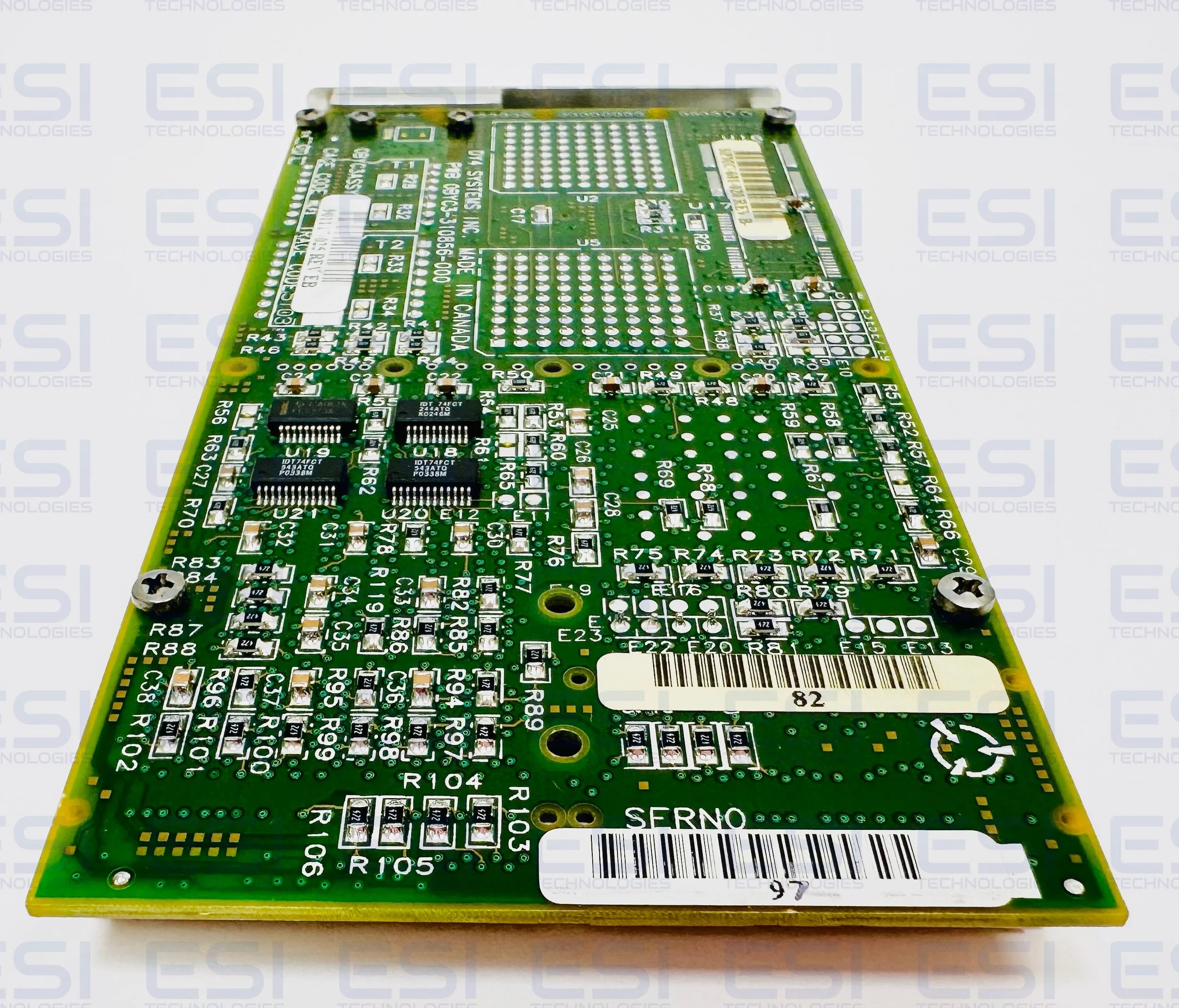

Mechanical Format

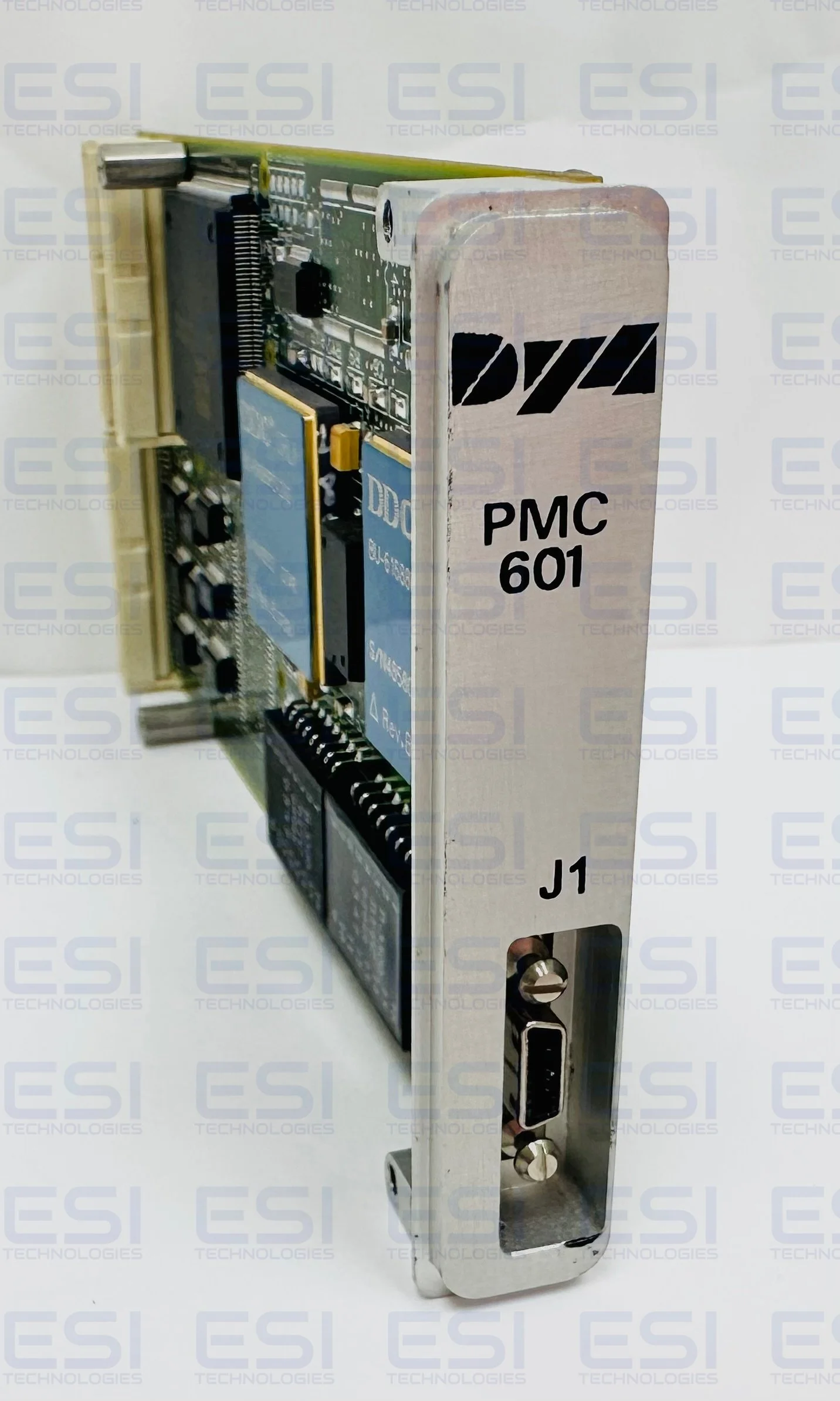

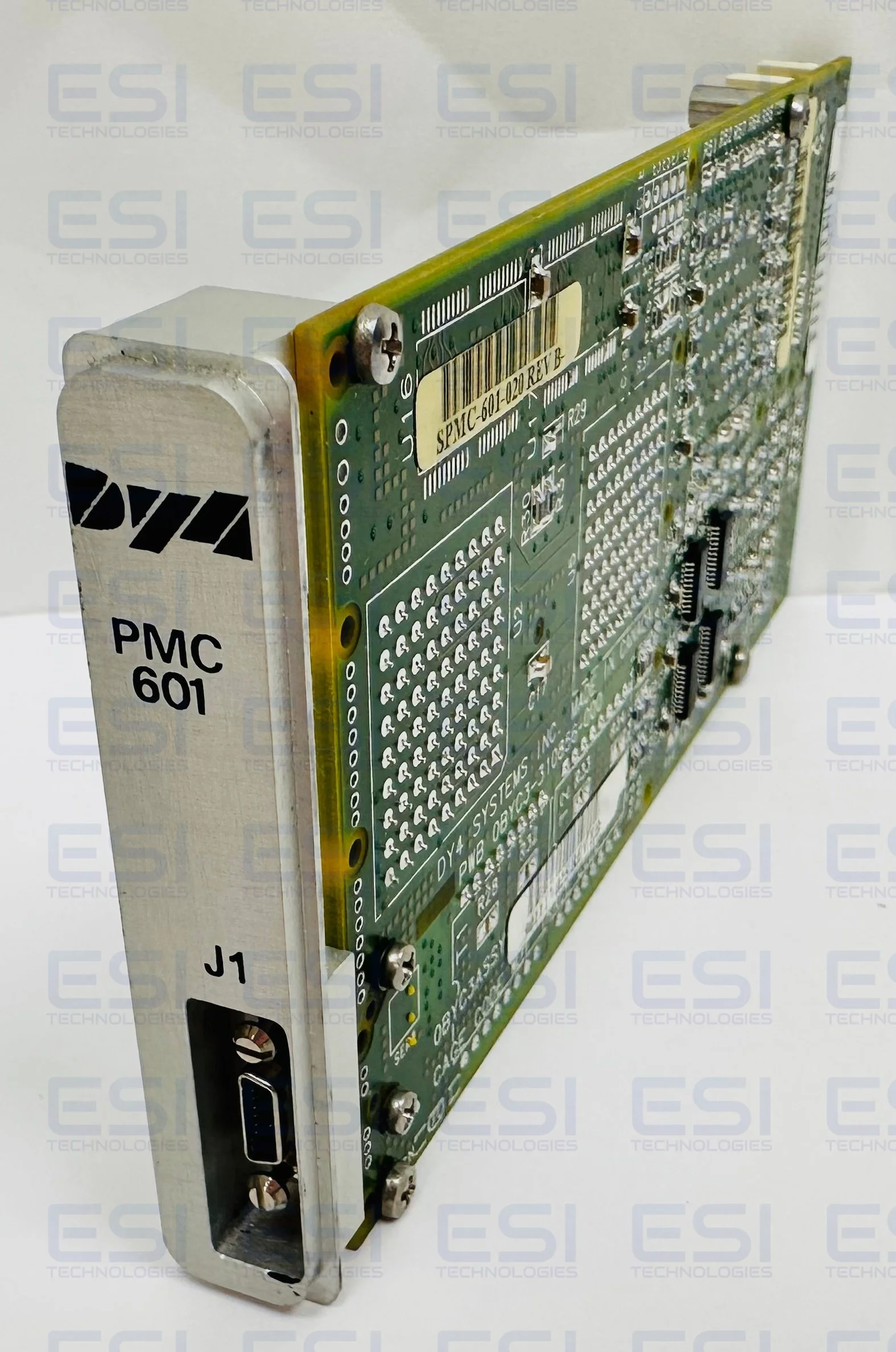

The PMC-601 is a single width PMC module. Air-cooled modules are designed in accordance with the IEEE 1386 and 1386.1 spec-ifications. All I/O is available from the Pn4 connector for routing to the backplane via basecard connectors. Air-cooled modules also include a front-panel connector which provides access to the trans-former coupled MIL-STD-1553 signals.
Conduction-cooled modules are designed in accordance with ANSI/VITA 20-2001, Conduction-Cooled PCI Mezzanine Card Standard. The cooling surfaces provided are the Primary Thermal Interface Region and the side 1 Secondary Thermal Interface Regions.
Older level 100 conduction-cooled versions of the PMC-601 as inte-grated with the DMV-178 single board computer do not include the side 1 Secondary Thermal Interface Regions.
Available Software
The PMC-601 MIL-STD-1553 driver provides a flexible, easy to use, and comprehensive application programming interface (API). Cur-rently used in many deployed military systems, the driver's exten-sive feature set allows it to be used as-is for the vast majority of applications. The driver supports Bus Controller, Remote Terminal, and Bus Monitor modes of operation as well as both MIL-STD-1553A and MIL-STD-1553B protocols.
Built-In-Test (BIT)
BIT for the PMC-601 is provided by firmware routines within our Card Level Diagnostics (CLD) package. CLD is part of the Foun-dation Firmware suite of firmware components delivered in the Flash memory of our processor cards. Current processor cards that incorporate PMC-601 BIT include the SVME/DMV-178, SVME/DMV-179, SVME/DMV-181, SVME/DMV-182, SCP/DCP-119, and SCP/DCP-122.
Alternative Part No. PMC-601, PMC601, PMC 601, DPMC-601, DPMC601, DPMC 601, SPMC-601, SPMC 601, SPMC601
