Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: Used - 2 units
New - 2 units
Location: SKUE19-1
In Stock: 4
Product Specifications
Processor PMC (VITA32-2003) with up to 8 software selec-table E1/T1/J1 interfaces
Freescale Semiconductor MPC8560 PowerQUICC III communication processor
Up to 512MB Double Data Rate SDRAM with ECC
Up to 32MB Flash
PCI bus operation of 32- bit/66 MHz
10/100/1000 Ethernet port
Optional CTbus clock support
Optional rear transition module for ATCA or 2.16/cPSB blades supporting E1/T1/J1 interfaces
RoHS/WEEE compliant configuration available Quality assured by over 30 years of design experience and a TL-9000 and ISO 9001:2000 certified
quality management system. (FM 26789)

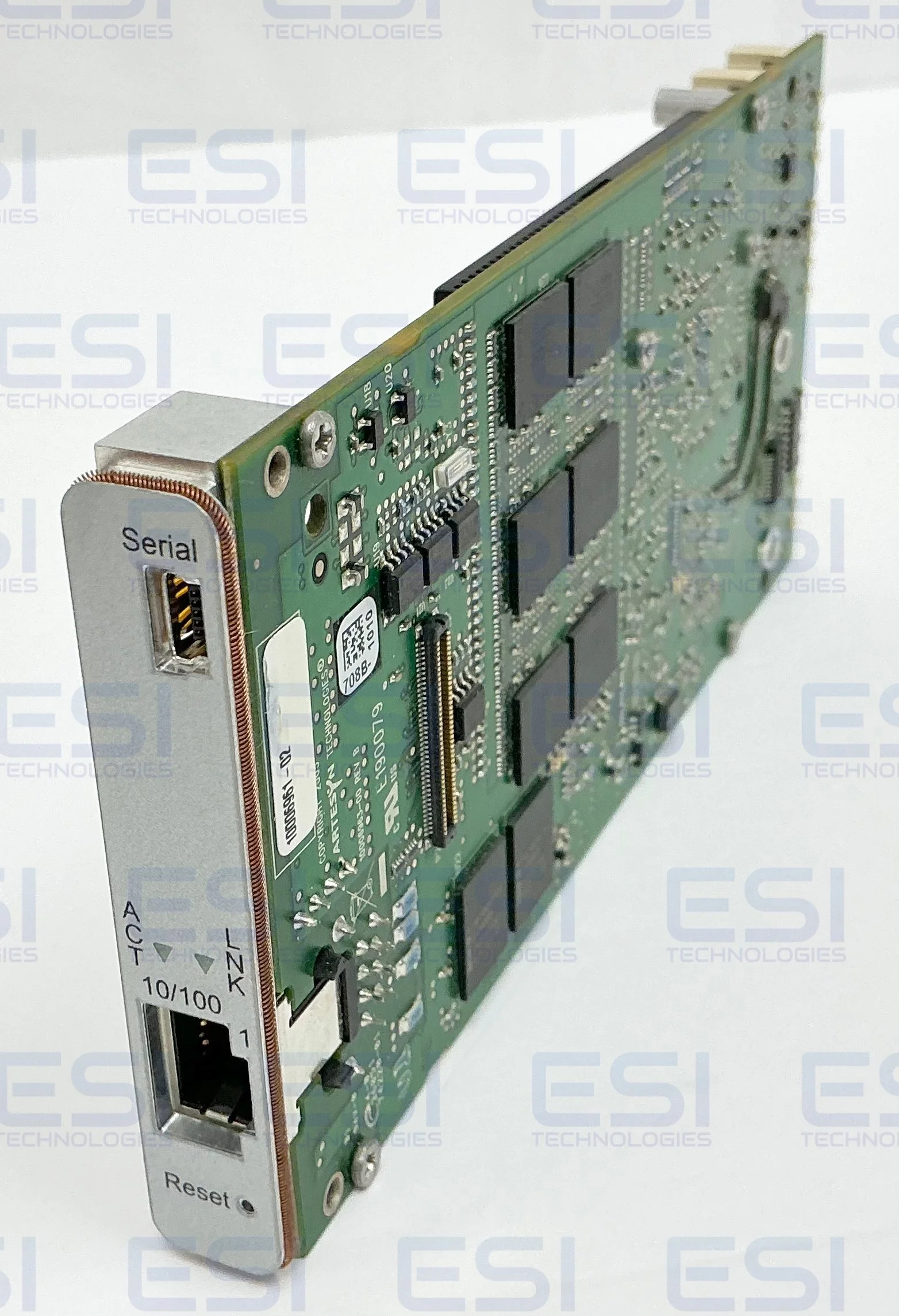

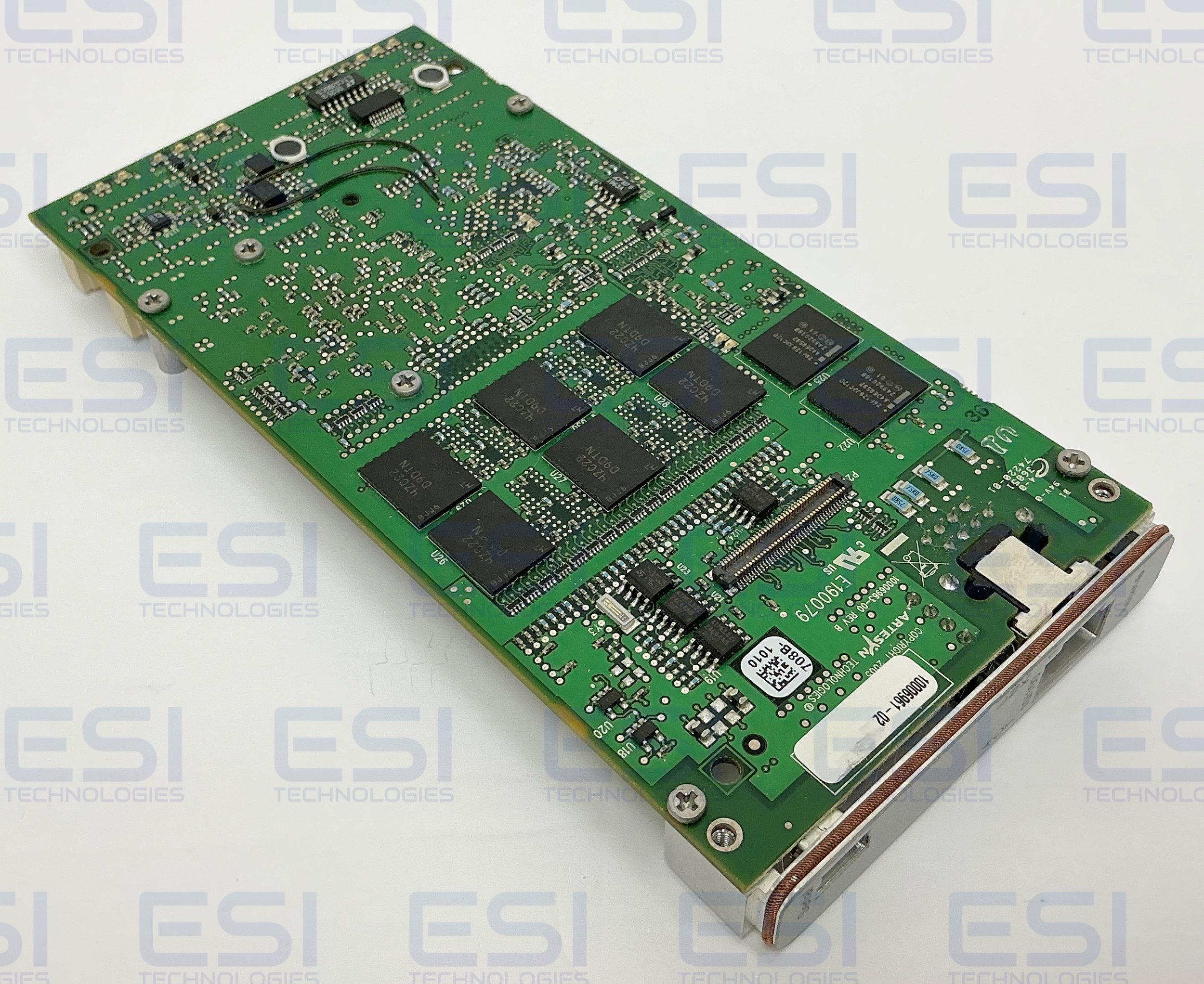

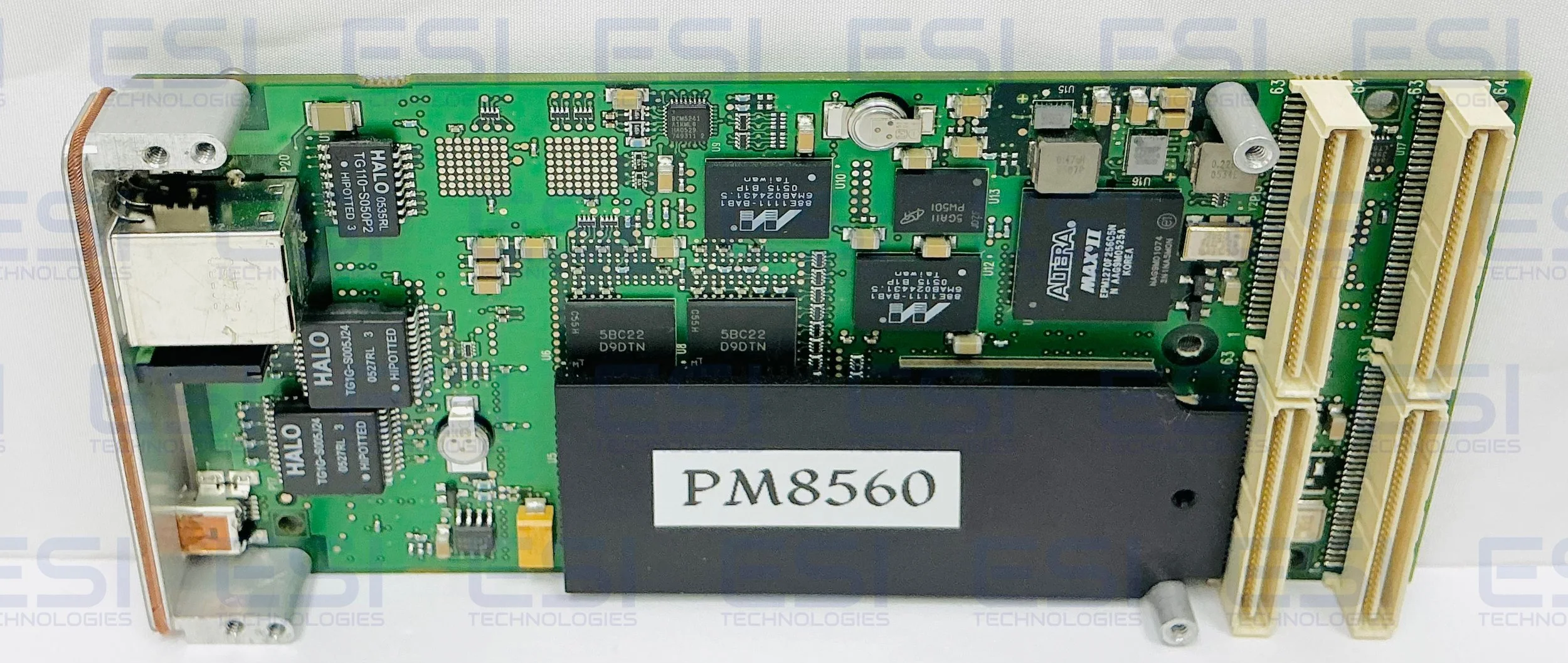

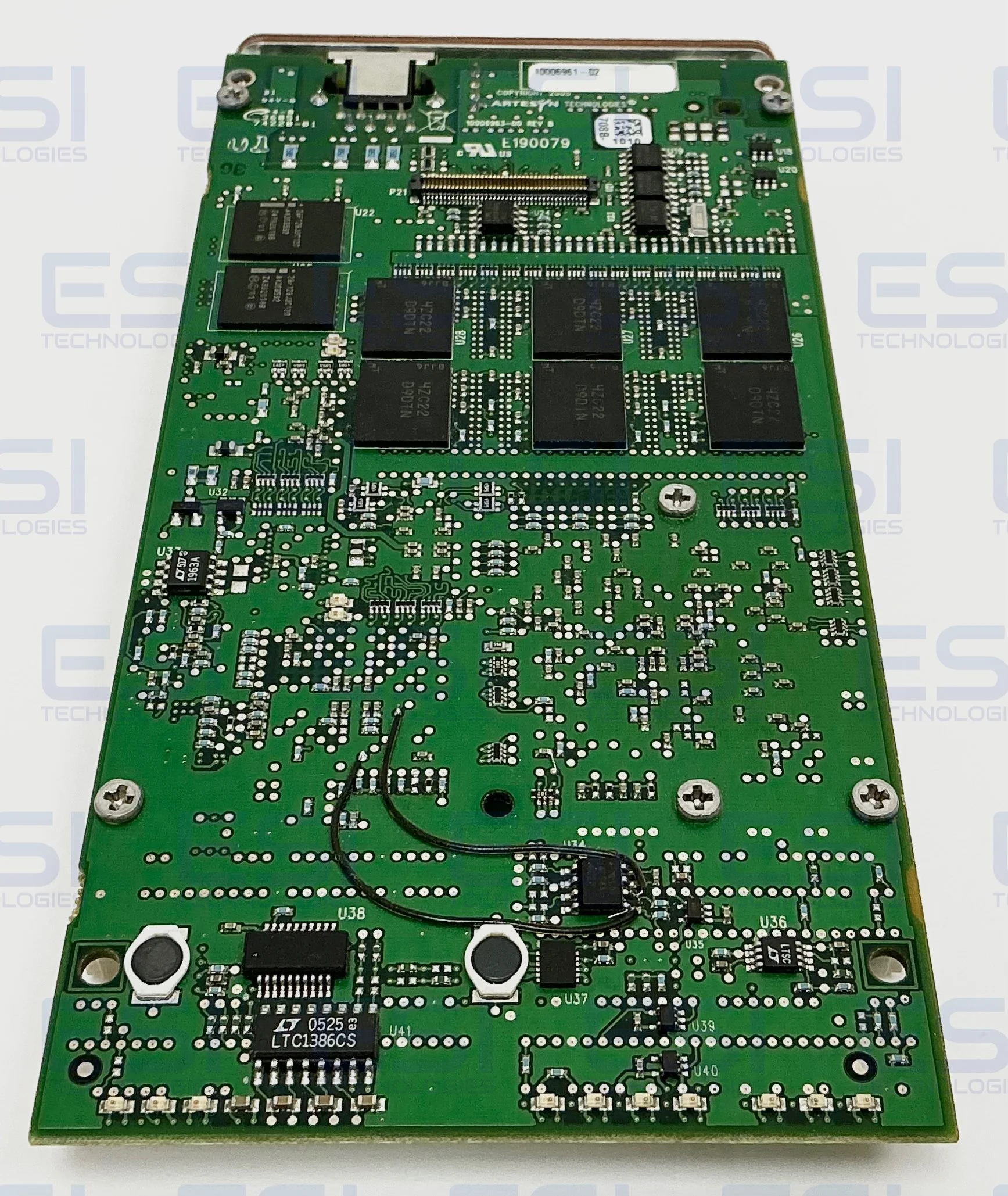

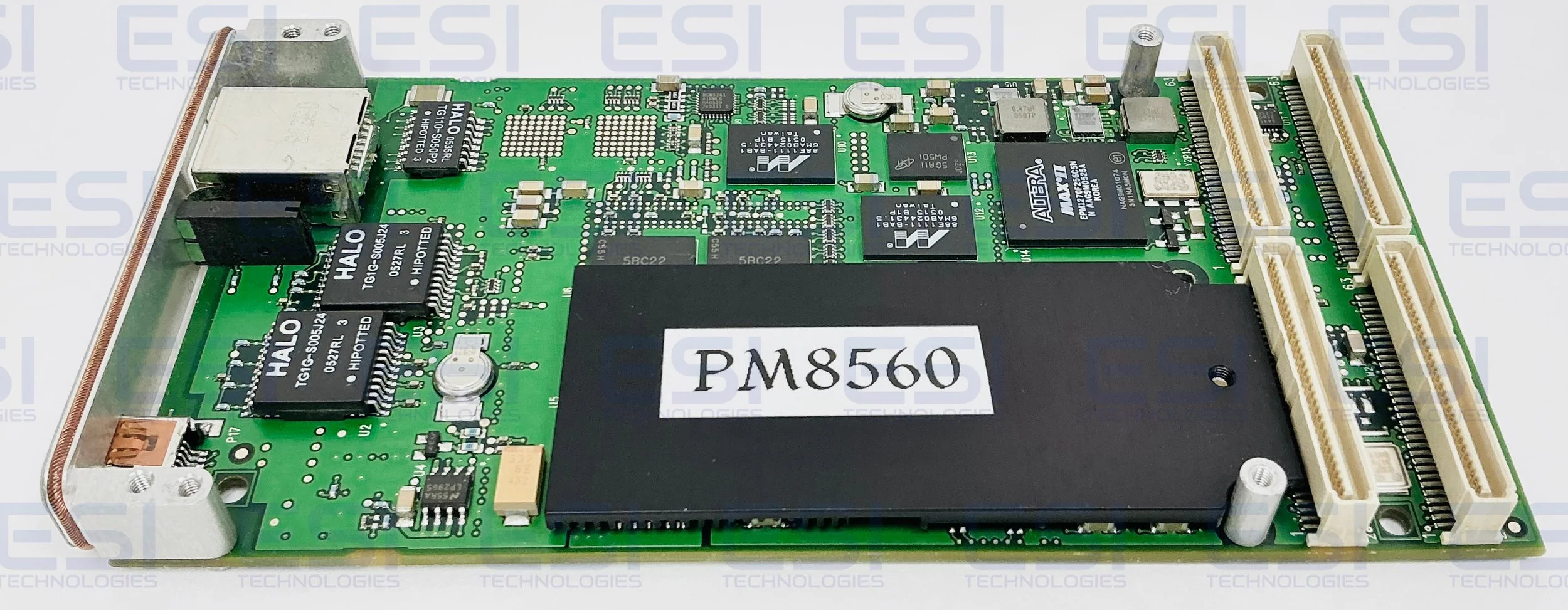

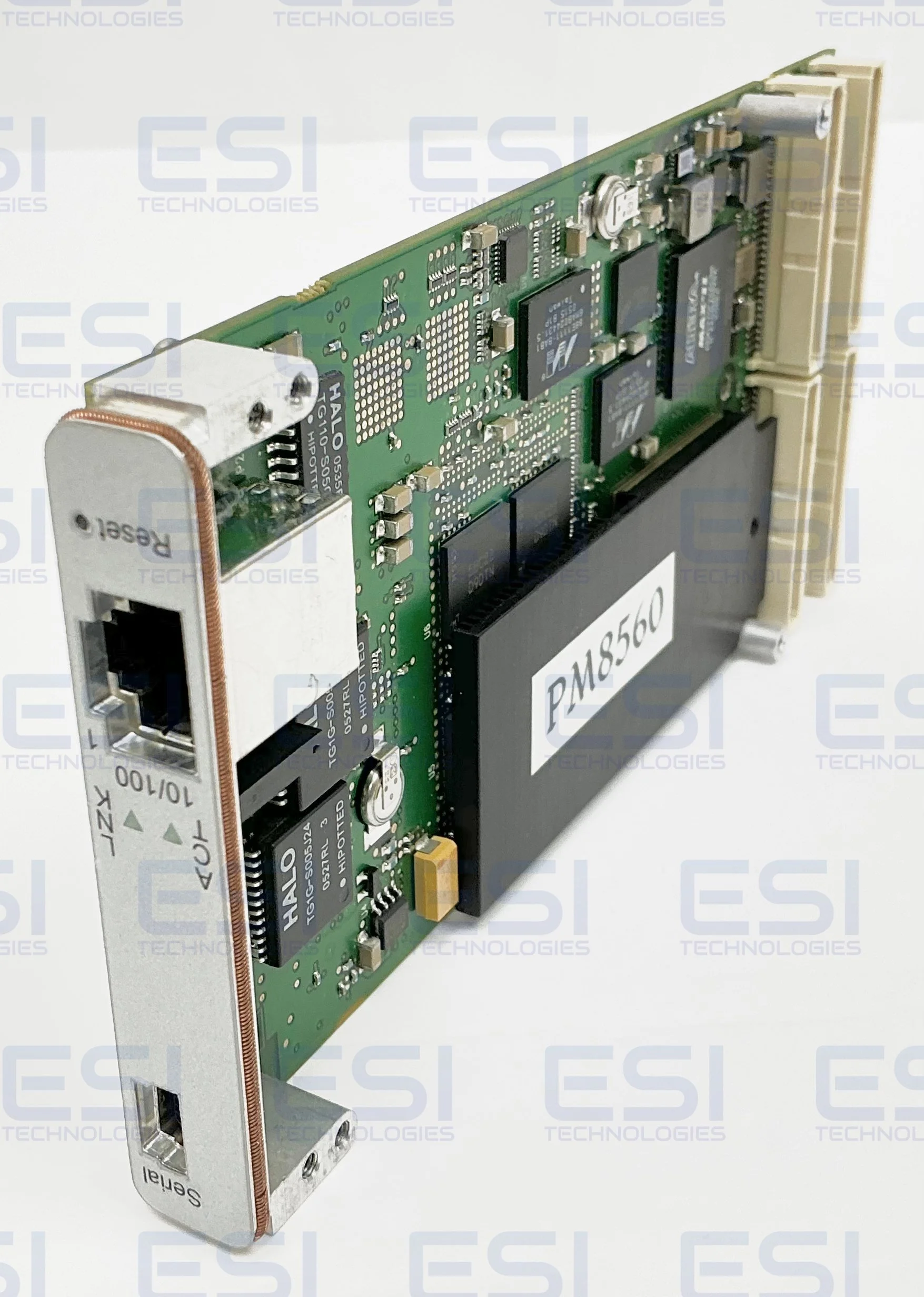

The Pm8560 is a Processor PCI Mezzanine Card (ProcessorPMC) module with up to 8 E1/T1/J1 interfaces. The Pm8560 is ideal for 3G (UTMS & W-CDMA) and 2.5G (GPRS) data and signaling applications. The module is capable of supporting a wide variety of protocols including SS7 and SIGTRAN. Other applications include signaling gateways and softswitches as a signaling interface card. The Pm8560 includes a reduced media-independent interface (RMII) on Pn3 for Ethernet PHYs and management interface. Physical connectivity of E1/T1/J1 spans the Pm8560 via rear transition modules (RTMs) that interface from either 2.16/cPSB blades or AdvancedTCA blades such as Emerson’s Katana product line.

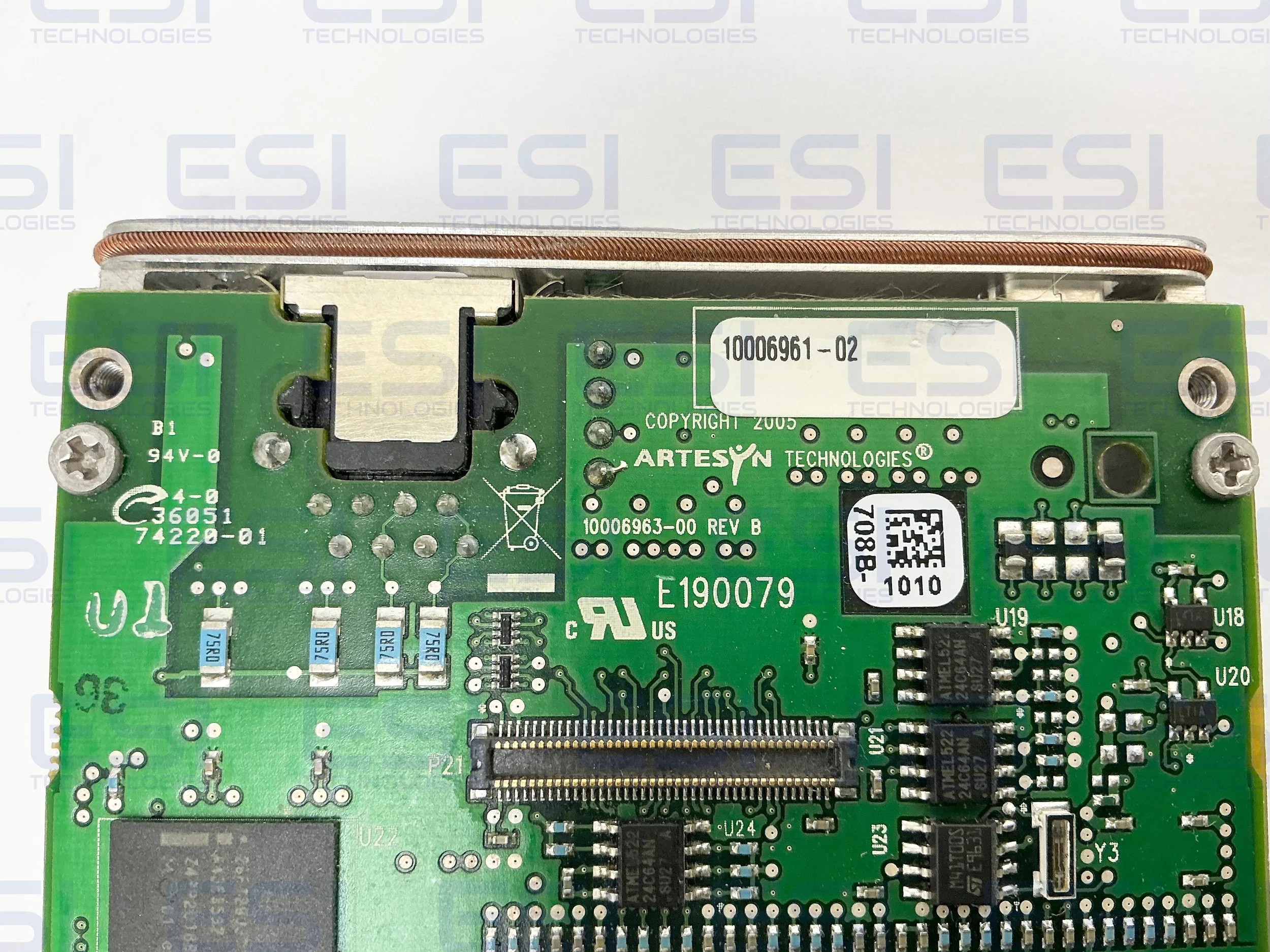

Alternative Part No. 10006961-02, 10006961 02, 10006963-00 Rev B, 1000696 00 Rev B, PM 8560
