Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE34
In Stock: 1
Product Specifications
Eight port RS-232 support
RS-232: TX, RX, RTS, CTS, DSR, DCD, DTR, RI
IRQ selected for each serial port
Shared IRQ (4/8 ports share same IRQ)
Full duplex serial communication
Jumper selectable interrupt level
Ribbon cabling from 40-pin headers to standard DB9 connectors provided
Supports Windows® NT 4.0, Windows® 95/98/2000
Port Capacity: Features either 4 or 8 independent RS-232 serial interfaces accessed through standard DB9 connectors.
High Performance: Utilizes industry-standard 16C550 (or compatible) UARTs to deliver data transmission rates up to 921.6 kbps.
Flexible IRQ Sharing: Allows multiple serial ports to share a single interrupt request (IRQ), preventing system resource conflicts.
Form Factor: Built on the compact PC/104 standard, making it ideal for space-constrained, stackable embedded computers.
Software Support: Includes drivers and configuration utilities for operating systems such as Windows (95/98/NT/2000/XP), Windows CE, and Linux.

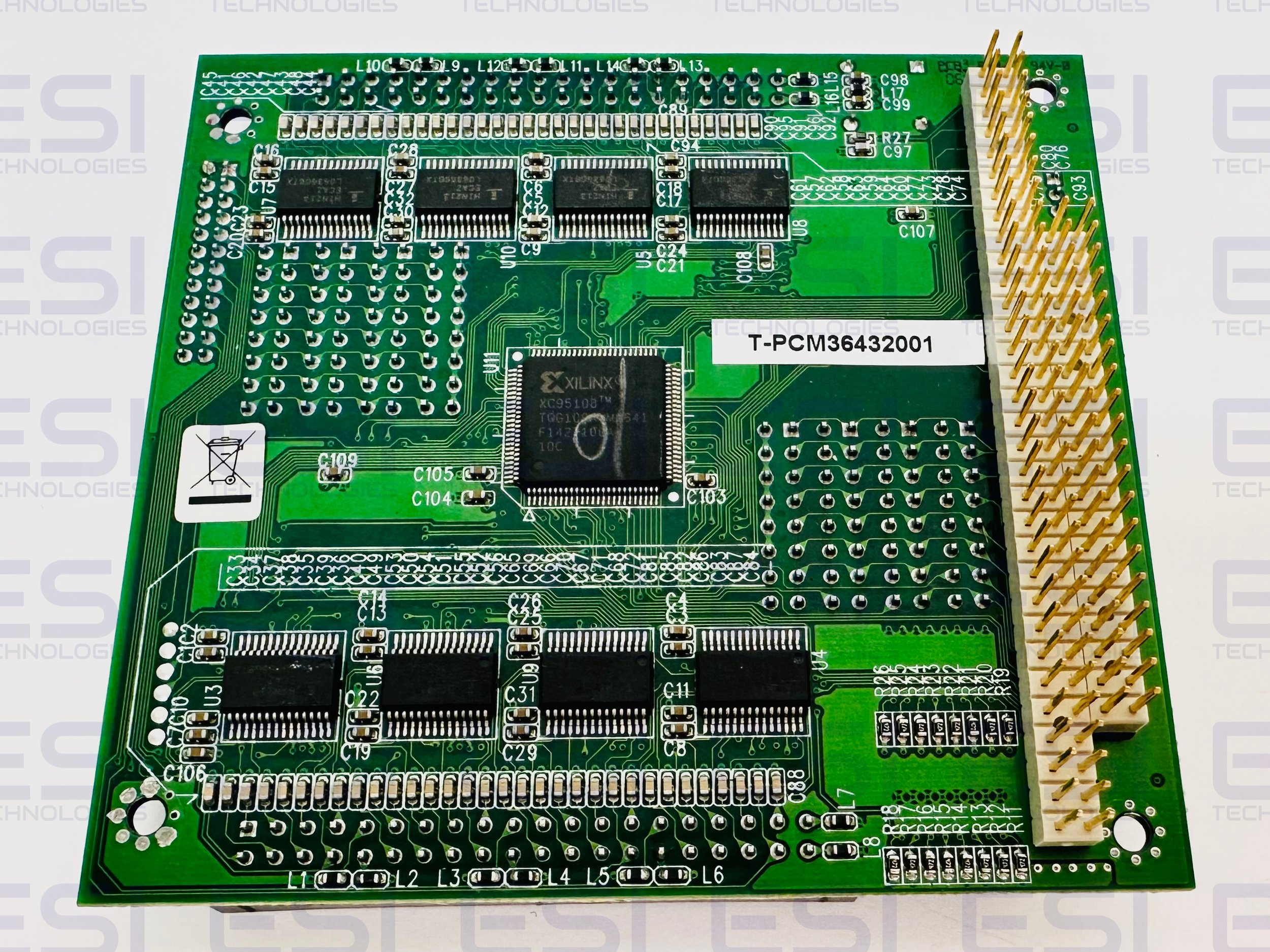

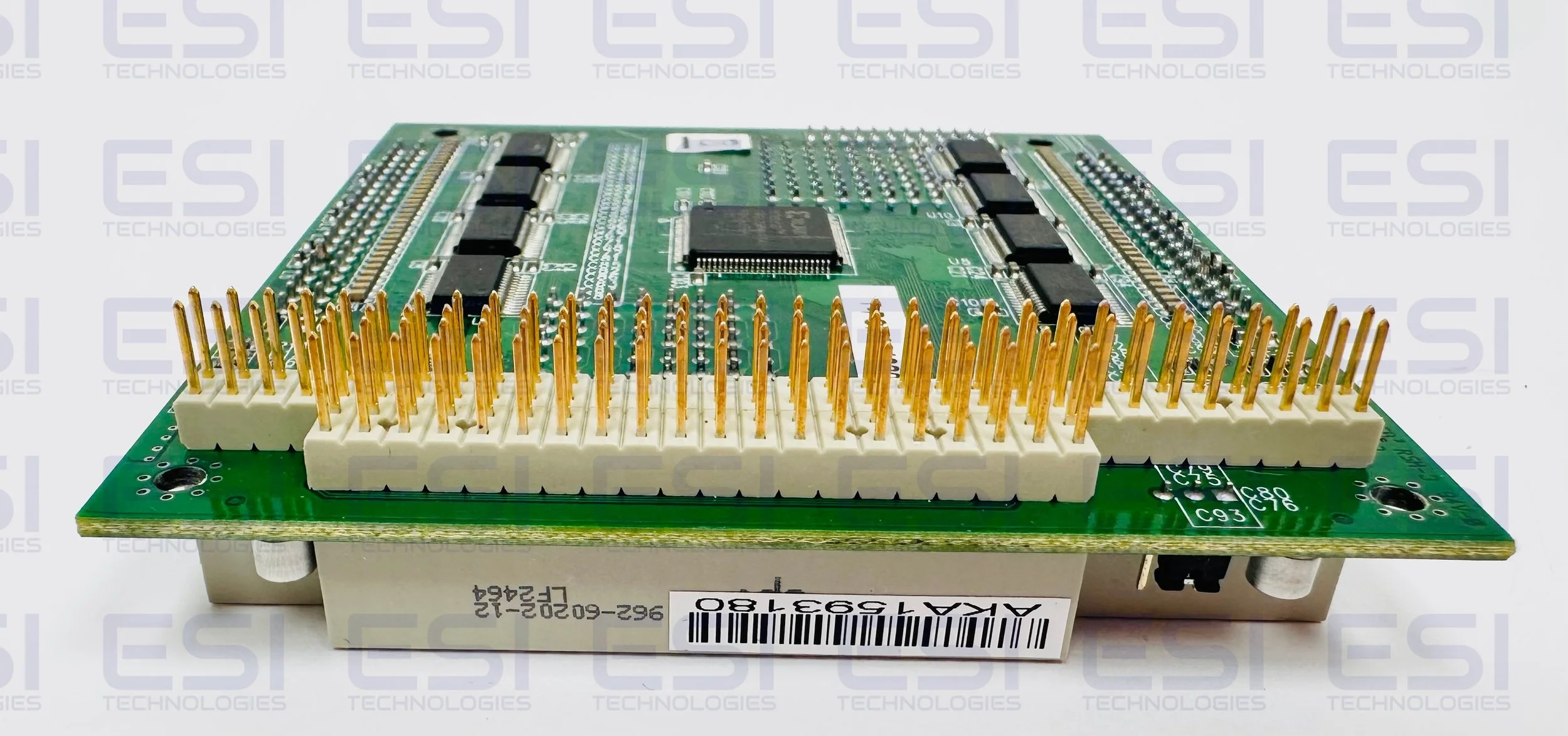

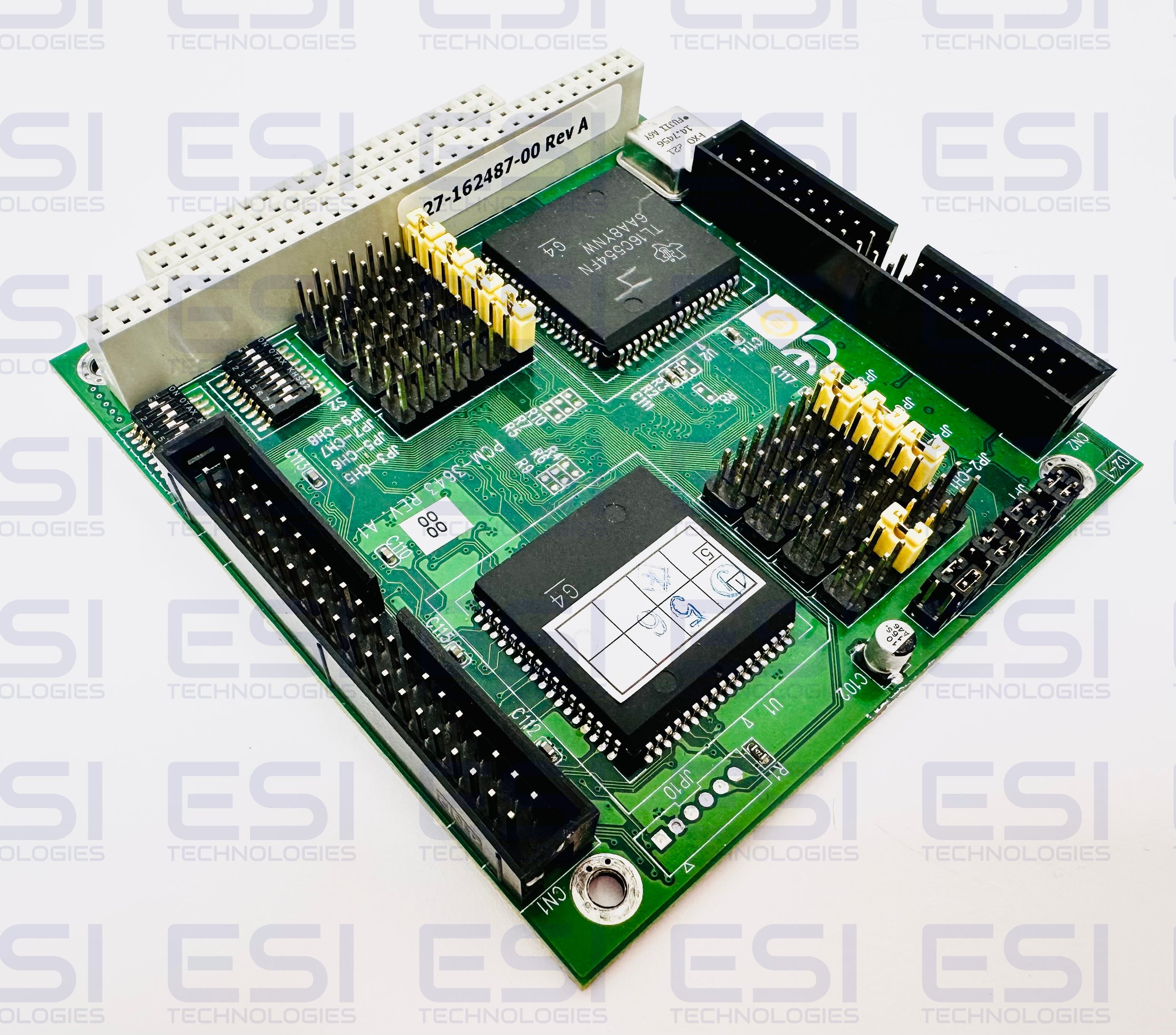

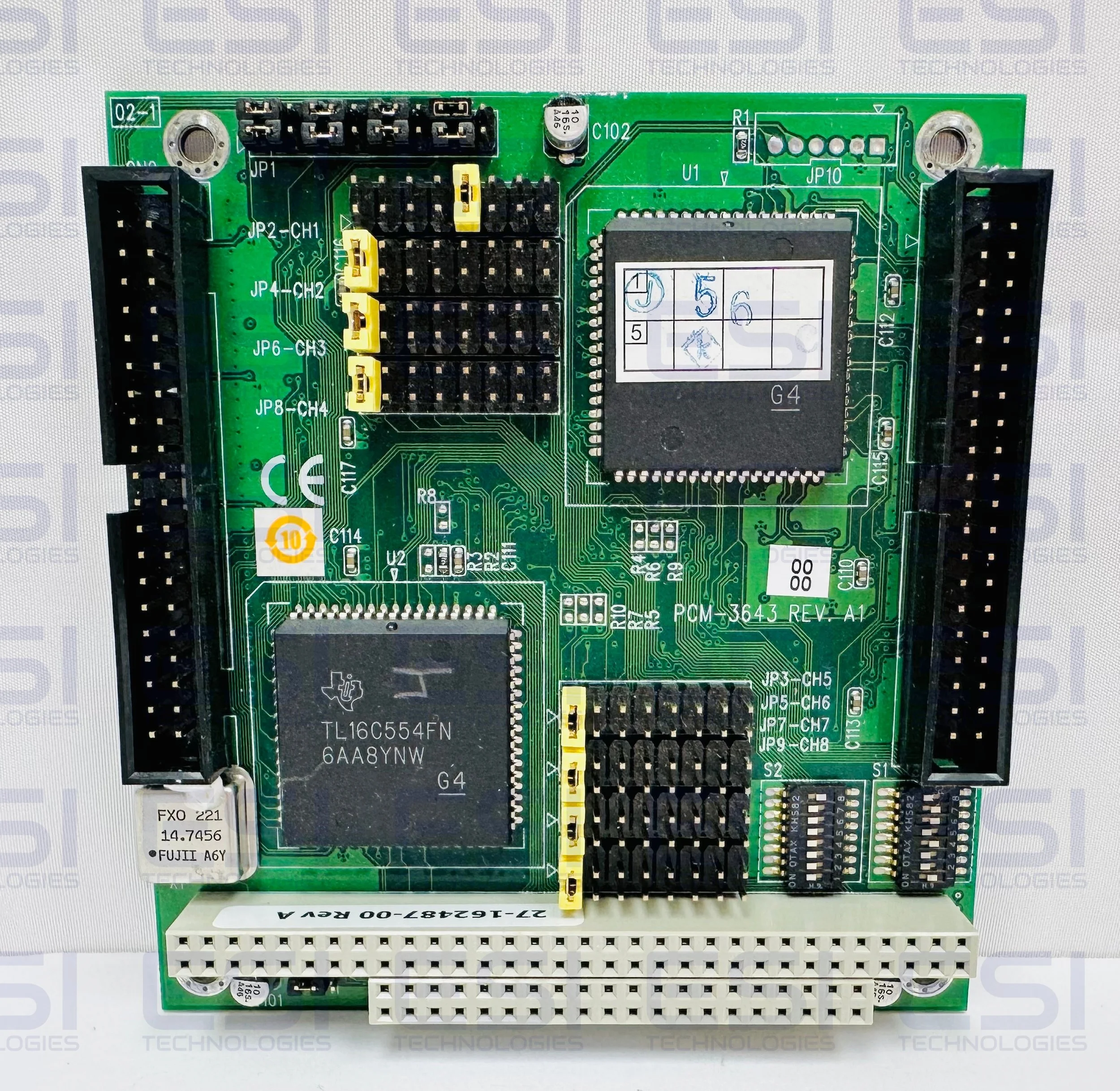

The Advantech PCM-3643 is a high-speed PC/104-compatible serial communication module designed for industrial and embedded systems. It provides 4 or 8 independent RS-232 COM ports and operates at transmission speeds of up to 921.6 kbps.
Alternative Part No. PCM-3643-08A1, PCM 3643
