Price: Contact Us
Email: sales@esi-technologies.com
Condition: NEW
Location: SKUE20
In Stock: 1
Product Specifications
EPIC SBC with 6th generation Intel® ULT processor supports dual-channel DDR4 SODIMMs
Triple independent display support
Easy assembly heat spreader for thermal management
Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion
COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support
One Key Recovery solution allows you to create rapid OS backup and recovery
display
Triple independent display
2 x HDMI (up to 4096×2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920×1200@60Hz)Environment
Humidity: 5% ~ 95%, non-condensing
Operating Temperature: -20°C ~ 60°CExpansion Slots
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card sloti/o interface
Audio:
Realtek ALC662 HD codec
1 x Analog audio (2×5 pin)
Digital I/o:
1 x 8-bit digital I/O (2×5 pin)
Ethernet:
LAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported
LAN2: Intel® I211-AT PCIe GbE controlleri/o Interface:
4 x USB 3.0
3 x Internal USB 2.0Power Consumption:
12V@2.48A
(Intel® Core™ i3-6100U CPU with two 8 GB memory)Storage:
1 x 8 GB eMMC (optional)
2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)System CPU:
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)Memory Max:

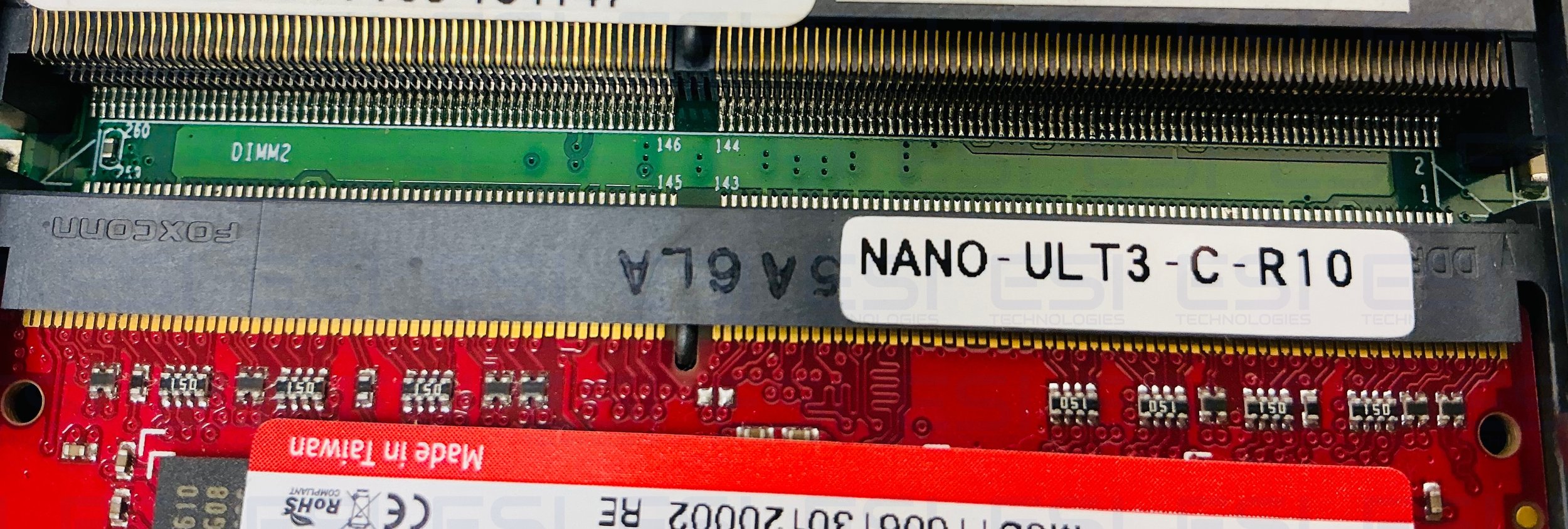

Two 260-pin 2133/1866 MHz dual-channel DDR4
non-ECC unbuffered SO-DIMMs (system max. 32 GB)Watchdog Timer:
Software programmable supports 1~255 sec. system reset

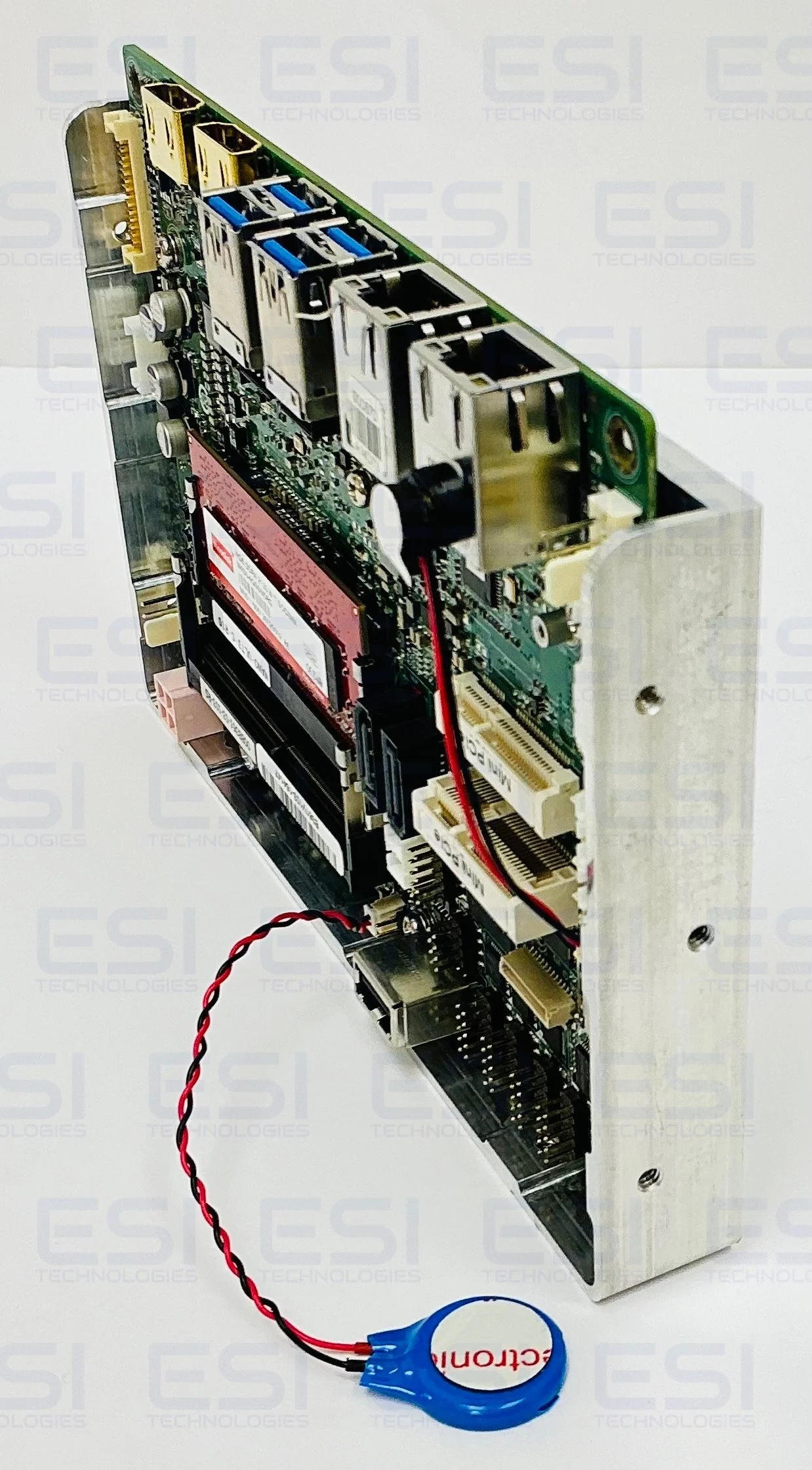

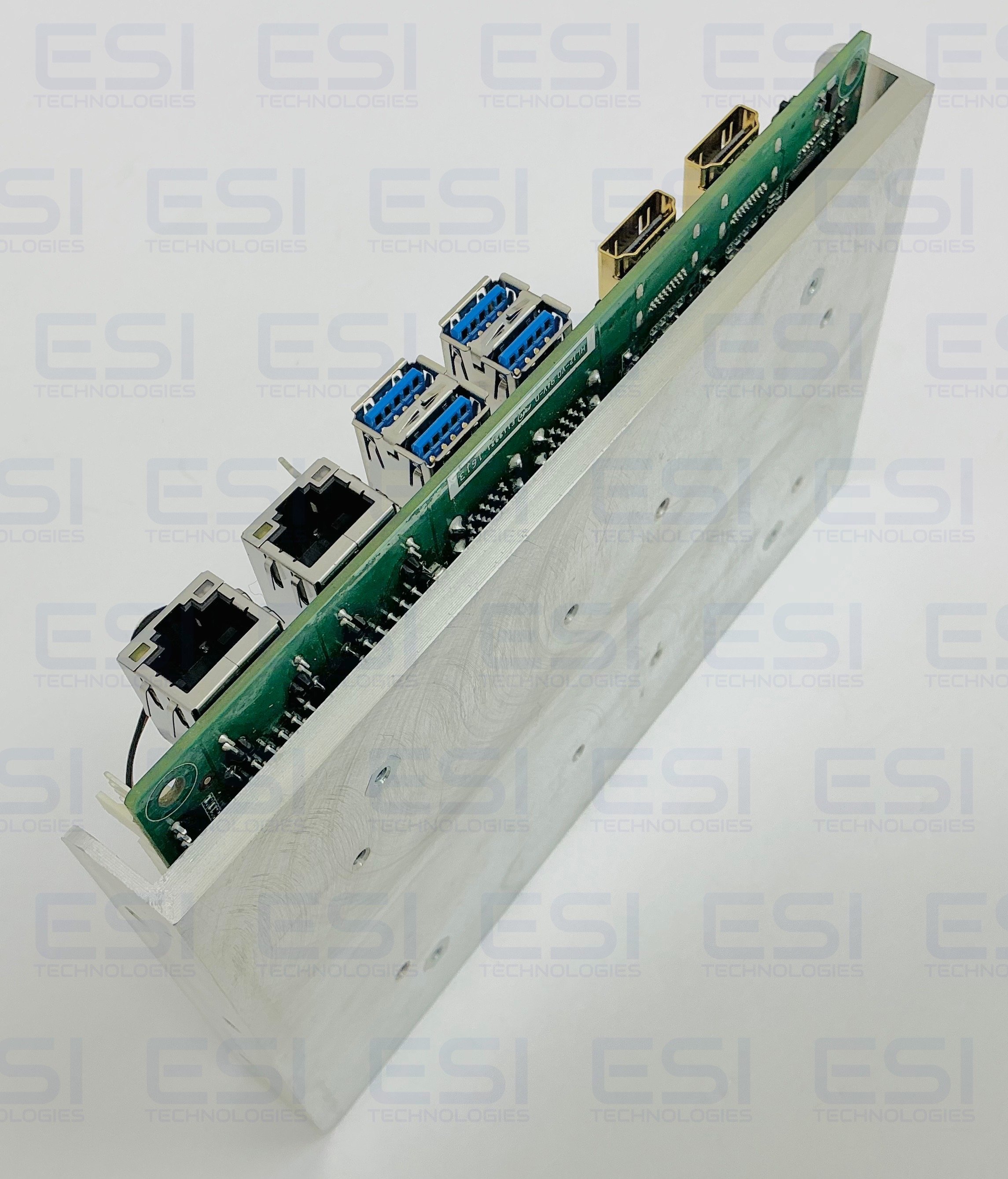

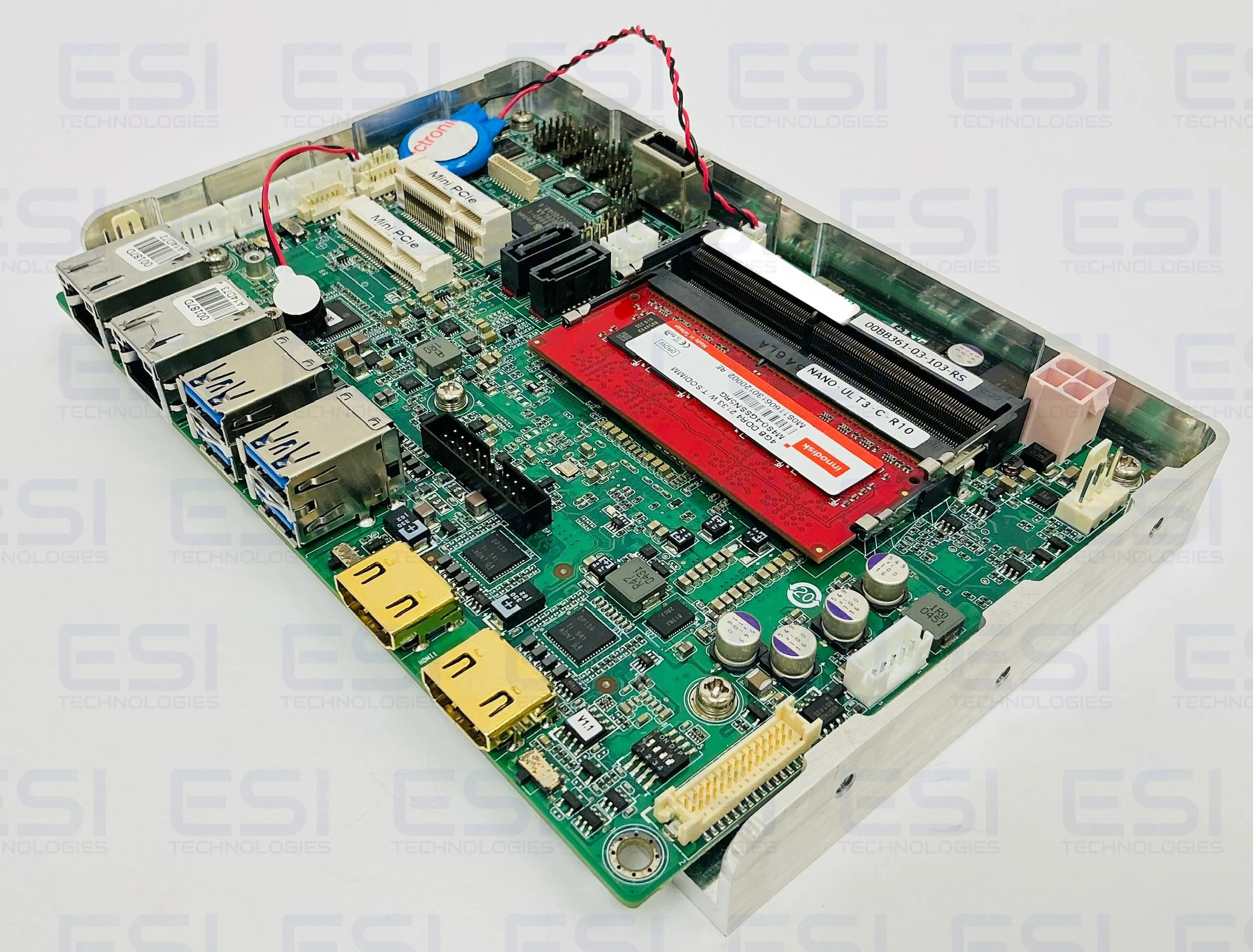

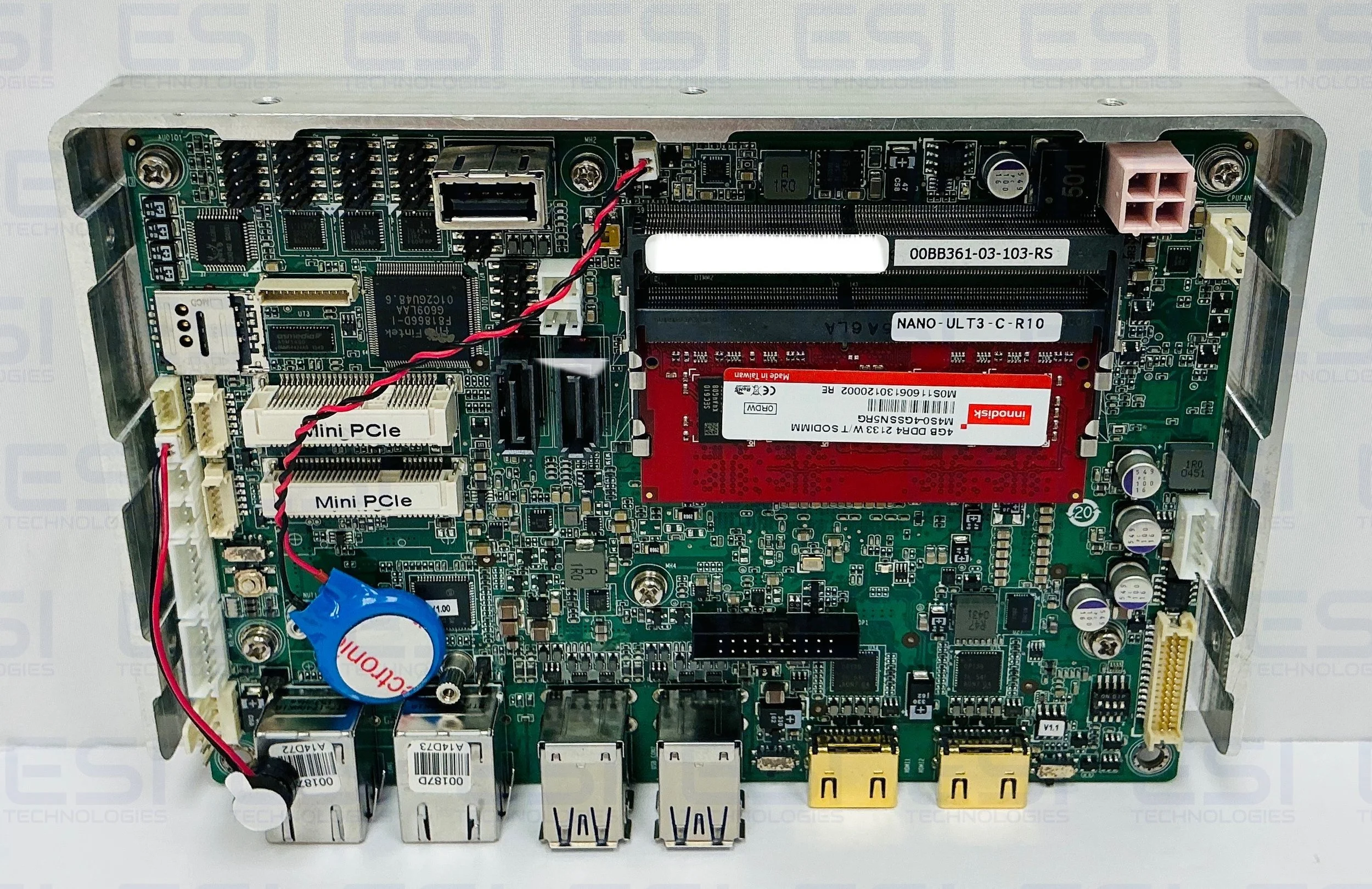

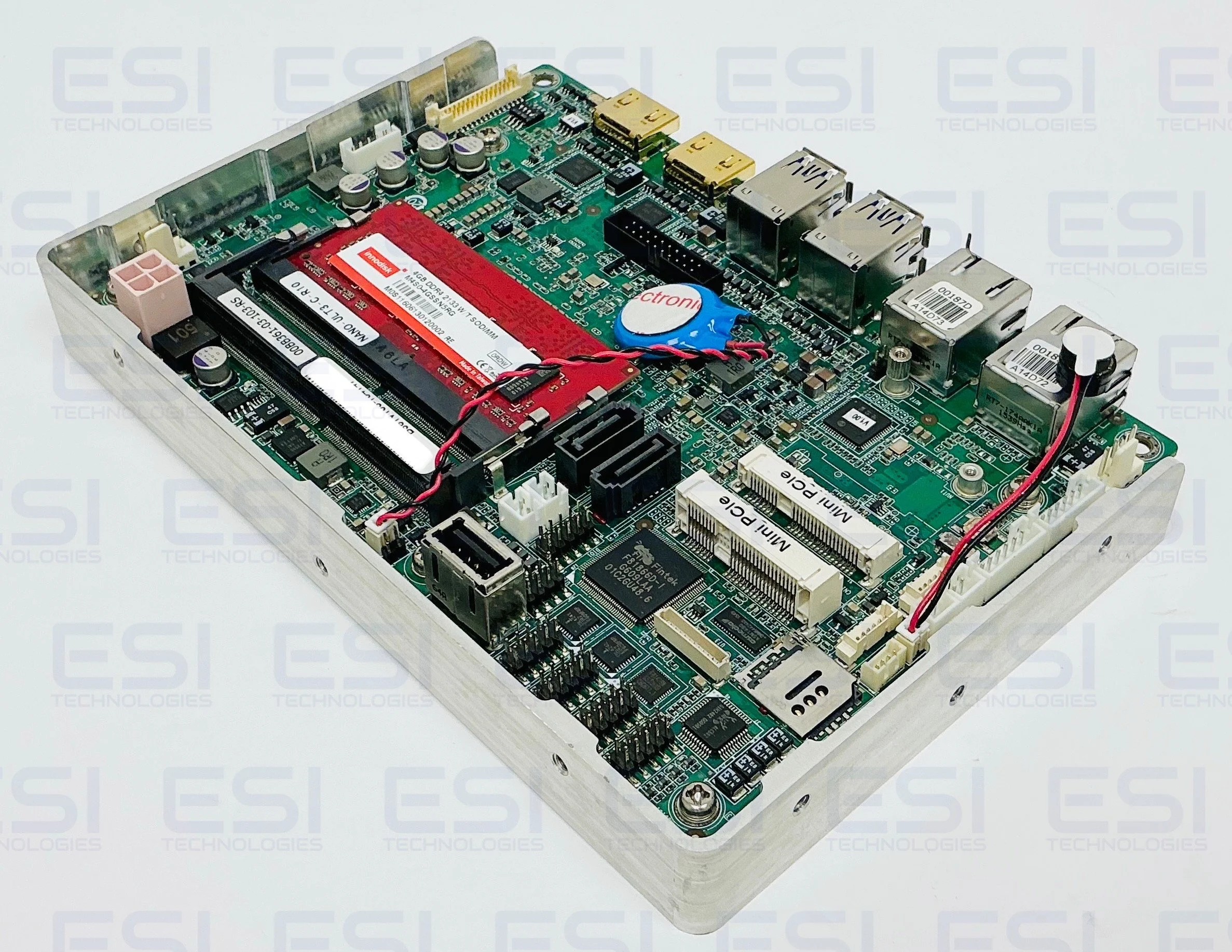

The NANO-ULT3 series is an EPIC form factor single bard computer. It has an on-board 14nm Intel® Core™ i7/i5/i3 or Celeron® processor, and supports two 260-pin

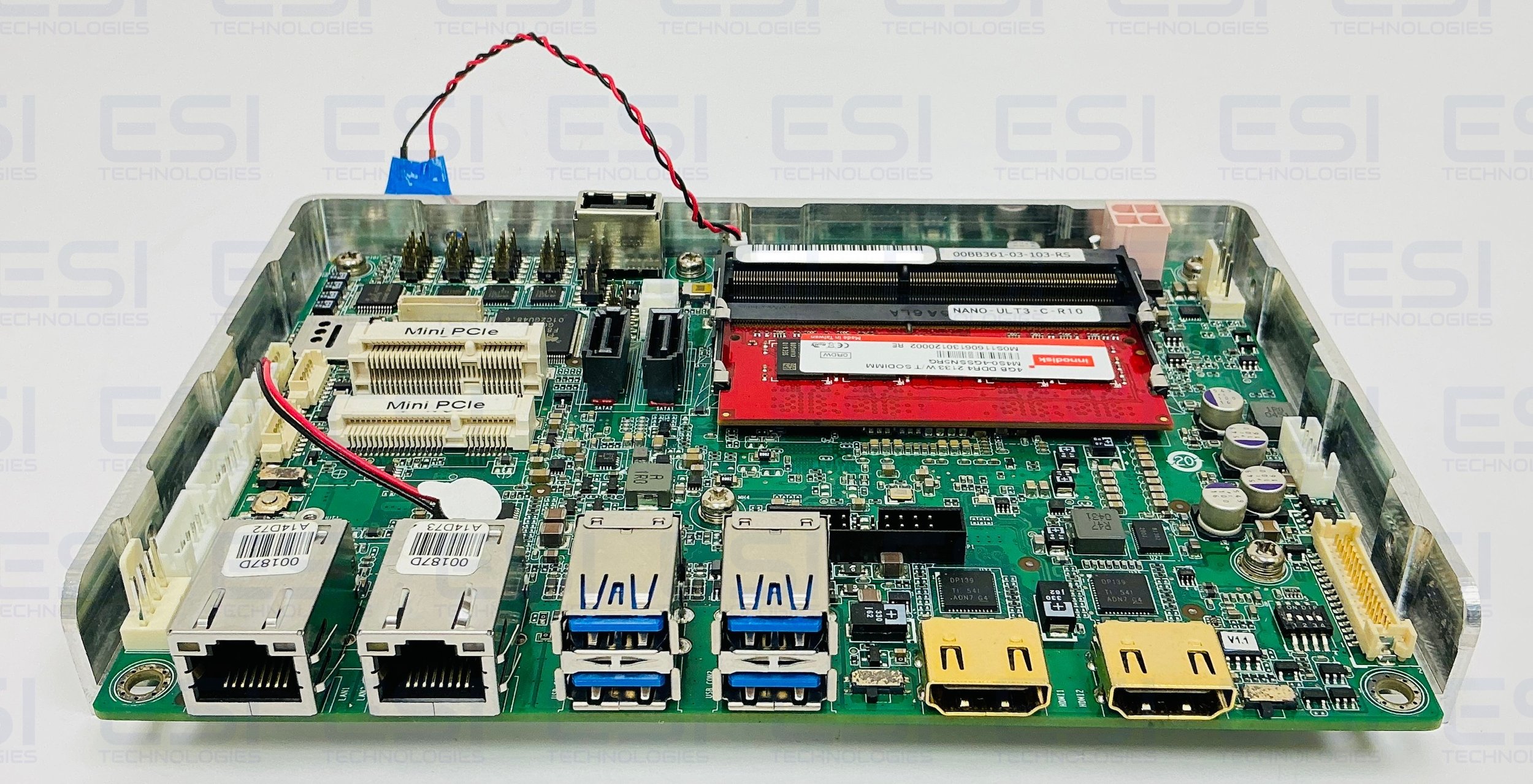

2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SDRAM SO-DIMM slots with up to 32.0 GB of memory. The NANO-ULT3 series includes an internal Display Port connector, two HDMi connectors and an 18-/24-bit LVDS connector for triple independent display. Expansion and I/O include one full-size PCle Mini slot supporting mSATA and 3G modules, one half-size Cle Mini slot for expansion, four USB 3.0 connectors on the rear panel, two USB 2.0 connectors by pin header, one USB 2.0 type A connector on board and two SATA 6Gb/s connectors. Serial device connectivity is provided by two internal RS-232 connectors and one internal RS-232/422/485 connector. Two RJ-45 GbE connectors provide the system with smooth connections to an external LAN. One on-board SIM card socket also supports for 3G/LTE expansion.
Alternative Part No. NANO-ULT3-I7-R10, NANO-ULT3-i5-R10, NANO-ULT3-i3-R10, NANO-ULT3-C-R10, NANO-ULT3-CE-R10
