Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE38-1
In Stock: 1
Product Specifications
NXP QorIQ P5020 1.8/2.0GHz
Up to 8GB DDR3-1333MHz ECC Memory
512KB FRAM
Two PMC/XMC sites
Embedded NAND Flash (8GB eMMC)
2 x 4 PCIe or 2 x 4 SRIO connectivity to VXS backplane P0
Up to three USB 2.0 ports
Up to five Ethernet ports
Up to five Serial ports
Four GPIO
Extended temperature and conduction cooled variants
Memory
Designed for 8GB of 64 bit DDR3-1333 ECC SDRAM soldereddown
16MB SPI ROM for boot code (in 1+1 redundant 8MB banks/ devices)
512KB MRAM for data storage
8GB NAND Flash with SD/EMMC interface
Backplane I/O
P0
– Two SERDES GbE (VITA 41.6) (dedicated)
– Up to two SRIO x4 links (VITA 41.2)
– Up to two PCIe x4 links (VITA 41.4); root or end-point
– One SATA 6GB
– Two GPIO
P1
– VME64x & 2eSST
P2
– PMC1 I/O (64 signals)
– Two USB 2.0
– VME64x & 2eSST
– Four RS-232/422/485
– Two10/100/1000BaseT Ethernet
– Two GPIO
Expansion Module
Site 1 supports PMC or XMC (PCI-X/PCIe x8)
Site 2 supports PMC or XMC (PCI-X/PCIe x4) or alternatively supports a mounting kit for a 2.5” SATA HDD or SSD
A: ontact EC or consult installation/use manual for requirements for rugged (ENP4) SSD modules

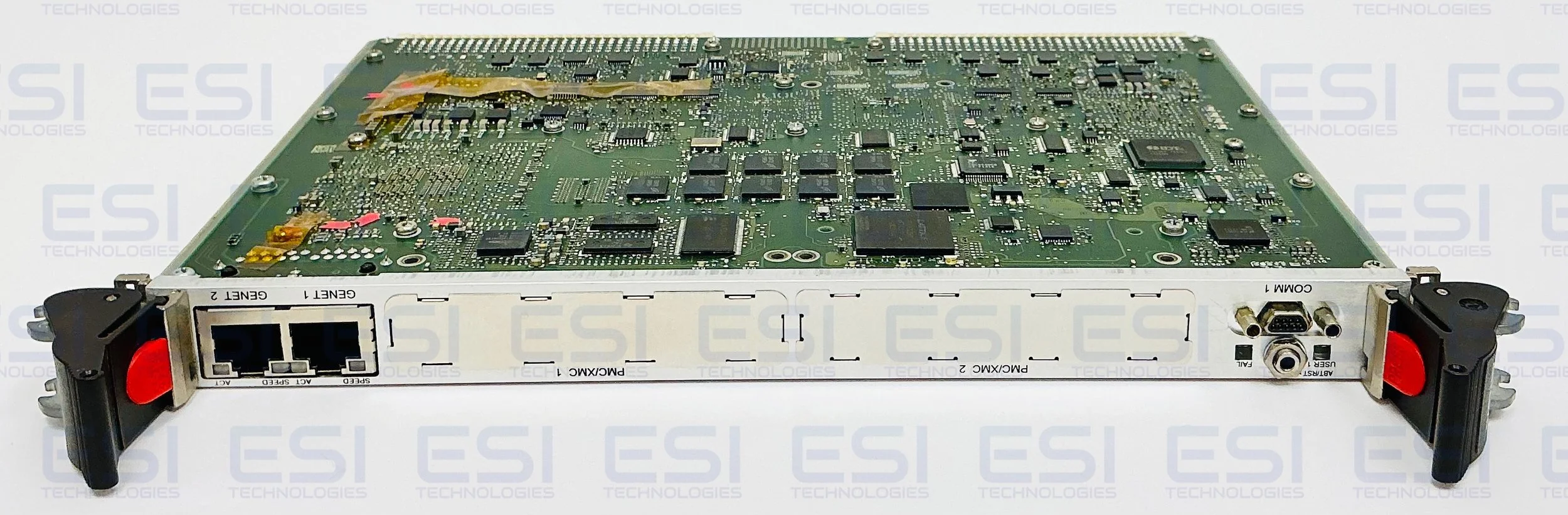

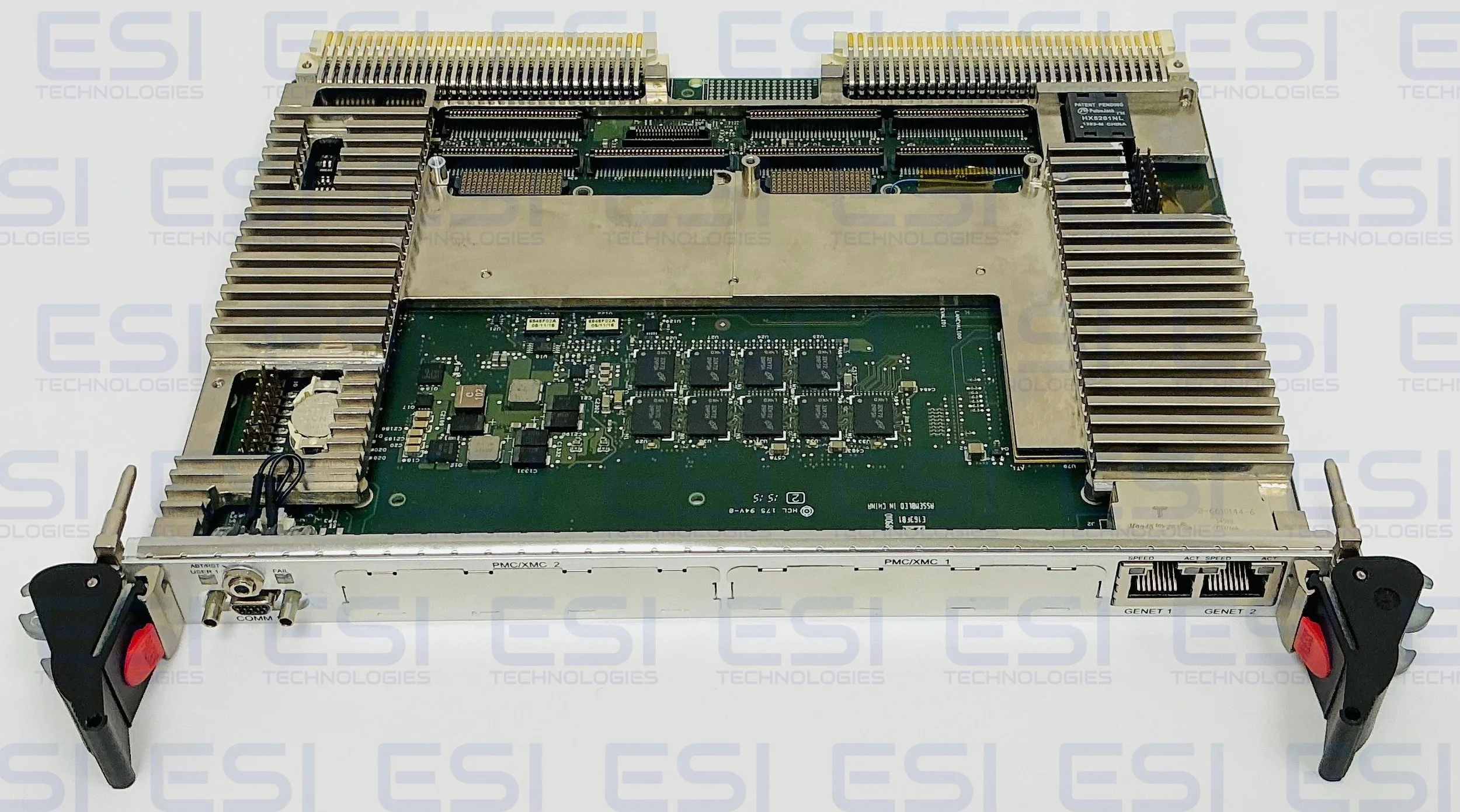

Front Panel Connectivity
One GbE (RJ-45)
One RS-232/422/485 console (Micro-BD9)
One USB 2.0 (Type A)
Other Features
Real-time clock with battery backup
Real-time counters
Watchdog

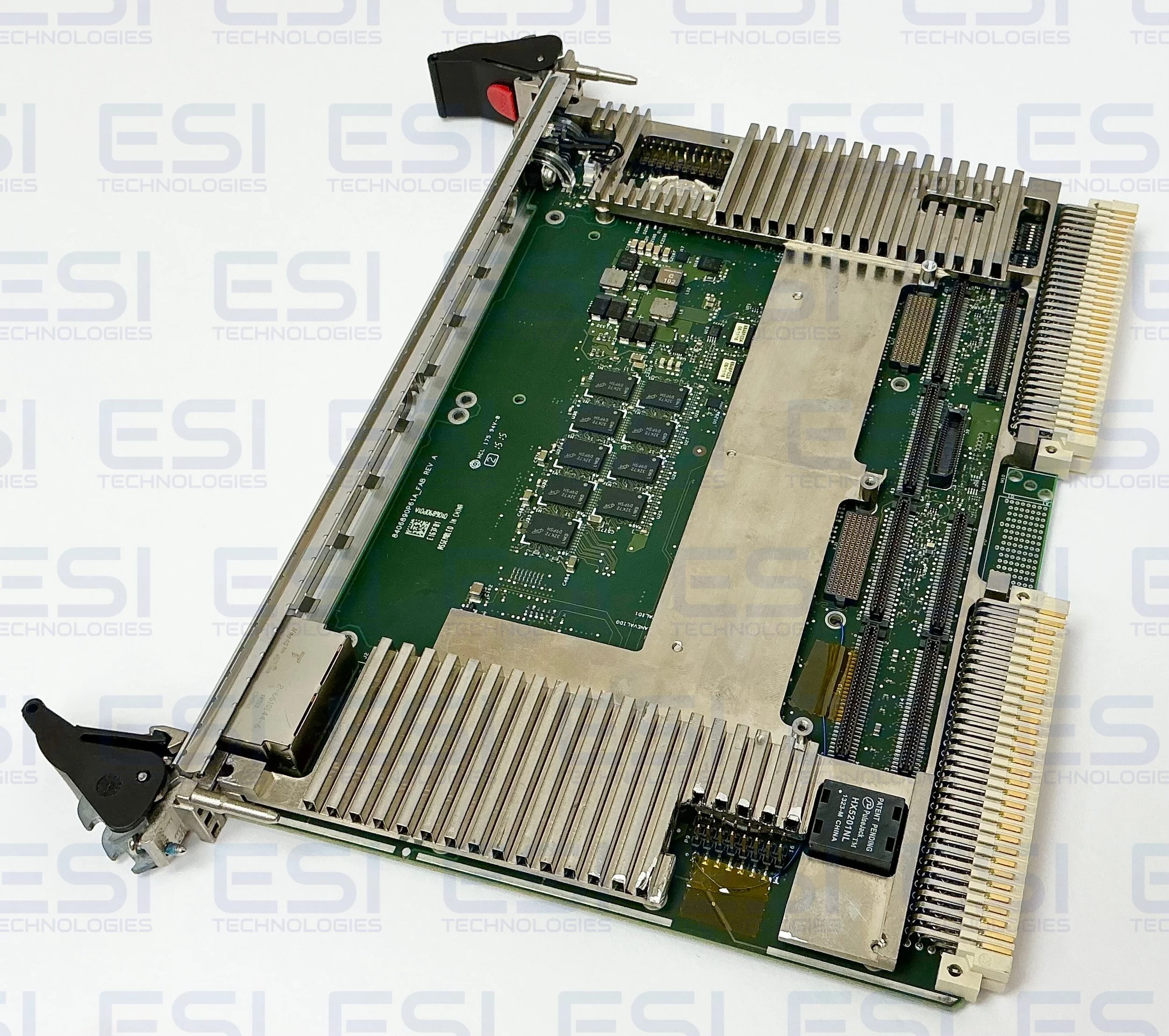

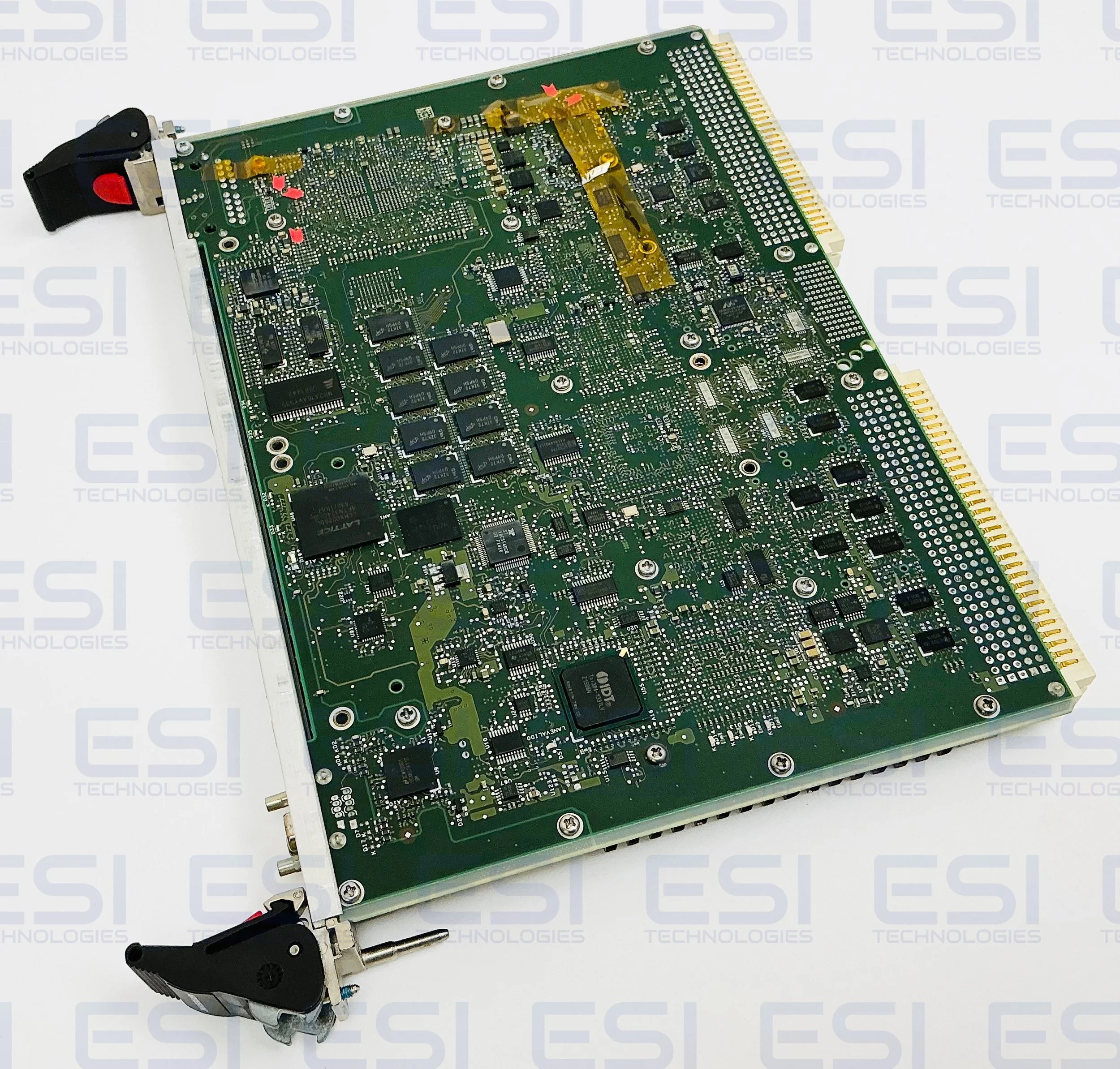

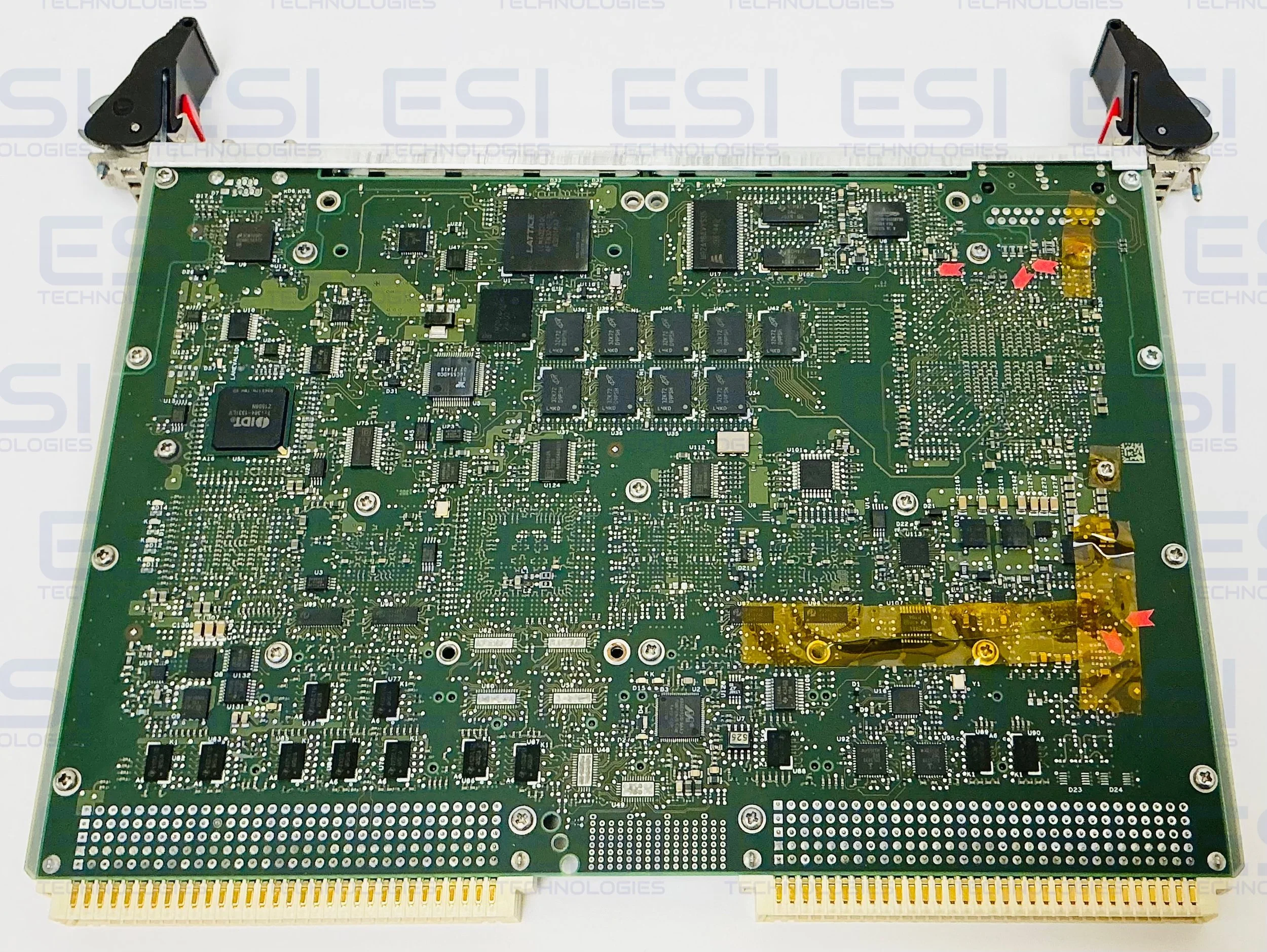

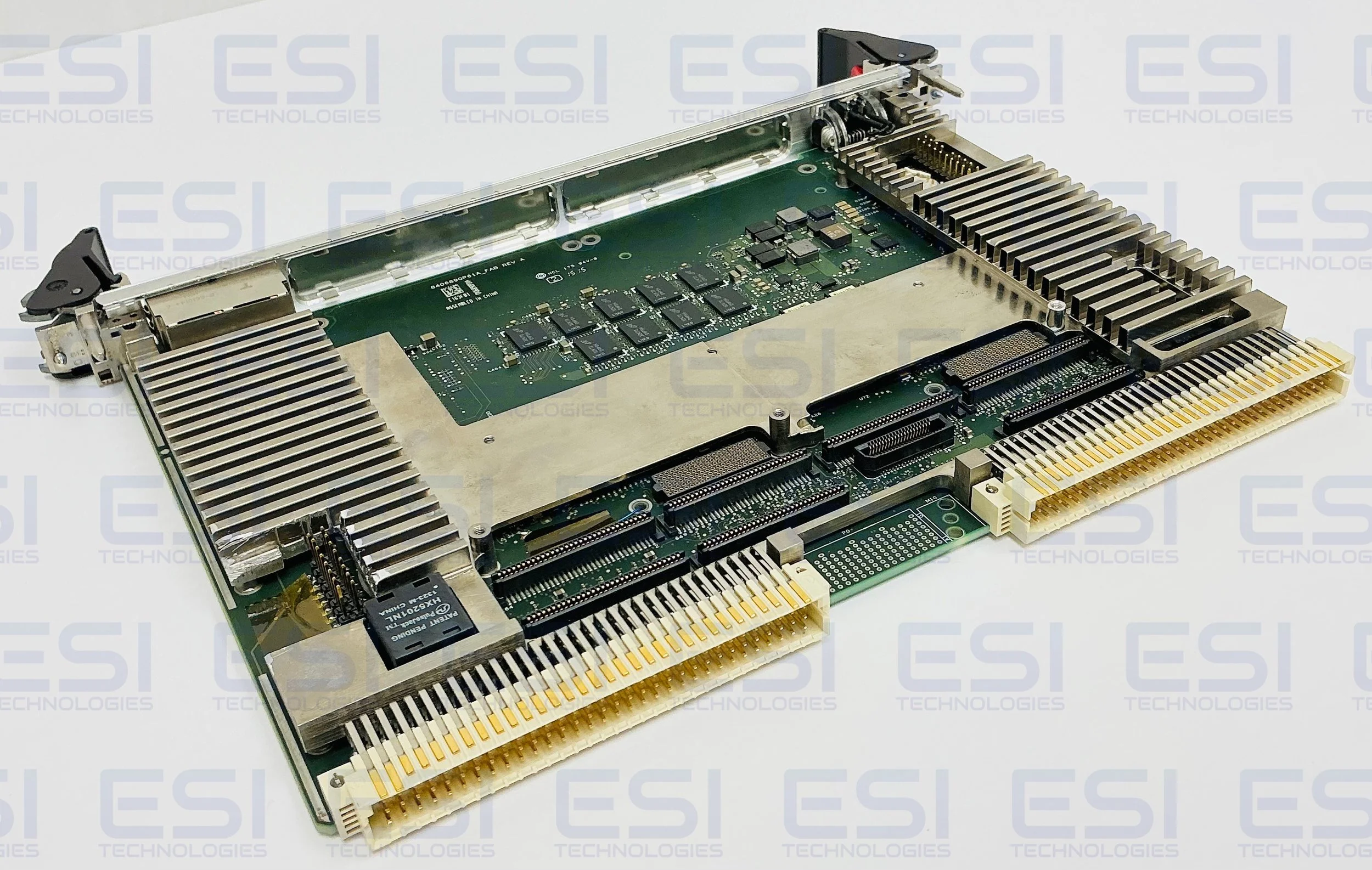

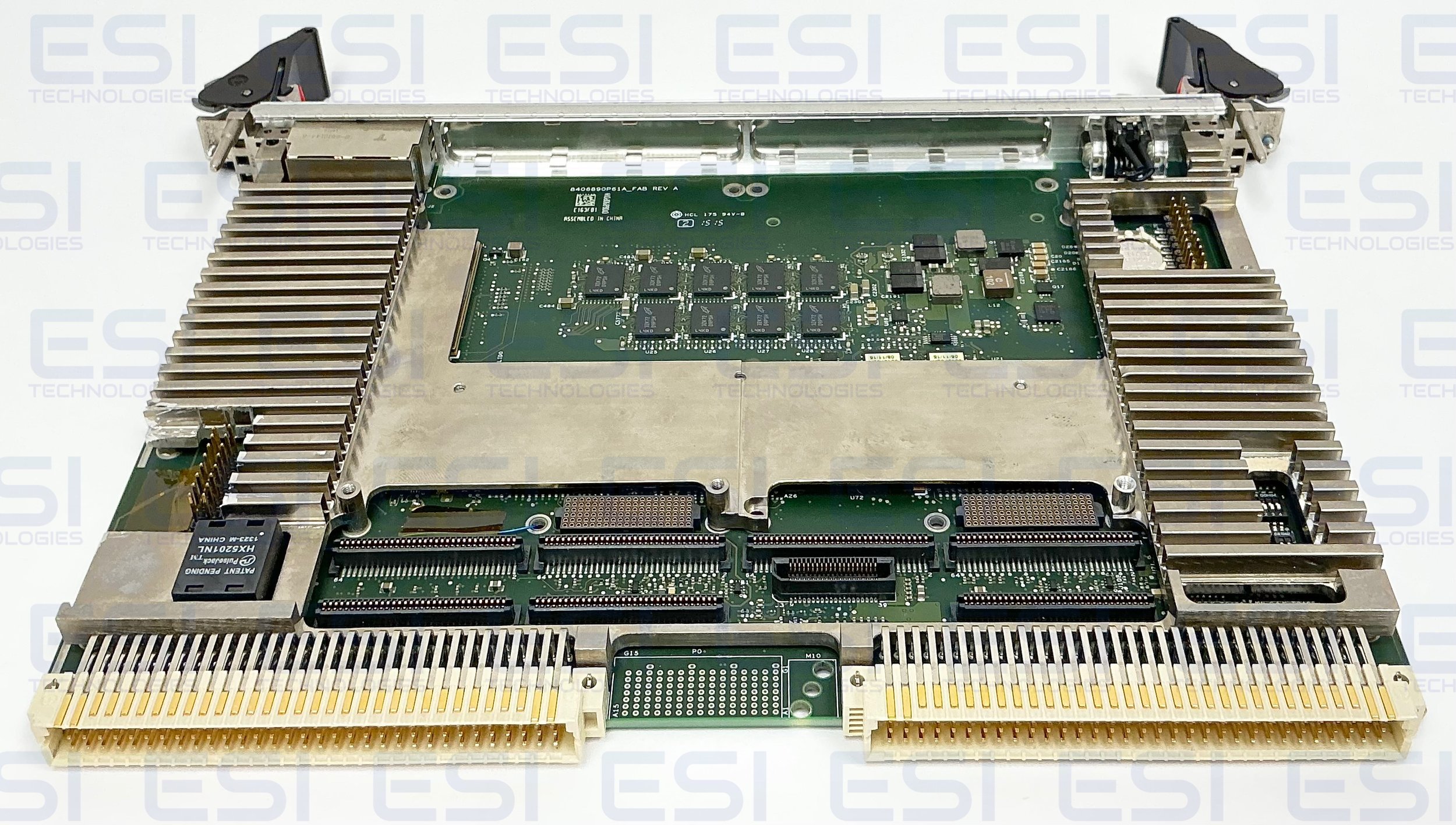

The Penguin EdgeTM MVME8100 is a high performance 6U VME/VXS SBC featuring the NXP® QorIQ® P5020 processor supporting high speed DDR3-1333MHz with ECC. It offers expanded IO and memory features with PCIe and SRIO fabric connectivity and multiple USB, Serial and Ethernet ports. Memory includes up to 8GB DDR3, 512KB FRAM non-volatile memory, and 8GB eMMC NAND Flash. The MVME8100 is offered in commercial and fully rugged variants for extreme environments with extended shock, vibration, temperatures and conduction cooling. It is designed for a range of high end industrial control such as SPE and photo lithography and C4ISR, including Radar/Sonar. It will provide technology insertion to prolong current programs while providing more computing performance and data throughput. The MVME8100 supports a full range of BSPs including Linux, Wind River VxWorks, and Green Hills Integrity.
Alternative Part No. MVME8105-01E, MVME8100-202200401E, MVME8105 01E, MVME8100 202200401E, MVME 8105 01E, MVME8100-202200401E
Product Manual
Product Images
