Product Specifications
1.3GHz system-on-chip NXP MPC8548E
with e500 processor core, double precision
floating point operations, integrated memory
controller, DMA engine, PCI-X and PCI
Express interface, Ethernet, and local I/O
2GB of DDR2 ECC memory, 128 MB NOR
flash and 2GB NAND flash
512 KB of MRAM non-volatile memory
Four Gigabit Ethernet ports
Five serial ports
USB 2.0 controller for integrating cost effective
peripherals (commercial temperature only)
2eSST VMEbus protocol with 320MB/s
transfer rate across the VMEbus
Board support packages for VxWorks and Linux
Dual 33/66/100 MHz PMC sites for expansion via industry standard modules
with support for processor PMCs
8x PCI/PCI-X expansion connector for PMC/XMC
expansion using SMART EC XMCspan carrierMVME7216E direct-connect rear transition module
(RTM) for I/O routing through rear of VMEbus chassis
Manufactured by Emerson. Refurbished in good condition.

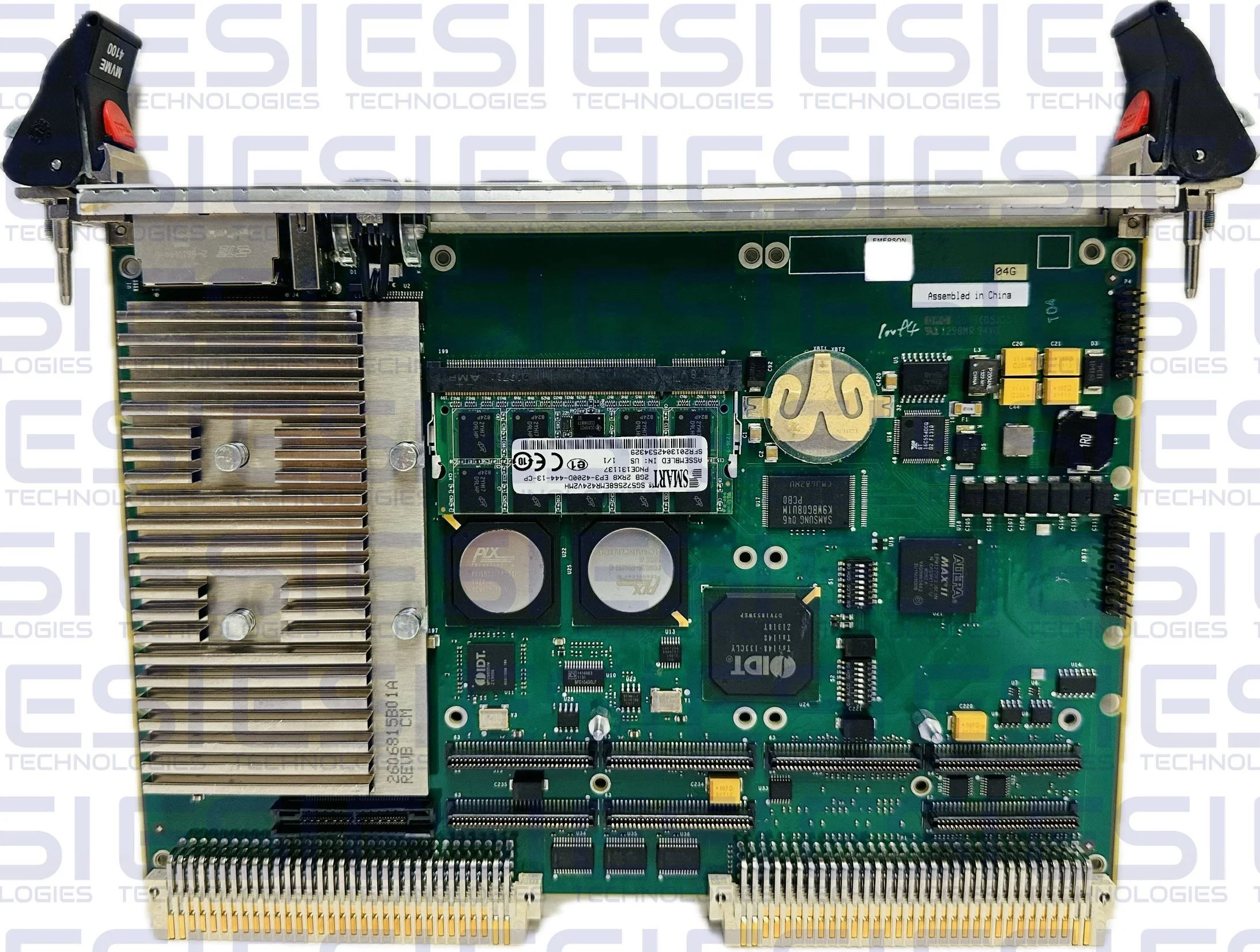

The MVME4100 single-board computer from SMART Embedded Computing incorporates the NXP 8548E processor, industry-leading storage options, extensive I/O and flexible expansion options including an on-board PMC site and up to four optional XMC sites via expansion cards. The MVME4100, with the NXP MPC8548E system-on-chip (SoC) processor, provides a high-performance, cost-effective continuation for currently deployed VME infrastructure. The e500 core, coupled with the current operating systems, allows for double precision floating point operations. In addition, the processor-enabled supplementary encryption engine can be leveraged to address new opportunities meeting the ever-growing demands for network privacy and data security.
The MVME4100 memory and storage options raise the bar in the embedded computing market. 2GB of DDR2 RAM is provided in SO-DIMM format. Innovative MRAM is included for truly non-volatile memory. Also included are 2GB of NAND flash, which can take the place of some rotating media or removable flash, while offering improved performance and life cycle. High speed 2eSST protocol and extensive I/O - four Gigabit Ethernet ports, five serial ports, USB and PMC/XMC sites - round out the MVME4100 to provide maximum performance and flexibility.
VMEBUS 2ESST PERFORMANCE
The 2eSST protocol offers an available VME bus bandwidth of up to 320MB/s, an increase of up to 8x over VME64, while maintaining backward compatibility with VME64 and VME32. The combination of the latest Texas Instruments VMEbus transceivers and the Tundra Tsi148 VMEbus bridge’s legacy protocol support allows customers to integrate the MVME4100 series into their existing infrastructure providing backward compatibility and thereby preserving their investment in existing VMEbus boards, backplanes, chassis and software.
BALANCED PERFORMANCE
The MVME4100 series provides more than just faster VMEbus transfer rates; it provides balanced performance from the processor, memory subsystem, local buses and I/O subsystems. This coupled with a wealth of I/O interfaces make the MVME4100 series ideal for use as an application-specific compute blade, or an intelligent I/O blade/carrier. The NXP MPC8548E system-on-chip (SoC) processor, running at speeds up to 1.3GHz, is well-suited for I/O and data-intensive applications. The integrated SoC design creates an I/O intensive state-of-the-art package that combines a low power processing core with on-chip L2 cache and an integrated DDR2 memory controller, PCI Express, DMA , Ethernet and local device I/O. The on-chip PCI Express interface and DDR2 memory buss are well matched to the processor. To ensure optimal I/O performance, the MVME4100 also offers quad Gigabit Ethernet interfaces, USB 2.0, and five (5) RS-232 serial connections. All of this adds up to a set of well-balanced, high-performance subsystems offering unparalleled performance.
SKUE31
Qty 2
Alternative P/N #: MVME4100-0173-2GF, MVME4100, MVME-4100, MVME 4100, 0106855E04
