Product Specifications
• 25 or 33 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
• Full 32-bit master/slave VMEbus interface
• High-performance DMA supports VMEbus D64 and local bus memory burst cycles
• 16, 32 or 64MB configurable SDRAM, with ECC option
• On-board SCSI and Ethernet interfaces
• Up to 4MB on-board ROM/EPROM
• Four serial ports (EIA-232-D) and one parallel port
• Four 32-bit timers and one watchdog timer
• 8KB of NVRAM with real-time clock/calendar
• Remote Reset/Abort/Status control functions
• Completely programmable for maximum integration flexibility
Manufactured by Motorola, Inc. Refurbished in good condition.
Motorola’s MVME167P single-board computer represents the functionality, flexibility, and performance of a CISC-based system. Based on the Motorola MC68040, the MVME167P combines a microprocessor with the memory management and floating-point units. This outstanding processing speed and floating-point performance makes the MVME167P an ideal solution for scientific and industrial applications. The inclusion of the new “Petra” application-specific integrated circuit (ASIC), which replaces functions formerly implemented in the MCECC chip, improves the performance of the memory subsystem. Memory configuration switches enable the customer to tailor memory size for applications requiring smaller memory configurations. The MVME167P’s compatibility with existing M68000 family software offers CISC-based software environments the ability to realize near-RISC performance levels while maintaining object code compatibility with existing software platforms.
VMEbus Interface
Another design advantage of the MVME167P is the use of a second-generation application specific integrated circuit (ASIC). The ASIC interfaces the MVME167P to the VMEbus for higher levels of quality, reliability, and functionality. In addition to controlling the system’s VMEbus functions, the VMEbus interface ASIC also includes a local bus to/from VMEbus DMA controller, VME board support features, as well as global control and status register (GCSR) for microprocessor communications over the VMEbus. The MVME167P also provides support for the VME D64 specification within the VMEbus interface, further enhancing system performance.
Transition Modules
Optional MVME712 series transition modules are available to support the use of standard I/O connections for the MVME167P series. These modules take the I/O connections for the peripherals on-board the MVME167P series from the P2 connection of the module to a transition module that has industry-standard connections. Development software for the MVME167P series includes the on-board debugger/monitor firmware and driver packages. Object and source code is available for application development. Firmware is included on the board.
SKU31
Qty 1
Alternative Part No. MVME167P 35SE, VME167P-35SE, MVME-167P-35SE
Product Manual

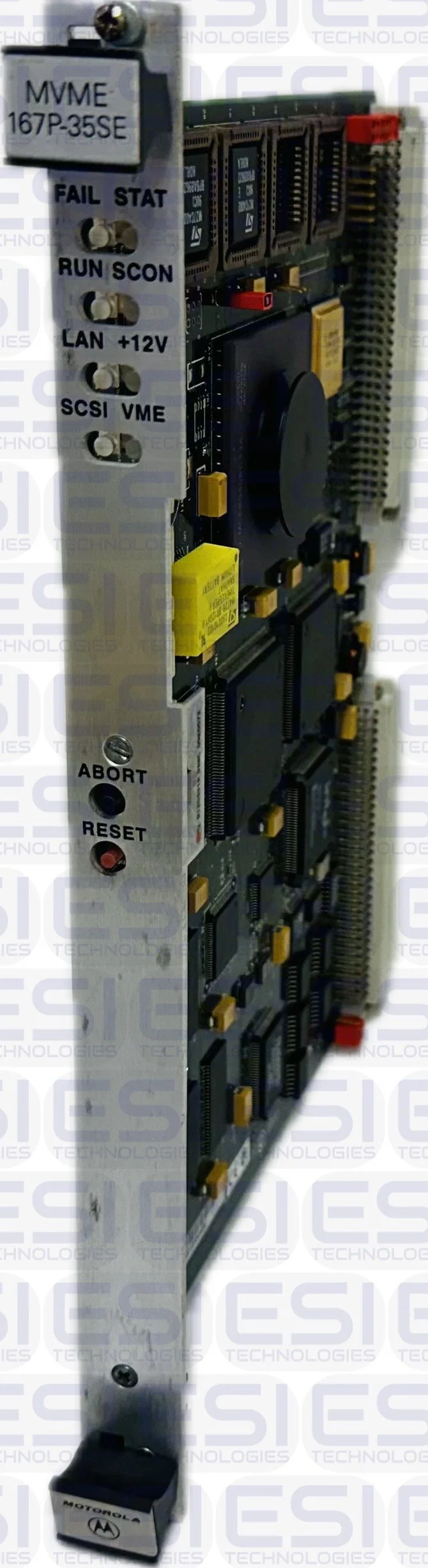

Product Images
