Product Specifications
1MB, 4MB, or 8MB of shared Dynamic Random Access Memory (DRAM) with programmable parity
512KB of Static Random Access Memory (SRAM) with battery backup
One JEDEC standard 32-pin PLCC EPROM socket (EPROMs may be shipped separately from the MVME162)
1MB Flash memory: either one Intel 28F008SA (for older boards) or four Intel 28F020s (for newer boards)
Four 32-bit programmable timers and programmable Watchdog Timer (Mcchip)
Two 32-bit programmable timers and programmable Watchdog Timer (optional VMEchip2)
8K by 8 Non-Volatile Random Access Memory (NVRAM) and Time of Day (TOD) clock with battery backup
(Thompson MK48T08)
input / Output
– Two serial ports (one EIA-232-D DCE; one EIA-232-D or EIA-530 DCE/DTE)– Serial port controller (Zilog Z85230)
– Optional Small Computer Systems Interface (SCSI) bus interface with 32-bit local bus burst Direct Memory
Access (DMA) (NCR 53C710 controller)
– Optional LAN Ethernet transceiver interface with 32-bit local bus DMA (Intel 82596CA controller)
– Four MVIP IndustryPack interfaces
VMEbus interface (VMEchip2)—non-VMEbus version optional
– VMEbus system controller functions– VMEbus interface to local bus (A24/A32, D8/D16/D32 (D8/D16/D32/D64BLT) (BLT = Block Transfer)
– Local bus to VMEbus interface (A16/A24/A32, D8/D16/D32)
– VMEbus interrupter
– VMEbus interrupt handler
– Global CSR for interprocessor communications
– DMA for fast local memory-VMEbus transfers (A16/A24/A32, D16/D32[D16/D32/D64BLT])

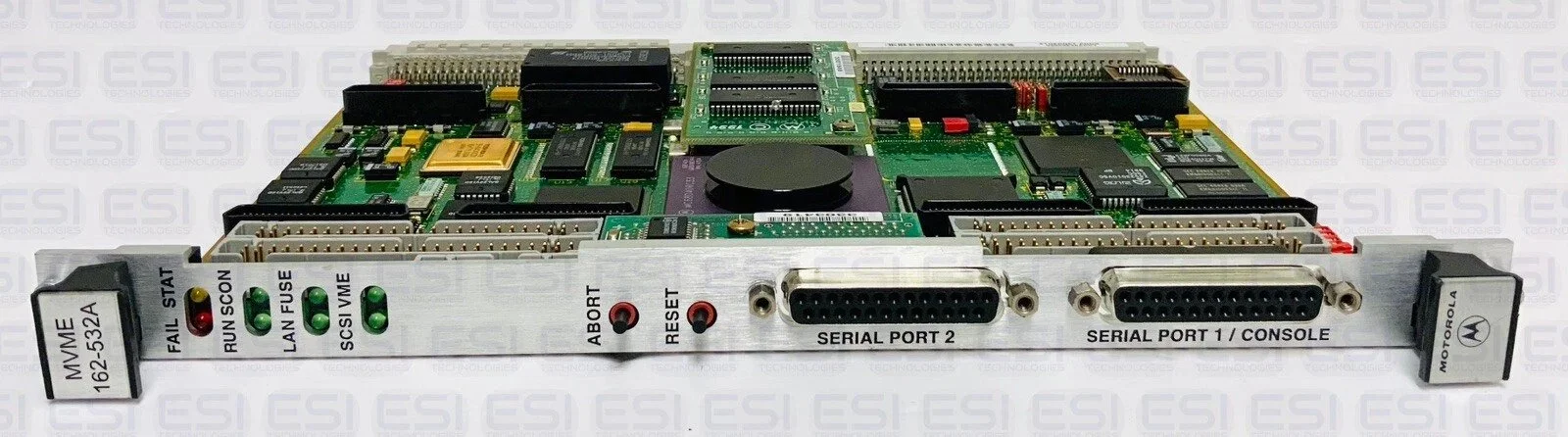

Switches and Light-Emitting Diodes (LEDs)
– Two pushbutton switches (ABORT and RESET)– Eight LEDs (FAIL, STAT, RUN, SCON, LAN, FUSE, SCSI, and VME)

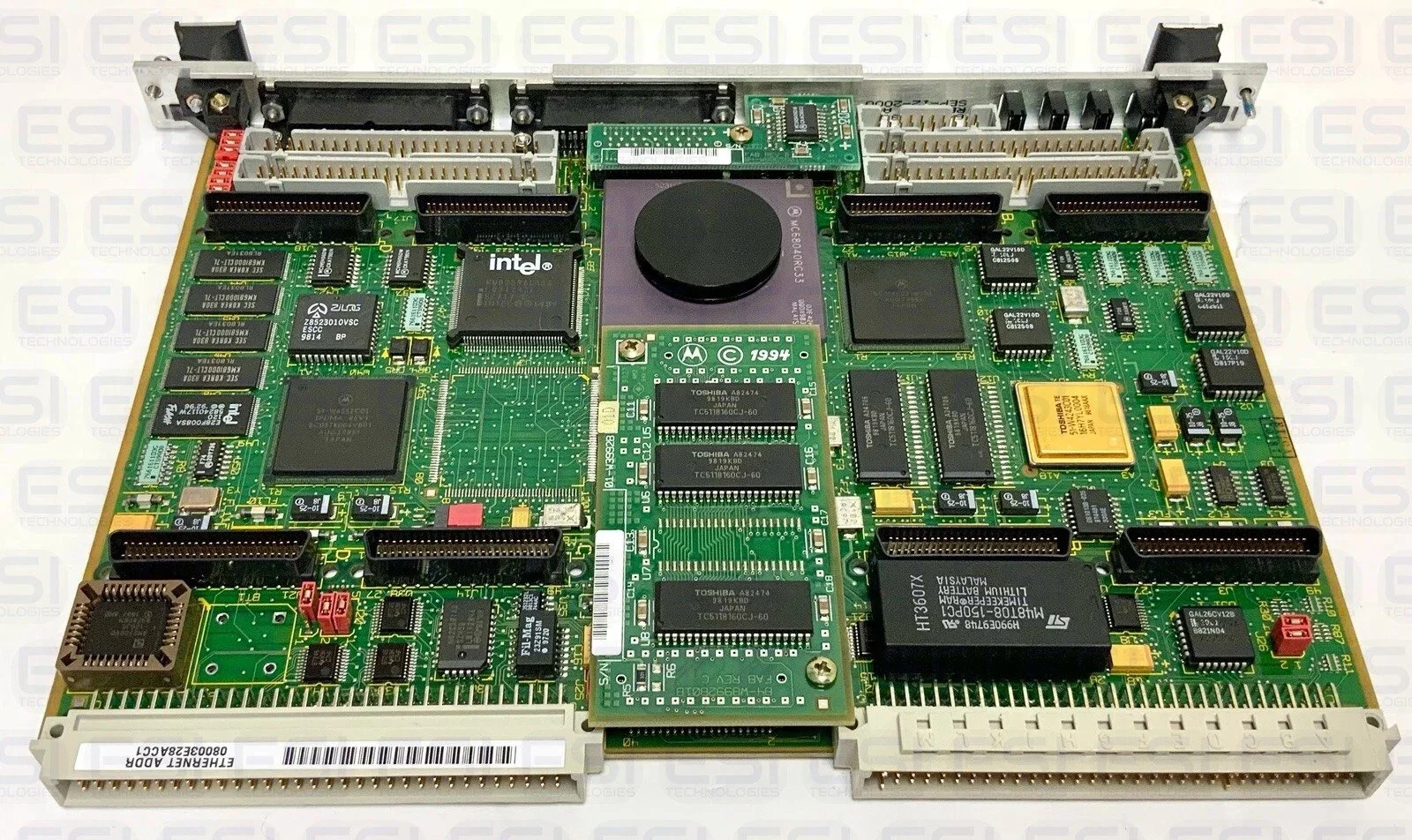

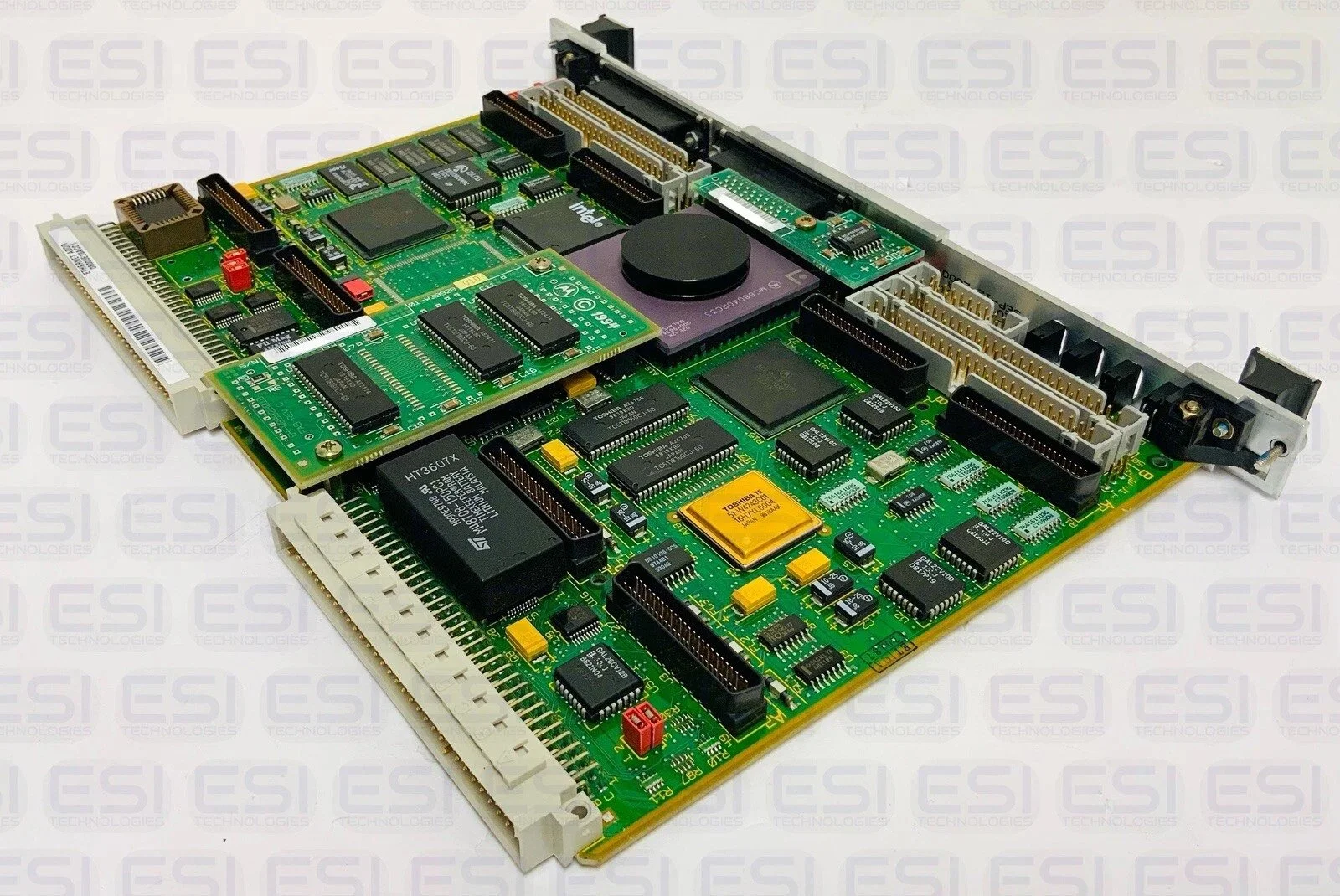

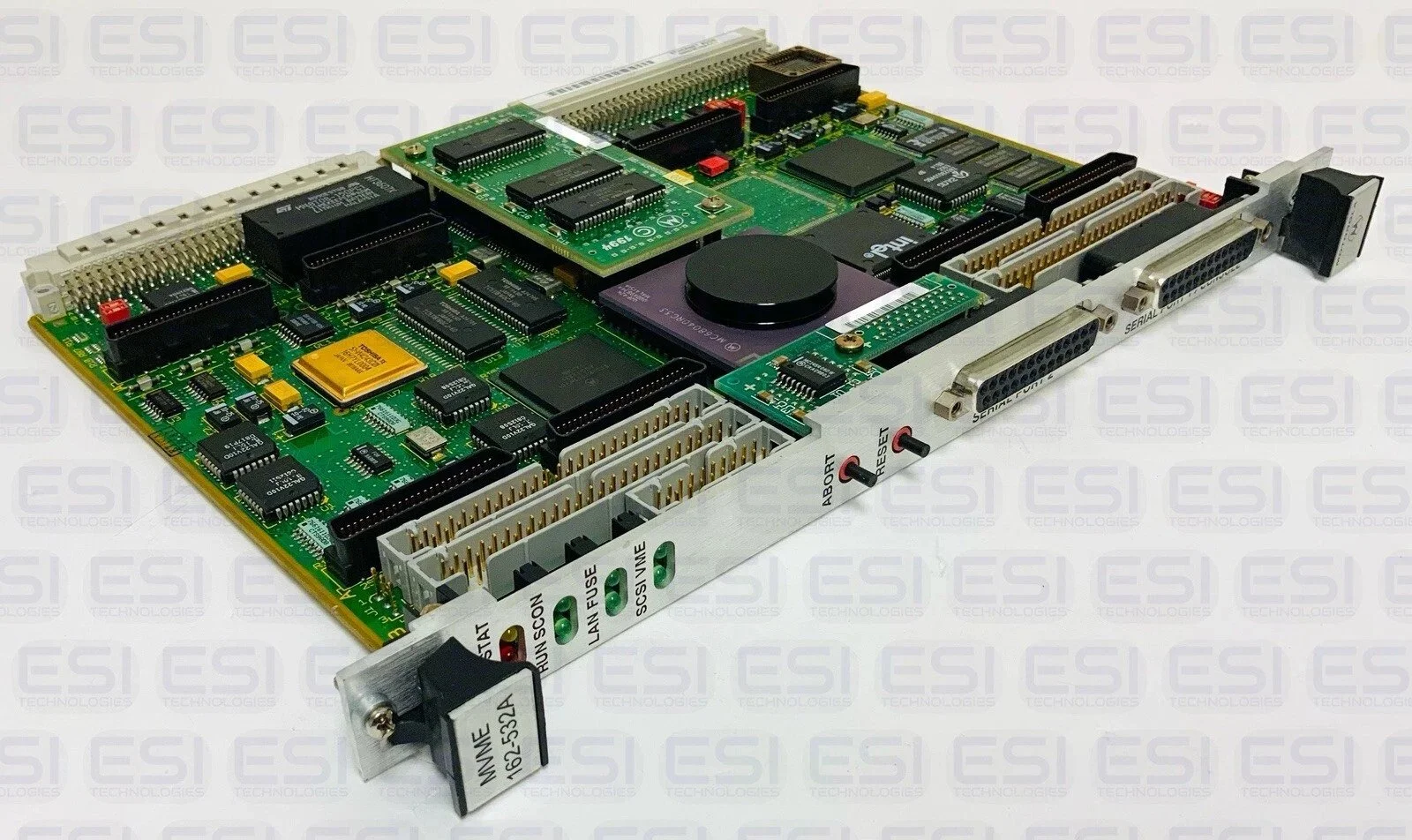

The Motorola MVME162-532A is manufactured by Motorola / Emerson. The Motorola MVME162 is a double-high VME module equipped with an MC68LC040 or optional MC68040 microprocessor. (The MC68040 microprocessor has a floating-point coprocessor; the MC68LC040 does not.) The MVME162 has 1MB, 4MB, or 8MB of parity-protected DRAM; 512KB SRAM (with battery backup); a TOD clock (with battery backup); an optional LAN Ethernet transceiver interface with DMA, two serial ports (EIA-232-D and EIA-232-D/EIA-530); six tick timers with watchdog timer(s); optional SCSI bus interface with DMA; VMEbus interface (local bus to VMEbus/VMEbus to local bus, with A16/A24/A32, D8/D16/D32 bus widths and a VMEbus system controller).
