Product Specifications
Industry-standard connectors for these interfaces:
Two EIA-574 asynchronous serial ports (DTE)
Two asynchronous/synchronous serial ports, which can be configured for EIA-232-D, EIA-530, V.35, or X.21 interfaces (DCE or DTE)
One parallel port (IEEE Standard 1284-I compliant)
10Base-T/100Base-TX EthernetTwo 60-pin Serial Interface Module (SIM) connectors for configuring the asynchronous/synchronous serial ports
Single-width board
Electro-Magnetic Interference (EMI) and Electro-Static Discharge (ESD) protection
Manufactured by Motorola. Refurbished in good condition.

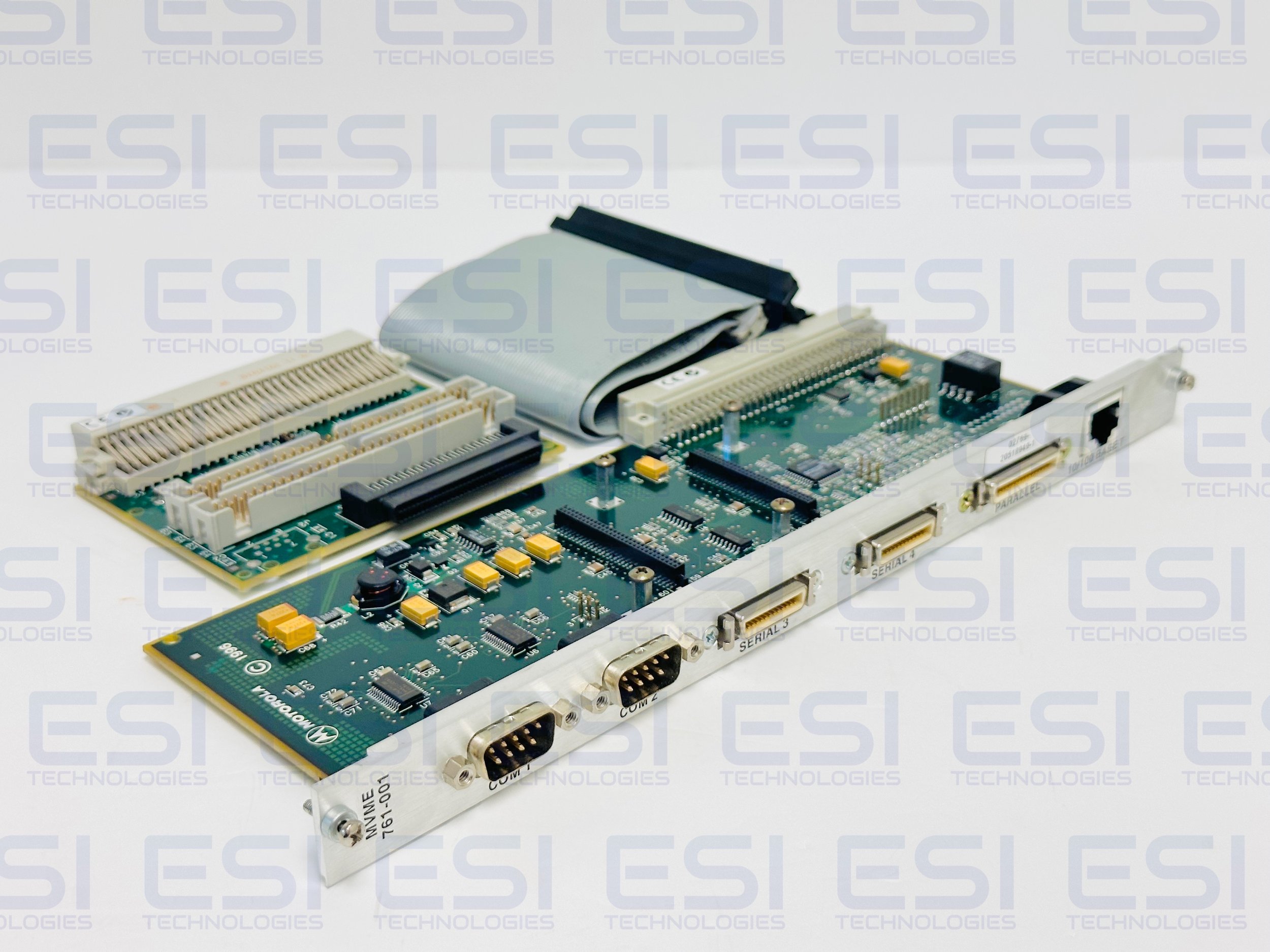

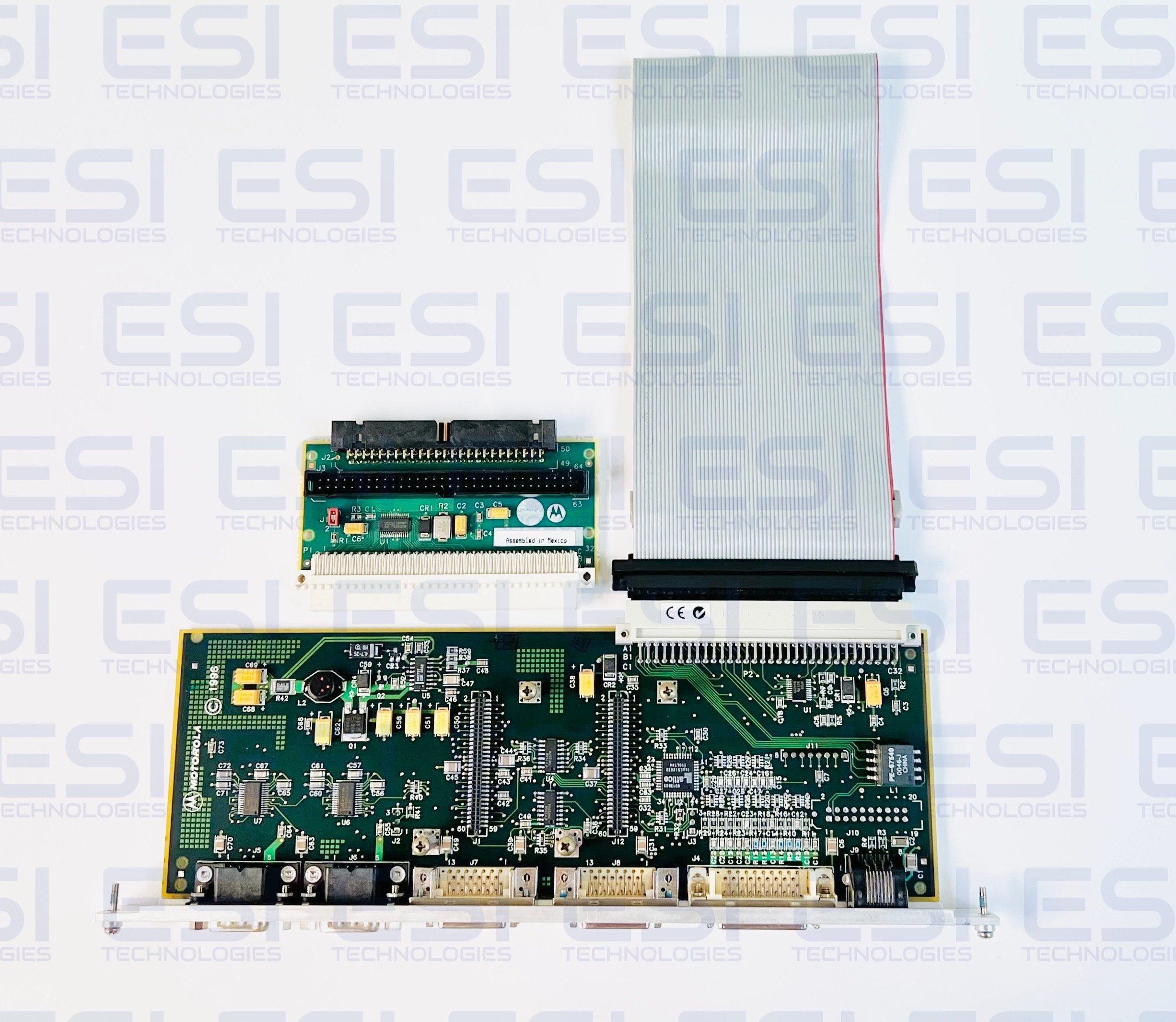

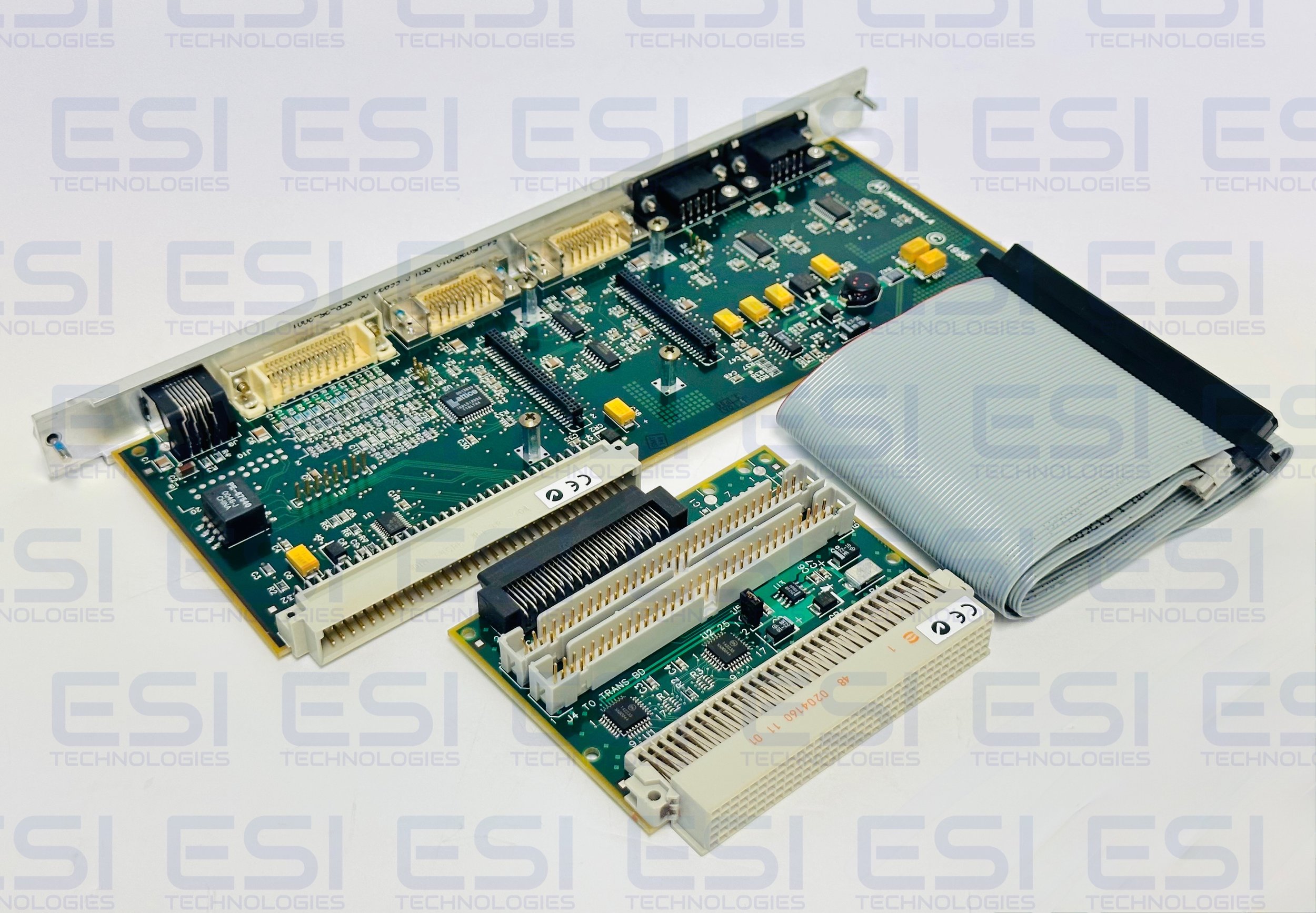

The Motorola MVME761-001 is a transition module, it provides industry standard connectors to simplify customer cable requirements for the serial port, printer, and ethernet signals. Transition Module provides the interface between the standard Ethernet, parallel port, and the serial port connectors.The MVME761-0x1 is tested to operate under forced air cooling with an incoming air temperature range of 0 degrees C to 55 degrees C. Adequate cooling can be achieved with air flowing over the module at 5 cubic feet per minute. The exact amount of airflow required for cooling depends on the ambient air temperature and the type, number, and location of modules and other heat sources.The MVME761-0x1 was tested in an FCC-compliant chassis, and meets the requirements for Class A equipment. For minimum RF emissions, it is essential that you implement the following conditions:
Install shielded cables on all external I/O ports
Connect conductive chassis rails to earth ground to provide a path for connecting shields to earth ground
Tighten all front panel screws.
SKUE4
Qty 12
Alternative P/N #: MVME761-001, MVME 761-001, MVME 761 001, 01-W3197F-01D, 84-W197F01B, 01-W3197F-01C
