Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE5
In Stock: 1
Product Specifications
Connector Type: Micro-D, Pre-Wired Pigtail Receptacle (Socket/Female)
Number of Contacts: 25
Wire Details: 18" long (457 mm), 26 AWG
Wire Specifications: PTFE insulated, silver-plated copper strands
Voltage Rating: 600 VAC
Current Rating: 3 Amps (Max per contact)
Contact Plating: Gold
Shell Material: Aluminum Alloy
Shell Finish: Electroless Nickel

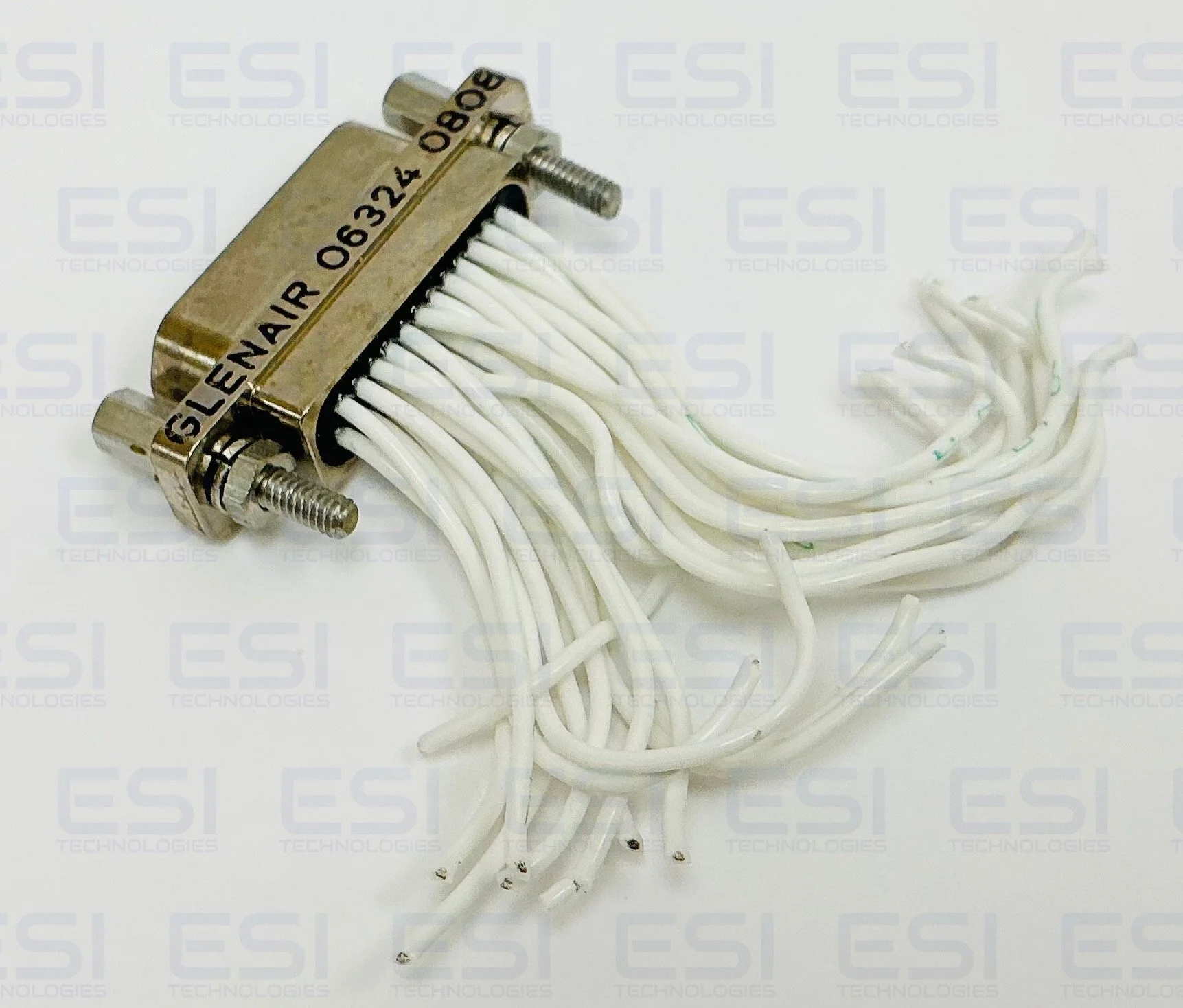

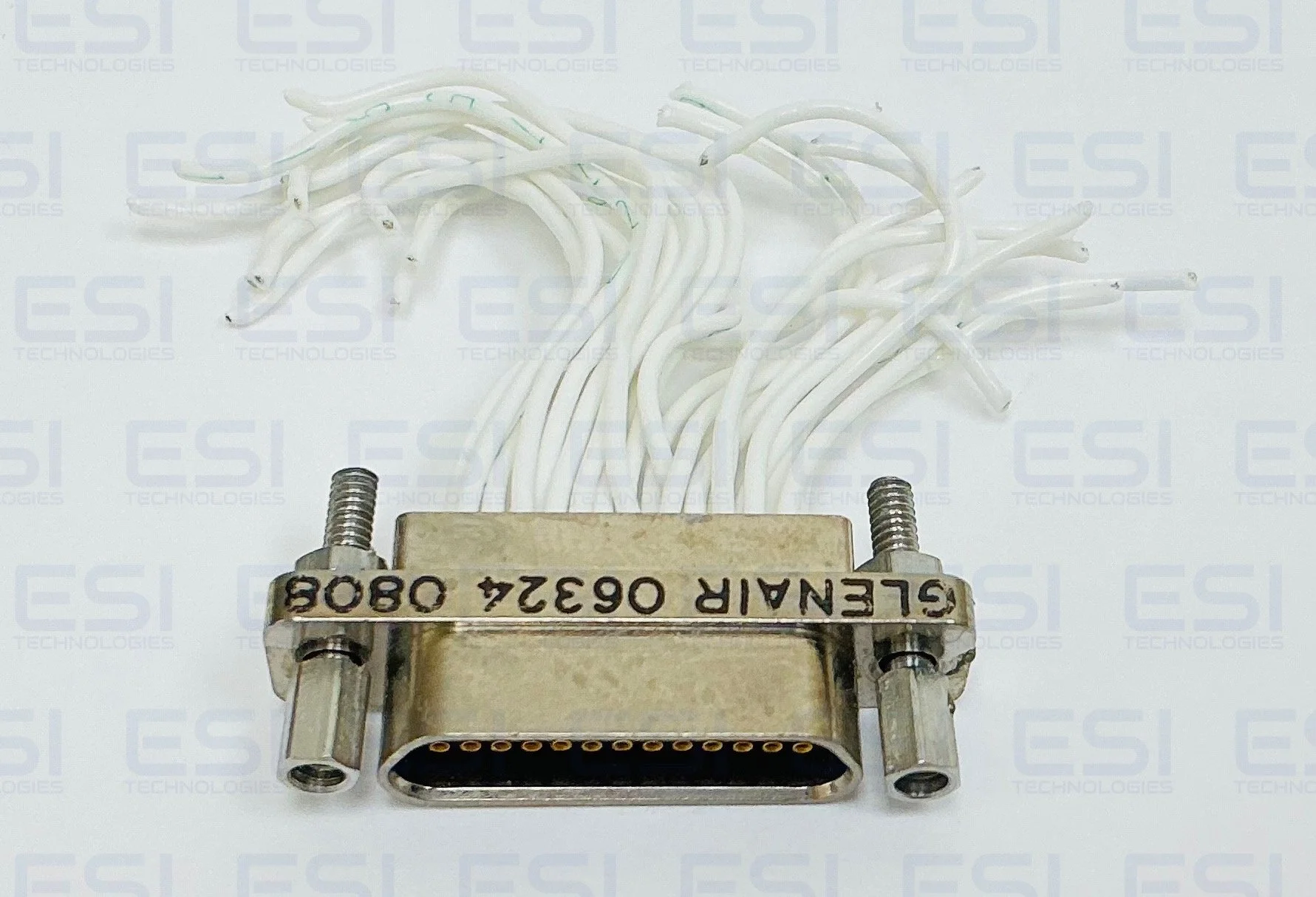

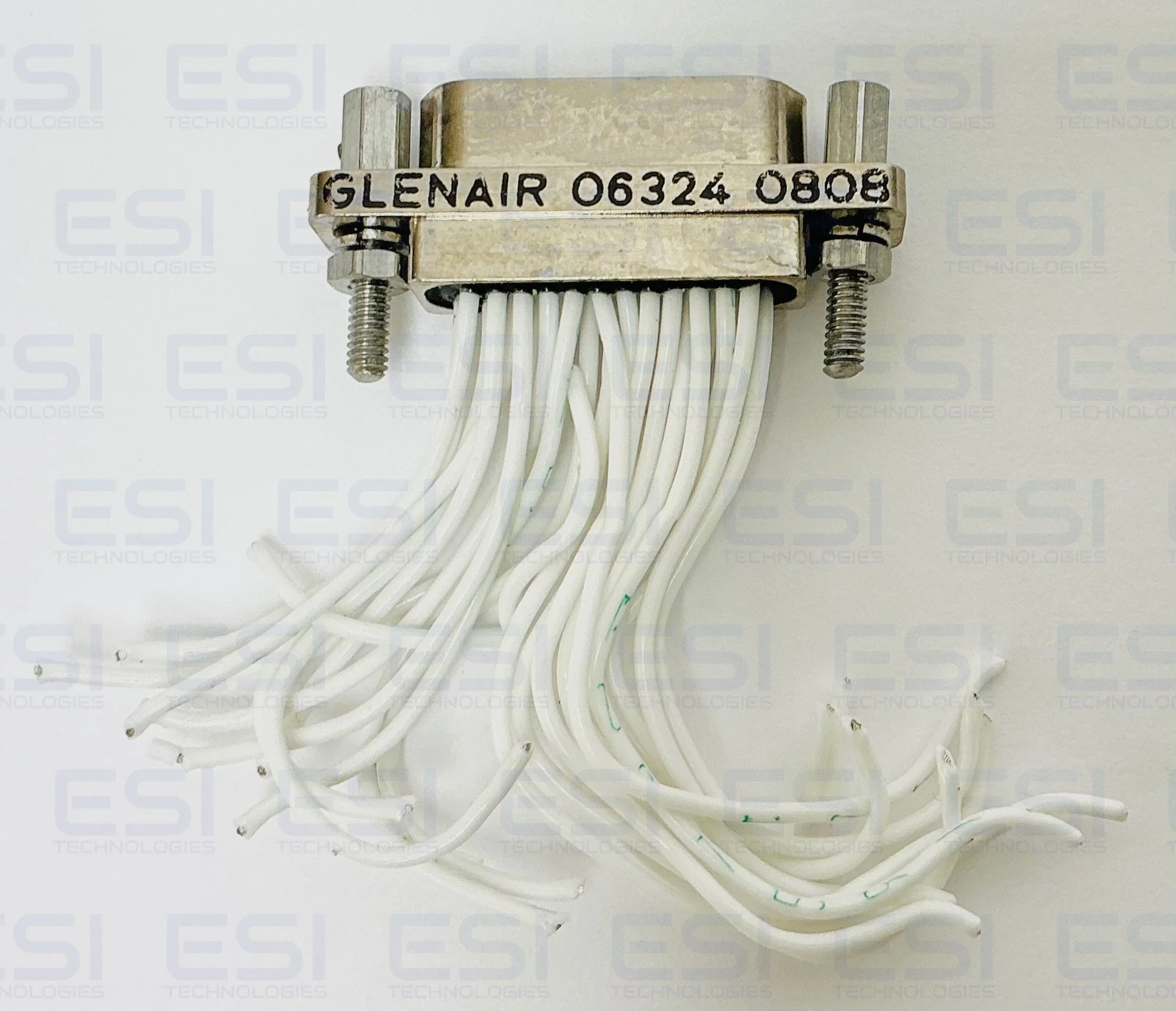

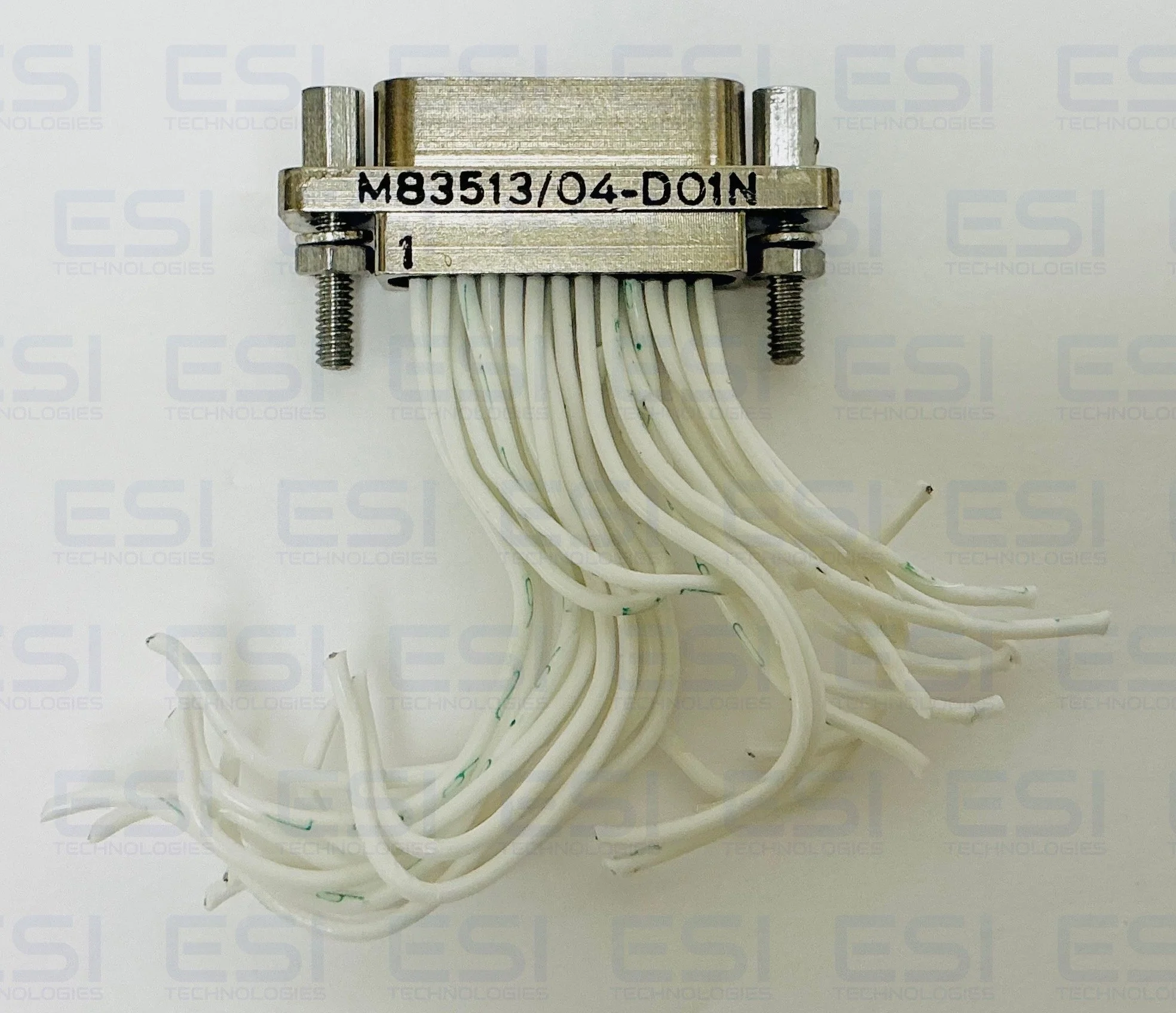

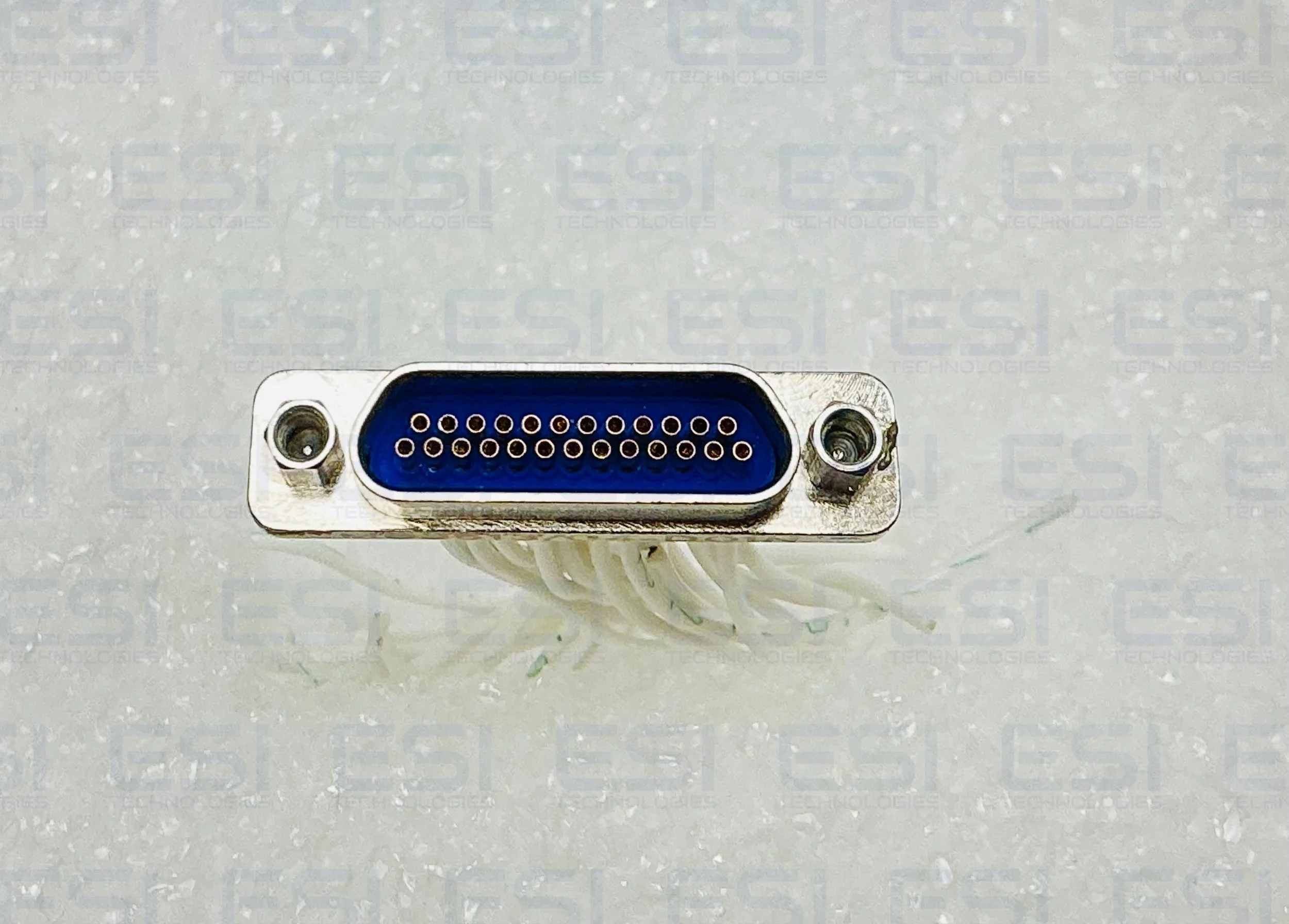

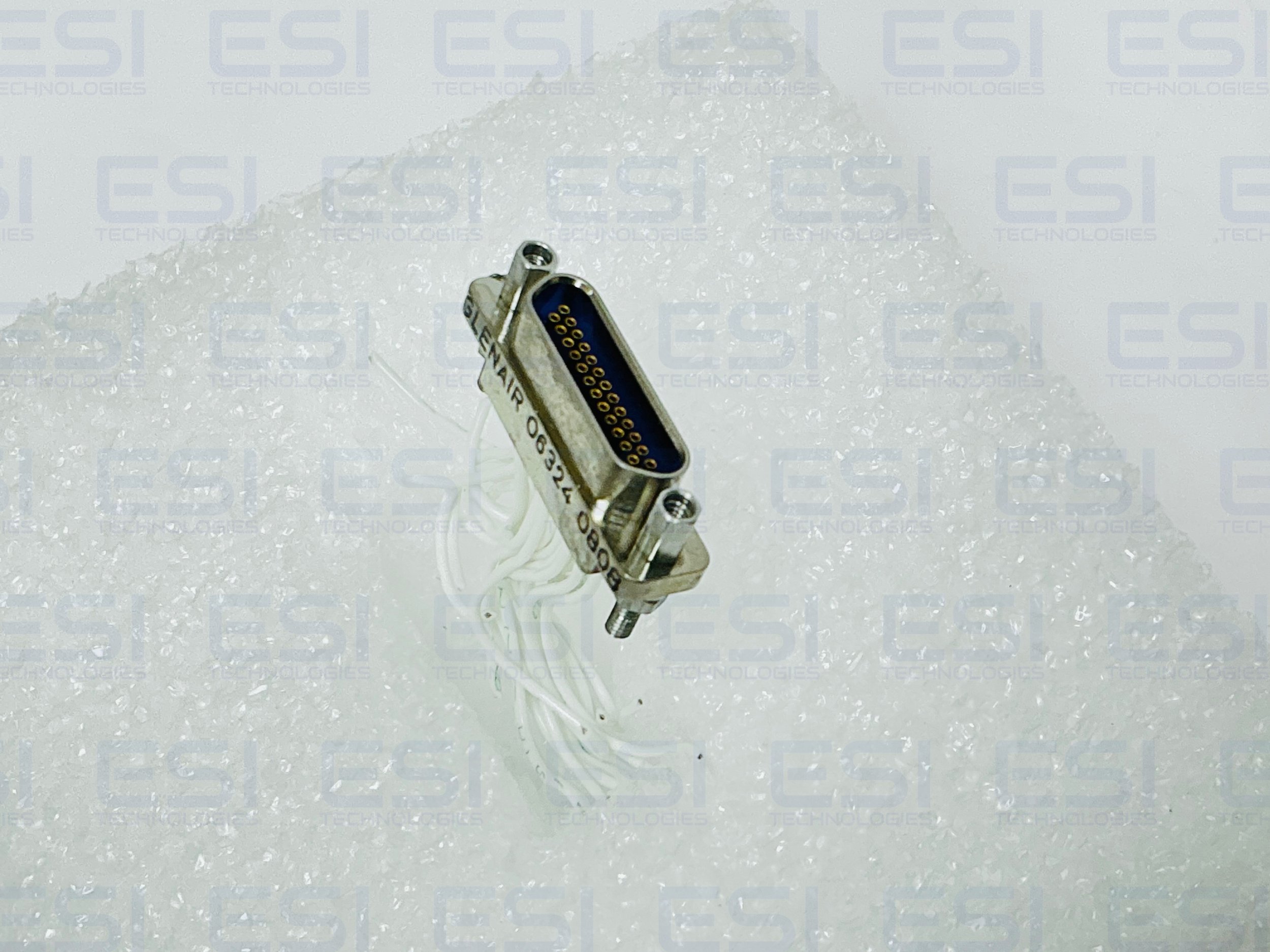

The M83513/04-D01N is a Military Standard (MIL-DTL 83513) Micro-D Receptable connector that Terminates to 25 female socket contacts with Pre-wired 18-inch PTFE Leads. It is designed for demanding environments requiring high reliability, such as aerospace, defense, and industrial applications.
Glenair QPL Micro-D MIL-DTL-83513 Connectors and Hardware offer outstanding mating performance, durability, and minimal contact resistance. Micro-D Connectors feature high-density micro TwistPin contacts set on 0.050 centers in arrangements from 9 to 130 contacts. They are available with insulated or uninsulated wire, PCB, solder cup, and flex terminations. Glenair Micro-D MIL-DTL-83513 Connectors provide an ideal solution to meet high-performance requirements, including high temperature and hermetic applications.
Alternative Part No. M83513/04-D01N, M83513/04 D01N, M8351304-D01N, M8351304 D01N, M8351304, M83513
