Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE5
In Stock: 1
Product Specifications
Connector Type: Receptacle (Female Sockets)
Connector Style: Micro-D MIL-DTL-83513 Metal Shell
Number of Positions: 15 contacts (2 rows)
Shell Size: B
Shell finish: Electroless Nickel
Termination/Wire: Wire Leads
Insulation Material: Glass filled, Polyester
Wire Type: 26 AWG, PTFE Insulated, M22759/11-26-9, Silver-Plated Copper Strands
Wire Color Coding: White
Contact Plating: Gold-plated copper alloy
Electrical Rating: 3A maximum current, 8 mΩ maximum contact
Operating Temp. Range: (°C)-55 to 125
Operating Temp. Range: (°F)-65 to 255
Current (A):3
Contact Finish: Gold
Contact Material: Copper alloy
Contact Insertion Force (gm): 170
Contact Insertion Force (oz): 6
Contact Withdrawal Force (gm): 14
Contact Withdrawal Force (oz): 0.5
Contact Resistance (mOhm): 8
Max Mating Cycles: 500
Withstanding Voltage: 600 VAC RMS @ sea level

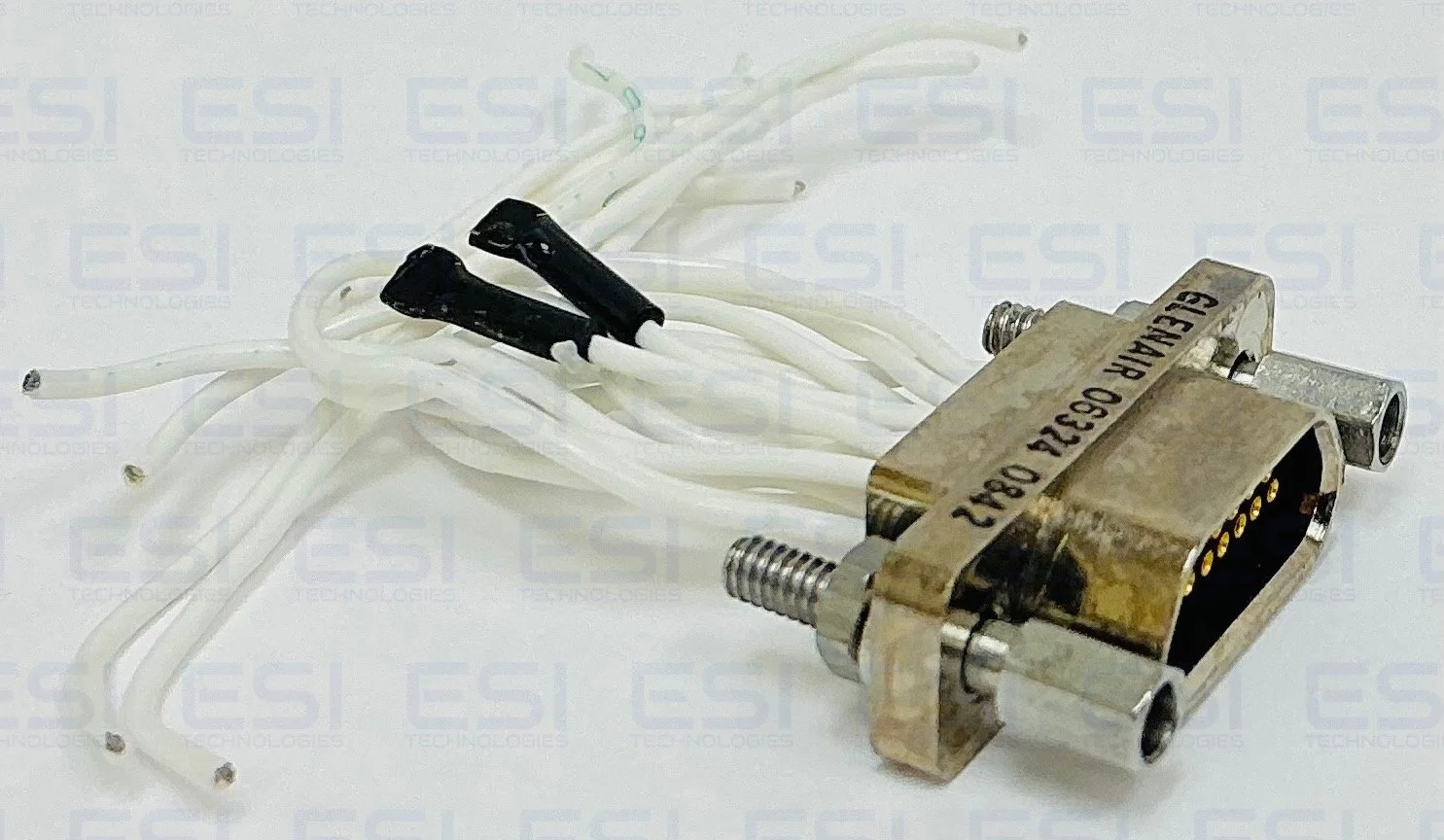

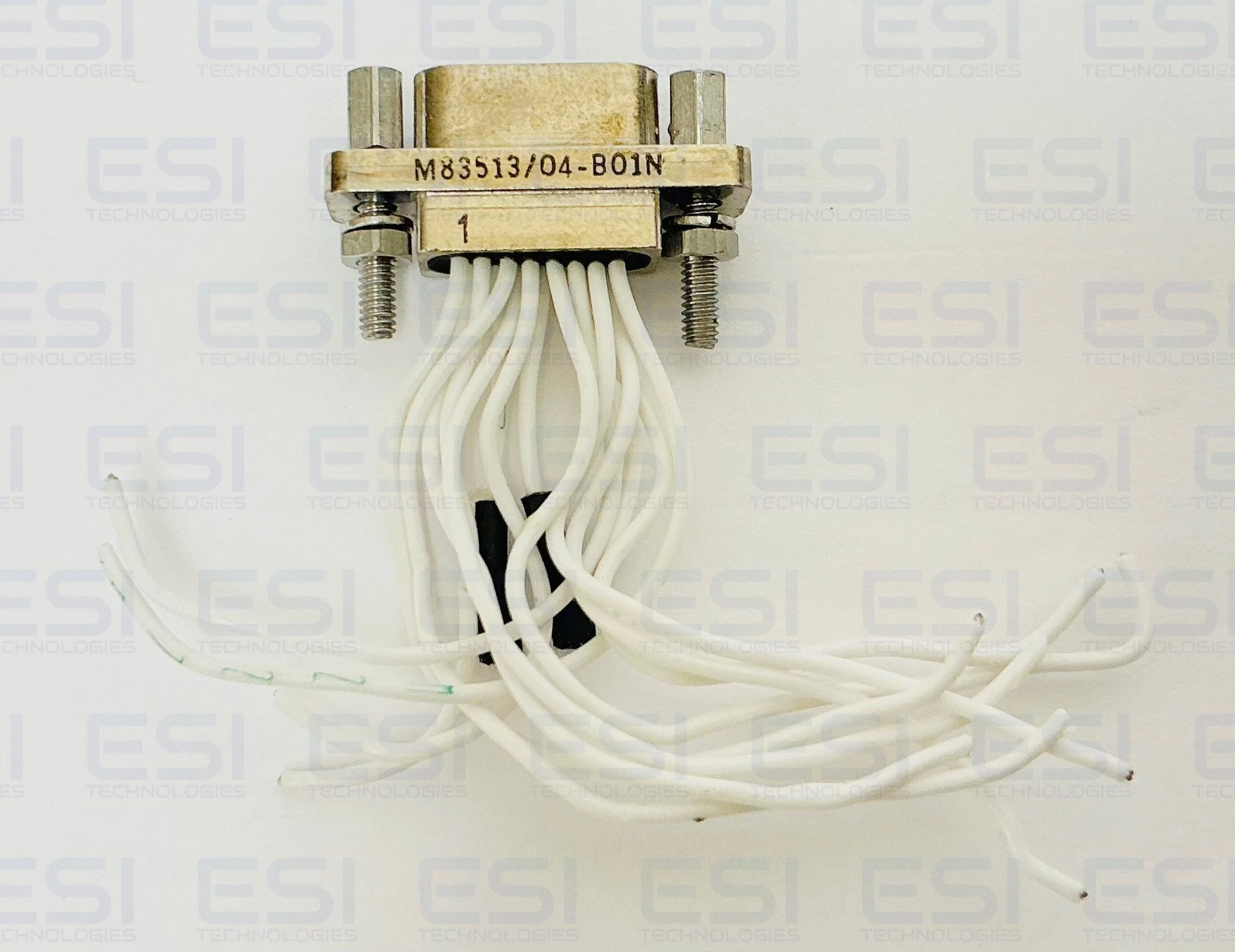

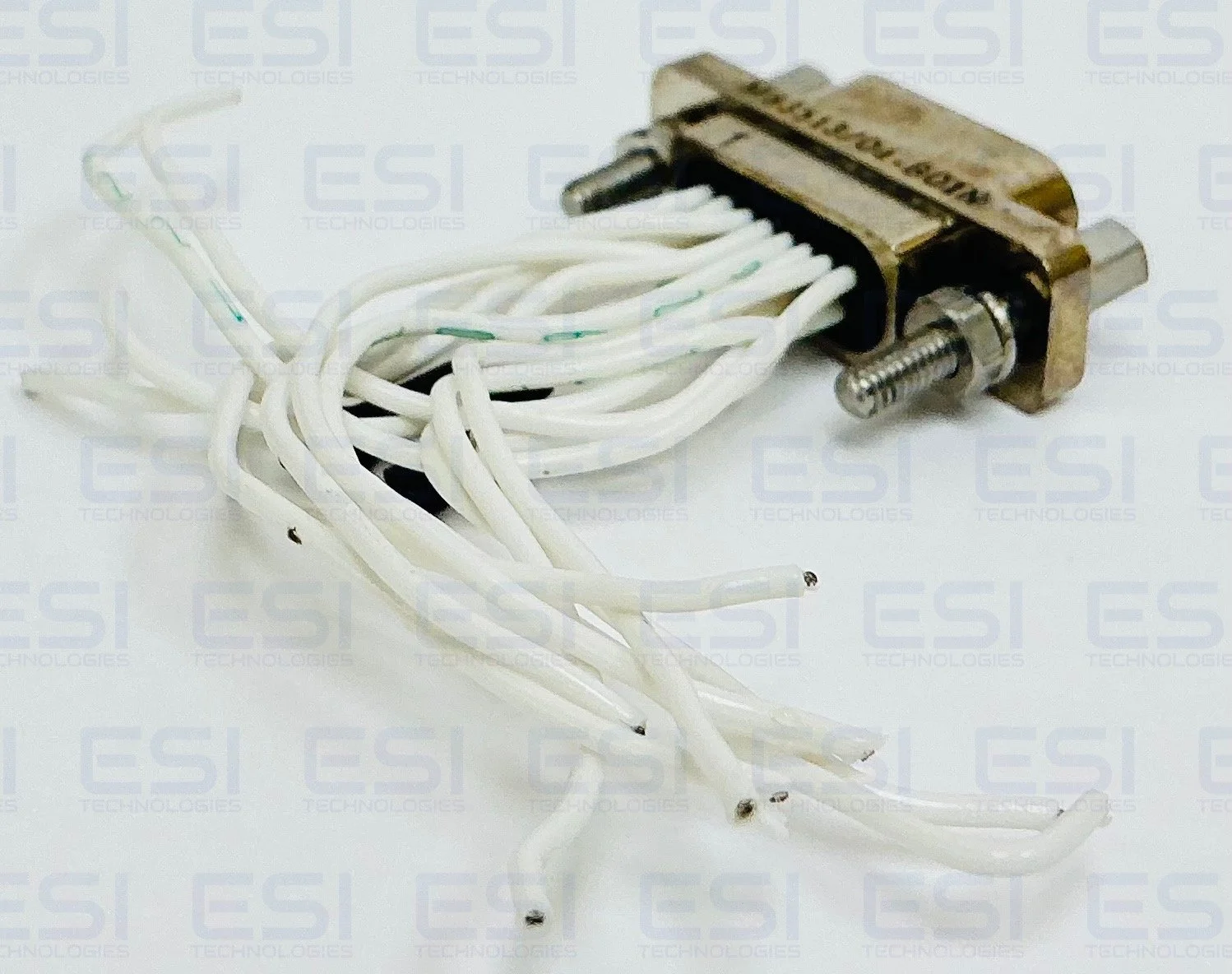

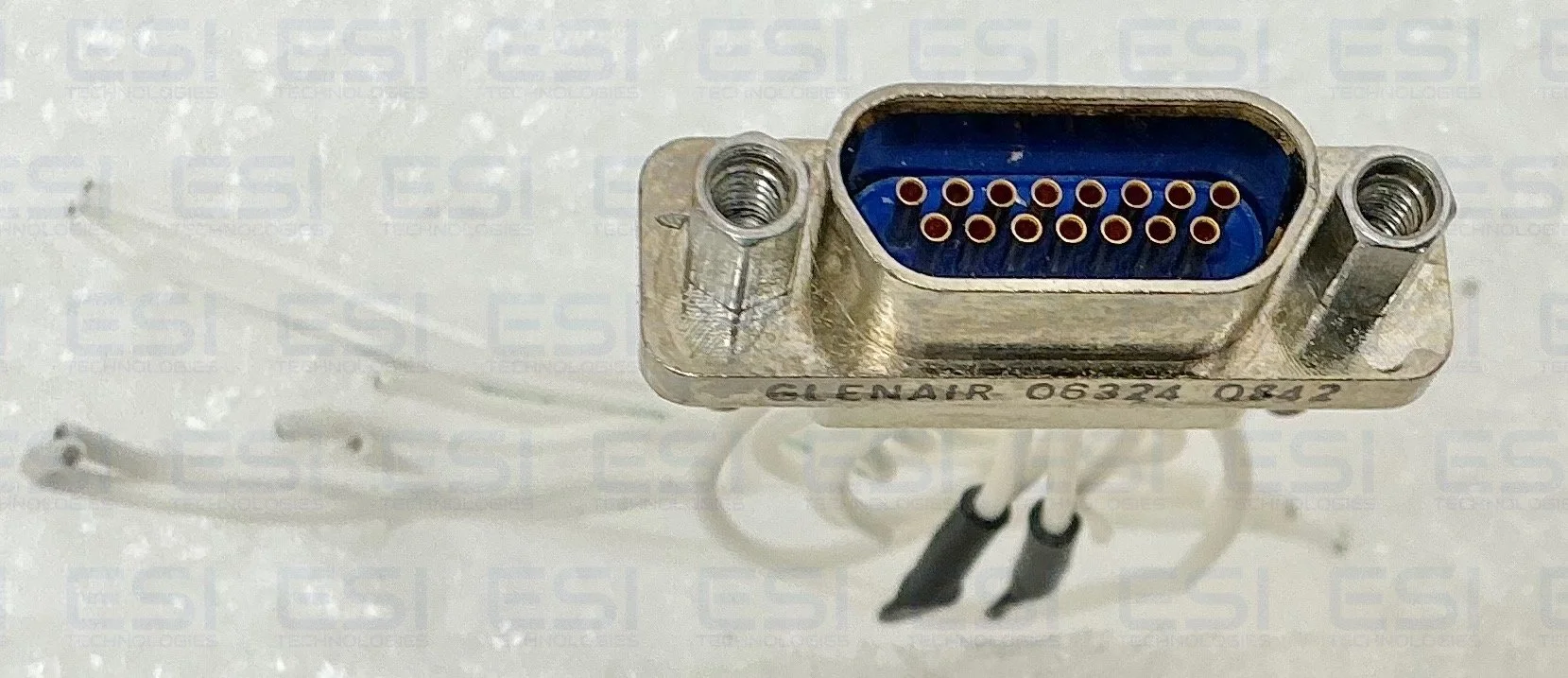

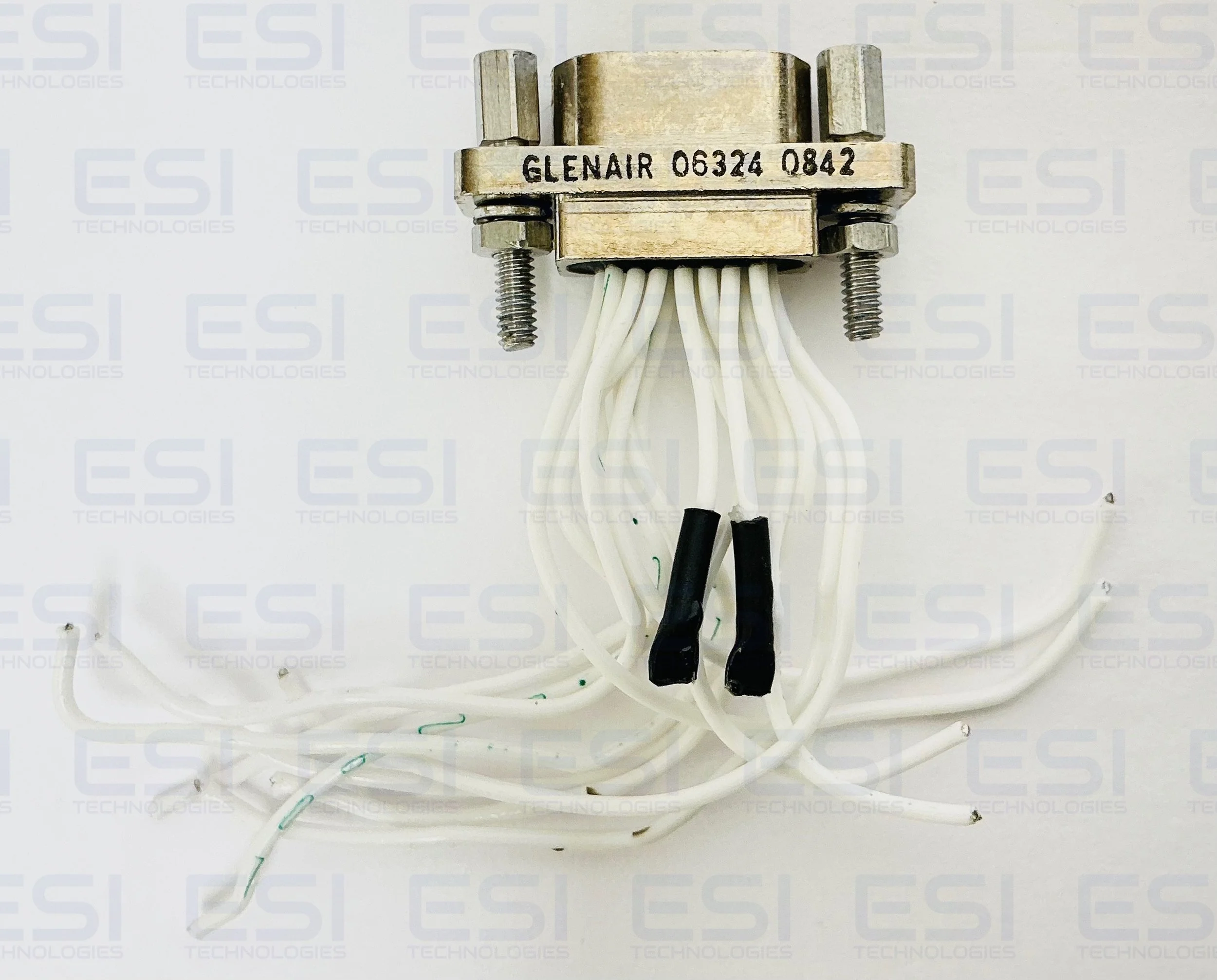

The M83513/04-B01N is a Military Standard (MIL-DTL 83513) Micro-D Receptable connector that Terminates to 25 female socket contacts with Pre-wired 18-inch PTFE Leads. It is designed for demanding environments requiring high reliability, such as aerospace, defense, and industrial applications.
Glenair QPL Micro-D MIL-DTL-83513 Connectors and Hardware offer outstanding mating performance, durability, and minimal contact resistance. Micro-D Connectors feature high-density micro TwistPin contacts set on 0.050 centers in arrangements from 9 to 130 contacts. They are available with insulated or uninsulated wire, PCB, solder cup, and flex terminations. Glenair Micro-D MIL-DTL-83513 Connectors provide an ideal solution to meet high-performance requirements, including high temperature and hermetic applications.
Alternative Part No. M83513/04-B01N, M83513/04 B01N, M8351304-B01N, M8351304 B01N, M8351304, M83513
