Condition: USED IN GOOD CONDITION
Location: SKUE38-2
In Stock: 1
Product Specifications
PowerPC 750FX processor running at 800MHz
cPSB Node (PICMG 2.16, Dual 1000BaseT)
Dual PMC expansion sites
System Management Bus (PICMG 2.9) w/ IPMI Peripheral Controller
Up to 1GByte DDR ECC SDRAM in SODIMM package
Up to 128MB linear Flash
Real-Time Clock with supercap backup
10/100BaseT Ethernet with front access
64K Serial EEPROM for nonvolatile storage
VxWorks™ BSP
TimeSys™ real-time Linux SDK
RoHS/WEEE compliant configuration available
Quality assured by over 30 years of design experience and a TL-9000 and ISO 9001:2000 certified quality management
system. (FM 26789)

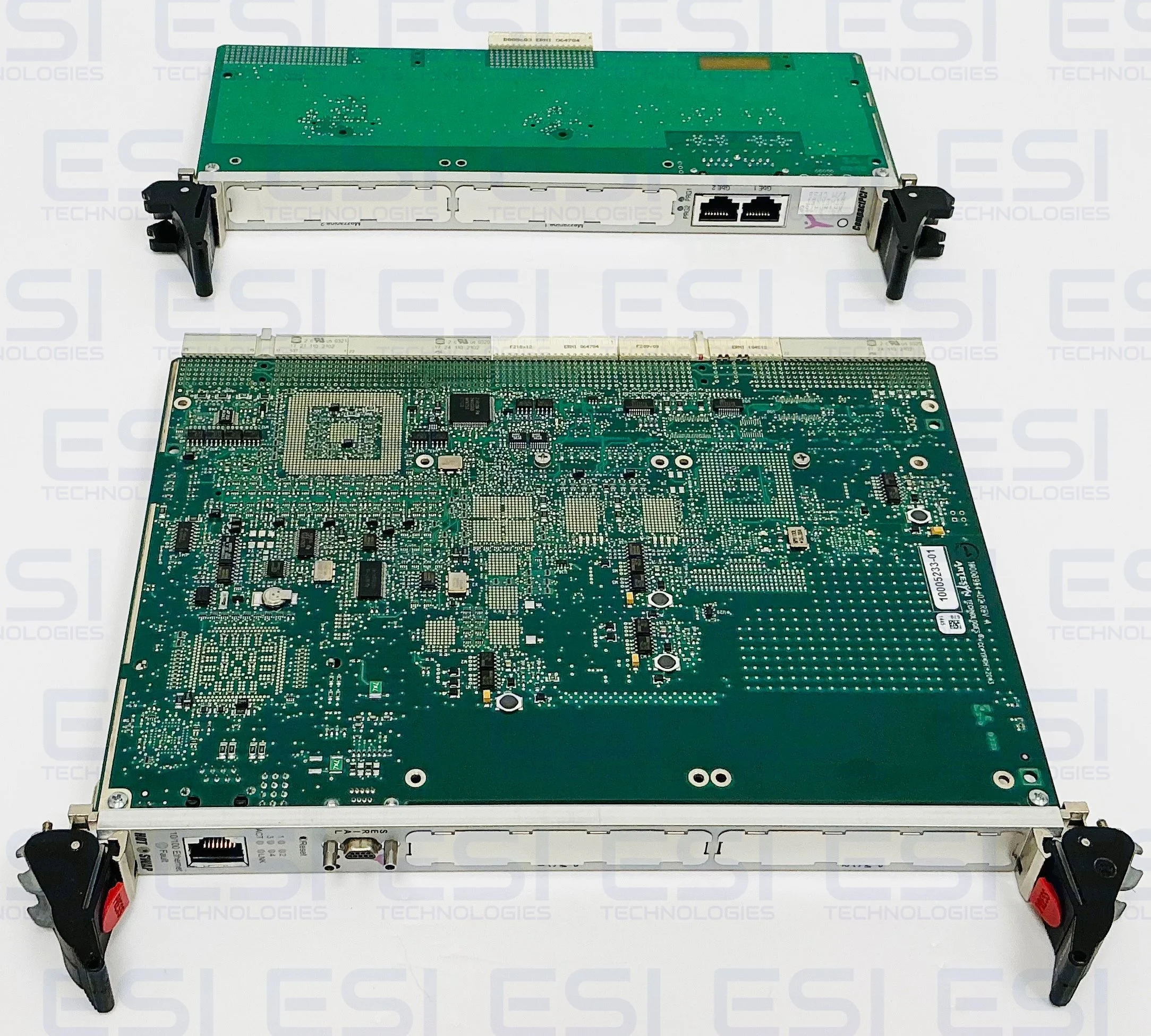

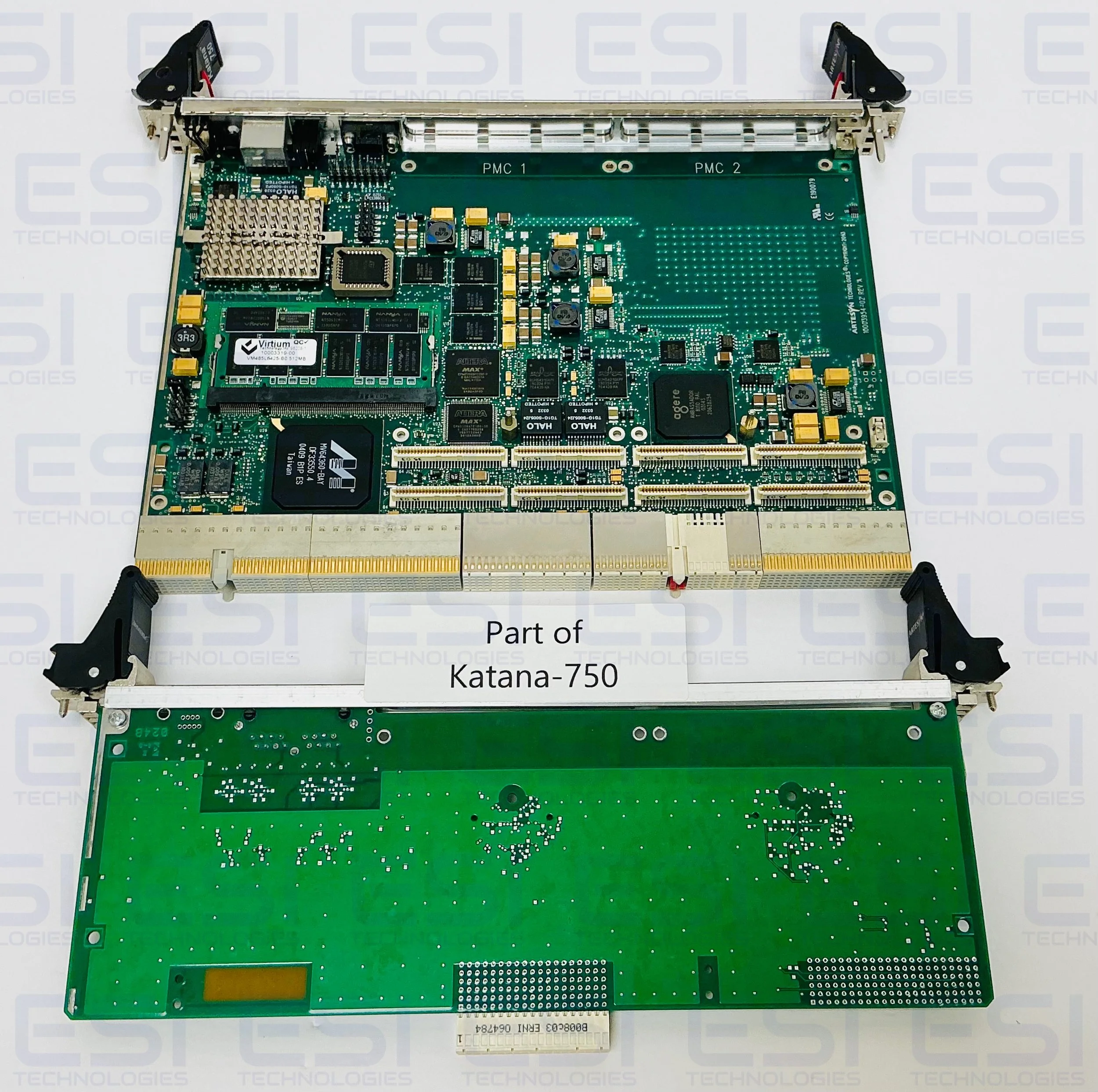

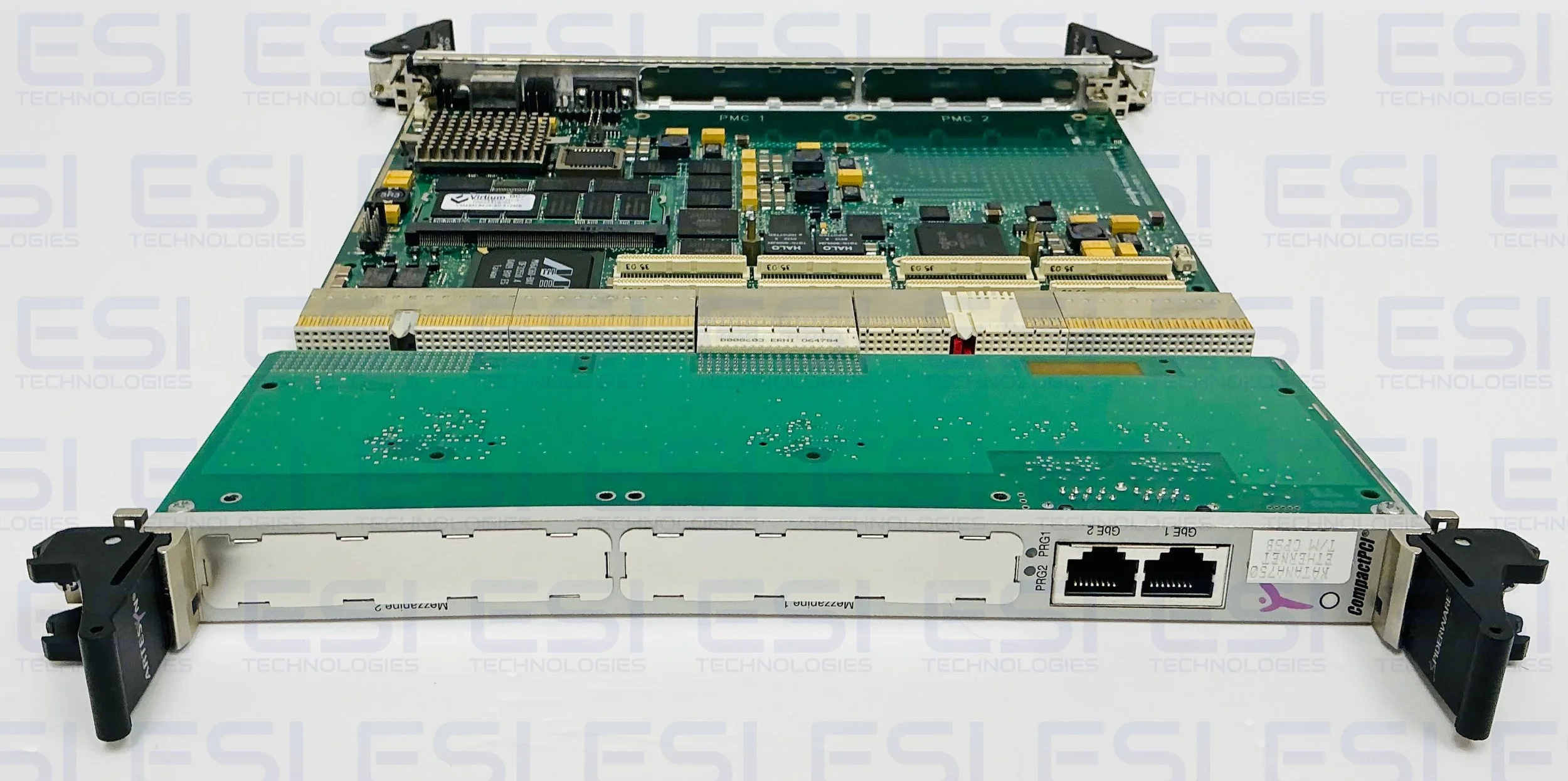

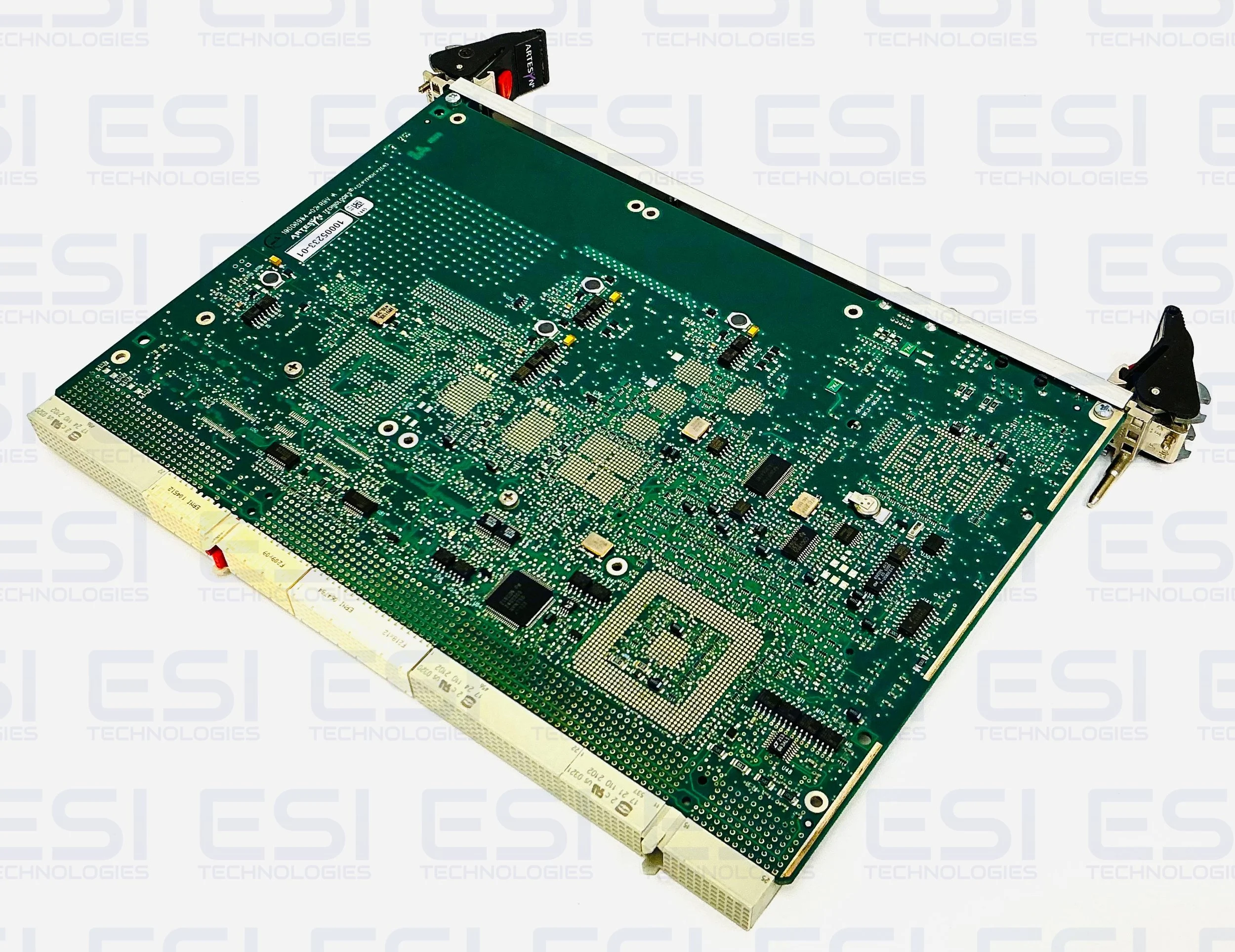

Emerson’s Katana750i is real-time processing blade in a standard single-slot CompactPCI Packet Switched Backplane (cPSB) formfactor. It’s powered by a PowerPC 750FX processor and a full complement of I/O for communications applications. The combination of this powerful on-card functionality with the flexibility of dual PMC sites makes the board ideal for a variety of functions including signaling blade, real-time control blade, traffic processor, or line card. Communications applications are rapidly converging on packet-based switch fabric system architectures. Katana750i’s design is ideally suited to the packet paradigm. To support this paradigm, the blade is fully compliant with the PICMG 2.16 cPSB specification. While technology is rapidly converging on packet networks for the majority of data transport, many applications require systems to link more traditional TDM-based networks to the packet networks. To help facilitate this, the Katana750i supports an optional timeslot interchanger to interconnect the PTMC expansion sites with a local CTbus as well as provide an interface to the H.110 system backplane CTbus. As systems designs become more complex, system management becomes more important. Katana750i implements a System Management Bus (SMB). It also fully supports the Intelligent Platform Management Interface (IPMI or PICMG 2.9) for standards-based system management. Using an off-the-shelf processor blade saves you time-to-market by allowing you to focus your engineering efforts on the key value-add portions of the system without spending time and effort on the processor design and testing. A processor subsystem blade also lowers your lifetime cost of ownership by providing an easy upgrade path, and protecting you from obsolescence issues.

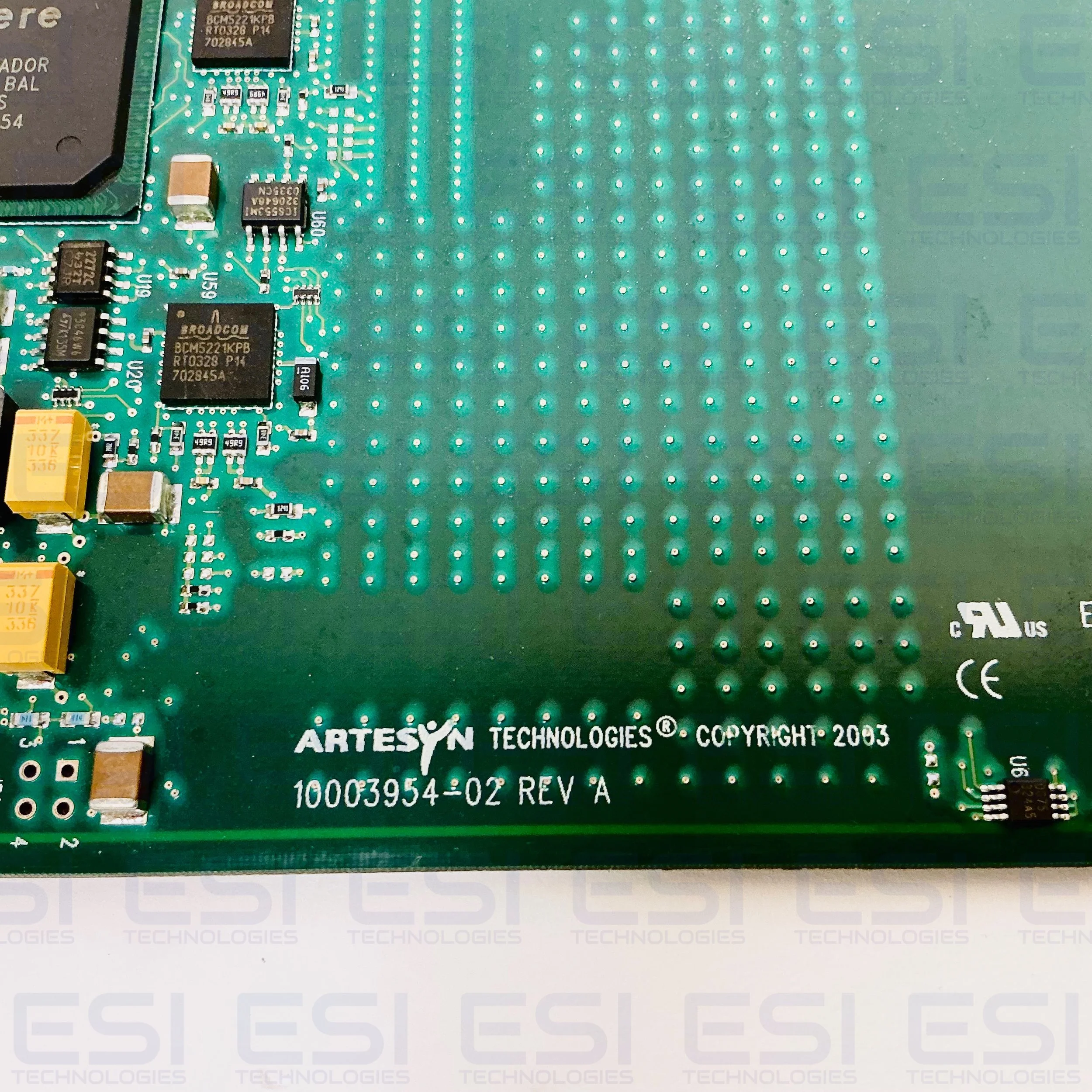

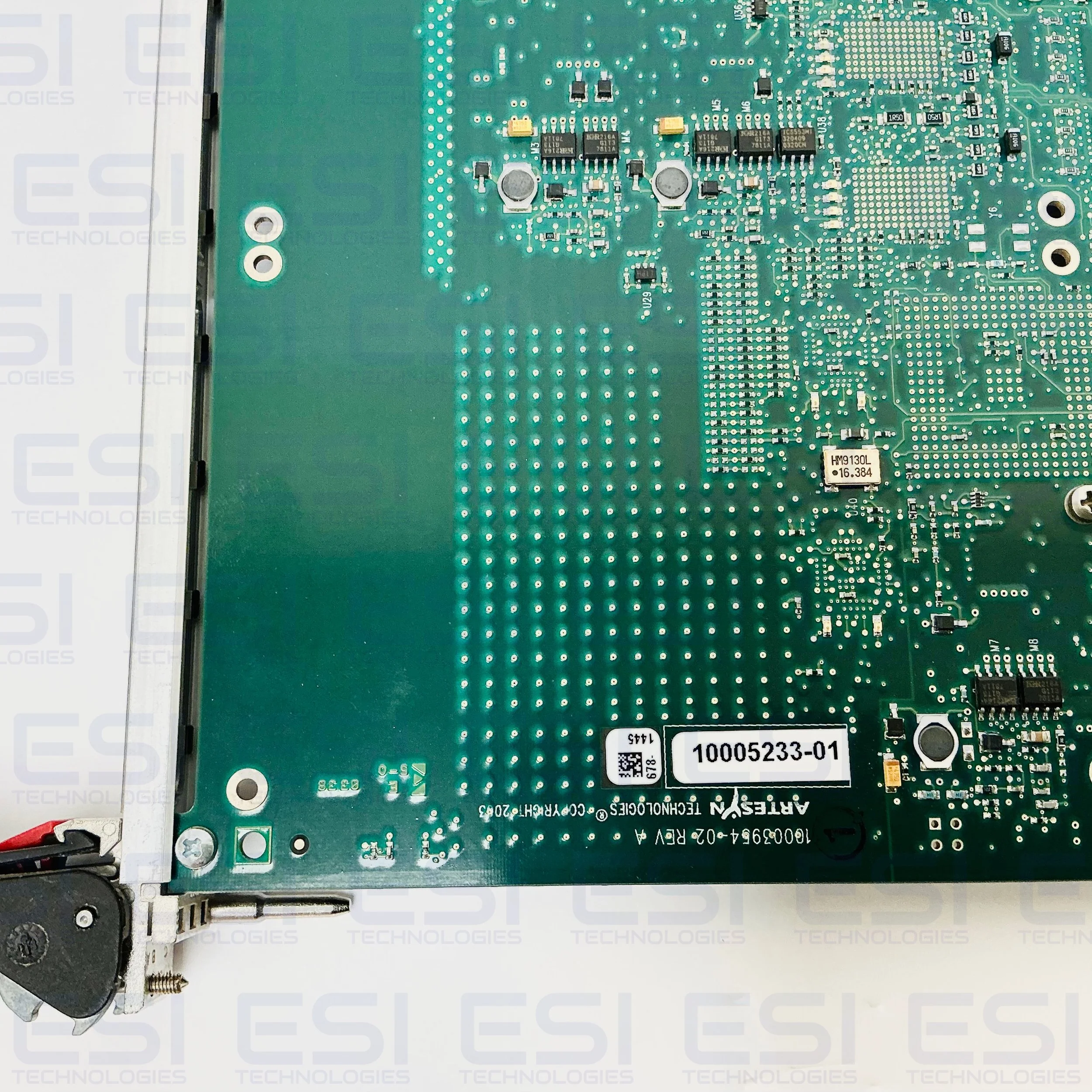

Alternative Part No. Katana-750, Katana750i, Katana 750, Katana 750i, 10003954-02, 10005233-01
