Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE38-1
In Stock: 1
Product Specifications
Quad-core for communications infrastructure applications
Field replaceable
Four MB of L2 cache
High-speed AdvancedTCA switched fabric
Mid-size AdvancedMC expansion bay
Redundant IPMI system management
Optional 2.5 inch SAS hard drive
Easy to configure for a broad range of wireless and wireline infrastructure applications requiring high-speed control, packet and database processing, including radio network controllers, media gateways, home location registers, packet traffic processors, and softswitches.
Two Processors, utilize and Intel 5000P Memory Controller Hub and share access to 16 GB RAM
Carrier-grade features including 16 MB of persistent SRAM for event logging, and redundant 2MB firmware banks, which protect existing firmware in the event of an unsuccessful upgrade
Separate AdvancedTCA control/management and data planes
High-performance AdvancedTCA fabric interface, which makes it suitable for converged packet-based telecom infrastructure applications required high data throughput
An Intel 6321ESB I/O Controller provided two Gigabyte Ethernet channels to the AdvancedTCA based fabric
Two dual-core Intel Xeon LV5138 (Woodcrest) processors at 2.13 GHz with 4 MB L2 cache
Memory: Up to 16 GB DDR2/RAM shared via Intel 5000P Memory Controller Hub.
Storage & Expansion: Mid-size AdvancedMC (AMC.0) expansion bay and optional 2.5-inch SAS hard drive slot.
Reliability: 16 MB persistent SRAM for logging and redundant 2 MB firmware banks for safe upgrades.

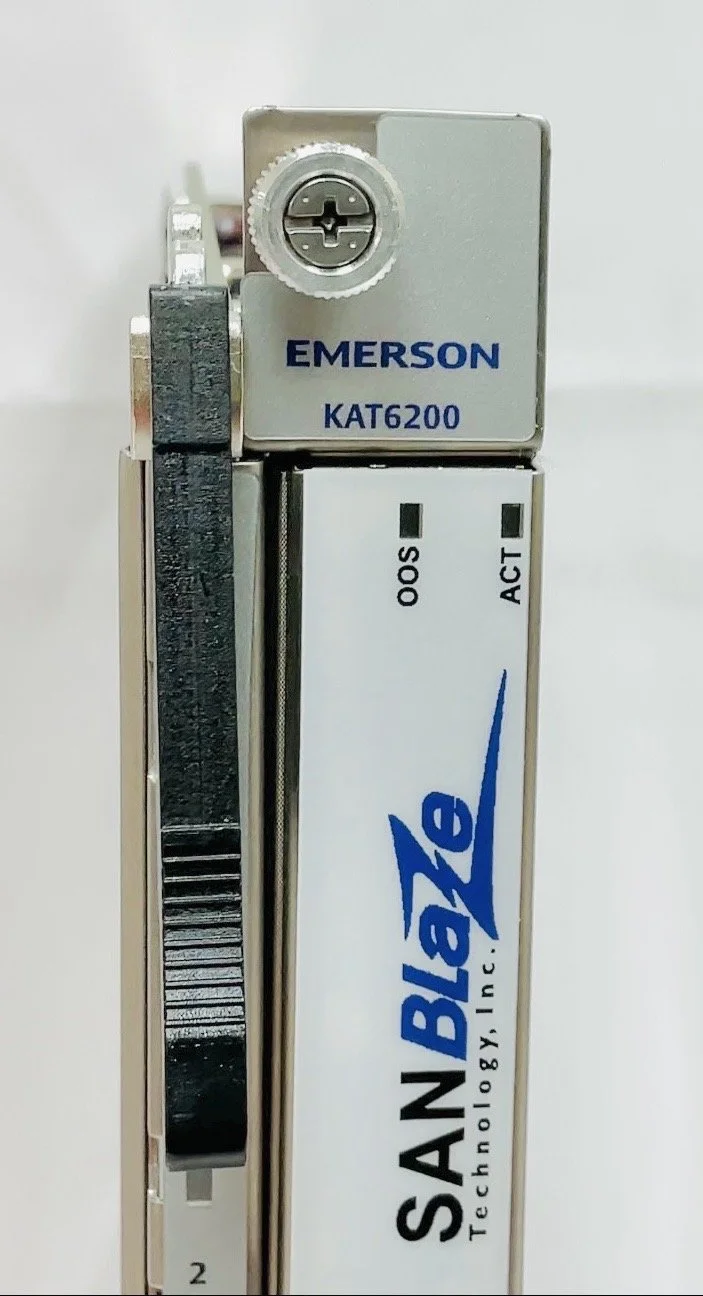

The KAT6200 quad-core AdvancedTCA® blade from Emerson Network Power (Madison, WI) is a field replaceable ATCA server blade featuring a pair of dualcore, Intel Xeon processors, a high-speed ATCA switched fabric, a mid-size AdvancedMC expansion bay, redundant IPMI system management, and an optional 2.5-inch SAS hard drive.
The KAT6200 features a pair of server-class Woodcrest Xeon LV5138 dual-core processors, each running at 2.13 GHz and equipped with four Mbytes of L2 cache. The two processors, utilizing an Intel 5000P Memory Controller Hub, share access to 16 Gbytes of RAM. The KAT6200 also provides carrier-grade features including 16 Mbytes of persistent SRAM for event logging, and redundant two-Mbyte firmware banks, which protect existing firmware in the event of an unsuccessful upgrade.

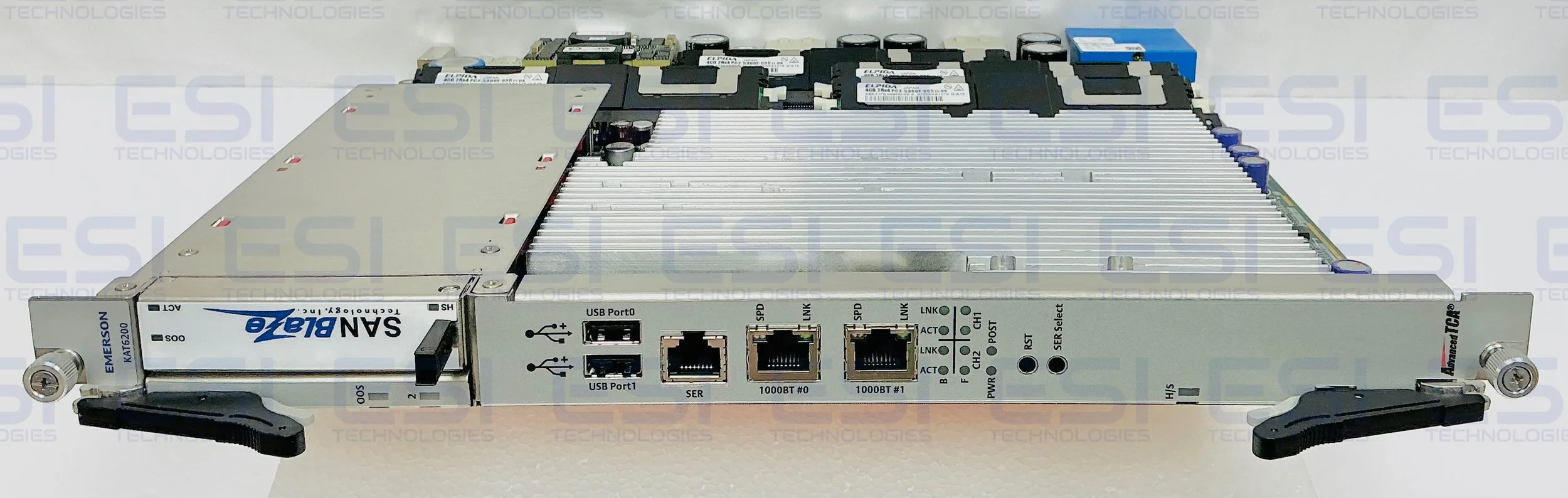

To maximize system throughput, the KAT6200 provides separate ATCA control/ management and data planes, and a high-performance ATCA fabric interface. An Intel 6321ESB I/O Controller provides two Gigabit Ethernet channels to the ATCA base fabric. The memory controller hub provides two Gigabit Ethernet channels to the ATCA high-speed fabric. The blade's onboard AdvancedMC expansion bay can support a single mid-size, hot-swappable AdvancedMC card, or an onboard 2.5-inch SAS hard drive.
Product Manual
Product Images
