Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE34
In Stock: 1
Product Specifications
Channels: 8 independent asynchronous RS-232 serial channels.
Speed: Supports baud rates up to 115 kbaud.
Signal Support: Each channel supports RxD, TxD, RTS, CTS, and GND signals.
Buffering: Features 64-byte transmit and 64-byte receive FIFOs per channel to minimize host processor overhead.
Temperature: The "-ET" designation indicates extended temperature range operation.
Auto-configuration: Includes an onboard Identification-PROM for seamless host identification and autoconfiguration

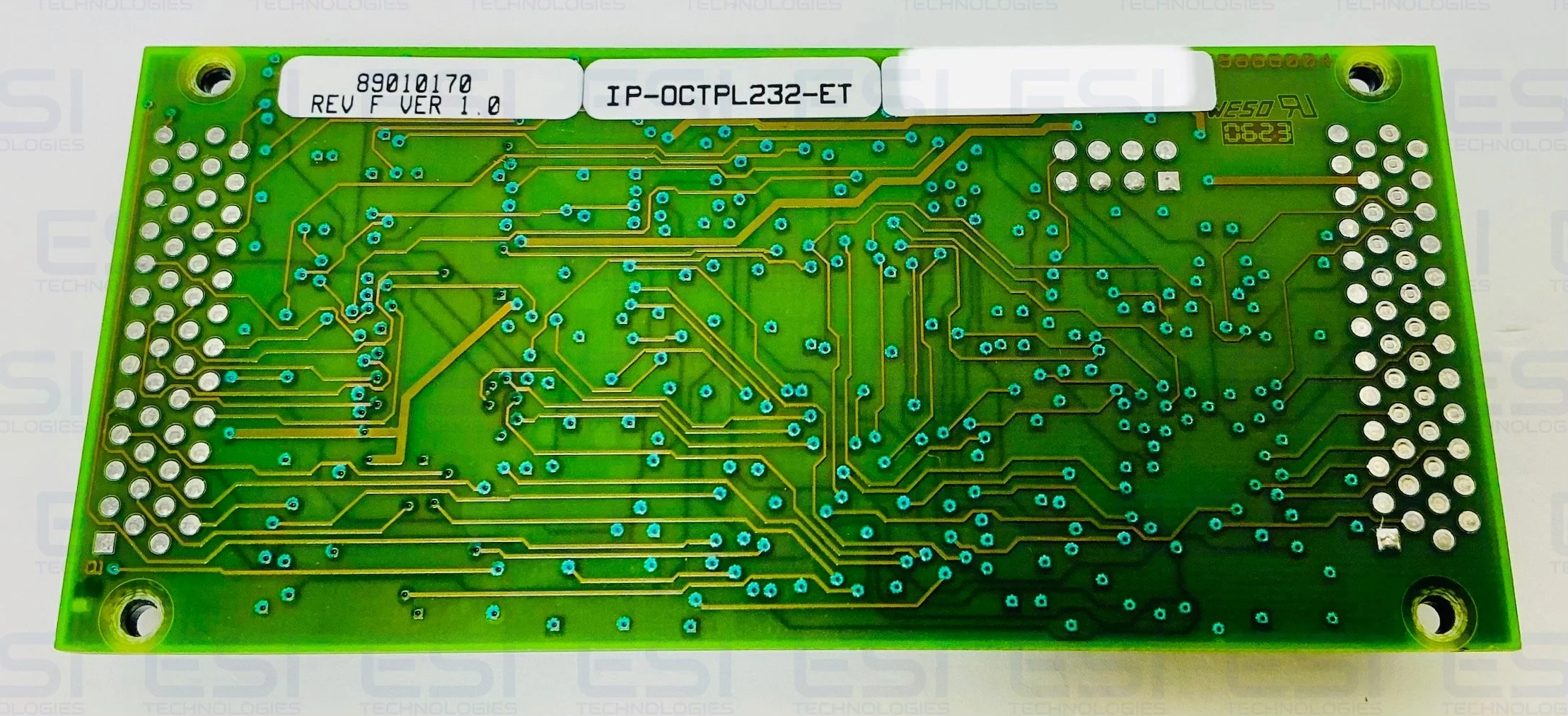

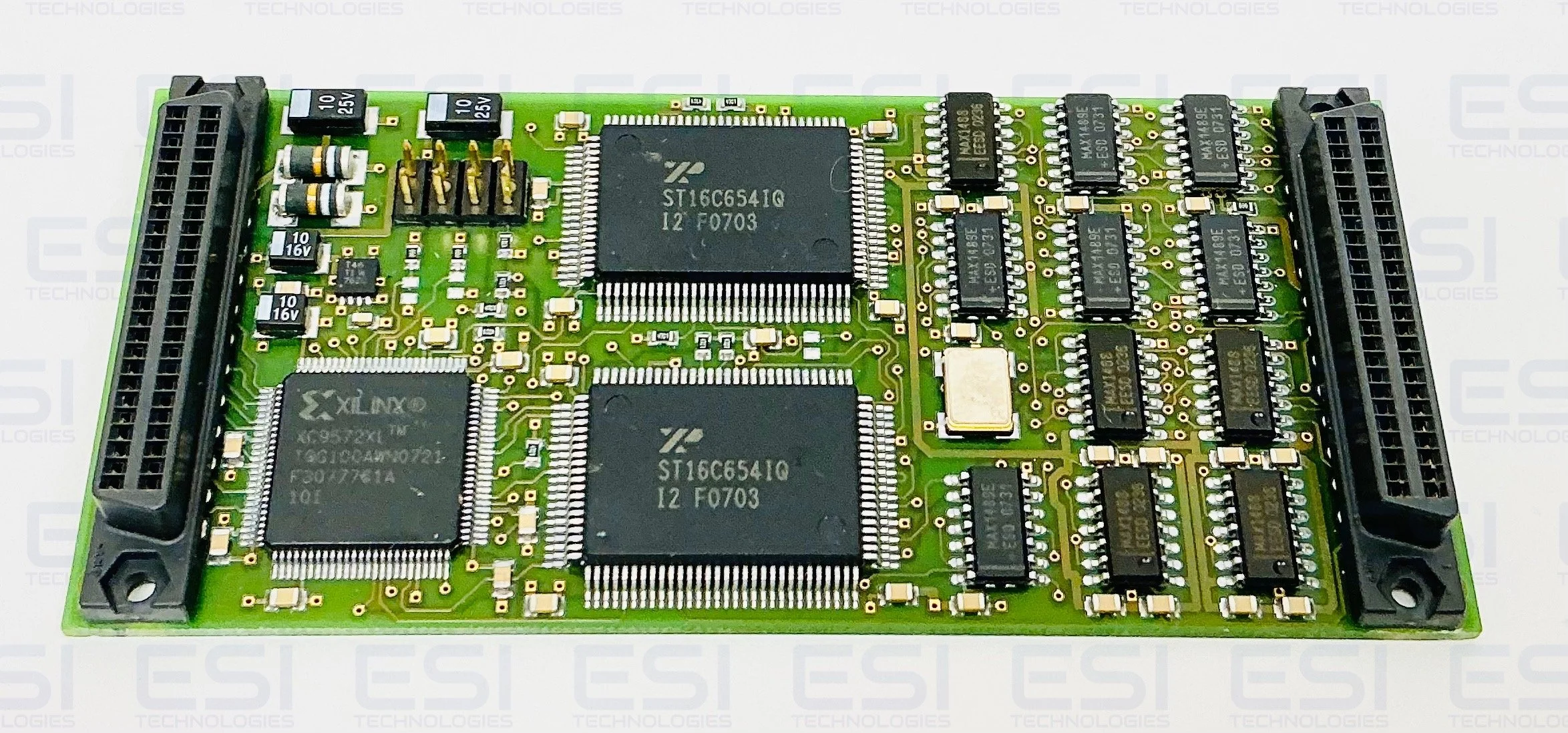

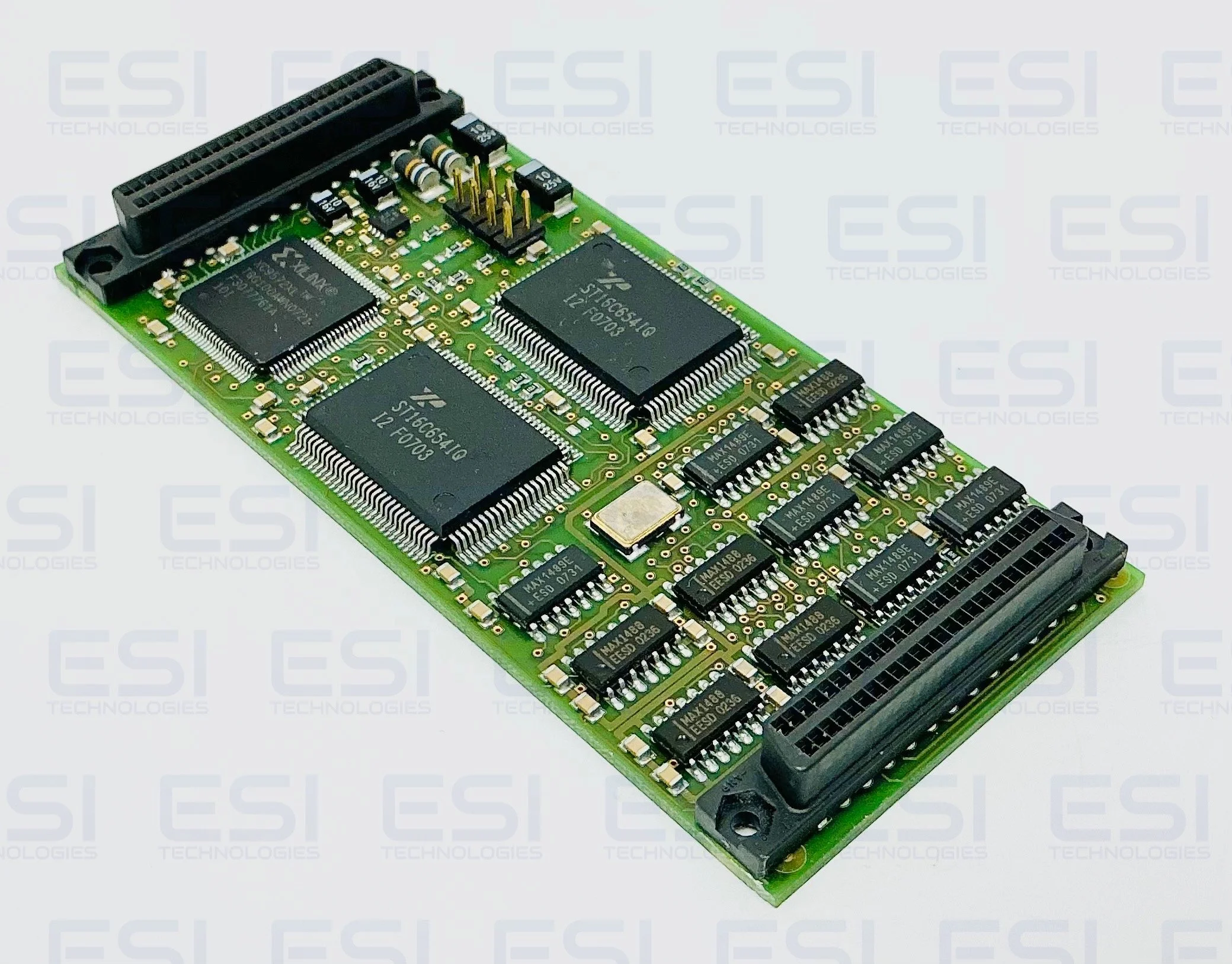

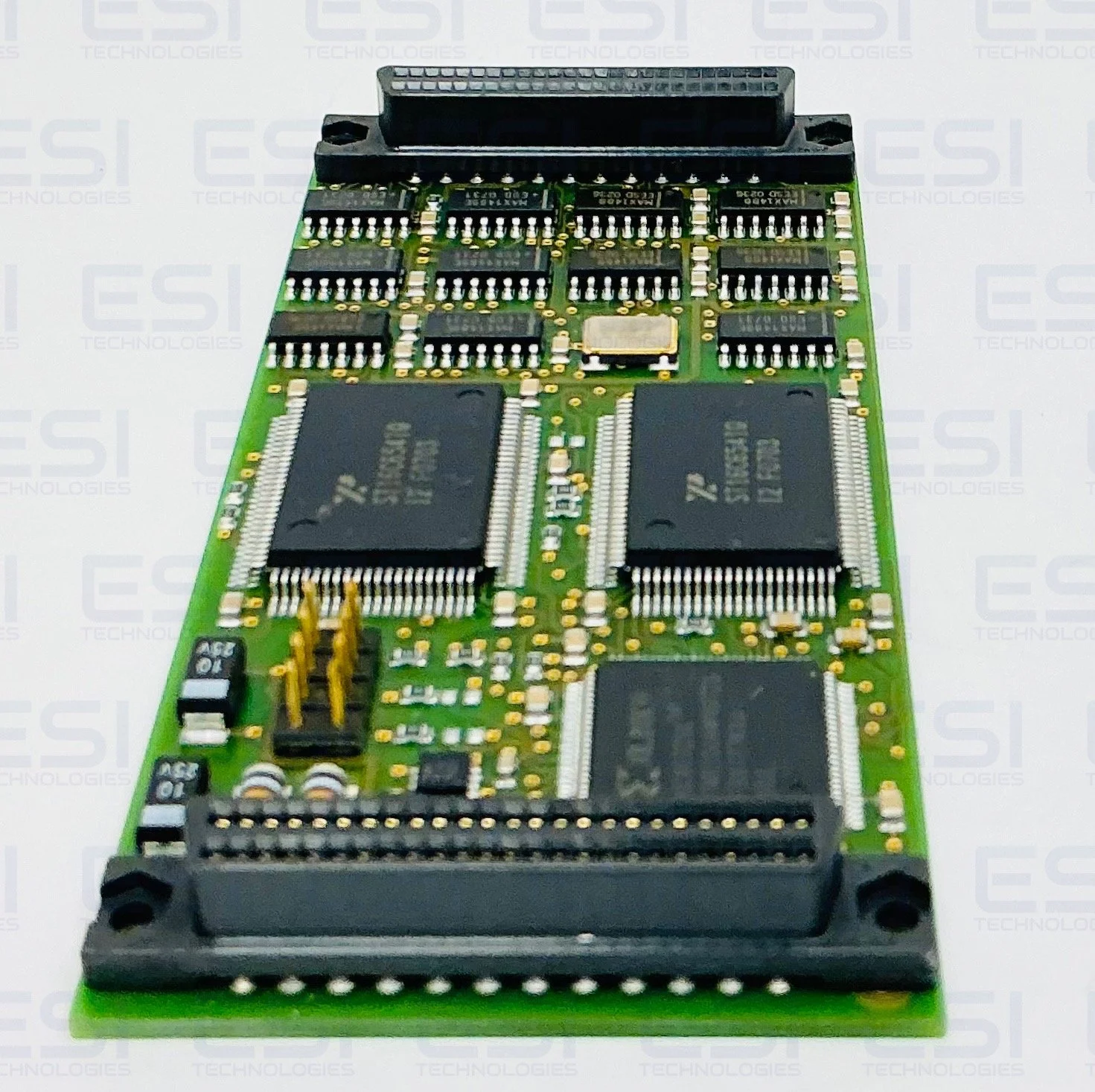

The sBS technologies’ IP-OCTAL-232 IndustryPack implements eight EIA-232 asynchronous serial ports, each with RXD, TXD, RTS, and CTS signals. In addition, eight general-purpose input lines are provided with TTL switching levels. Eight general-purpose inputs Eight EIA-232 ports on a single-wide IndustryPack Support for RXD, TXD, RTS, CTS and GND on each channel Three-level FIFOs on all receivers.
Each channel has a 64 byte transmit FIFO and a 64 byte receive FIFO to significantly reduce the overhead required to provide data to and get data from the transmitters and receivers. The FIFO trigger levels are programmable. The IP-OCTALPLUS232/TTL and IP-OCTPL232/TTL-ET support RxD, TxD, RTS, CTS and GND for each of the eight RS232 / TTL channels. The IP-OCTALPLUS422 and IP-OCTPL422-ET support RxD+/-, TxD+/- and GND for each of the eight RS422 channels. The baud rate is individually programmable for up to 115.2 kbaud for the 232 interface cards and up to 460.8 kbaud for the TTL and 422 interface cards. The 232 and 422 interface cards provide ESD protected transceivers (up to +/-15KV according to IEC 1000-4-2).
Alternative Part No. IP-OCTALPLUS232, IP-OCTALPLUS422, IP-OCTALPLUSTTL, IP OCTPL232-ET, IP OCTPL232 ET, IP-OCTPL422-ET, IP-OCTPLTTL-ET
