Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUP2
In Stock: 1
Product Specifications
Voltage Input: 100 - 264 VAC
Maximum Amps: 1, 0.8
Nominal Voltage Out: 5, ±12, ±15
Case Dimensions: 6.50 x 4.00 x 2.10 in (165.10 x 101.60 x 53.34 mm)
Overvoltage Protection, set at 6.2 V ±0.4 V
Remote Sense Provided
100/120/220/230/240 VAC
±0.05% Output Regulation
Low Output Ripple
UL, CSA, and TÜV Approvals
Mean Time Before Failure (MTBF) in Excess of
0,000 Hours
CE marked to Low Voltage Directive
100% Burn-In
Input Voltage: Universal AC input ranging from 100V to 264V (47-63 Hz).

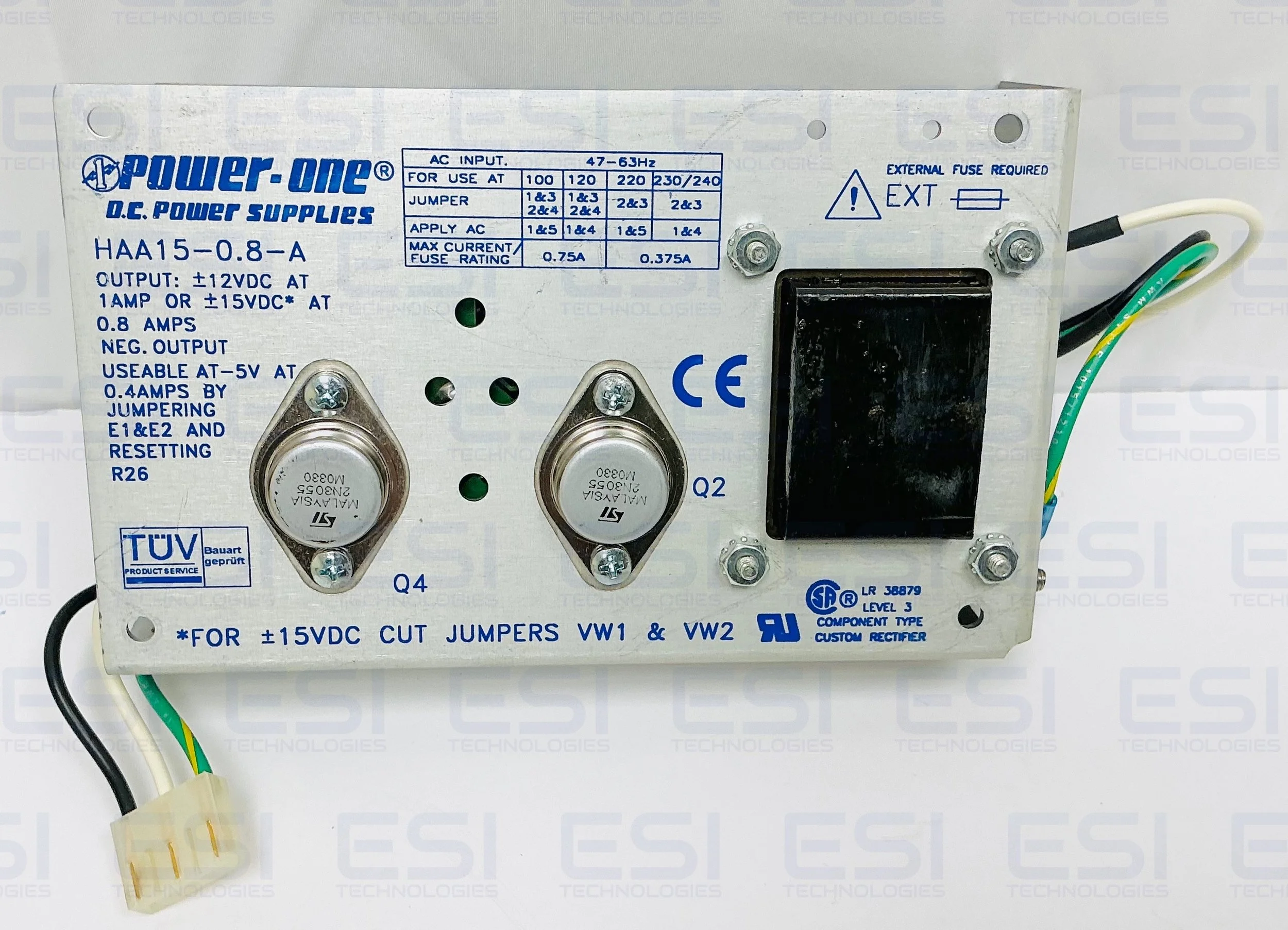

Output Voltage: Dual, adjustable outputs. Using jumpers, it can be configured to provide +15V / -15V at 0.8A or +12V / -12V at 1A.
Output Power: 12W to 24W depending on the voltage/current configuration.
Design: Open-frame chassis mount designed for convection cooling.
Regulation: Features extremely low line and load regulation (± 0.05%) for high output stability.

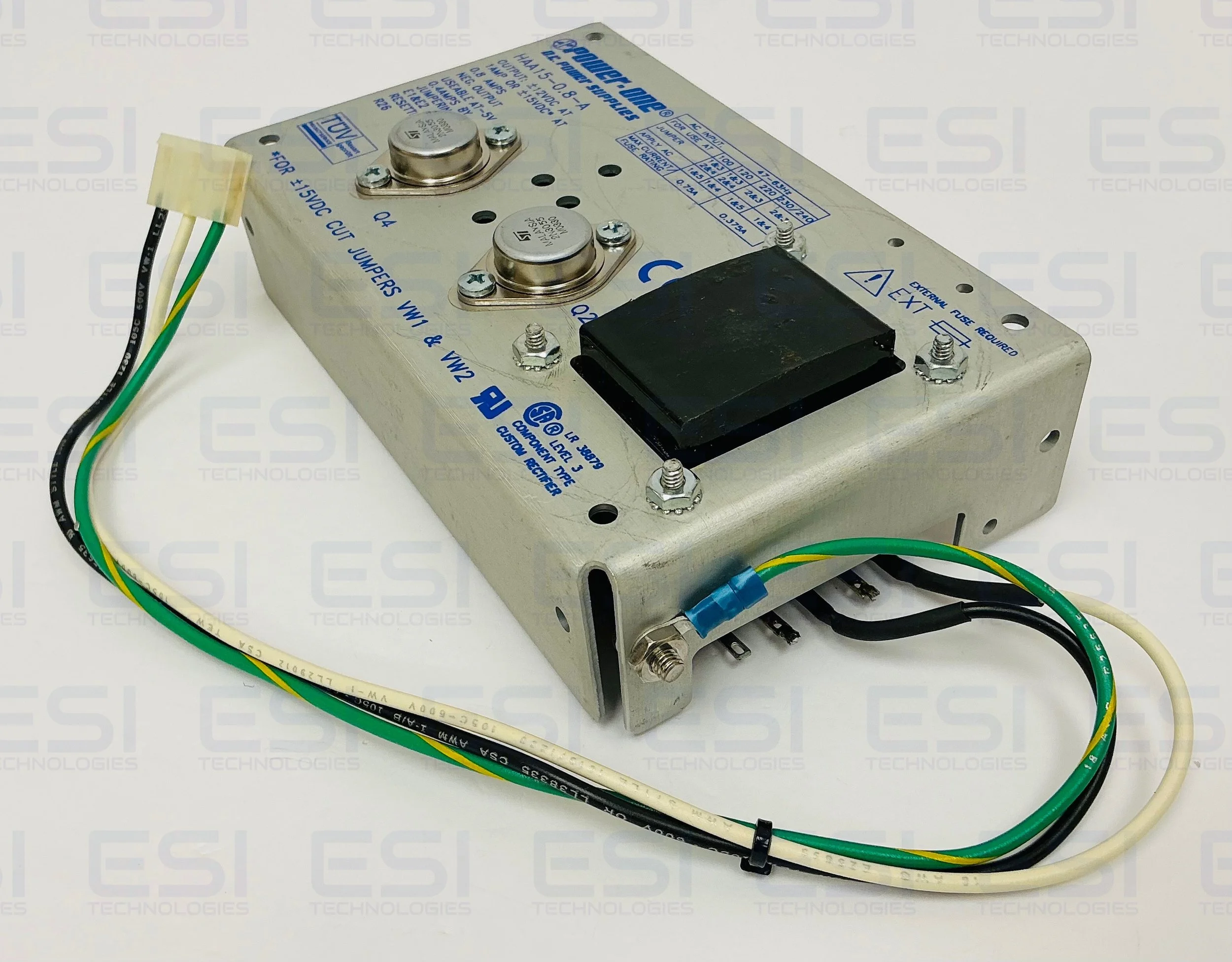

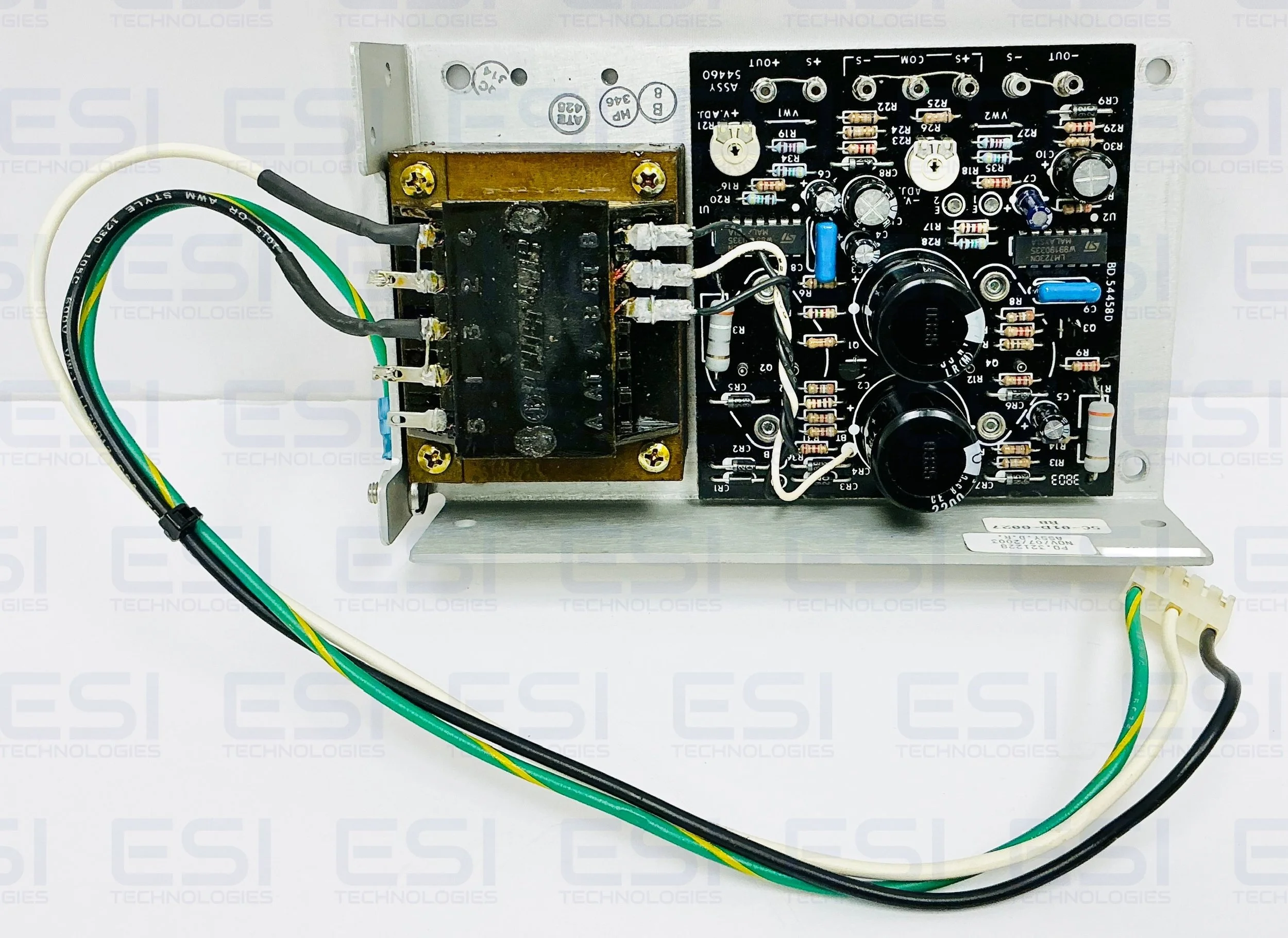

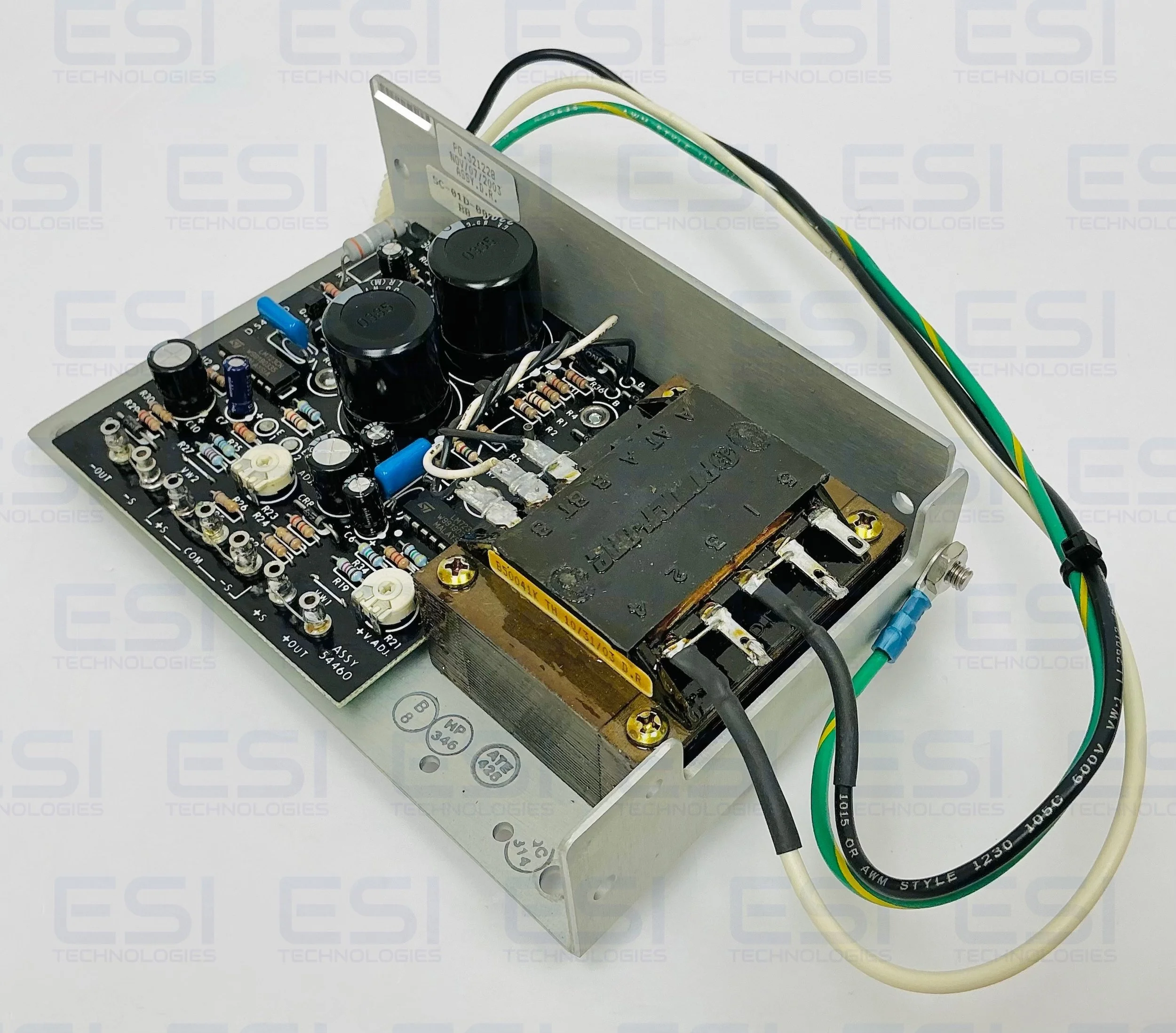

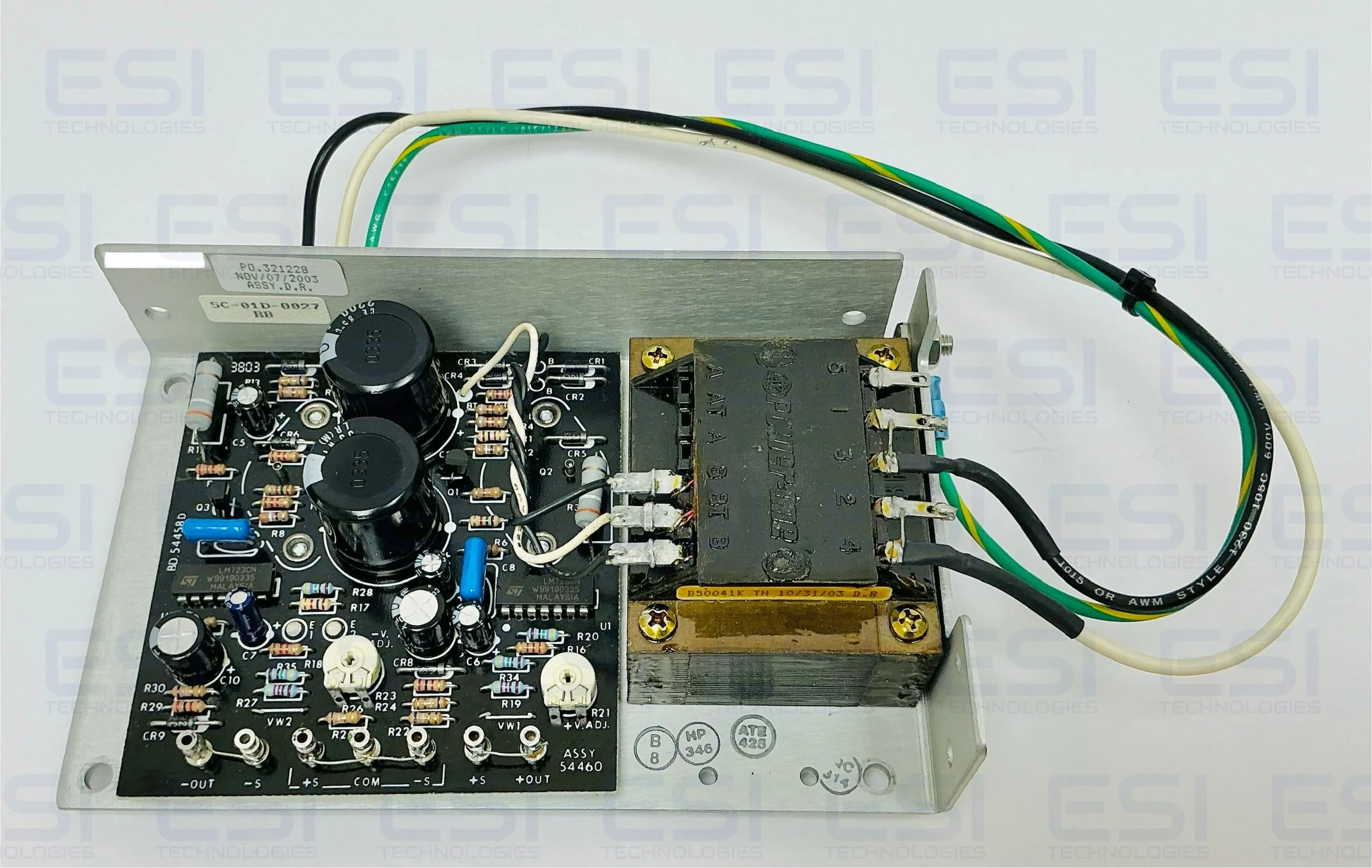

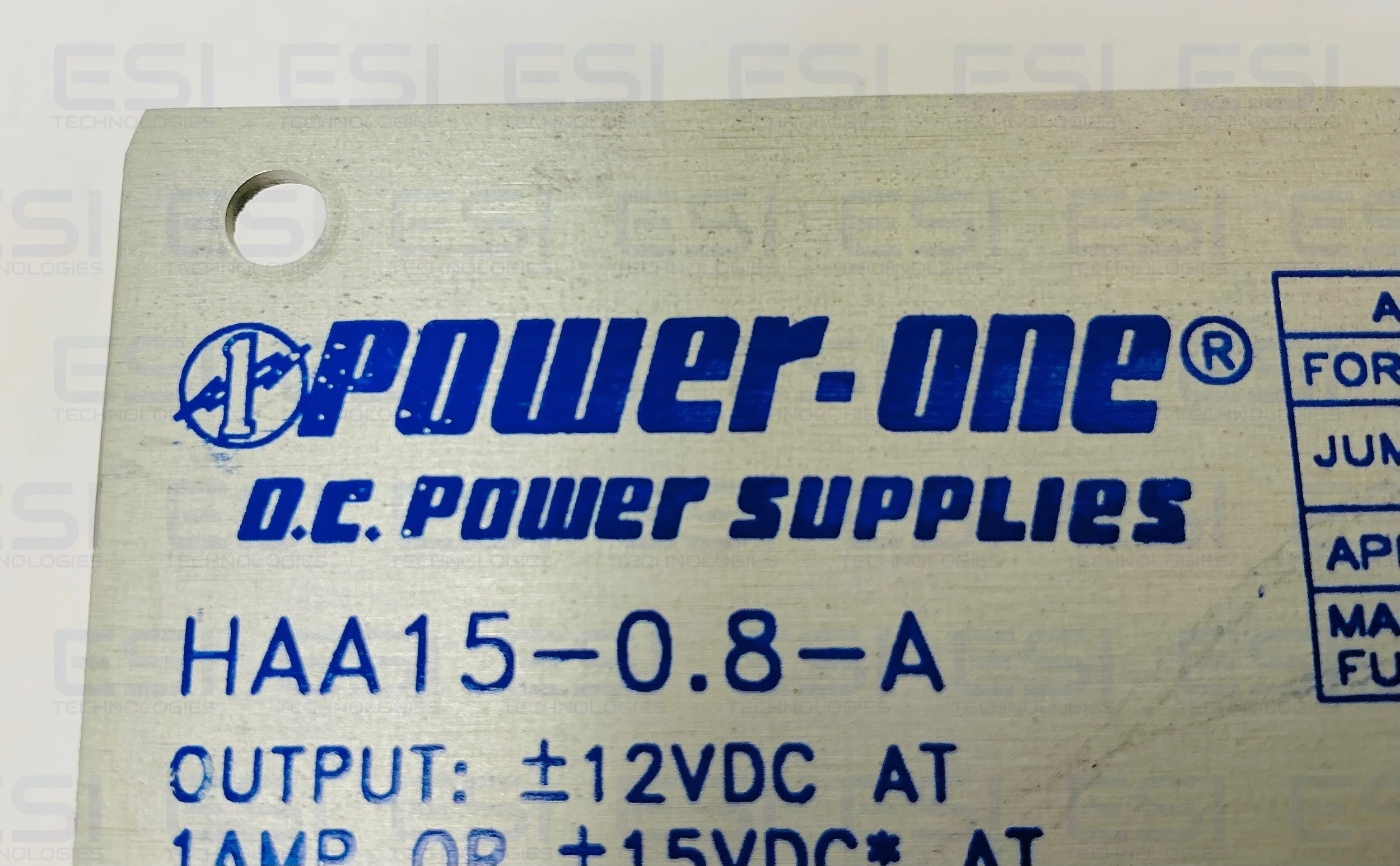

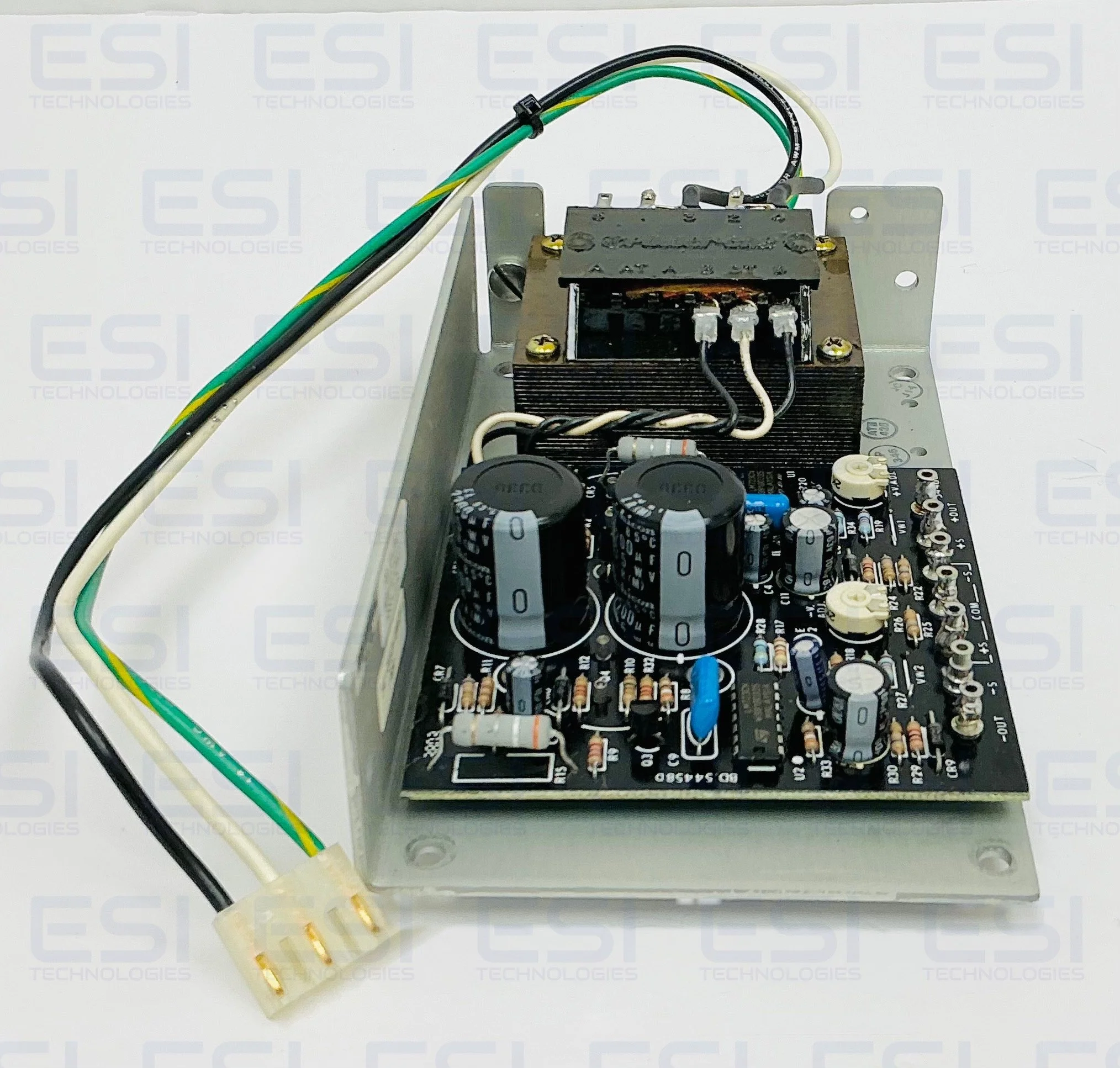

The Power-One Linear Series DC Power Supplies provide a wide range of input voltage support from 100/120/220/230/240 VAC, +/- 0.05% output regulations, low output ripple, and overvoltage protection. HAA15-0.8-A is a highly reliable open-frame dual-output linear DC Power Supply. It is widely used for industrial, commercial, and medical applications where ultra-low noise, low output ripple, and strict voltage regulation are critical.
Power-One produces the industry’s broadest selection of Linear power supplies with output voltages from 5 volts through 250 volts. Rugged technology and proven design merge to create quiet, highly-regulated, dependable DC power. The Linear power supplies are approved to domestic and international regulatory standards, and are CE Marked to the Low Voltage Directive (LVD).
Alternative Part No. Linear Series, HAA15-0.8-A, HAA15 0.8 A, HA15-0.90AG, HBAA-40W-A
