Price: Contact Us
Email: sales@esi-technologies.com
Condition: NEW
Location: SKUE38-2
In Stock: 1
Product Specifications
Processor: Intel® Core™ i7-610E (2.53 GHz, dual-core)
System Memory: 4 GB soldered DDR3 1066 MHz RAM with ECC
Chipset: Intel® Mobile QM57 I/O Controller Hub
Rugged Level: R1 (air-cooled for standard application environments)
Form Factor: 6U CompactPCI system controller

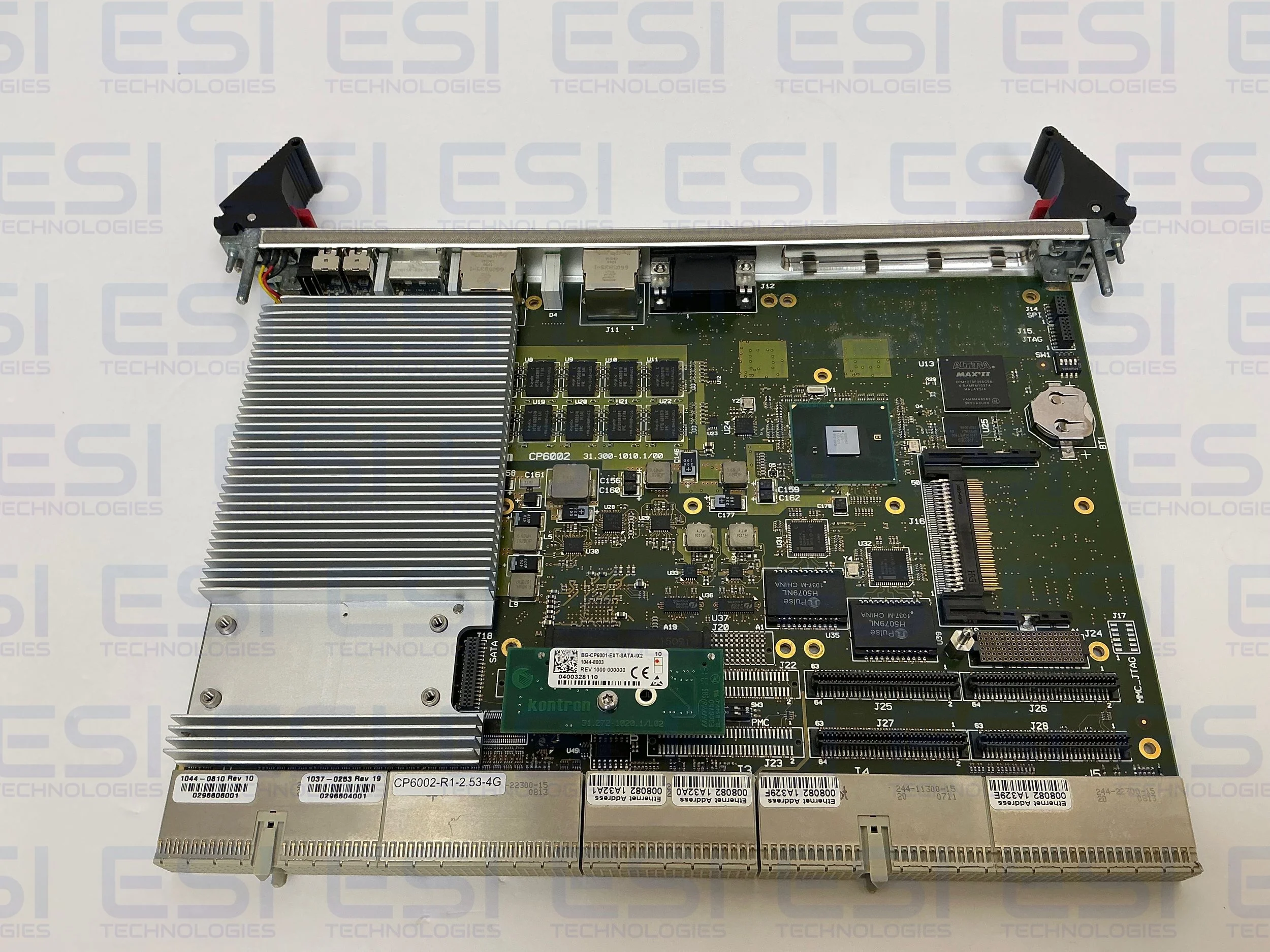

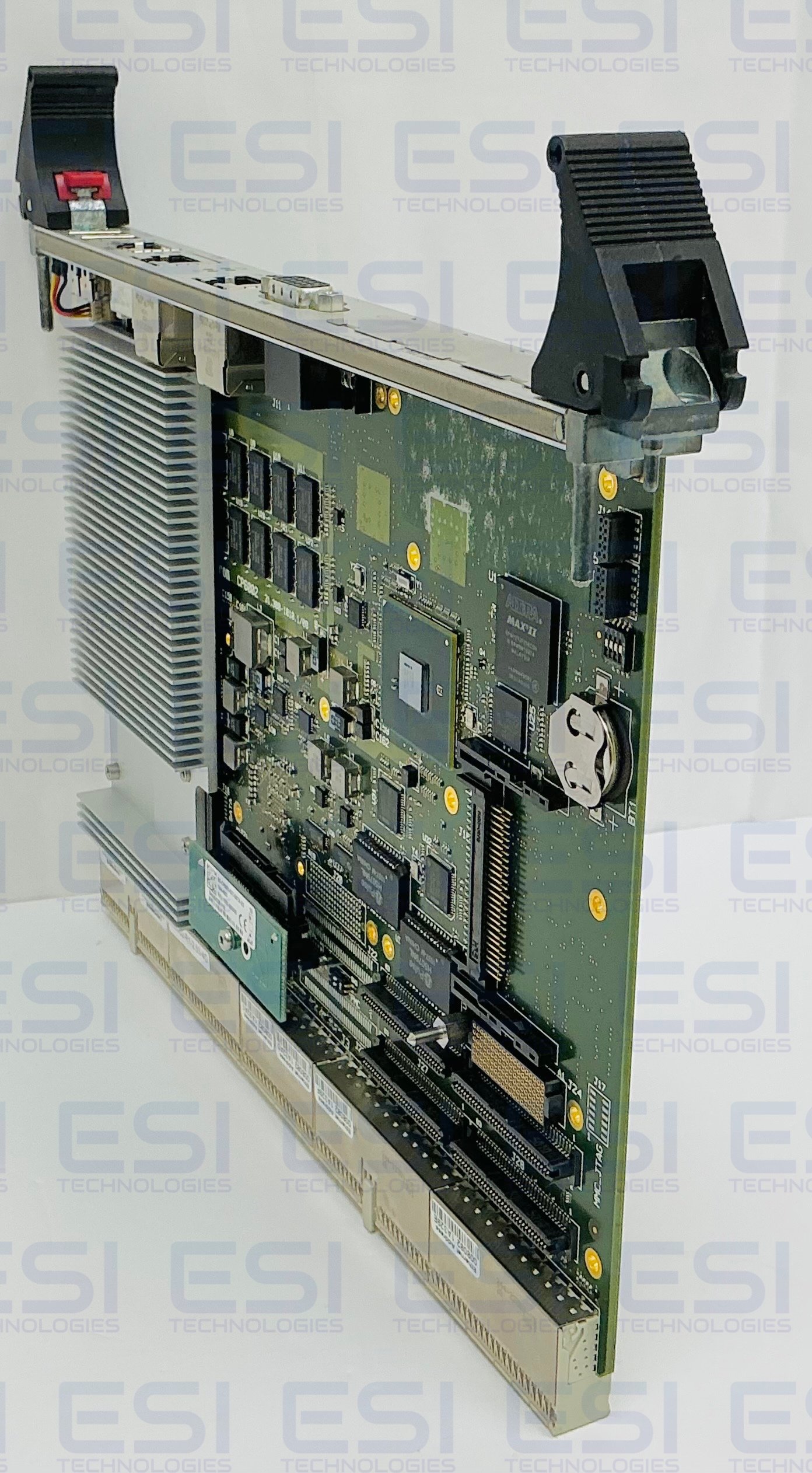

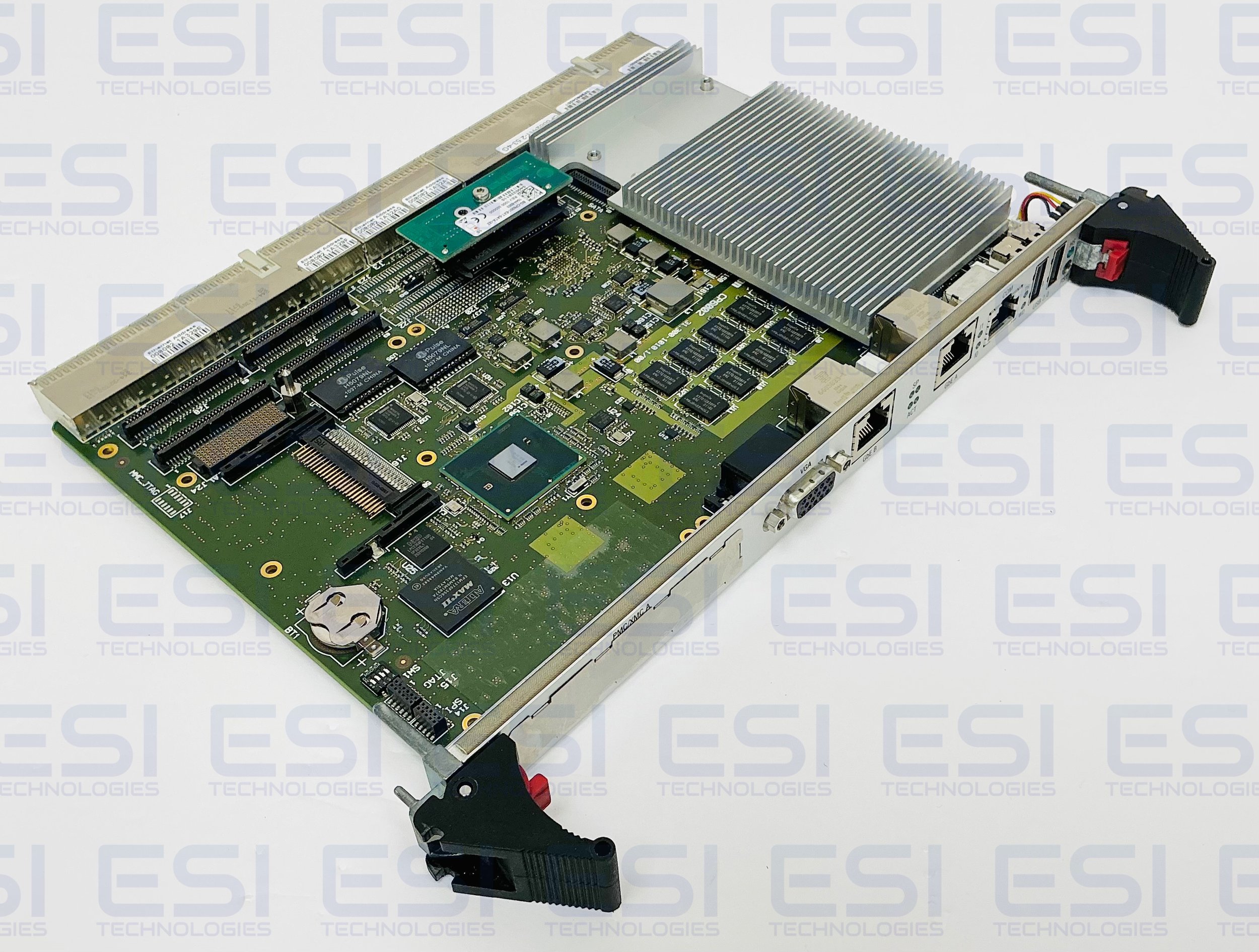

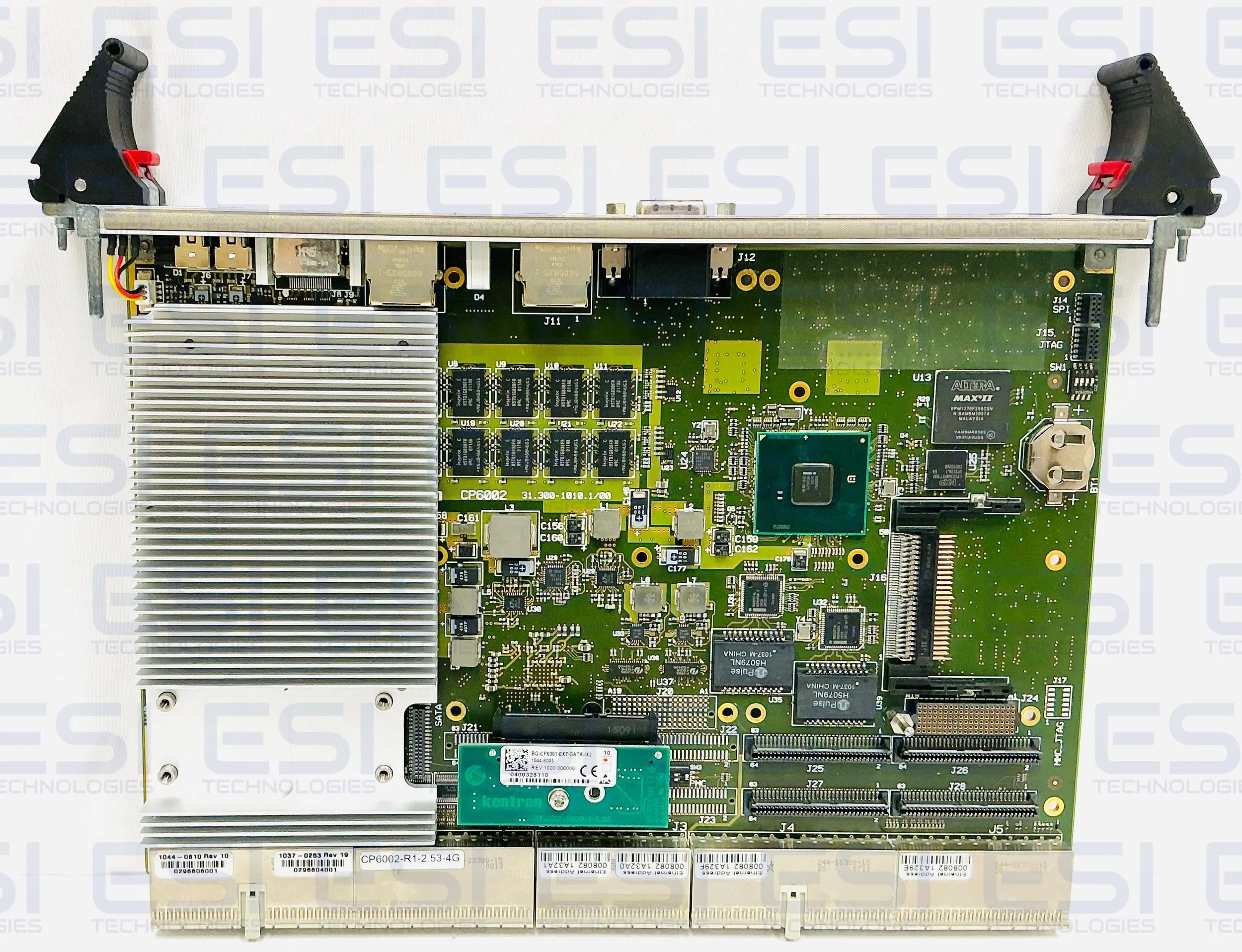

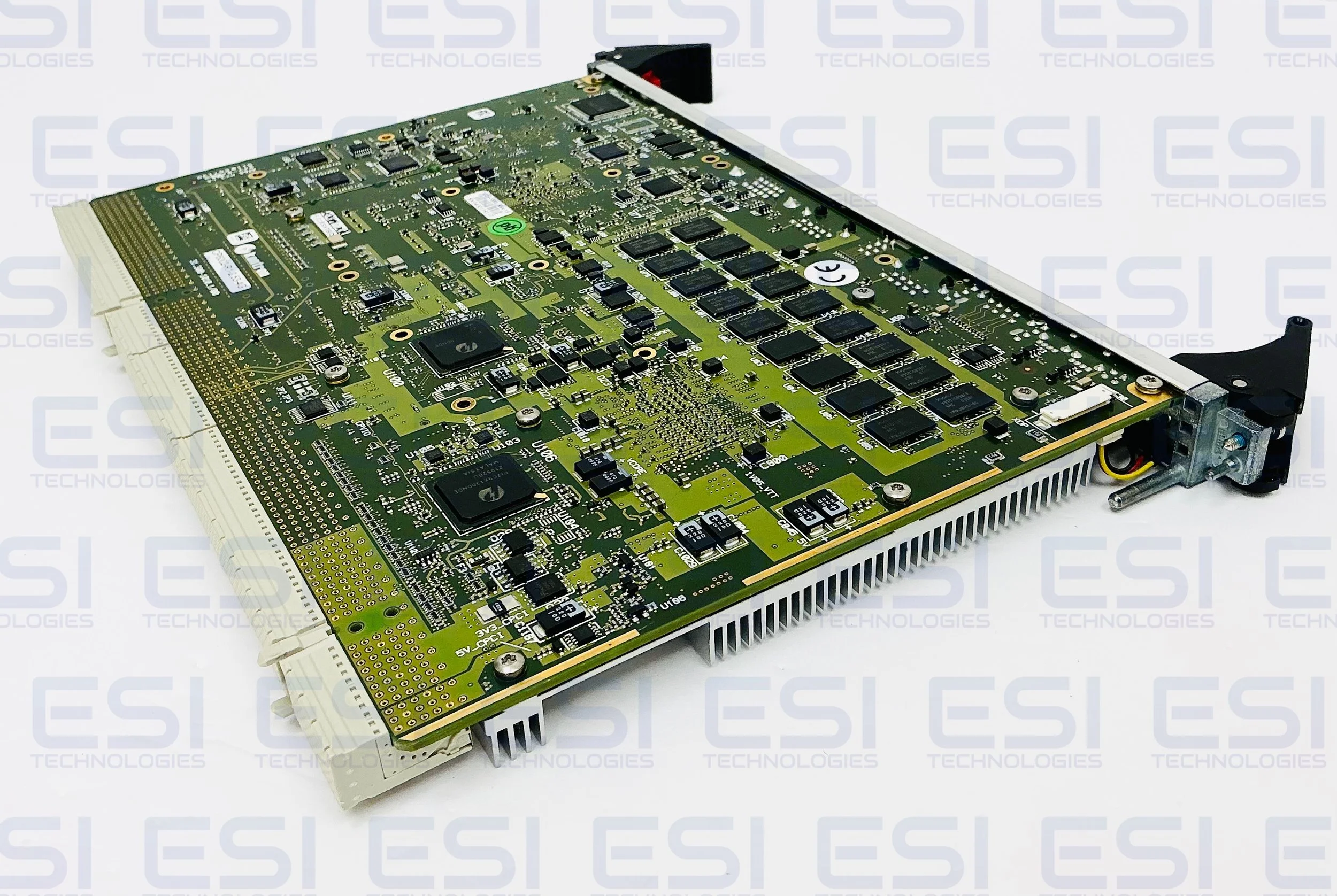

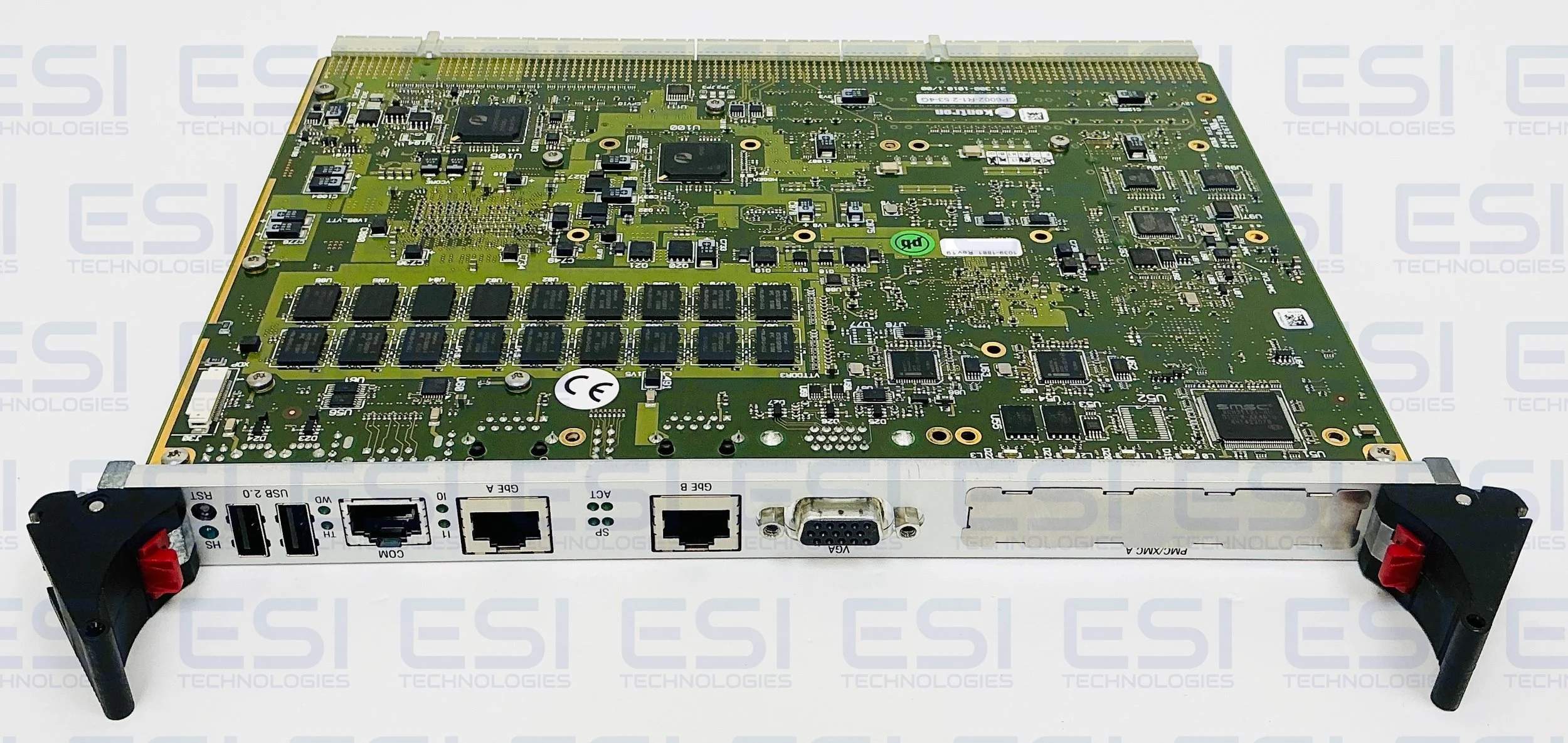

The CP6002, a CompactPCI PICMG 2.16 compliant 6U CPU board, comes with various rugged levels, making it yet another addition to Kontron’s rugged PICMG 2.16 portfolio. Based on the Intel® Core™ i7 processor and mobile chipset, the CP6002 features high computing and graphic performance with a low thermal power design and a complete set of data, communication and multi-media interfaces. Maximum Ruggedization Designed to withstand even the toughest environmental conditions, the passively cooled CP6002 featuring up to 8 GByte of soldered RAM with ECC and a CompactFlash socket for industrial grade fl ash modules comes in the rugged levels – defi ned as R1 and R2. The R1 version is designed for standard application requirements in air-cooled environments. Air cooled Version R2 is available in extended temperature range from -40° C to +70° C. It is designed for high shock and vibration requirements as defi ned in VITA 47 EAC3/EAC6 (EAC6 requires special system components). The CP6002 features energy effi cient embedded Intel® dual core processors. With the 2.53 GHz Intel® Core™ i7-610E and the LV 2.0 GHz Intel® Core™i7-620LE, the CP6002 has extraordinary performance per watt values. Up to 8 GByte of soldered DDR3 1066 MHz memory with ECC provide the basis for demanding software applications. Based on the Intel® Mobile QM57 IO controller hub the CP6002 provides high graphics performance for VGA and two independent digital video outputs to the rear I/O as well as HDA audio capabilities.

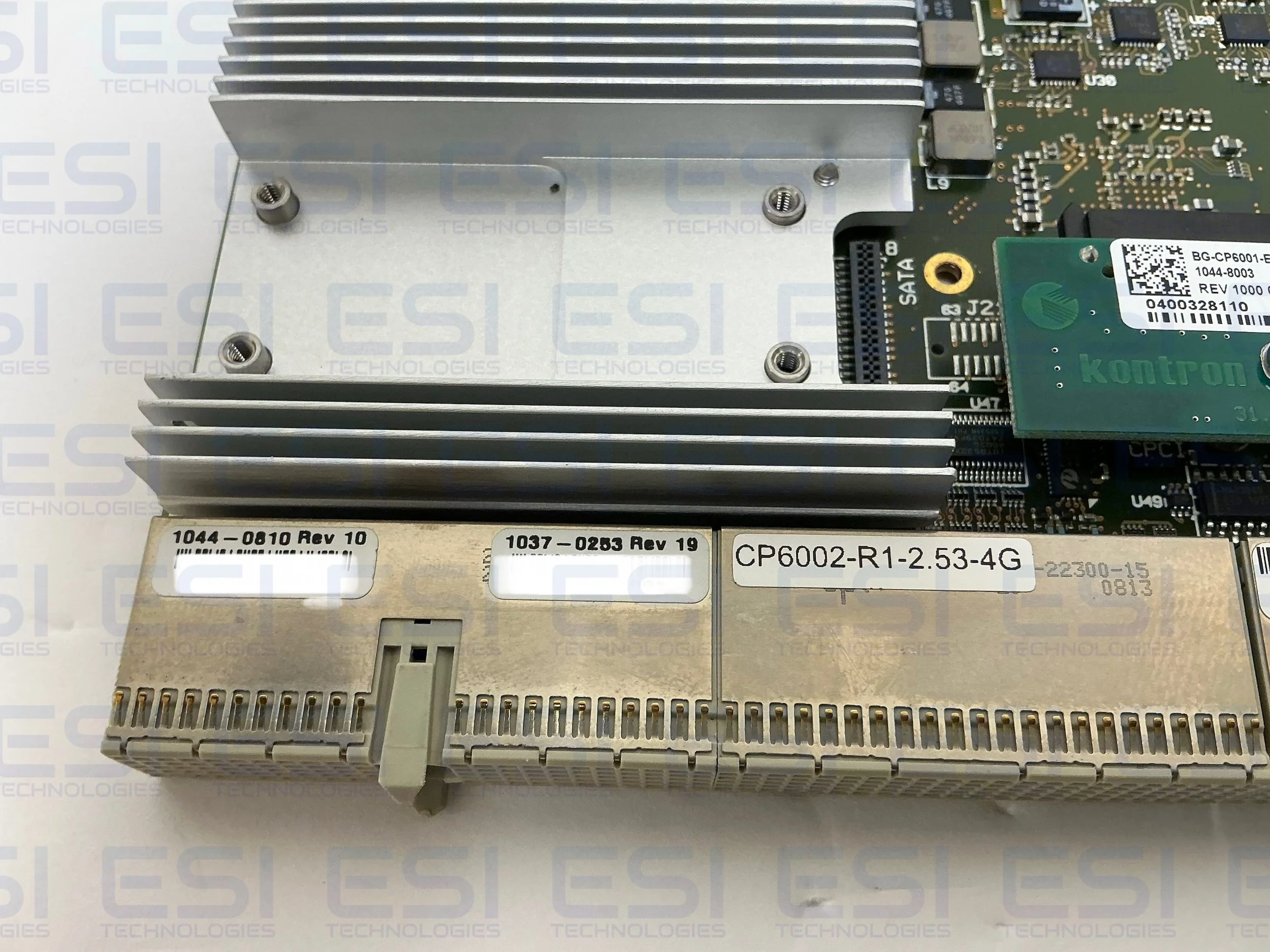

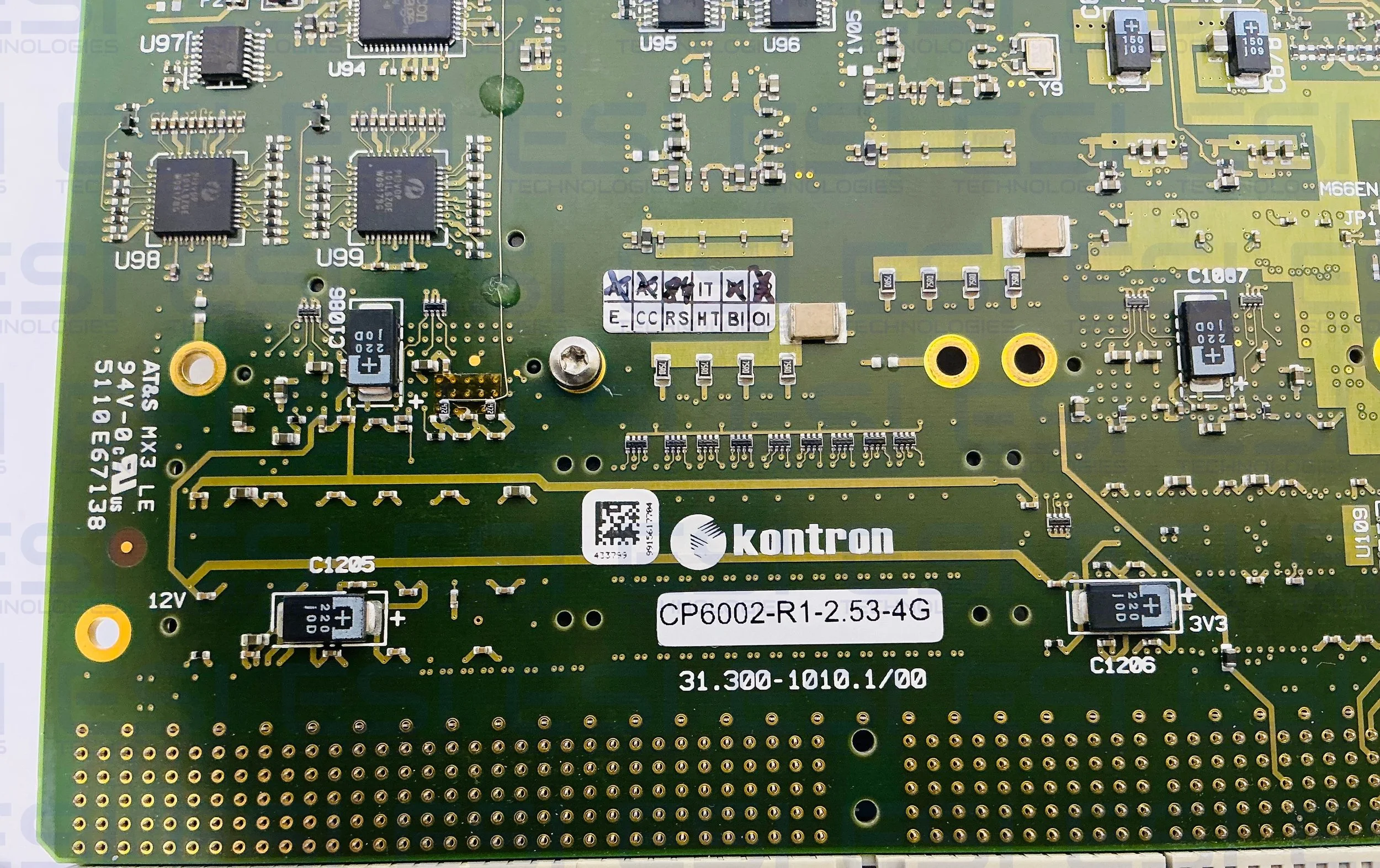

Alternative Part No. CP6002-R1-2.53-8G, CP6002-R1-MC-2.53-4G,CP6002-R1-2.00-4G, CP6002-R1, CP6002 , CP 6002
