Product Specifications
IEEE 802.3 compliant and Ethernet Version 1.0 and 2.0 compatible

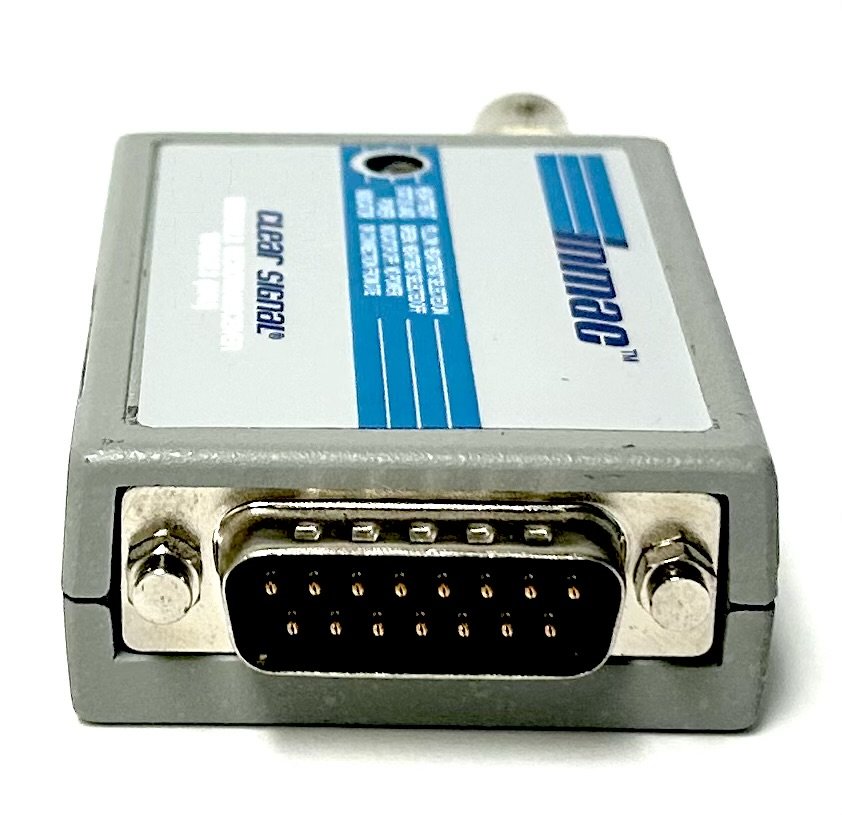

Direct Attachment Unit Interface (AUI) connection
Slim-line versions (AT-MX10S,AT-210TS) for improved mechanical
fit for Macintosh, Sun SPARC stations and IBMRS/6000 workstations
Switch-selectable SQE test (all models) and LED (AT-MX10,AT-MX10S, AT-210T,AT-210TS)
Polarity detection and correction (AT-MX20T, AT-210T,AT-210TS) and LED (AT-210T,AT-210TS)
Link integrity test function and LED (AT-MX20T, AT-210T,AT-210TS)
Manufactured by Inmac/Allied Telesis. Refurbished in good condition.
These micro transceivers are 10Base2 and 10T compliant transceivers designed to reduce Ethernet cabling costs. Compact size allows these transceivers to connect directly to the workstation, bringing thin Ethernet or Unshielded Twisted Pair (UTP) wiring directly to the workstation. With UTP and inexpensive coax network media, distances up to 100 meters between workstations can be supported using UTP, and up to 185 meters using coax. The 10Base2 compliant AT-MX10 and AT-MX10S transceivers use an industry-standard Ethernet transceiver chip that guarantees IEEE 802.3 compliance. The 10T compliant AT-MX20T, AT-210T and AT-210TS transceivers are also guaranteed compliant by the use of standard ICs.On all models Signal Quality Error (SQE)/Heartbeat test can easily be enabled or disabled via an externally accessible switch. Additionally, all models have integral jabber lock-up prevention circuitry and a loopback function. This function emulates coaxial media where transmitted packets are looped back to the receive side. Local Area Network (LAN) controllers can use the loopback feature to determine if a Media Attachment Unit (MAU) is connected and operational. The AT-MX20T, AT-210T and AT-210TS transceivers incorporate other functions that offer improved network reliability for workstations. The 10T link integrity test function provides a continuous test of the connection to the multiport repeater.
SKUE20
Qty 4
Alternative P/N #: AT-MX10, ATMX10, 802210
Product Manual
Product Images
