Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUE5
In Stock: 1
Product Specifications
Serial Controllers: Equipped with two dual UART controllers (equivalent to TI NS16C2552 or PC16552
Interface: Uses a single half-pitch D-sub 50-pin female connector, which consolidates all signals for the 4 independent RS-232C channels
Signal Distribution (AP401 Option): ADVANET offers an optional signal distribution board, the AP401, which connects to the 50-pin header and splits the 4 channels out to standard D-sub 9-pin male connectors
Software: Optional VxWorks device drivers are available for system integration
Compliance: The board is RoHS compliant

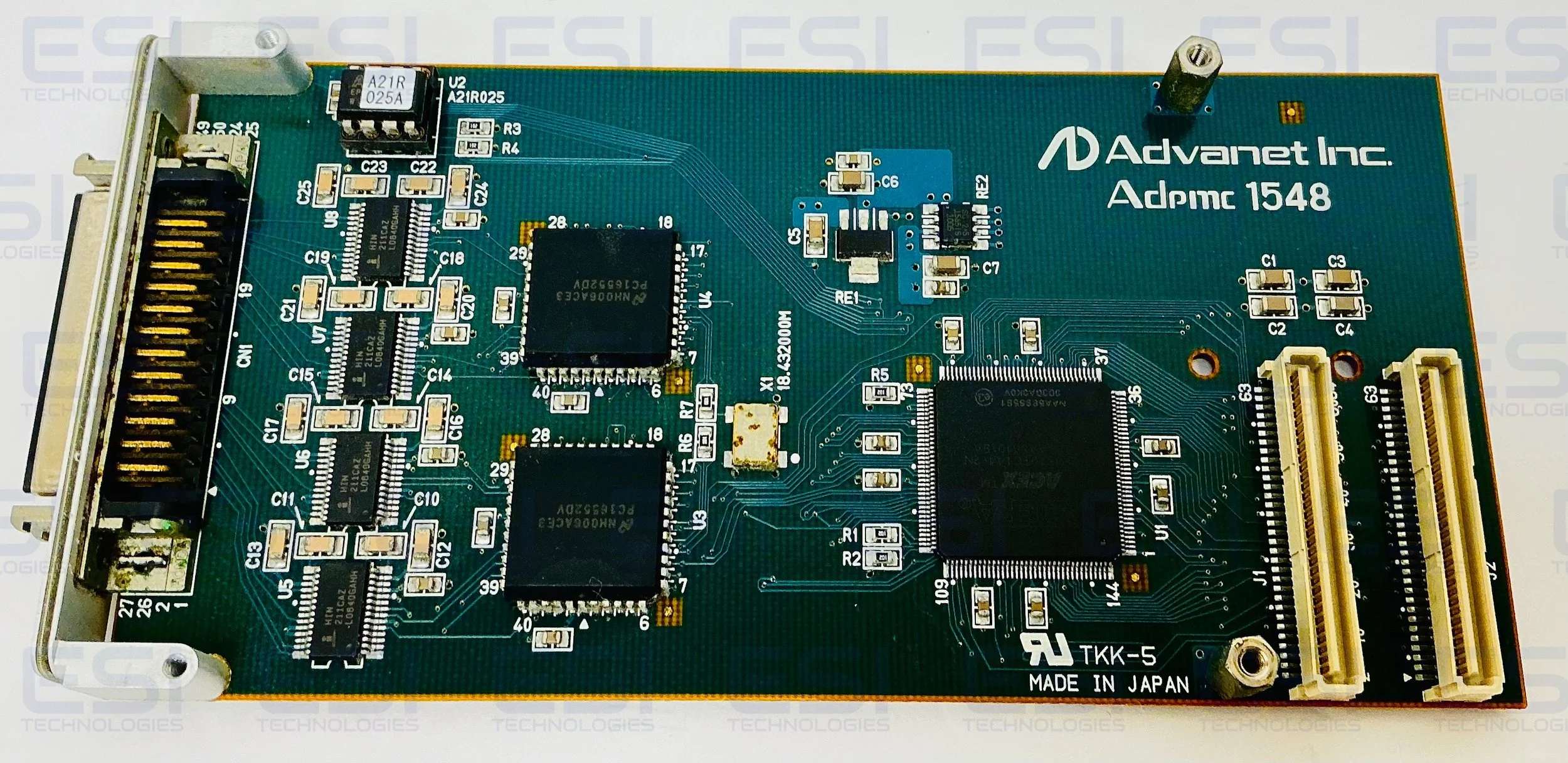

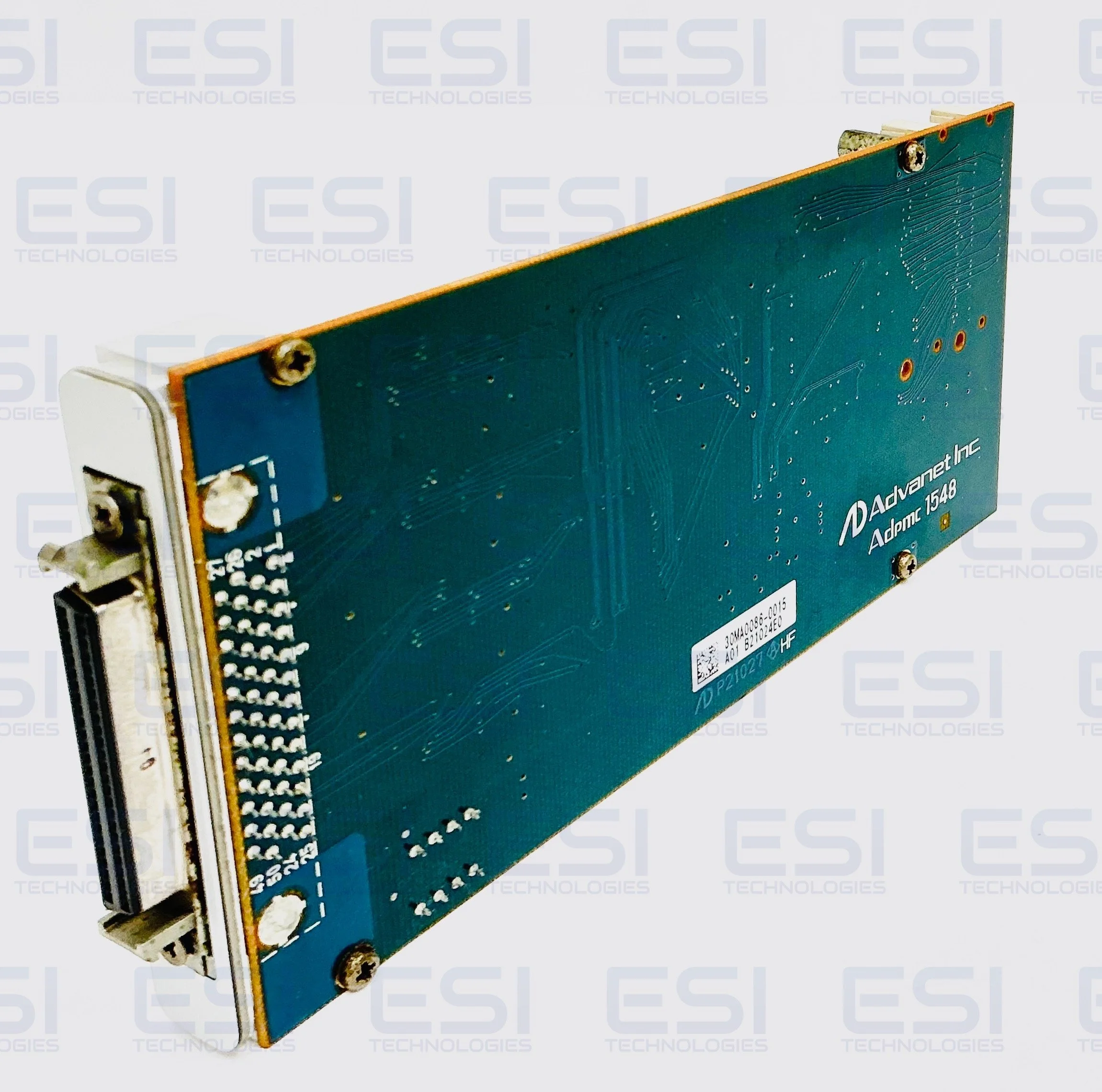

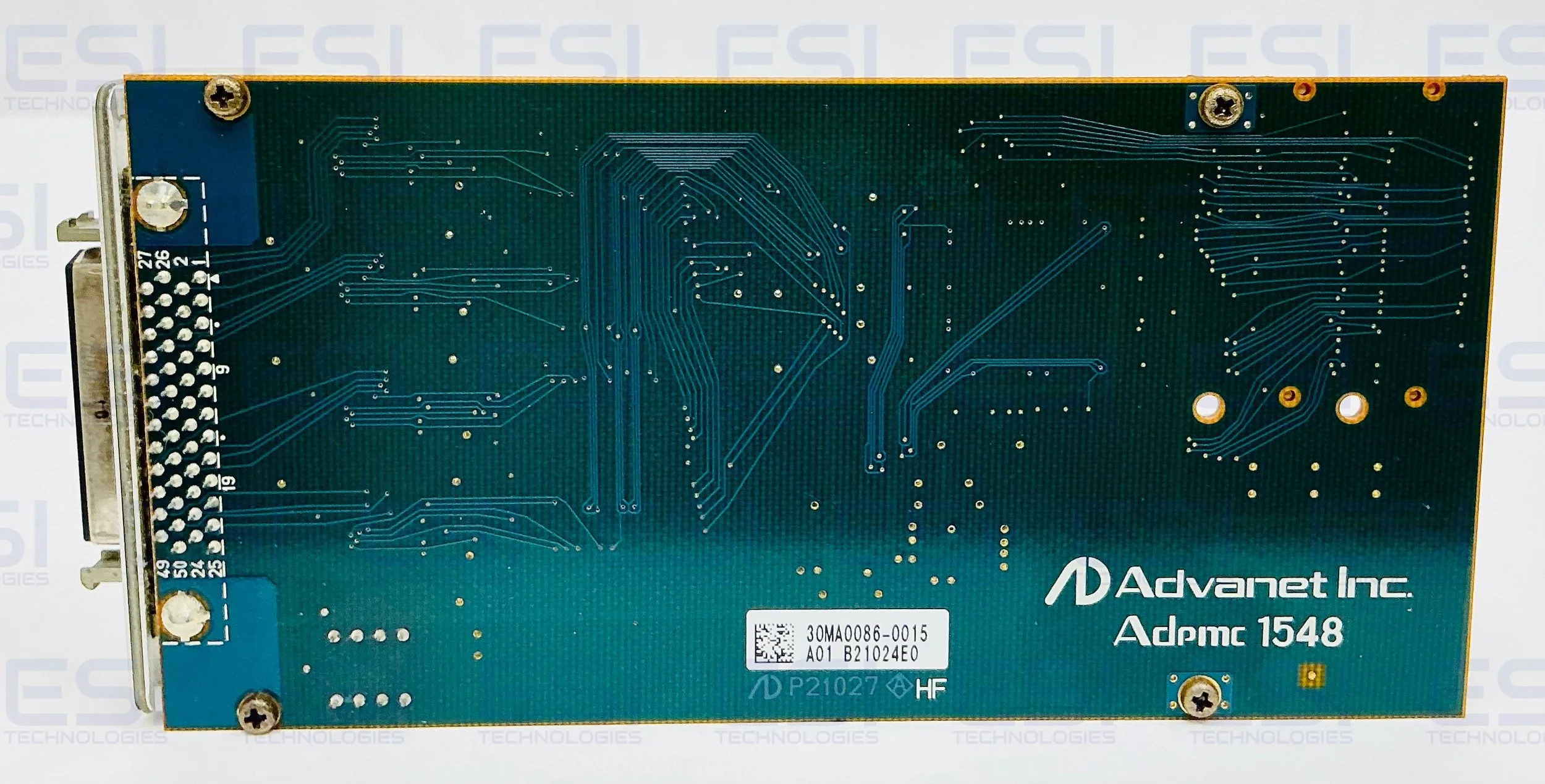

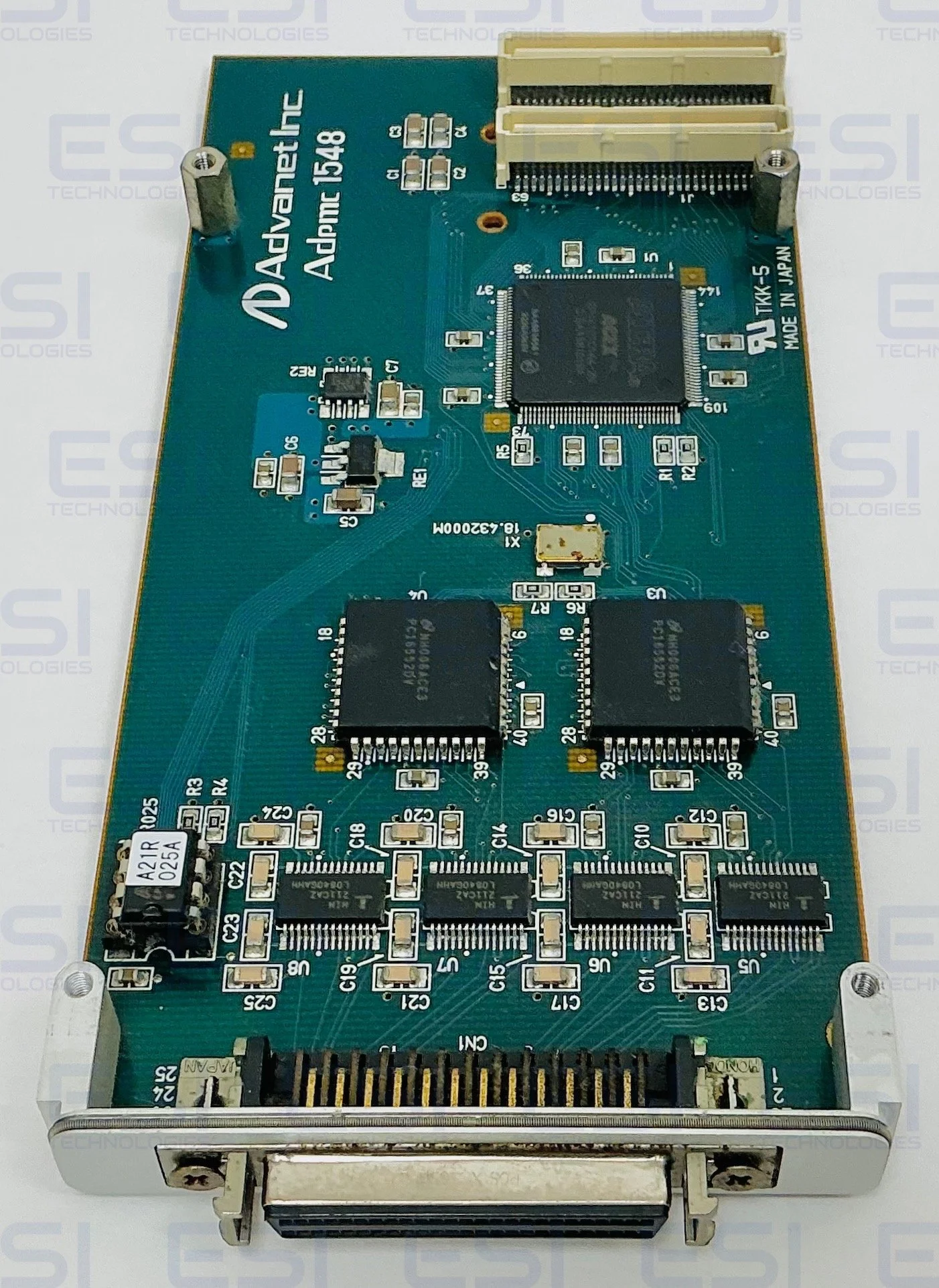

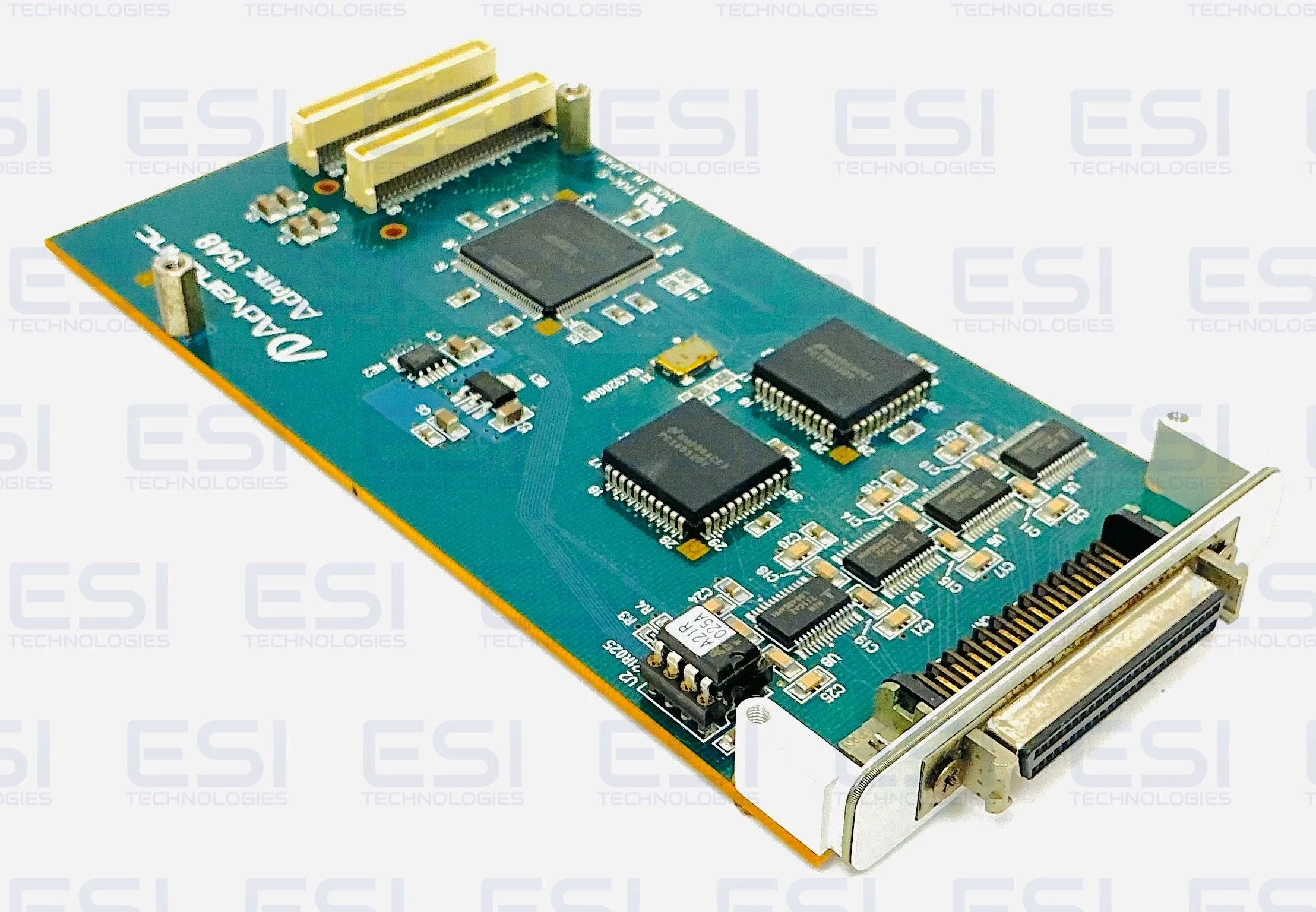

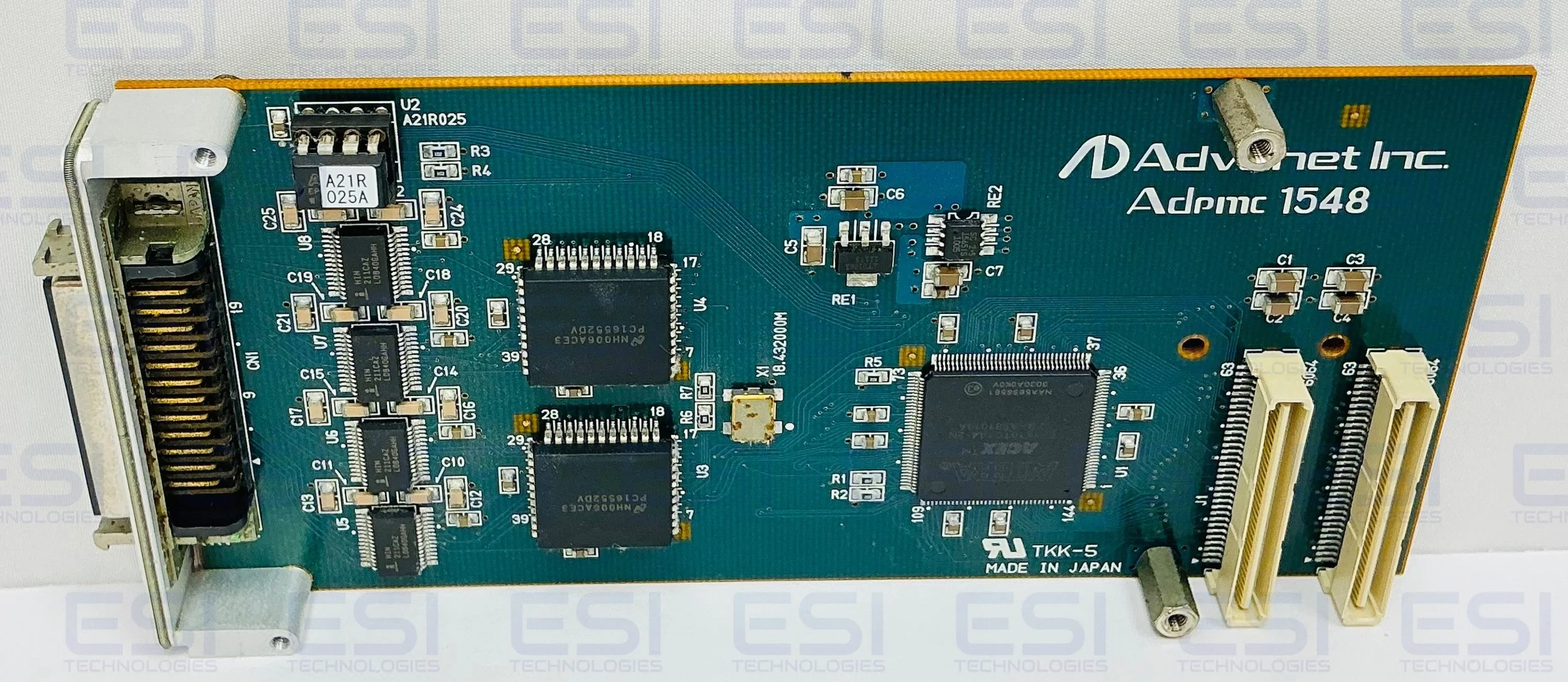

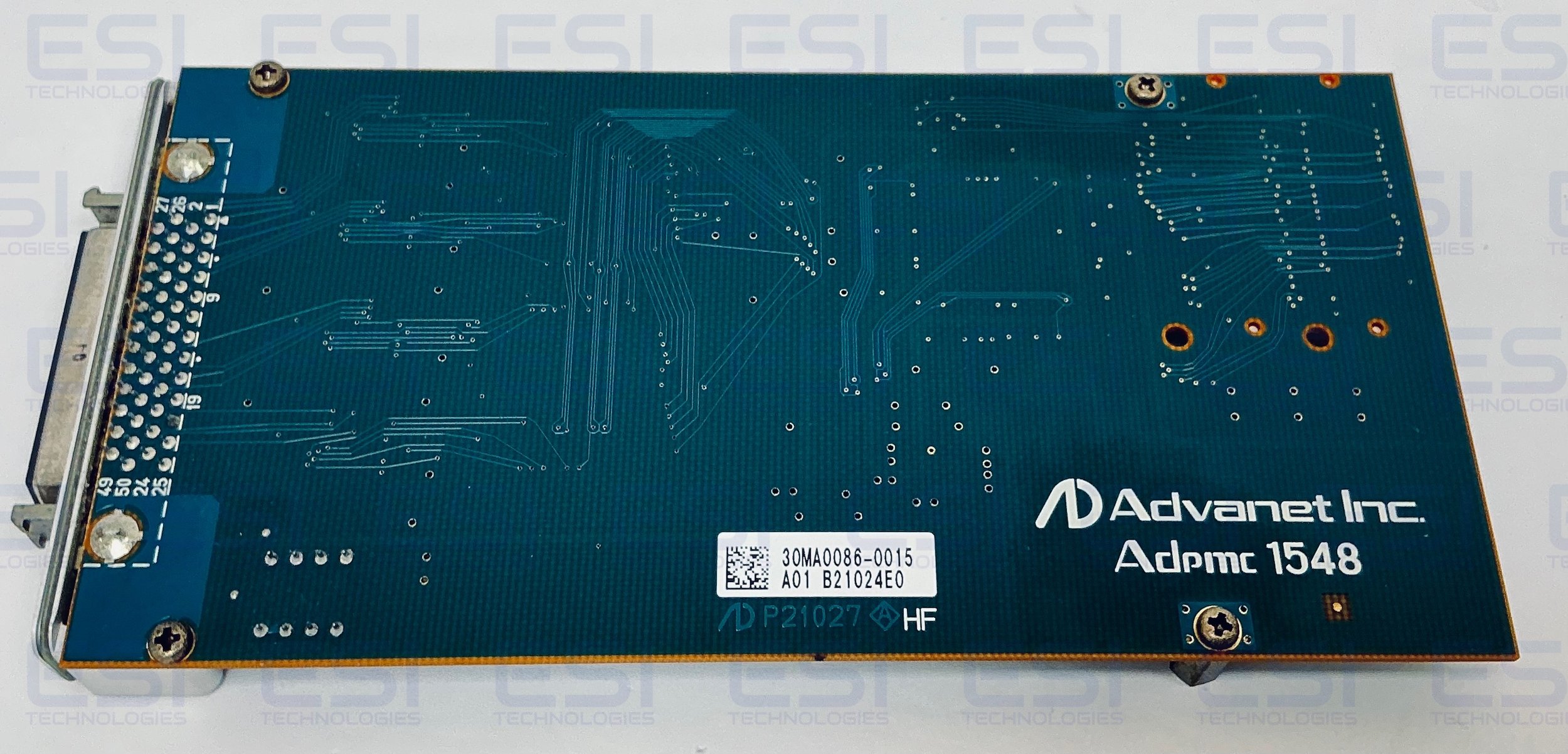

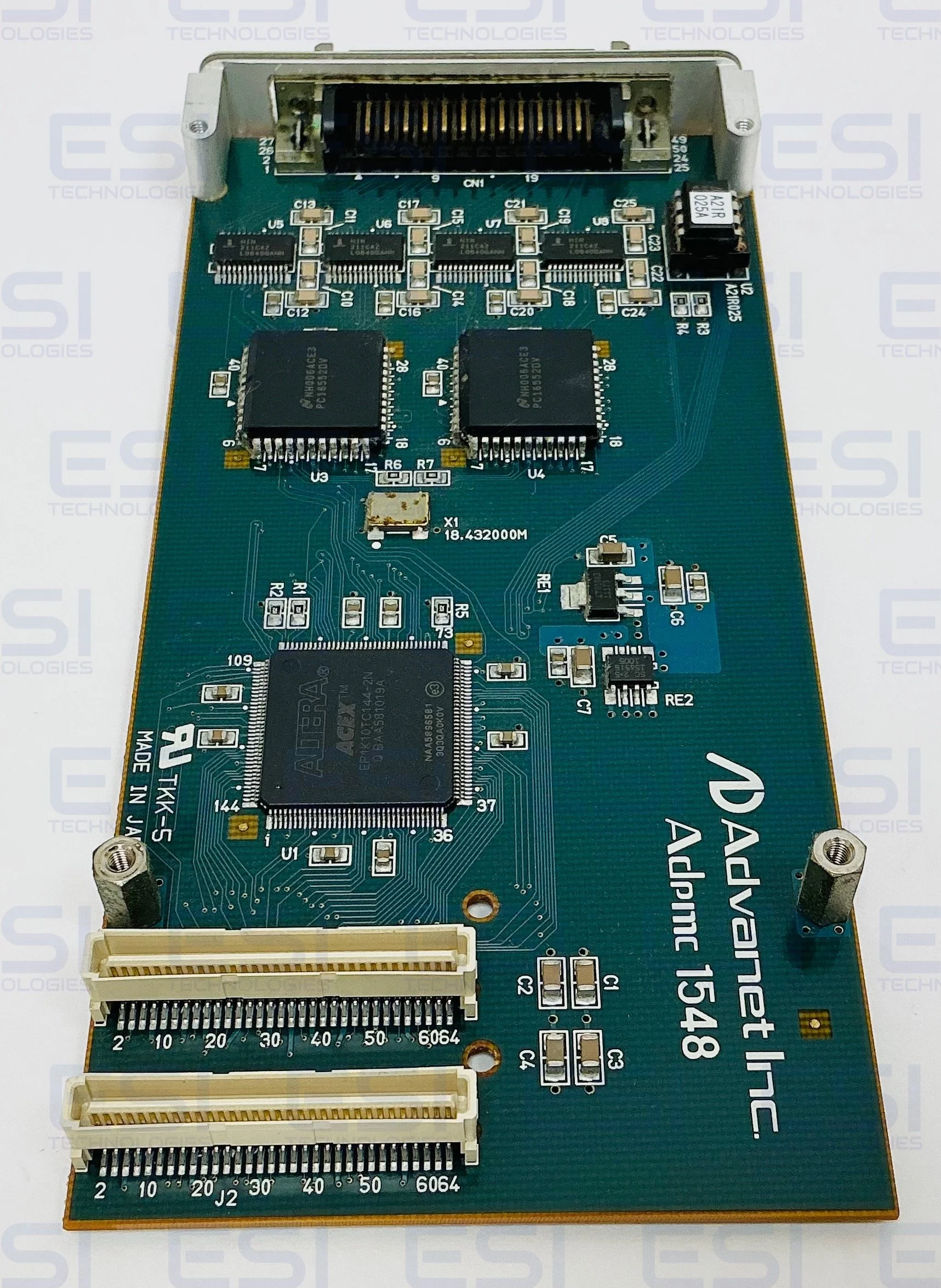

The ADPMC-1548 is a 4-channel RS-232C serial interface board manufactured by aDVANET. It is designed as a PCI Mezzanine Card (PMC) and is widely used in rugged embedded VME/VXI or CompactPCI system environments.
Alternative Part No. ADPMC-1548, ADPMC1548, ADPMC 1548
Product Manual
Product Images
