Product Specifications
Intel Accelerated Graphics Port (AGP) VGA on-board video interface
PCI Local Bus supports off-board PCI option cards, PCI 10/1000Base-T Ethernet
DRAM error checking and correction (ECC) support
Compatible with PCI Industrial Computer Manufacturers Group
Supports up to 512MB of Synchronous DRAM (SDRAM) on board, 440GX AGPset supports up to 1GB
Floppy drive and dual PCI EIDE Ultra DMA/33 drive interface
Two serial ports and one parallel port
Automatic or manual peripheral configuration
Watchdog timer
System hardware monitor
Manufactured by TRENTON Technology, Inc. Refurbished in good condition.

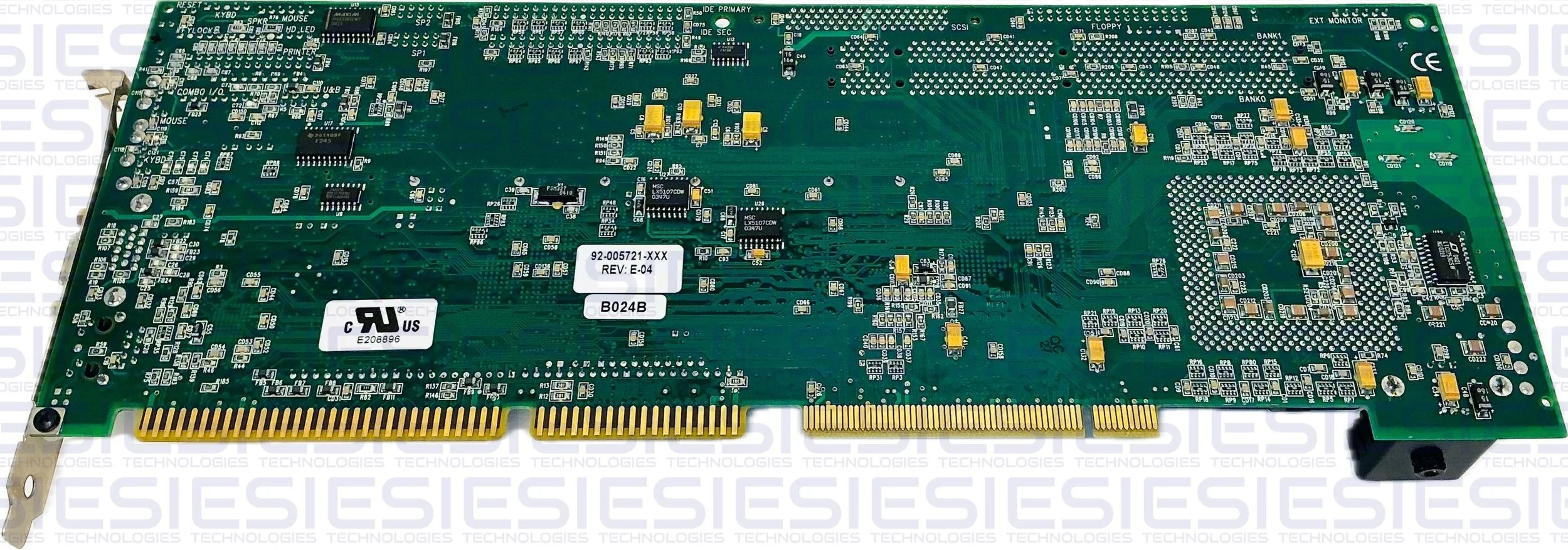

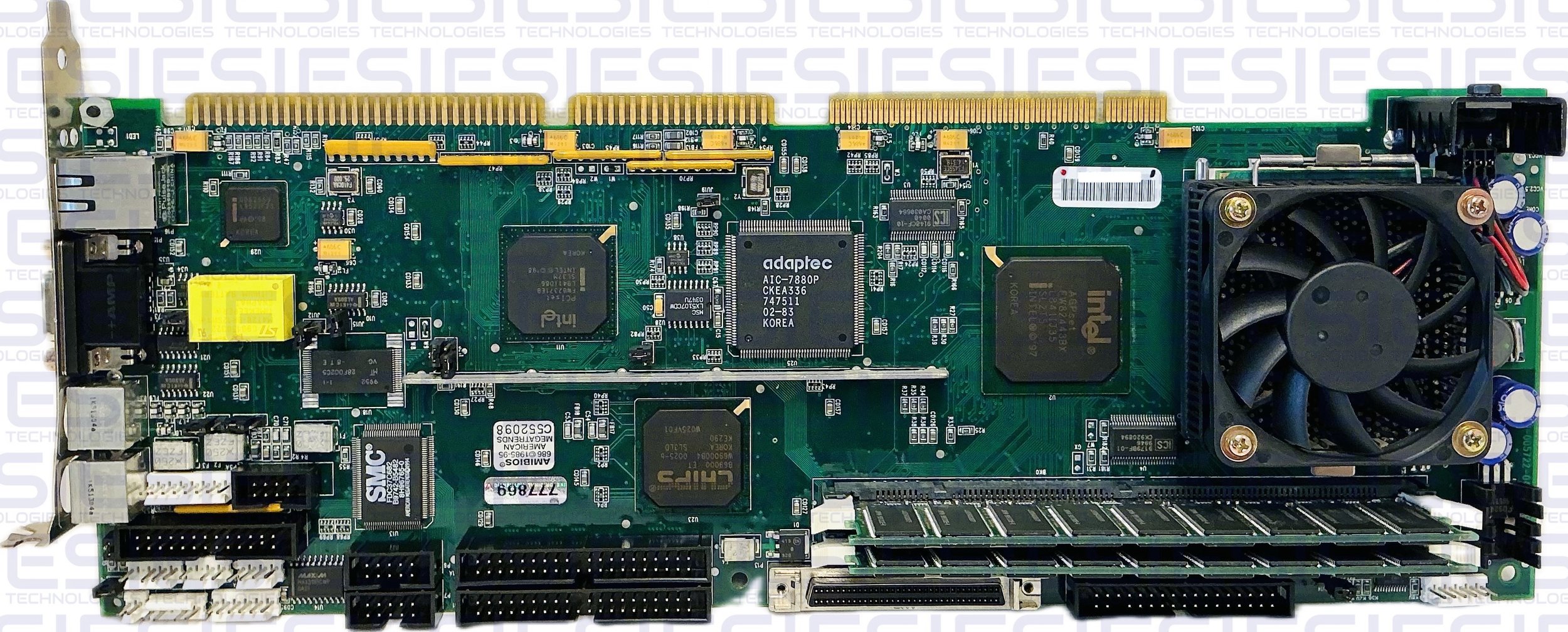

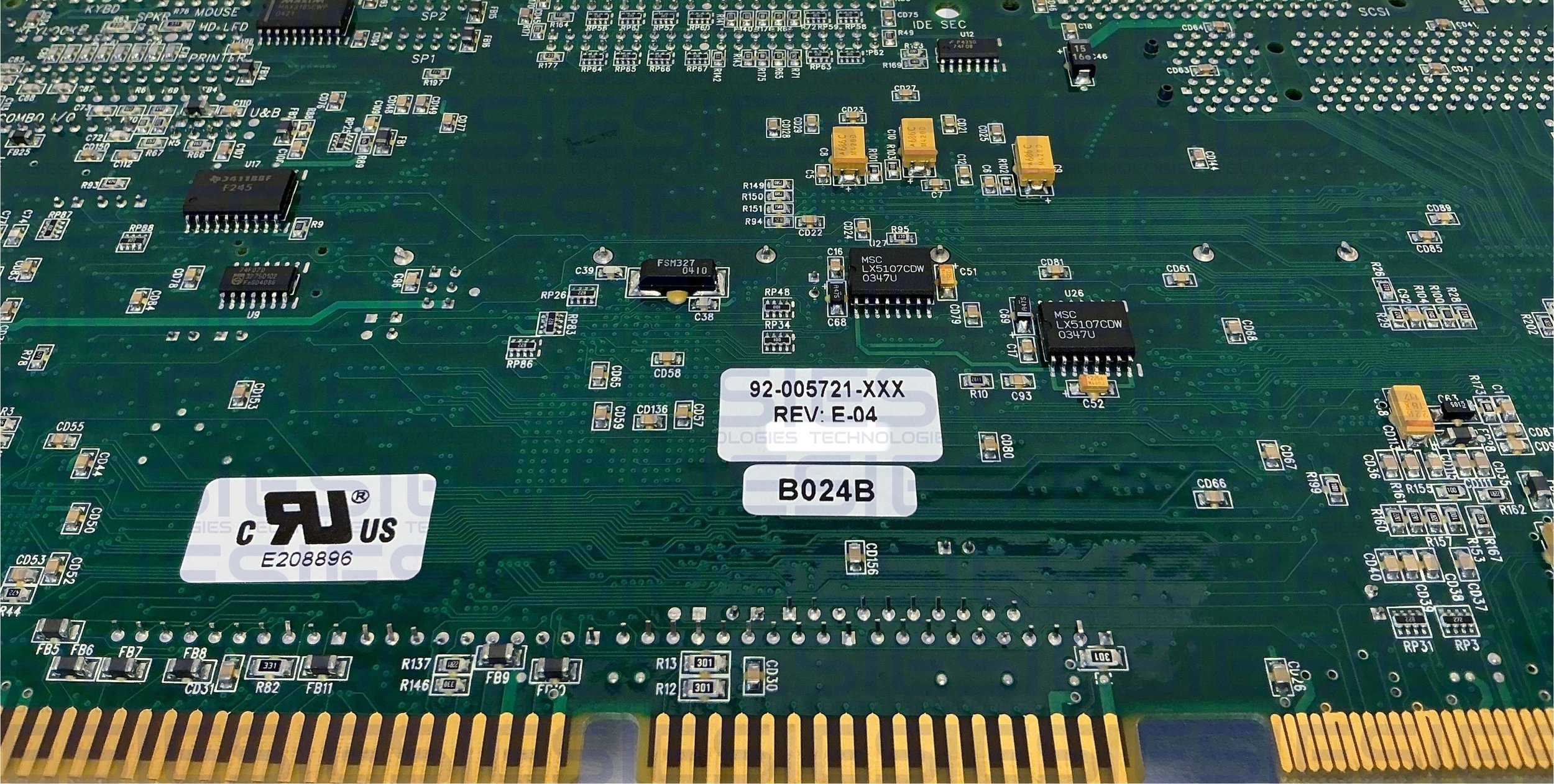

The 92-005721 XXX, a TRENTON Technology CBI full-featured PCI/ISA processors are SBCs (Single Board Computers) which feature an Intel Celeron microprocessor or Intel Pentium III microprocessor, Intel 440BX AGPset, 66/100MHz system and memory buses, Intel Accelerated Graphics port (Ultra DMA/33) interface, PCI Ultra Wide SCSI controller, PCI 10/100Base-T Ethernet controller, two serial ports, parallel port, speaker port, mouse port and keyboard port on a single ISA-size card. These single-slot, high performance SBCs plug into PICMG PCI/ISA passive backplanes and provide full PC compatibility for the system expansion slots.
SKUS2
Qty 16
Alternative P/N: TRENTON 92-005721 XXX
Product Manual
Product Images
