Image 1 of 1
Price: Contact Us
Email: sales@esi-technologies.com
Condition: USED IN GOOD CONDITION
Location: SKUP6
In Stock: 1
Product Specifications
Power Rating: 3 Watts
Output Configuration: Dual output ("D")
Nominal Input Voltage: 12 VDC (Range: 10.8 to 13.2 VDC)
Output Voltage: ±5 VDC
Cooling Method: Free-air natural convection
Operating Temperature: -25°C to +71°C
Isolation Rating: Up to 1000 VDC minimum for 1 minute
Up to 64 % Efficiency
Single and Dual Output, 3 watt converter
Available in 5, 12, 24 and 48 VDC Inputs
Industry Standard Pinout
Short Circuit Protection

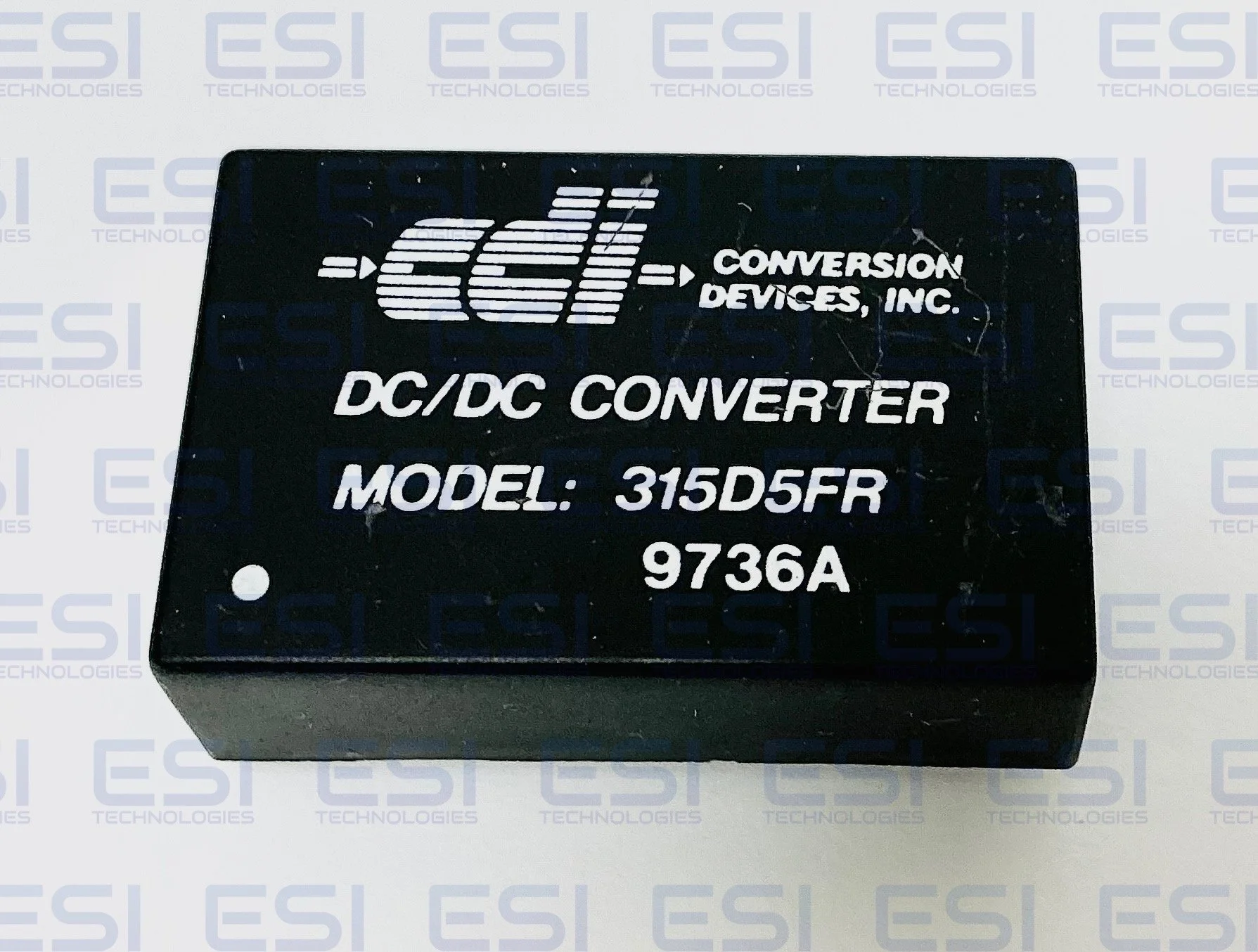

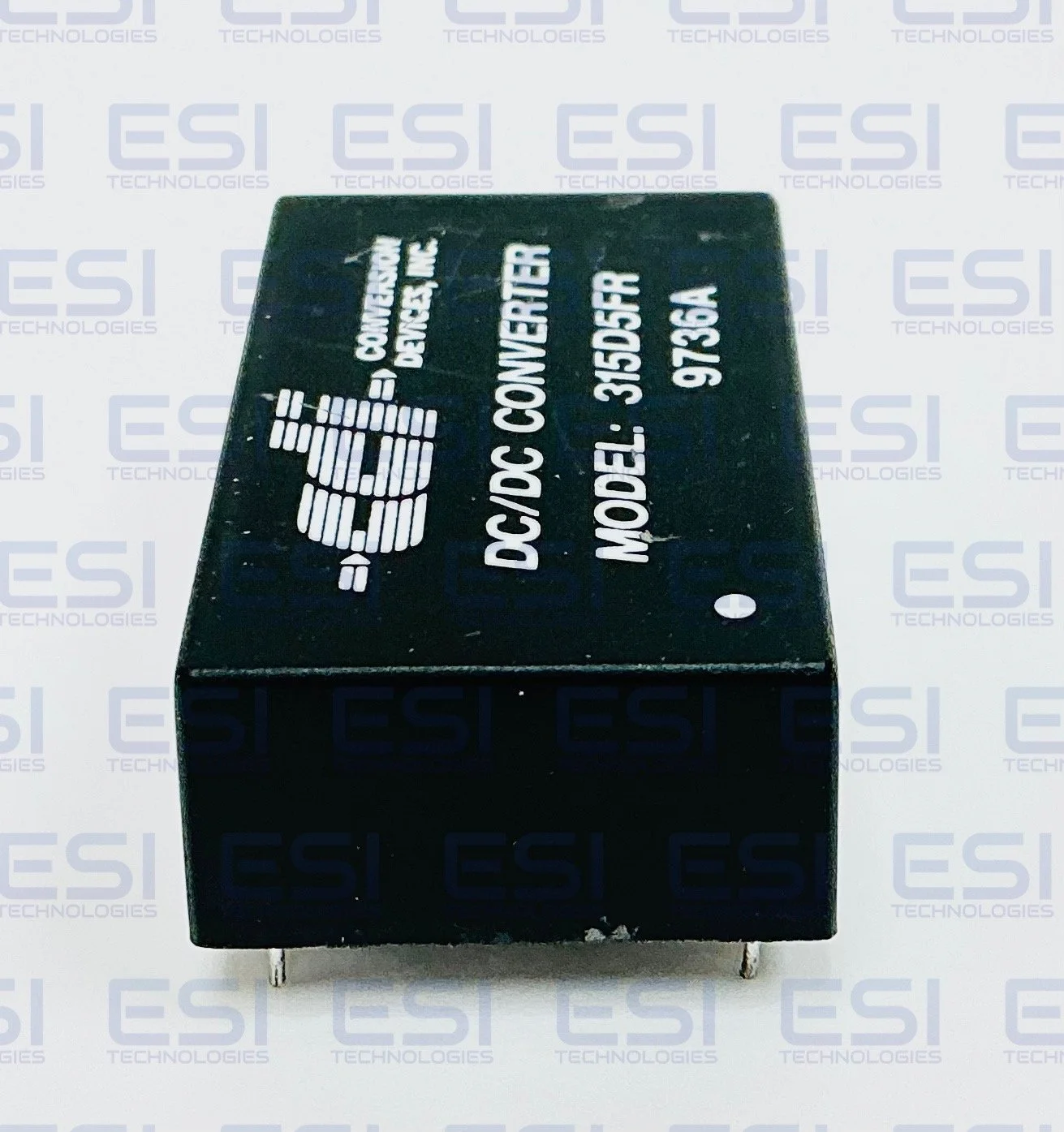

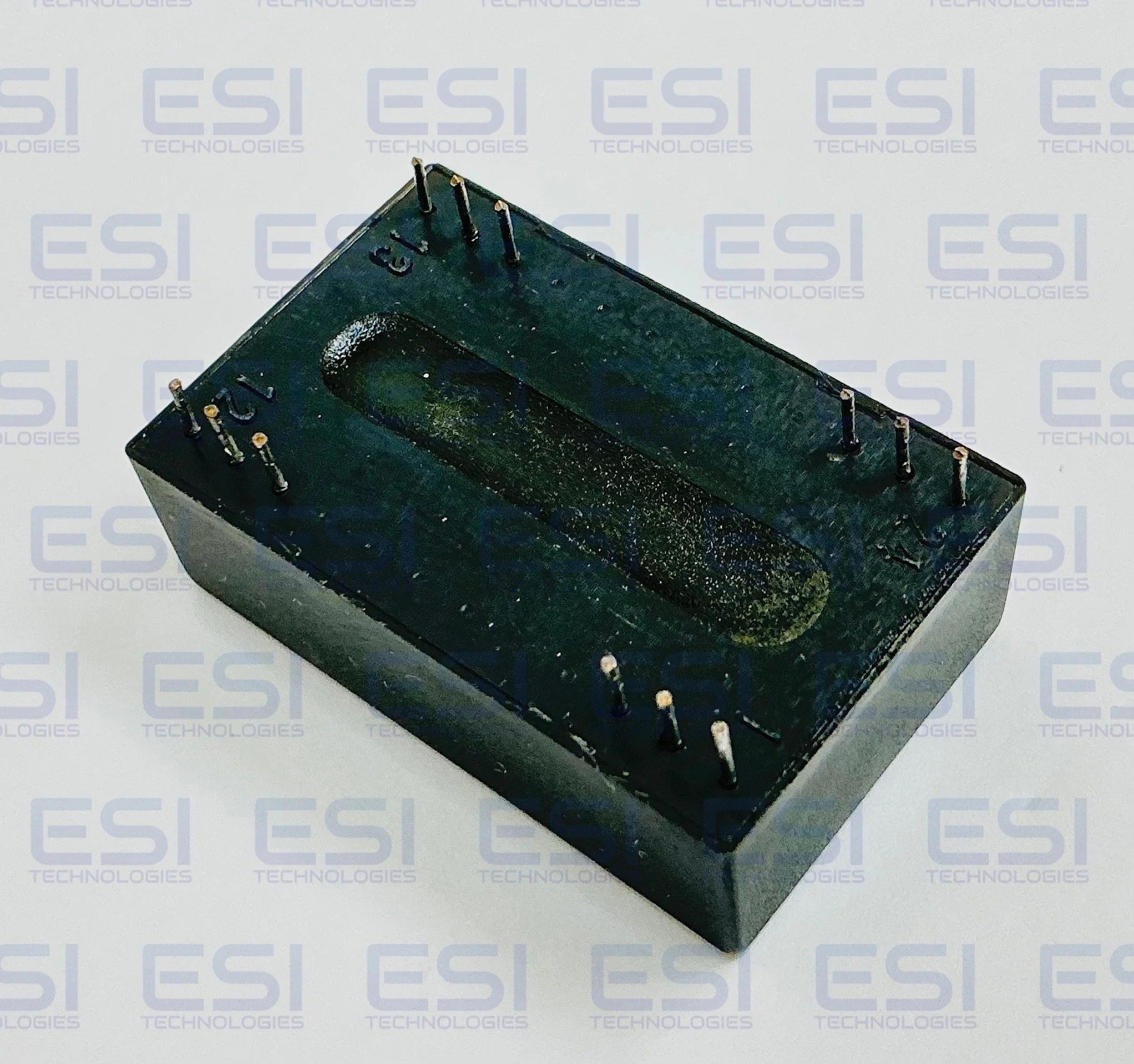

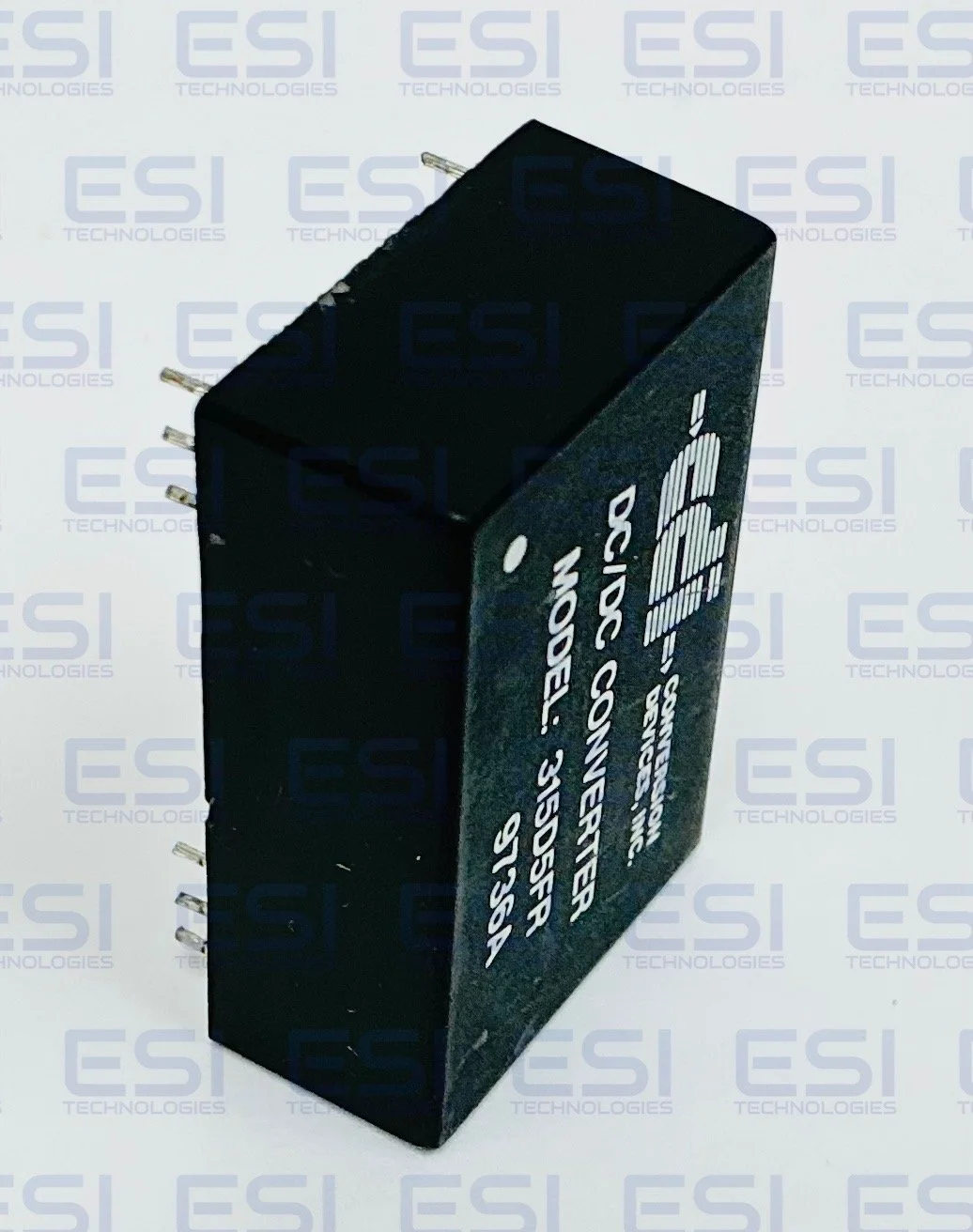

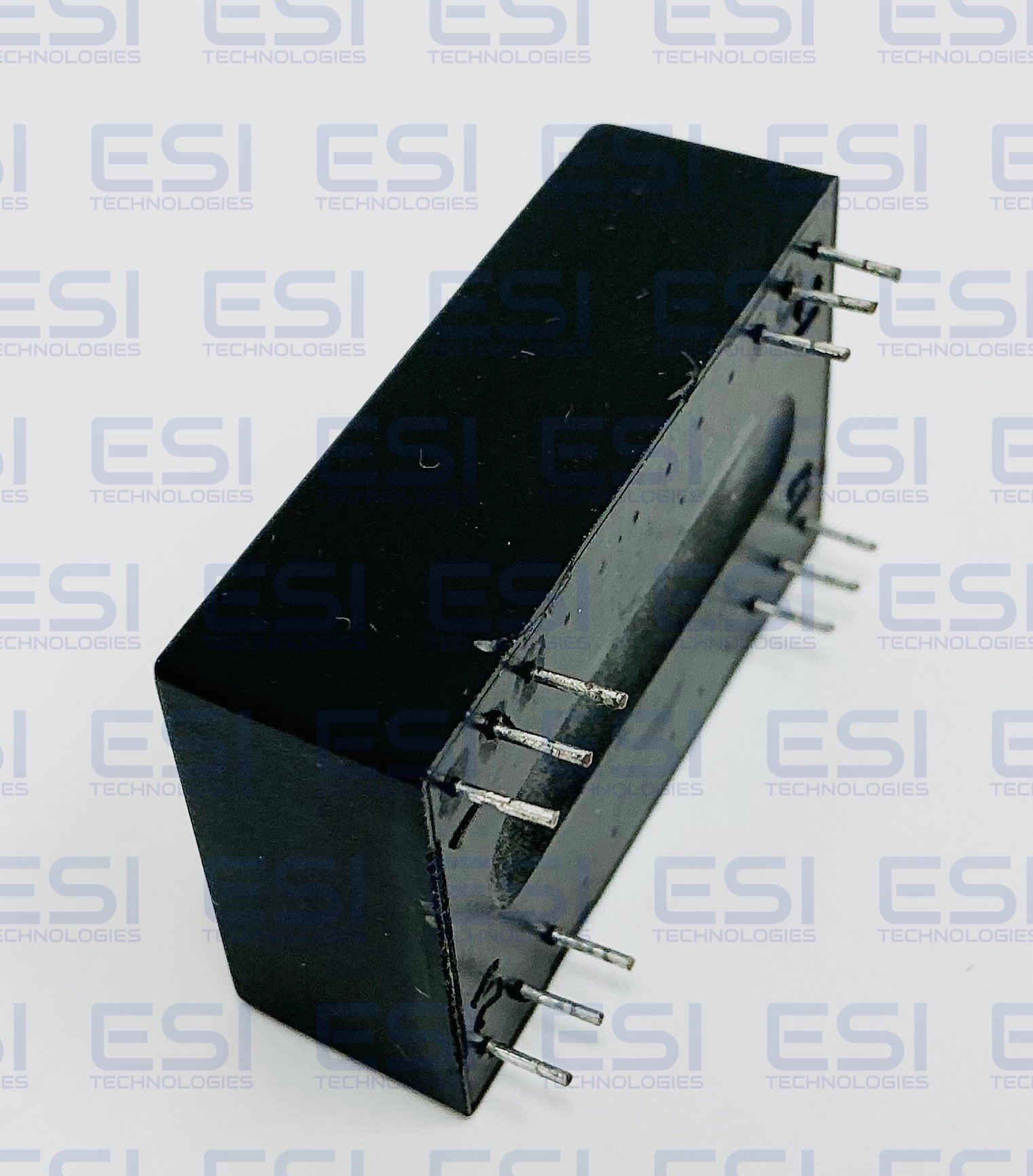

The Conversion Devices 315D5FR (originally manufactured by Conversion Devices Inc. and later under Martek Power / Eaton) is a legacy 3-watt regulated dual-output DC-to-DC converter power module. This hybrid module is housed in a standard 24-pin dual in-line package (DIP) and is optimized for data communication, industrial robotics, and legacy analog/digital subsystems.
The 315D5FR is a high-performance, precision-insert component designed for use with the 9150 Thermocouple Furnace. It features a D-type cylindrical insert configuration, specifically sized to accommodate probes with a diameter of 6 mm. This removable insert enables accurate temperature measurement in industrial and laboratory applications requiring consistent thermal profiling. The design supports easy replacement and maintenance, allowing users to expand or customize hole size compatibility without replacing the entire furnace system.
The 300FR series 3 watt power modules are specially designed to provide low output ripple and tight regulation in a low-profile 24 pin DIP package. The series consists of 20 models with input voltages of 5V, 12V, 24V and 48V, and offers regulated output voltages of 5V, 12V, 14V, ±12V and ±15. The -25o C to +71o C operating temperature range makes it ideal for data communication equipment, mobile battery driven equipment, distributed power systems, telecommunication equipment, mixed analog/digital subsystems, automatic test instrumentation and industrial robot systems.
