Product Specifications
• Two processor options: Celeron® 566 MHz or Pentium® III 700–1000 MHz
• Low Power Mobile CPUs
• Ultra-compact, all-in-one PC in one slot
• Multiple operating systems: Windows® 20000/XP, QNX, VxWorks®, Linux
• SDRAM up to 512 MB
• Enhanced IDE interface for Flash drive or local 2.5-in. hard disk
• Internal 3.5-in. floppy drive
• Optional DVI-D interface for LCD display, front-panel port
• PICMG 2.1 Hot Swap-compliant
• Front-panel PS/2 keyboard/mouse port
• VGA Controller that supports up to 1600 x 1200 resolutions
• 10/100 Mb/s front-panel Ethernet port
• IEEE 1284-compliant parallel port
• One or two front-panel opto-isolated serial I/O ports with
16- byte FIFOs, RS-232 or 422 interface
• Two front-panel USB ports
• Watchdog, temperature sensor
• manufactured by SBS Technologies / AMAT

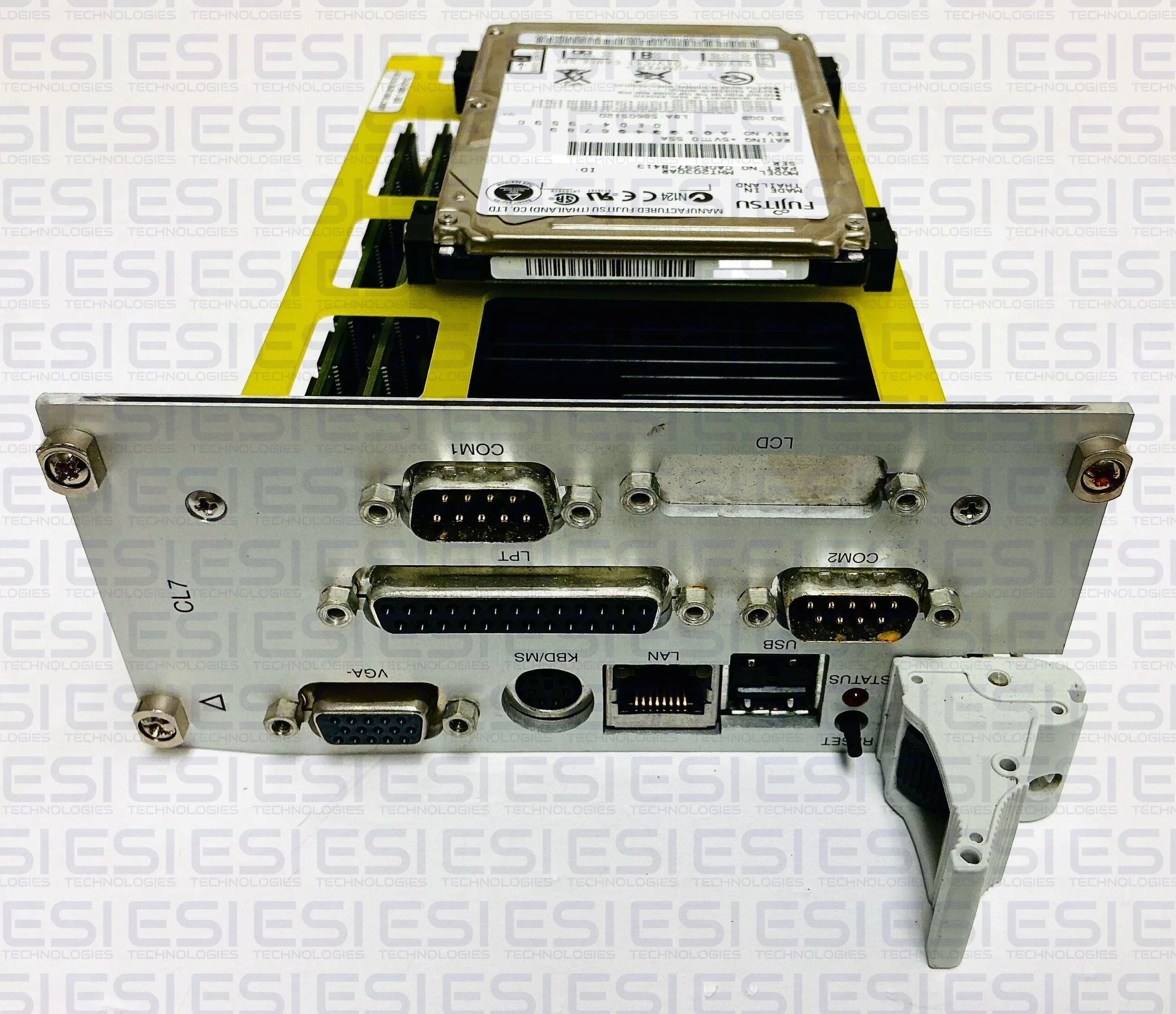

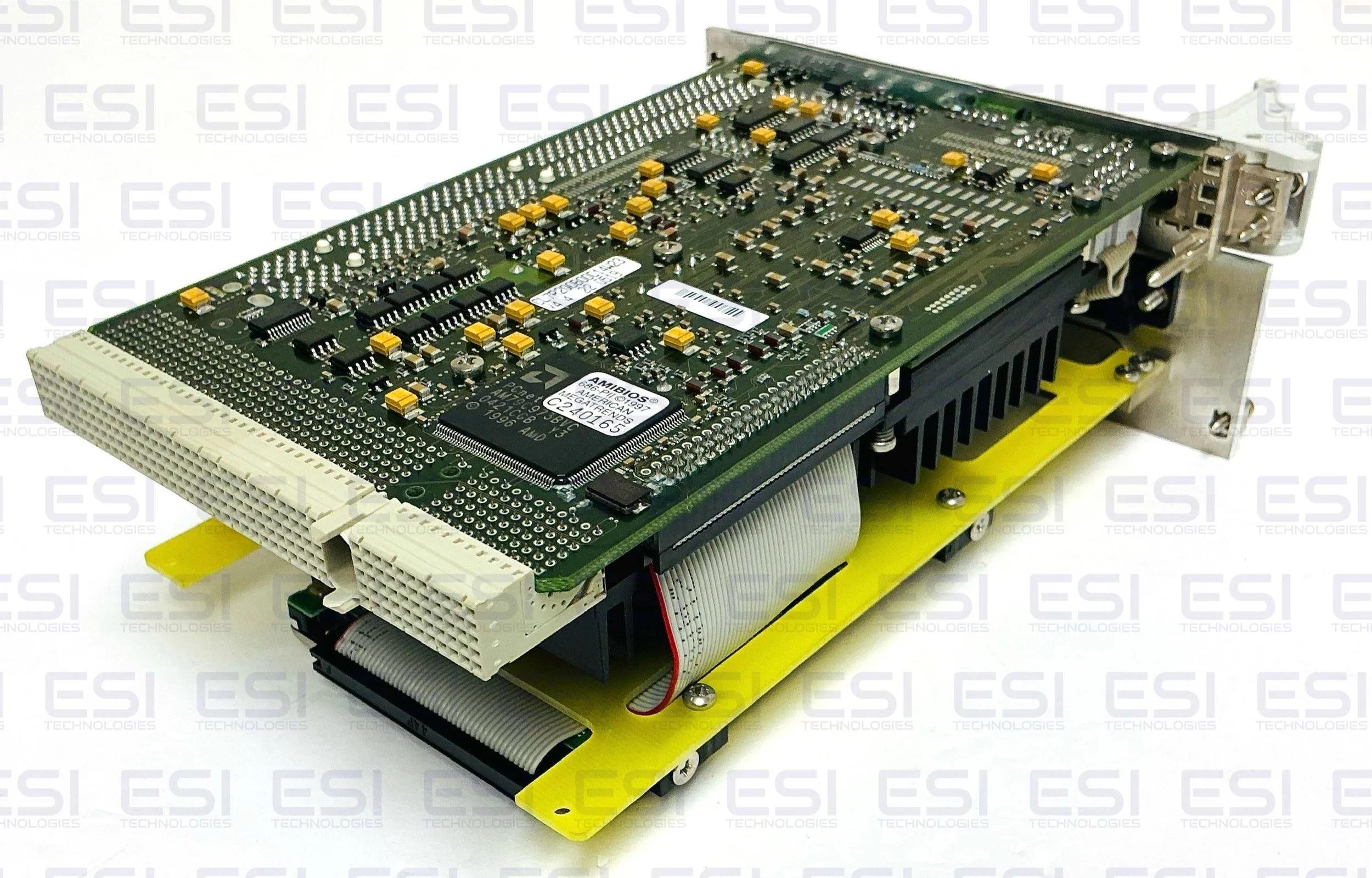

CL7 is a CompactPCI® all-in-one 3U single board computer designed to meet the needs of embedded applications in such areas as industrial automation, military and aerospace, scientific, medical, imaging, and telecommunication (high-bandwidth, broadband data or intelligent network switching). The CL7 supports such operating systems as Windows® 2000/XP, QNX, VxWorks® and Linux®. The ultra-compact all-in-one design offers value and flexibility with multiple processor and memory configurations, and an impressive array of on-board peripherals including a video interface, and Fast Ethernet. Couple this with customer-specific assembly service and the CL7 provides optimized price vs performance for all types of OEM applications. The CL7 offers rugged options for extreme environments with extended shock and vibration immunity and extended temperature range tolerance of up to -40°C to +70°C. Special features include two serial ports (COM1—RS-232, COM2—RS-232 or RS-422), video interface, IDE interface, USB interface, and optional LCD interface.
SKUE17
Qty 3

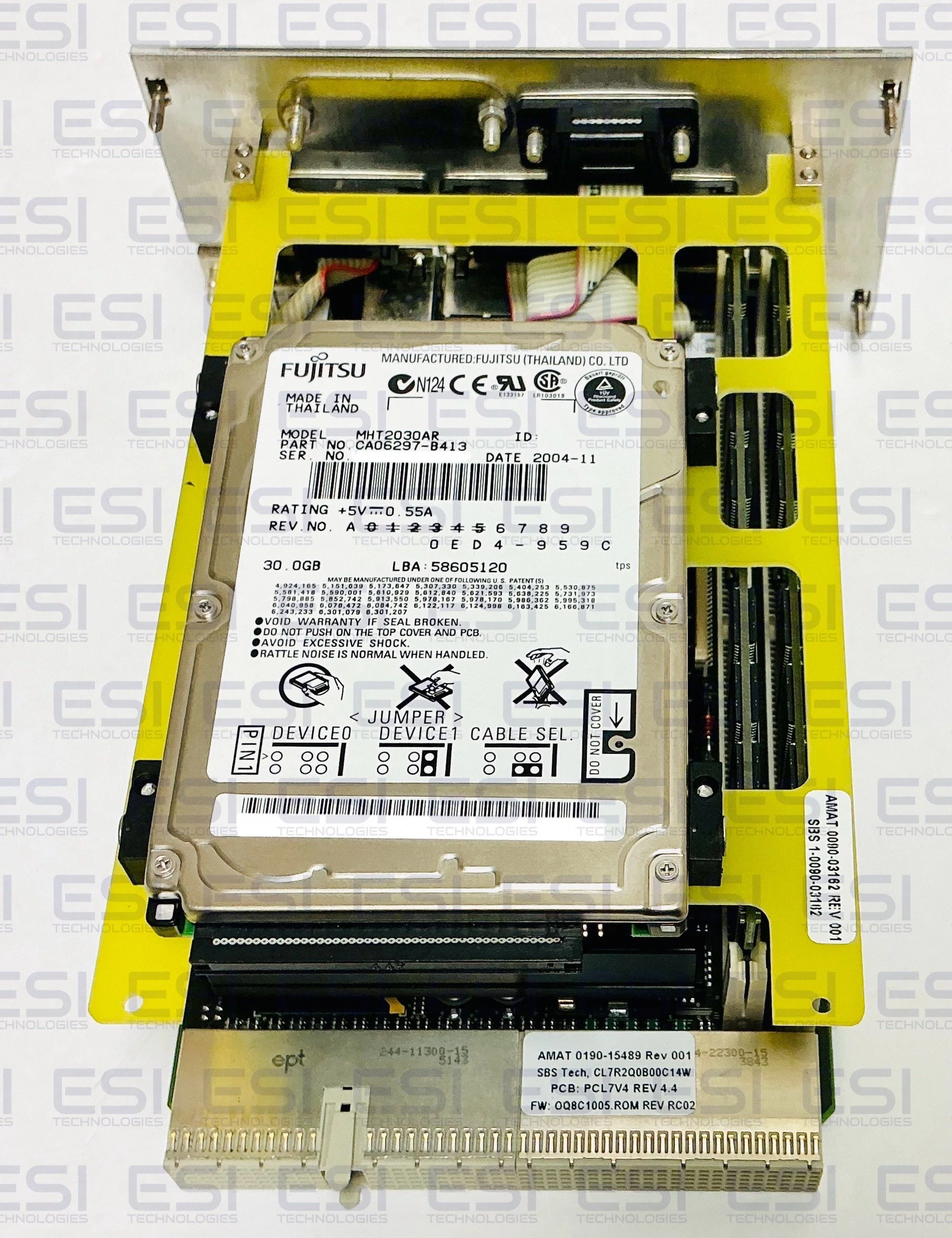

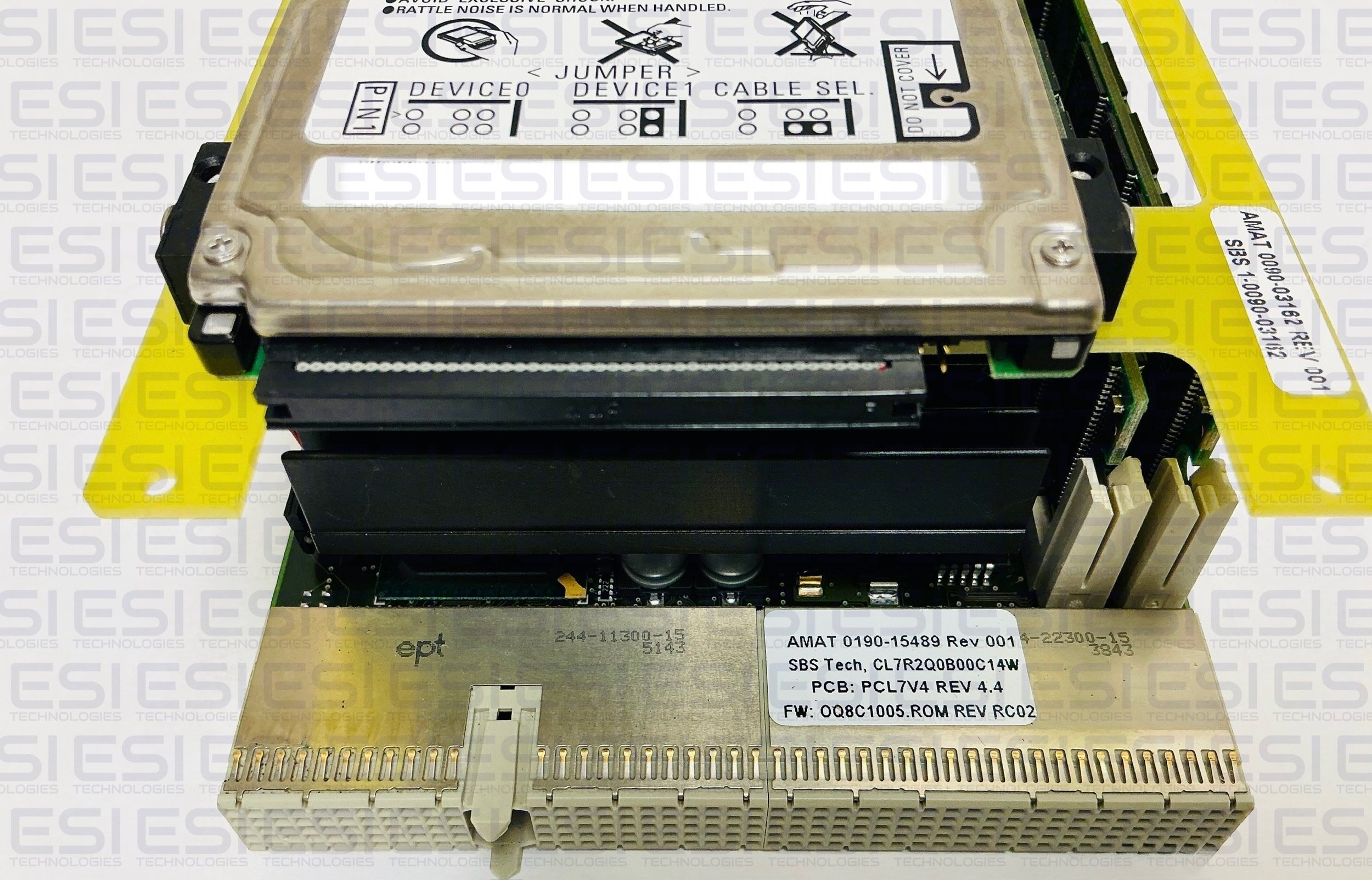

Alternative Part No. 0190-15489, 0090-03162, CL7R2Q0B00C14W, MHT2030AR, CA06297-B413
